序号

S/N

零件代号

Part No.

零件名称

Part Name

数量

Q’ty

备注

Remarks

1

4102GB-01-033

喷油泵齿轮

Fuel injection pump gear

1

2

GB/T5783

Bolt M12×22-8.8

1

3

GB93-1987

垫圈 12

Spring gasket 12

1

4

4100QB-01.02-002

惰齿轮挡圈

Idle gear retainer ring

1

5

4100QB

曲轴正时齿轮

Crankshaft timing gear

1

6

4100QBZ-080002

惰齿轮

Idle gear

1

7

4100QB-01.02-001

惰齿轮轴

Idle gear shaft

1

8

4100QB

02

01

惰齿轮衬套

dle gear bush

1

9

4100QB-02-002A

凸轮轴正时齿轮

Camshaft timing gear

1

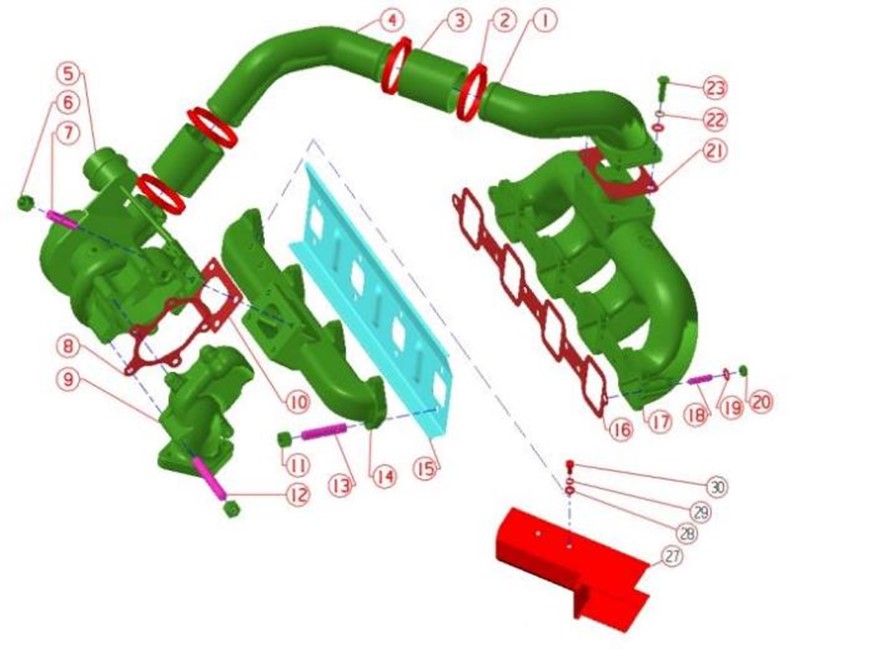

序号

零件代号

零件名称

Part Name

数量

备注

1

4100QBZ-08-003-III

增压进气接管 (II)

Intake manifold (II)

1

2

12MZ3040-2002

橡皮软管用环箍 3#

Clip N0.3

4

3

4100QBZ-08-005B

增压进气胶管

Transition rubber tube

2

4

4100QBZ-08-002-III

增压进气接管 (I)

Intake connecting pipe (I)

1

5

H60Z5207-07-1

增压器

Turbo-charger

1

6

4100QBZ-09-005

螺母

Nut

9

7

4100QBZ-09-006B

双头螺柱 L=22mm

Bolt L=22mm

4

8

4100QBZ-09.02-004

排气尾管法兰垫片

Flanged packing of exhausting tail pipe

1

9

4100QBZ-09.02-001-Ⅲ-HT

增压排气尾管

Turbocharger Exhaust tail pipe

1

10

4100QBZL-09-002A-FT

增压器燃气进口法兰垫片

Flange gasket, Turbo-charger burning gas intake

1

11

4100QBZ-09-005

螺母

Nut

8

12

4100QBZ-120003

双头螺柱 L=30mm

Bolt L=70mm

5

13

4100QBZ-120005

双头螺柱 L=45mm

Bolt L=45mm

7

4100QBZ-120002

双头螺柱 L=25mm

Bolt L=25mm

1

14

4100QBZ-09-001-III

增压排气管

Exhaust manifold

1

15

4100QBZL-09.01.01-G

排气防护板焊合件

Blind against exhausting

1

16

4100QB-03-029A

进气管垫片

Gasket, intake manifold

1

17

4100QBZ-08-001A

进气管

Intake manifold

1

18

GB898-88(AM8×20)

螺柱

Bolt

7

GB898-88(AM8×50)

螺柱

Bolt

1

19

GB97.1-85

垫圈 8

Washer 8

12

20

GB6170-2000

螺母 M8

Nut

8

21

4100QBZ-08-004

进气接管垫片

Intake connecting pipe gasket

1

22

GB93-87

垫圈 8

Washer 8

4

23

GB/T5783-2000

螺栓 M8×25

Bolt

4

27

4100QBZL-09.01.02A

排气防护板焊合件

Blind unit against exhausting

1

28

GB/97.1-2002

垫圈 6

Washer 6

6

29

GB93-87

垫圈 6

Spring washer 6

6

30

GB5783-86

螺栓 M6×16

Bolt M6×16

8

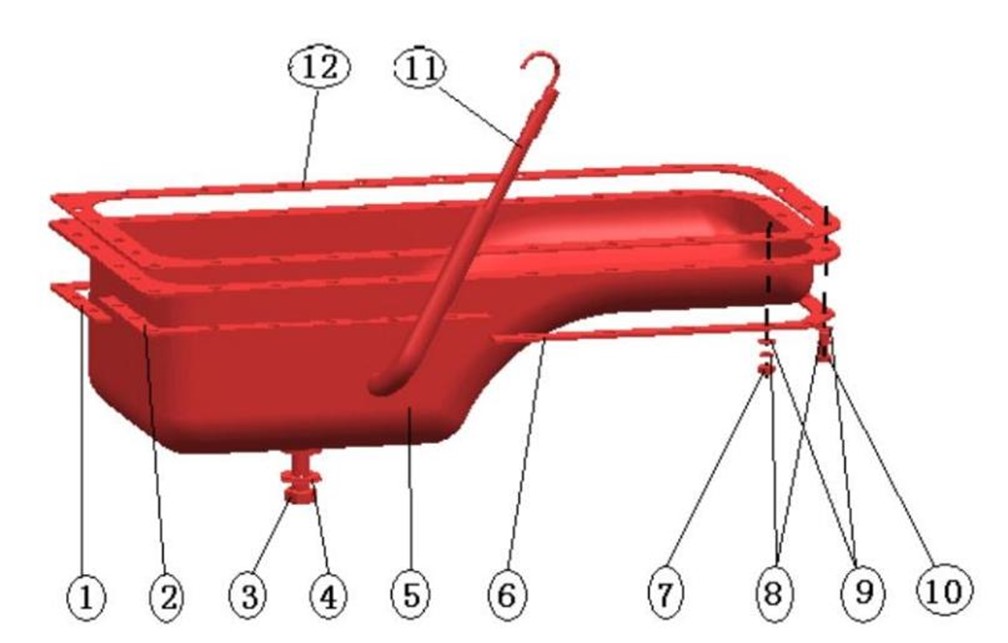

序号 S/N

零件代号

Part No.

零件名称

Part Name

数量 Q’ty

备注 Remarks

1

4100QB-0106D.01-009

加强板Ⅱ

Reinforced plateⅡ

1

2

4100QB

加强板Ⅲ

Reinforced plateⅢ

1

3

4100QB–1A-0106.01.01

放油螺塞组合件

Oil drain plug

1

4

GB89277

A 型组合垫圈 18

Combination washer

1

5

06F.01

油底壳焊合件

Oil sump welding

1

6

4100QB-01.06D.01-008

加强板 Ⅰ

Reinforced plate Ⅰ

2

7

GB/T6170-2000

螺母 M8

Nut M8

17

8

垫圈 8

Spring gasket 8

29

9

GB/T97.1-2002

垫圈 8

Gasket 8

29

10

GB/T5783-2000

螺栓 M8×20

Bolt M8×20

12

11

4102GB

油标尺合件

Dipstick seaming

1

12

4100QB-01-054A

油底壳垫片

Oil sump washer

1
