序号

Item

零件名称

零件名称

Part Name

数量

Q‘ty

备注

Remarks

1

GB/T5783-2000

螺栓

Bolt M8×20

1

2

GB/T5783-2000

螺栓

Bolt M8×35

1

3

GB93-1987

垫圈

Sping washer

4

4

GB/T97.1-2002

垫圈

Washer 8

2

5

GB/T96.1-2002

垫圈

Washer 8

1

6

4100QB-01-060

发电机调整架

Alternator bracket

1

7

GB/T6170-2000

螺母

Nut M8

3

8

4100QB-01-041

发电机支架垫圈

Washer, Alternator bracket

1

9

JFW15C1

发电机

Alternator M8

1

10

GB/T6170-2000

螺母

Nut M10

1

11

GB93-1987

垫圈

Sping washer10

2

12

GB/T97.1-2002

垫圈

Washer10

3

13

495QA-01-058C

螺栓

Bolt M10×130

1

14

4100QB-01.09A

发电机支架焊合件

Alternator bracket welding–on

1

15

4100QB-01-061A

发电机支架压紧套

Alternator bracket pressing bush

1

16

GB/T5782-2000

螺栓

Bolt M8×80

1

17

GB/T5782-2000

螺栓

Bolt M8×45

1

18

QDJ1409E–P-000W

起动机

Starter24V

1

19

GB898-88

螺柱

Bolt AM12×30-8.8

2

20

GB93-1987

垫圈

Sping washer12

2

21

GB/T6170-2000

螺母

Nut M12

2

22

GB/T5783-2000

螺栓

Bolt M10×20

1

序号

S/N

零件代号

Part No.

零件名称

Part Name

数量

Q’ty

备注

Remarks

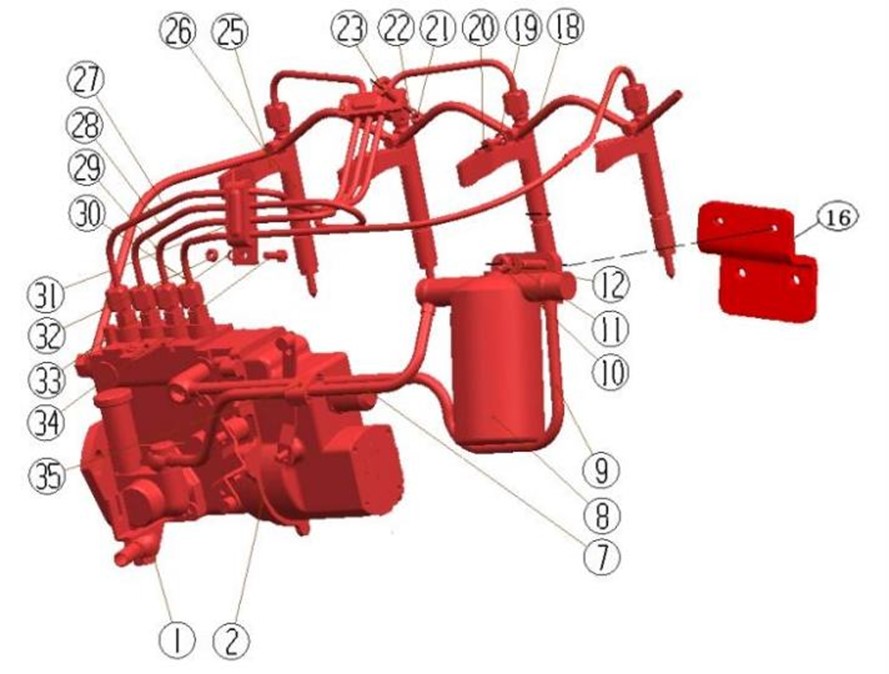

1

4100QB-11-001

圈形接头衬管

Oil inlet connector

1

2

4102GB-110013

喷油泵总成4QTD988

Injection pump assembly

1

7

4102GB-110020

柴滤器进油管

Fuel oil intake pipe

1

8

490Q(DI)-24000

柴油滤清器总成

Diesel filter assy

1

9

4102GB-110021

柴滤器出油管

Diesel filter outlet pipe

1

10

GB/T6170-2000

螺母 M8

Nut M8

4

11

GB/T97.1-2002

垫圈 8

Washer 8

4

12

GB898-88

螺柱 AM8×22

Stud AM8×22

4

16

4102GB-700005

柴滤支架

Diesel filter bracket

1

18

4100QBZL-11.05B

喷油嘴回油管总成

Oil returner pipe unit,injection nozzle

1

19

GB982-77

组合垫圈

Washer 6

8

20

4100QB-11-004-F

铰接螺栓 M6

Hingle bolt M6

4

21

GB/T6170-2000

螺母 M6

Nut M6

1

22

GB93-1987

垫圈 6

Spring washer 6

1

23

GB/T5783-2000

螺栓 M6×20

Bolt M6×20

1

25

YN33-11-002A

喷油器压板

Pressing plate of fuel injection pump

4

26

FPQ060

喷油器总成

Injector assy

4

27

4100QBZL-11.01B-001

Ⅰ缸高压油管

Ⅰ-cylinder high-pressure oil pipe

1

28

4100QBZL-11.01B-002

Ⅱ缸高压油管

Ⅱ-cylinder high-pressure oil pipe

1

29

4100QBZL-11.01B-003

Ⅲ缸高压油管

Ⅲ-cylinder high-pressure oil pipe

1

30

4100QBZL-11.01B-004

Ⅳ缸高压油管

Ⅳ-cylinder high-pressure oil pipe

1

31

4100QB-2-11.01.04-001

四缸管夹下夹板

4-cylinder pipe clip upper plate

1

4100QB-2-11.01.04-003

四缸管夹上夹板

4-cylinder pipe clip lower plate

1

4100QB-2-11.01.04-002

四缸管夹橡胶垫

4-cylinder pipe clip rubber sheet

2

32

GB/T6170-2000

螺母 M6

Nut M6

1

序号

S/N

零件代号

Part No

零件名称

Part Name

数量

Q’ty

备注

Remarks

33

GB93-1987

垫圈 6

Spring washer 6

1

34

GB/T5783-2000

螺栓 M6×20

Bolt M6×20

1

35

4100QB-11.07A

输油胶管夹

Fuel delivery rubber tube clamp

1

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q ‘ty

备注

Remarks

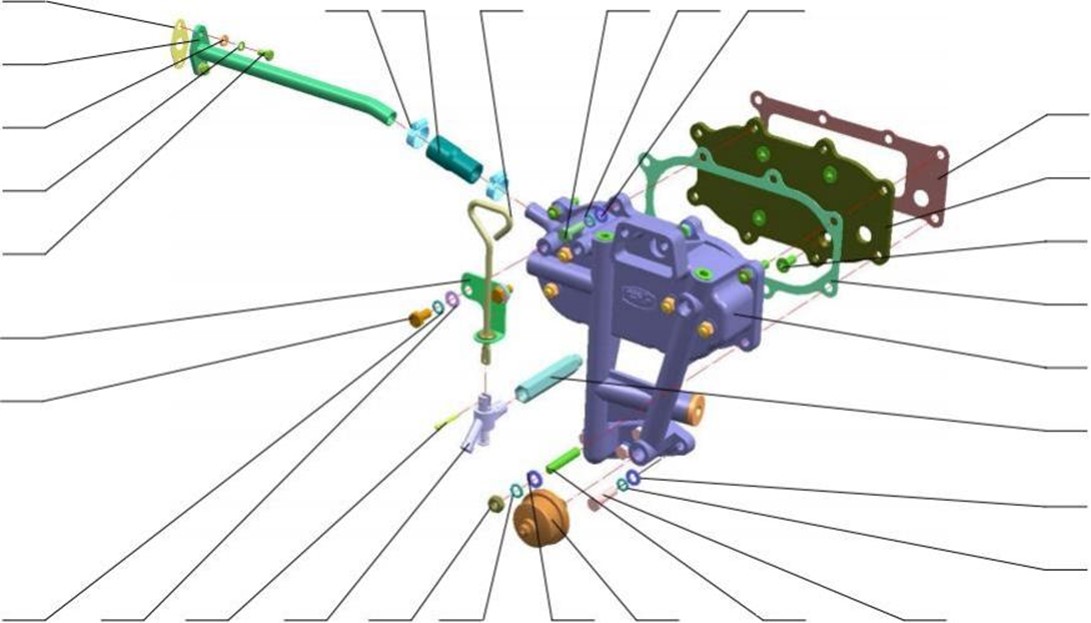

1

YN33-01.15-005

机冷器出水垫片

washer

1

2

YN33-01.15.03A.01

机冷器出水管焊合件

Exhaust pipe of cooler

1

3

GB/T97.1-2002

垫圈 6

Washer

2

4

GB93-1987

垫圈 6

Sping washer

2

5

GB/T5783-2000

螺栓 M6× 12

Bolt

2

6

4100QB-01.08.01

水阀操作杆支撑组合件

Water valve operation rod supporting assy

1

7

GB/T5783-2000

螺栓 M8× 16

Bolt

2

8

GB93-1987

垫圈 8

Sping washer

2

9

AG/T97.1-2002

垫圈 8

Washer

2

10

GB/T91-2000

销 GB–T91_3x25

Pin

1

11

4100Q(DI)-01110

开关部件

Drain valve assy

1

12

AG/T6170-2000

螺母 M8

Nut

4

13

CA10-12V

机油压力传感器

Oil pressure sensor

1

14

GB898-88

螺柱 AM8×35

Bolt

4

15

AG/T5783-2000

螺栓 M8×30

Bolt

4

16

4100QBZL-01.08-008

放水开关接管

Drain cock connector

1

17

YN33-01.15.01

机油冷却器总成

Oil cooler assy

1

18

4100QBZL-01.15-003

机冷器密封垫片

Oil cooler washer

1

19

AG/T819.1-2000

十字槽沉头螺钉

Cross–recessed countersunk screws

4

20

4100QBZL-01.15-002

机冷器连接板

Connecting board

1

21

4100QBZL-01.15-001

机冷器连接板垫片

Washer, connecting board

1

22

AG/T5783-2000

螺栓

Bolt

4

23

4102QB-01.08-001

水阀操作杆

Water valve operation rod

1

24

YN33-01.15-004

机冷器出水胶管

Exhaust pipe of cooler

1

25

QC–T619_Q67625

喉箍(不锈钢)

Clamp

2
