SHANTUI L20-B2 L20-C3 PARTS CATALOG 08
|
标号 Item |
零件代号 Part No |
零件名称 |
Part Name |
数量 Q‘ty |
备注 Remark |
|
24 |
29030008131 |
散热器至变速箱胶管 |
TO RADATOR PIPE |
1 |
|
|
25 |
29030008121 |
变矩器至散热器胶管 |
TO RADATOR PIPE |
1 |
|
|
26 |
4011000147 |
螺栓JB999-M27*2*55EpZn-35 |
BOLT JB999-M27*2*55-35 |
4 |
|
|
27 |
4030000062 |
垫圈JB1002-27-T2 |
SEALING WASHER JB1002-27-T2 |
8 |
|
|
28 |
4120000174 |
胶管JB8406-B19*900 |
HOSE JB8406-B19*900 |
1 |

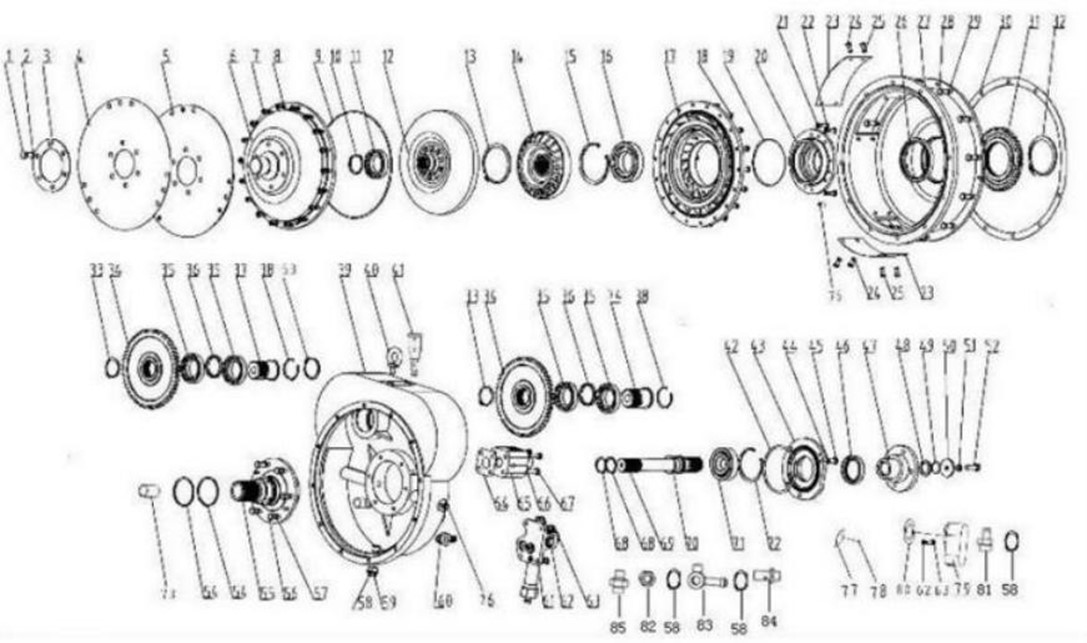

2.2
变矩器 YJ280-4DL(370804)
TORQUE
CONVERTER
YJ280-4DL(370804)
|
标号 Item |
零件代号 Part No |
零件名称 |
Part Name |
数量 Q‘ty |
备注 Remark |
|
1 |
4110000217083 |
螺栓 01010-51225 M12*25 |
BOLT01010-51225 M1*25 |
6 |
|
|
2 |
4110000011108 |
垫圈 12 01602-11236 |
WASHER 01602-11236 12 |
1 |
|
|
3 |
4110000011116 |
圆垫板 YB315Z5-04 |
RING PALLET YB315Z5-04 |
1 |
|
|
4 |
4110000217071 |
弹性板 YJ265-00002 |
ELASTIC PLATE YJ265-00002 |
1 |
|
|
5 |
4110000217072 |
弹性板总成 YJ265-10000 |
ELASTIC PLATE ASSEMBLY YJ265-10000 |
1 |
|
|
6 |
4110000217039 |
罩轮 1YJ280- 1C-00005 |
COVER WHEEL 1YJ280-1C-00005 |
1 |
|
|
7 |
4110000217079 |
螺母 01580- 10809 M8 |
NUT 01580- 10809 M8 |
18 |
|
|
8 |
4110000011087 |
垫圈 801602- 10825 |
WASHER 801602-10825 |
1 |
|
|
9 |
4030000616 |
O 形圈 GB3452.1-300*3.55G |
O–RING GB3452.1-290*3.55G |
1 |
|
|
10 |
4110000217073 |
挡圈 04064-05020 50 |
SNAP RING 04064-05020 50 |
1 |
|
|
11 |
4021000011 |
滚动轴承 GB276-6010 |
BALL BEARIN GB276-6010 |
1 |
|
|
12 |
4110000217005 |
涡轮组件 YJ2804A10000 |
TURBINE UNITS YJ2804A10000 |
1 |
|
|
13 |
4110000217074 |
挡圈 04064-05520 55 |
WASHER 04064-05520 55 |
1 |
|
|
14 |
4110000217075 |
导轮 YJ280-4A-00002 |
LEADING WHEEL YJ280-4A-00002 |
1 |
|
|
15 |
4015000241 |
挡圈 GB893.1- 110-65Mn |
SNAPP RING GB893.1- 110-65Mn |
1 |
|
|
16 |
4021000113 |
滚动轴承 GB276-6212 |
BALL BEARIN GB276-6212 |
1 |
|
|
17 |
4110000217042 |
泵轮 1YJ280-4A-00006(4) |
PUMP PULLEY 1YJ280-4A-00006(4) |
1 |
|
|
18 |
4110000217082 |
螺栓 01010-50835 M8*35 |
BOLT 01010-50835 M8*35 |
18 |
|
|
19 |
4030000010 |
O 形圈 GB1235- 130*3.1 |
O–RING GB1235- 130*3.1 |
1 |
|
|
20 |
4110000217022 |
泵轮座 YJ2804A00015 |
PUMP PULLEY SEAT YJ280-4A-00015 |
1 |
|
|
21 |
4110000011087 |
垫圈 801602- 10825 |
WASHER 801602-10825 |
1 |
|
|
22 |
4110000217081 |
螺栓 01010-50822 M8*22 |
BOLT 01010-50822 M8*22 |
8 |
|
|
23 |
4110000217054 |
盖板 1YJ280-4A-00007 |
COVER PLATE 1YJ280-4A-00007 |
2 |
|
|
24 |
4110000011086 |
螺栓 M8*16 01010-50816 |
BOLT M8*16 01010-50816 |
1 |
|
标号 Item |
零件代号 Part No |
零件名称 |
Part Name |
数量 Q‘ty |
备注 Remark |
|
25 |
4110000011087 |
垫圈 801602- 10825 |
WASHER 801602-10825 |
1 |
|
|
26 |
4110000217052 |
骨架油封 ZL30D– 11-54 100*120*13 |
FRAMEWORK OIL SEAL 0ZL30D– 11-54 |
1 |
|
|
27 |
4110000217040 |
中节 1YJ280-4A-00001 |
MEDIUM KNOT 1YJ280-4A-00001 |
1 |
|
|
28 |
4011000794 |
螺栓 GB21-M10*30EpZn– 10.9 |
BOLT GB21-M10*30EpZn– 10.9 |
12 |
|
|
29 |
4110000011097 |
垫圈 10 01602-11030 |
WASHER 10 01602- 11030 |
1 |
|
|
30 |
4110000217084 |
密封垫 YJ280-4A-00016 |
SEALING PLATE YJ280-4A-00016 |
1 |
|
|
31 |
4110000217045 |
齿轮 1YJ280-4DL-00001 |
DRIVE GEAR WHEEL 1YJ280-4DL-00001 |
1 |
|
|
32 |
4110000217061 |
挡圈 04064-01030 100 |
WASHER 04064-01030 100 |
1 |
|
|
33 |
4110000217063 |
挡圈 04064-05020 50 |
WASHER 04064-05020 50 |
2 |
|
|
34 |
4110000217046 |
齿轮 1YJ280-4DL-00002 |
GEAR 1YJ280-4DL-00002 |
2 |
|
|
35 |
4021000011 |
滚动轴承 GB276-6010 |
BALL BEARIN GB276-6010 |
4 |
|
|
36 |
4110000217085 |
轴套 YJ2804A00009 |
BOSS YJ2804A00009 |
2 |
|
|
37 |
4110000217024 |
油泵轴 YJ2804A00017 |
OIL PUMP SHAFT YJ2804A00017 |
2 |
|
|
38 |
4110000217065 |
挡圈 04064-08025 80 |
WASHER 04064-08025 80 |
2 |
|
|
39 |
4110000217019 |
齿轮箱 YJ2801C00001 |
GEAR CASE YJ2801C00001 |
1 |
|
|
40 |
4110000217067 |
吊环螺钉 04530- 11222 M12× 22 |
HANDLING SCREW 04530-11222 M12*22 |
1 |
|
|
41 |
4110000217068 |
直角接头 BD05N-01000 |
ANGLE COUPLING BD05N-01000 |
1 |
|
|
42 |
4030000010 |
O 形圈 GB1235- 130*3.1 |
O–RING GB1235- 130*3.1 |
1 |
|
|
43 |
4110000217028 |
油封座 YJ2801C00003 |
OIL SEAL SEAT YJ2801C00003 |
1 |
|
|
44 |
4110000011097 |
垫圈 10 01602-11030 |
WASHER 10 01602- 11030 |
1 |
|
|
45 |
4011000794 |
螺栓 GB21-M10*30EpZn– 10.9 |
BOLT GB21-M10*30EpZn– 10.9 |
3 |
|
|
46 |
4110000217027 |
骨架油封 0701220055 |
FRAMEWORK OIL SEAL 0701220055 |
1 |
|
标号 Item |
零件代号 Part No |
零件名称 |
Part Name |
数量 Q‘ty |
备注 Remark |
|
47 |
4110000217047 |
输出法兰 1YJ315D-00020B |
OUTPUT FLANGE 1YJ315D-00020B |
1 |
|
|
48 |
4110000217048 |
垫片 1YJ315D-00021B |
SHIM 1YJ315D-00021B |
1 |
|
|
49 |
4110000217036 |
O 形圈 0YJ315D-00022B |
O–RING 0YJ315D-00022B |
1 |
|
|
50 |
4110000217038 |
垫片 1YJ280- 1C-00004 |
SHIM 1YJ280-1C-00004 |
1 |
|
|
51 |
4110000011108 |
垫圈 12 01602-11236 |
WASHER 01602-11236 12 |
1 |
|
|
52 |
4110000217058 |
螺栓 01010-51235 M12× 35 |
BOLT 01010-51235 M12*35 |
1 |
|
|
53 |
4110000217064 |
挡圈 04064-05520 55 |
SNAP RING 04064-05520 55 |
1 |
|
|
54 |
4110000217051 |
密封环 0ZL30D– 11- 19 |
PACKING RING 0ZL30D– 11- 19 |
2 |
|
|
55 |
4110000217020 |
导轮座 YJ2804A00014 |
GUIDE PULLEY YJ2804A00014 |
1 |
|
|
56 |
4011000794 |
螺栓 GB21-M10*30EpZn– 10.9 |
BOLT GB21-M10*30EpZn– 10.9 |
6 |
|
|
57 |
4110000011097 |
垫圈 10 01602-11030 |
WASHER 10 01602- 11030 |
1 |
|
|
58 |
4015000122 |
垫圈 JB982-24 |
WASHER JB982-24 |
4 |
|
|
59 |
4110000217034 |
螺塞 07044- 12412A |
PLUG SCREW 07044- 12412A |
1 |
|
|
60 |
4110000217018 |
接头 YJ2804C00007 |
JOINT YJ2804C00007 |
1 |
|
|
61 |
4110000217001 |
阀 YJ320-10000 |
REDUCING VALVE YJ320- 10000 |
1 |
|
|
62 |
4110000011097 |
垫圈 10 01602-11030 |
WASHER 10 01602- 11030 |
1 |
|
|
63 |
4110000217056 |
螺栓 01010-51025 M10*25 |
BOLT 01010-51025 M10*25 |
4 |
|
|
64 |
4110000217037 |
纸垫 1YJ265-00012 |
PAPER WASHER 1YJ265-00012 |
1 |
|
|
65 |
4110000217023 |
回油阀 YJ26540000 |
OIL RETURN VALVE YJ26540000 |
1 |
|
|
66 |
4110000217057 |
螺栓 01010-51095 M10*95 |
BOLT 01010-51095 M10*95 |
4 |
|
|
67 |
4110000011097 |
垫圈 10 01602-11030 |
WASHER 10 01602- 11030 |
1 |
|
|
68 |
4110000217062 |
挡圈 04064-03818 38 |
WASHER 04064-03818 38 |
1 |
|
|
69 |
4110000217006 |
涡轮轴 YJ2801C00002 |
TURBOSHAFT YJ2801C00002 |
1 |
|
|
70 |
4110000217069 |
密封环 YJ265-00014 |
PACKING RING YJ265-00014 |
1 |
|
|
71 |
4021000021 |
滚动轴承 GB276-6308 |
ROLLING BEARING GB276-6308 |
1 |
|
标号 Item |
零件代号 Part No |
零件名称 |
Part Name |
数量 Q‘ty |
备注 Remark |
|
72 |
4110000217066 |
挡圈 04065-09030 90 |
SNAP RING 04065-09030 90 |
1 |
|
|
73 |
7200000842 |
分油套 YJ280-4A-00011 |
OIL–SEPARATING BARGE COWL YJ280-4A-00011 |
1 |
|
|
74 |
4110000217043 |
油泵轴 1YJ280-4A-00010X① |
OIL PUMP SHAFT 1YJ280-4A-00010X① |
1 |
|
|
75 |
4110000084064 |
定位销 1ZL30D– 11-22 |
SET PIN |
4 |
|
|
76 |
4110000217033 |
螺塞 07043-00312 |
PLUP SCREW 07043-00312 |
2 |
|
|
77 |
4110000217086 |
标牌 YJ280-1DL–BP |
BRAND |
1 |
|
|
78 |
7200000846 |
铆钉 3*6 04418-03060 |
RIVET 3*6 04418-03060 |
4 |
|
|
79 |
4110000217087 |
变速泵 CB–FA25-FL–X |
SHIFT PUMP CB–FA25-FL–X |
1 |
|
|
80 |
4110000217050 |
垫 1YJ380Q-00021 |
CUSHION 1YJ380Q-00021 |
1 |
|
|
81 |
4110000217088 |
接头 ZL15C-00004L |
POINT ZL15C-00004L |
1 |
|
|
82 |
4110000218081 |
螺母 ZL15A-00013 |
NUT ZL15A-00013 |
1 |
|
|
83 |
4110000218071 |
接头 ZL15C-30000 |
JOINT ZL15C-30000 |
1 |
|
|
84 |
4110000218069 |
接管 ZL15C-00005 |
PIPING ZL15C-00005 |
1 |
|
|
85 |
4110000218066 |
管接头 ZL15A-00015 |
PIPE JOINT ZL15A-00015 |
1 |
