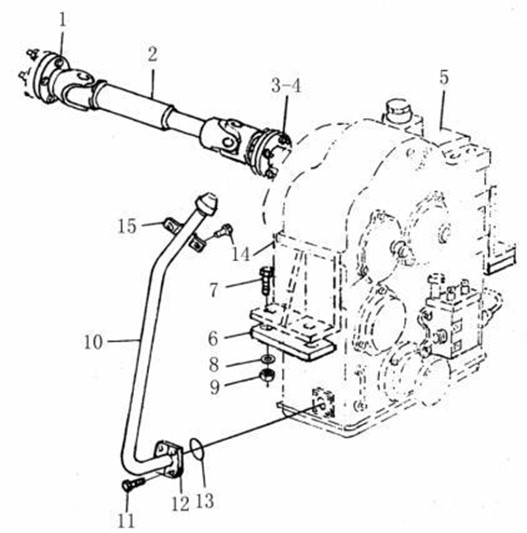

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

1

29050006521

螺栓

BOLT

4

2

29050006531

主传动轴

MAIN DRIVE ASS‘Y

1

3

29050006541

螺栓

BOLT

4

4

4013000072

螺母 GB889.2-M12*1.25EpZn– 10

NUT GB889.2-M12*1.25EpZn– 10

8

5

4110000218

变速箱 BD05N1

TRANSMISSION ASS‘Y BD05N1

1

6

29050006551

橡胶垫

RUBBER SPACER

2

7

4011000499

螺栓 GB5785-M16*1.5*70EpZn-8.8

BOLT GB5785-M16*1.5*70EpZn-8.8

4

8

4015000181

垫圈 GB97.1- 16EpZn-300HV

WASHER GB97.1-16EpZn-300HV

4

9

4013000129

螺母 GB889 2-M16*1 5EpZn-8

NUT GB6170-M16EpZn-8

4

10

29050006562

加油管

ELBOW PIPE

1

11

4011000481

螺栓 GB16674-M8*30EpZn-8.8

BOLT GB16674-M8*30Ep.Zn-8.8

4

12

29050006571

压盖

COVER

1

13

4030000152

O 形圈 GB3452.1-25.0*2.65G

O–RING GB3452.1-25*2.65G

1

14

4011000461

螺栓 GB16674-M8*16EpZn-8.8

BOLT GB16674-M8*16EpZn-8.8

2

15

29050006581

管夹

CLAMP

1

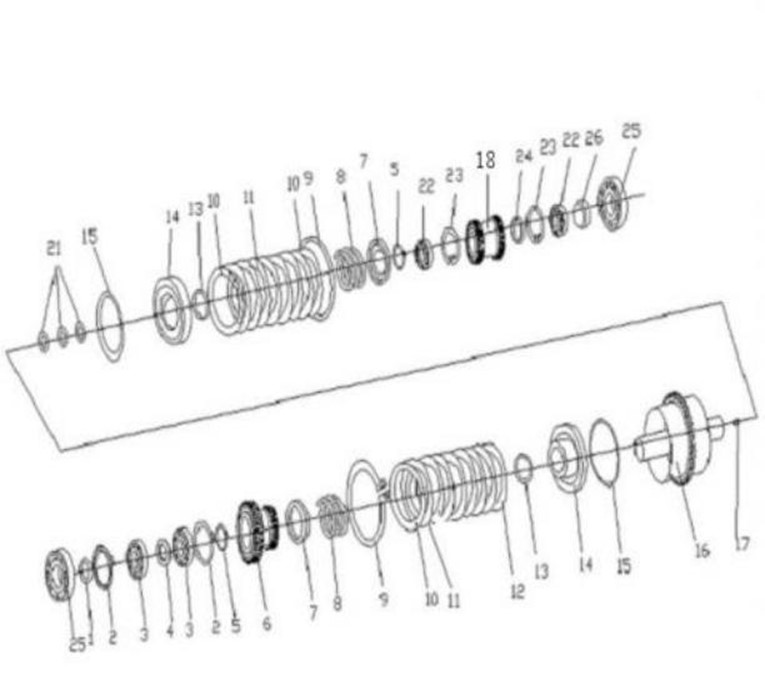

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注

Remark

1

4110000218029

挡圈 BD05-01012

SNAP RING BD05-01012

1

2

4021000190

止动环 GB305-80/86.6

SNAP RING GB305-80/86.6

2

3

4021000170 P

轴承 GB276-6208N

BEARING GB276-6208N

2

4

4110000218028

挡圈 BD05-01001

SNAP RING BD05-01001

1

5

4015000046

挡圈 GB894.1-50-65Mn

SNAP RING GB894.1-50-65Mn

2

6

4110000218016

齿轮 BD05-01002

GEAR BD05-01002

2

7

4110000218023

弹簧支承座 BD05-01010

SPRING SEAT BD05-01010

2

8

4110000218077

离合器弹簧 BD05-01005

CLUTCH SPRING BD05-01005

2

9

4015000300

挡圈 GB893.1- 150-65Mn

SNAP RING GB893.1- 150-65Mn

2

10

4110000218078

离合器活塞压板 BD05-01003

CLUTCH PISTONG PLATE BD05-01003

2

11

4110000218036

垫板 BD05-01004

FILLER BD05-01004

8

12

4110000218095

磨擦片 BD05-01300

WEARING PLATE BD05-01300

8

13

4030000035

O 形圈 GB3452.1-53.0*5.30G

O–RING GB3452.1-53.0*5.30G

2

14

4110000218068

活塞 BD05-01101

PISTONG BD05-01101

2

15

4110000218094

密封环 BD05-01103

SEAL RING BD05-01103

2

16

4110000218096

前进低档离合器壳体 BD05-01200

GO FORWARD LOW–END CLUTCH SHELL BD05-01200

1

17

4110000218085

停用–螺塞 07043-00108

PLUG SCREW 07043-00108

2

18

4110000218017

齿轮 BD05-01006

GEAR BD05-01006

1

19

kongbai kongbai

0

20

kongbai kongbai

0

21

4110000218093

密封环 BD05-01008

SNAP RING BD05-01008

3

22

4021000009

滚动轴承 GB276-6008

BEARING GB276-6008

2

23

4015000199

挡圈 GB893.1-68-65Mn

SNAP RING GB893.1-68-65Mn

2

24

4110000218024

挡环 BD05-01007

BAFFLE RING BD05-01007

1

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注

Remark

25

4021000021

滚动轴承 GB276-6308

ROLLING BEARING GB276-6308

2

26

4110000218025

挡环 BD05-01009

BAFFLE RING BD05-01009

1
