标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

1

29070006521

车轮总成

ROAD WHEEI ASS‘Y

4

2

29090007991

A506 后驱动桥总成

A506 REAR AXLE ASS‘Y

1

3

4011000848

螺栓 GB5785-M20*1.5*185EpZn-8.8

BOLT GB5785-M20*1.5*185EpZn-8.8

1

4

4013000160

螺母 GB889.2-M20*1.5EpZn-8

NUT GB889.2-M20*1.5 EpZn-8

16

5

29070010001

A506 前驱动桥总成

A506 FRONT AXLE ASS‘Y

1

6

29080006531

后传动轴

REAR MOTION SHAFT

1

7

29080001031

螺栓

BOLT

4

8

29080007561

止动垫圈

LOCKING LEFT

2

9

29050006531

主传动轴

MAIN DRIVE ASS‘Y

1

10

4013000072

螺母 GB889.2-M12*1.25EpZn– 10

NUT GB889.2-M12*1.25EpZn– 10

18

11

4011000568

螺栓 GB5786-M12*1.25*40EpZn– 10.9

BOLT

GB5786-M12*1 25*40EpZn– 10 9

2

12

4015000168

垫圈 GB97.1-12EpZn-300HV

WASHER GB97.1-12EpZn-300HV

2

13

29080006521

前传动轴

FRONT MOTION SHAFT

1

14

29050006541

螺栓

BOLT

16

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

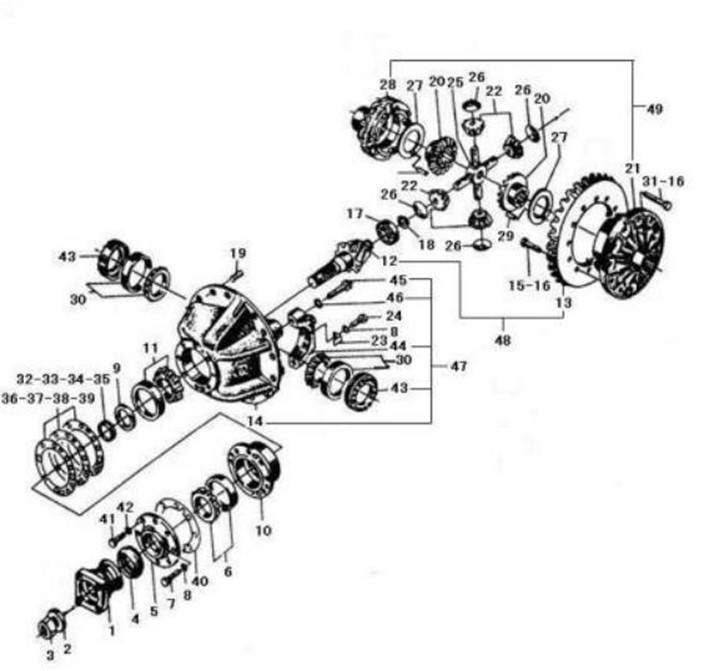

1

29070010041

输入法兰

INPUT PLANGE

1

2

29070010521

垫圈

WASER

1

3

4013000042

螺母 GB6171-M24*2EpZn-8

NUT GB6171-M24*2EpZn-8

1

4

4030000537

旋转轴唇形密封圈 GB9877.1-FB60*85*8D

LIP–TYPE PACKING

GB9877.1-FB60*85*8D

1

5

29070010071

密封盖

SEALING COVER

1

6

4021000132

滚动轴承 GB297-31309

BEARING GB297-31309

1

7

4011000048

螺栓 GB5782-M10*50EpZn-8.8

BOLT GB5782-M10*50EpZn-8.8

1

8

4015000025

垫圈 GB93-10-65Mn

WASHER GB93- 10-65Mn

3

9

29070010081

轴套

SHAFT SLEEVE

1

10

29070010091

轴承套

BEARING SEAT

1

11

4021000028

滚动轴承 GB297-31310

BEARING GB297-31310

1

12

29070010101

主动螺旋伞齿轮(左)

SPIRAL BEVEL GEAR PINION (LEFT)

1

13

29070010111

从动螺旋伞齿轮(右)

SPIRAL BEVEL GEAR SLAVE (RIGHT)

1

14

29070010311

托架

BEARER

1

15

4011000599

螺栓 GB5786-M12*1.25*30EpZn– 10.9

BOLT GB5786-M12*1.25*30EpZn– 10.9

12

16

29070010131

垫圈

WASHER

20

17

4021000133

滚动轴承 GB283-NUP2305

BEARING GB283-NUP2305

1

18

4015000130

挡圈 GB894.1-25-65Mn

RING SNAP GB894.1-25-65Mn

1

19

4016000124

销 GB119.2- 10u8*30

PIN GB119.2- 10u8*30

2

20

29070010141

半轴齿轮

AXLE SHAFT GEAR

2

21

29070010151

差速器左壳

LEFT CASE DIFF

1

22

29070010161

锥齿轮

ANGEL GEAR

4

23

3050900024

锁紧片

STAY

2

24

4011000597

螺栓 GB5786-M10*1*20EpZn-8.8

BOLT GB5786-M10*1*20EpZn-8.8

2

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

25

29070010171

十字轴

CROSS AXLE

1

26

29070010181

锥齿轮垫片

ANGEL GEAR WASHER

4

27

29070010191

半轴齿轮垫片

HALF AXLE GEAR WASHER

2

28

29070010201

差速器右壳

RIGHT CASE DIFF

1

29

29070010211

固定销

FIXED PIN

4

30

4021000134

滚动轴承 GB297-32212

BEARING GB297-32212

2

31

4011000699

螺栓 GB5785-M12*1.25*50EpZn– 10.9

BOLT GB5785-M12*1.25*50EpZn– 10.9

8

32

29070010221

调整垫片

ADJUSTING SHIM

2

33

29070010231

调整垫片

ADJUSTING SHIM

2

34

29070010241

调整垫片

ADJUSTING SHIM

3

35

29070010251

调整垫片

ADJUSTING SHIM

3

36

29070010261

调整垫片

ADJUSTING SHIM

1

37

29070010271

调整垫片

ADJUSTING SHIM

3

38

29070010281

调整垫片

ADJUSTING SHIM

4

39

29070010291

调整垫片

ADJUSTING SHIM

5

40

29070010301

密封垫片

SEAL WASHER

1

41

4011000064

螺栓 GB5782-M12*50EpZn-8.8

BOLT GB5782-M12*50EpZn-8.8

7

42

4015000026

垫圈 GB93-12-65Mn

WASHER GB93- 12-65Mn

7

43

29070010321

调整螺母

ADJUSTING NUT

2

44

29070010331

轴承座

BEARING BLOCK

2

45

4011000231

螺栓 GB5782-M16*70EpZn-8.8

BOLT GB5782-M16*70EpZn-8.8

4

46

29070009511

垫圈

WASHER

4

47

29070010121

托架总成

BEARER ASSEMBLY

1

48

2190900117

前主从动螺旋伞齿轮

FRONT SPIRAL BEVEL GEAR PINION

1

49

2190900118

差速器壳

CASE DIFF

1

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

1

29070010041

输入法兰

INPUT PLANGE

1

2

29070010521

垫圈

WASER

1

3

4013000042

螺母 GB6171-M24*2EpZn-8

NUT GB6171-M24*2EpZn-8

1

4

4030000537

旋转轴唇形密封圈 GB9877.1-FB60*85*8D

LIP–TYPE PACKING

GB9877.1-FB60*85*8D

1

5

29070010071

密封盖

SEALING COVER

1

6

4021000132

滚动轴承 GB297-31309

BEARING GB297-31309

1

7

4011000048

螺栓 GB5782-M10*50EpZn-8.8

BOLT GB5782-M10*50EpZn-8.8

1

8

4015000025

垫圈 GB93-10-65Mn

WASHER GB93-10-65Mn

3

9

29070010081

轴套

SHAFT SLEEVE

1

10

29070010091

轴承套

BEARING SEAT

1

11

4021000028

滚动轴承 GB297-31310

BEARING GB297-31310

1

12

29090008011

主动螺旋伞齿轮(右)

SPIRAL BEVEL GEAR PINION (RIGHT)

1

13

29090008031

从动螺旋伞齿轮(左)

SPIRAL BEVEL GEAR SLAVE (LEFT)

1

14

29070010311

托架

BEARER

1

15

4011000599

螺栓 GB5786-M12*1.25*30EpZn– 10.9

BOLT GB5786-M12*1.25*30EpZn– 10.9

12

16

29070010131

垫圈

WASHER

20

17

4021000133

滚动轴承 GB283-NUP2305

BEARING GB283-NUP2305

1

18

4015000130

挡圈 GB894.1-25-65Mn

RING SNAP GB894.1-25-65Mn

1

19

4016000124

销 GB119.2- 10u8*30

PIN GB119.2- 10u8*30

2

20

29070010141

半轴齿轮

AXLE SHAFT GEAR

2

21

29070010151

差速器左壳

LEFT CASE DIFF

1

22

29070010161

锥齿轮

ANGEL GEAR

4

23

3050900024

锁紧片

STAY

2

24

4011000597

螺栓 GB5786-M10*1*20EpZn-8.8

BOLT GB5786-M10*1*20EpZn-8.8

2
