SHANTUI L20-B2 L20-C3 PARTS CATALOG 16

Meppon Co., Ltd Posted on by

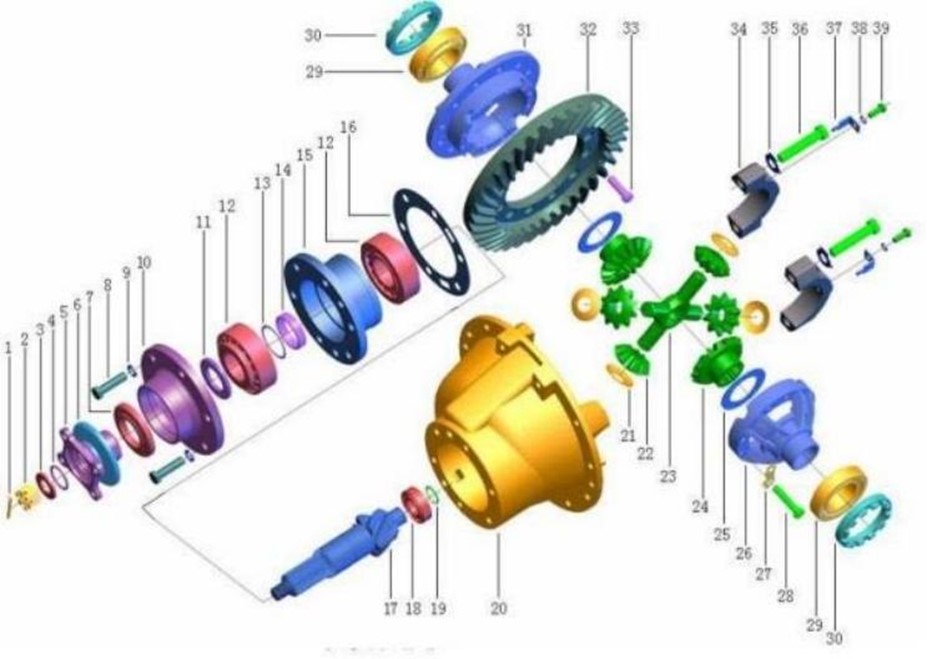

4.11
主减速器总成(前桥) FINAL
DRIVE
ASSEMBLY
(FRONT
AXLE)

















标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

1

4016000261

销 GB91-3.2*40EpZn–Q235A

PIN GB91-3.2*40EpZn–Q235A

1



2

28809028560311

开槽螺母 M20*1.5 ZL15F.2.5.1- 14

NOTCH NUT M20*1.5 ZL15F.2.5.1-14

1



3

7200000172

垫圈 ZL15F.2.5.1- 12

WASHER ZL15F.2.5.1- 12

1



4

28809028560131

O 形圈 36*4.5 ZL15F.2.5.1- 13

O–RING 36*4.5 ZL15F.2.5.1- 13

1



5

28809028560381

输入法兰 ZL15F.2.5.1-8Q

INPUT FLANGE ZL15F.2.5.1-8Q

1



6

28809028560271

防尘罩 ZL15F.2.5.1- 11

DUST SHROUD ZL15F.2.5.1- 11

1



7

28809028560441

油封 FB 47*84*12.5 ZL15F.2.5.1- 10

TAPER DRIVE GEAR SEAL FB 47*84*12.5 ZL15F.2.5.1- 10

1



8

4011000843

螺栓 GB5786-M12*1.25*45EpZn– 10.9

BOLT GB5786-M12*1.25*45EpZn– 10.9

6



9

4015000026

垫圈 GB93-12-65Mn

WASHER GB93-12-65Mn

6



10

28809028560461

轴承盖 ZL15F.2.5.1-7D

BEARING COVER ZL15F.2.5.1-7D

1



11

28809028560451

止推垫圈 φ65* φ37*6 ZL15F.2.5.1-6

THRUST WASHER Φ65*Φ37*6 ZL15F.2.5.1-6

1



12

7200000138

轴承 GB297-32309

BEARING GB297-32309

2



13

7200000209

轴承调整垫片 ZL15F.2.5.1-4

WASHER ZL15F.2.5.1-4

1



14

7200000211

轴承隔套 ZL15F.2.5.1-3

BEARING ISOLATED BUSHING ZL15F.2.5.1-3

1



15

28809028560471

轴承套 ZL15F.2.5.1-2D

BEARING SEAT ZL15F.2.5.1-2D

1



16

7200000173

调整垫片 ZL15F.2.5- 1

WAHSER ZL15F.2.5- 1

1



17

28809028560511

主动锥齿轮(左) Z=6 ZL15F.2.5.1- 1A

DRIVE BEVEL GEAR (LEFT) Z=6 ZL15F.2.5.1- 1A

1



18

4021000206

滚动轴承 GB283-NF205

BEARING GB283-NF205

1



19

4015000130

挡圈 GB894.1-25-65Mn

RING SNAP GB894.1-25-65Mn

1



20

28809028560491

主减壳 ZL15F.2.5-8A

FINAL DRIVE HOUSING ZL15F.2.5-8A

1



21

28809028560421

行星齿轮垫 ZL15F.2.5- 12

PLANET GEAR WASHER ZL15F.2.5- 12

4



22

28809028560411

行星齿轮 Z=10 ZL15F.2.5- 13

PLANET GEAR Z=10 ZL15F.2.5- 13

4



23

28809028560431

行星齿轮轴 ZL15F.2.5- 11A

PLANET GEAR SHAFT ZL15F.2.5- 11A

1



24

28809028560141

半轴齿轮 Z=16 ZL15F.2.5- 14

AXLE SHAFT GEAR Z=16 ZL15F.2.5- 14

2

















标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

25

28809028560151

半轴齿轮垫 ZL15F.2.5- 15

AXLE SHAFT GEAR WASHER ZL15F.2.5- 15

2



26

28809028560171

差速器右壳 ZL15F.2.5- 10

DIFF. RIGHT CASE ZL15F.2.5- 10

1



27

28809028560281

防松垫片 ZL15F.2.5- 17

LOCK PLATE ZL15F.2.5- 17

4



28

28809028560161

差速器壳螺栓 M10*50 ZL15F.2.5- 16

DIFF. CASE BOLT M10*50 ZL15F.2.5- 16

8



29

7200000139

轴承 GB297-32210

BEARING GB297-32210

2



30

7200000174

调整螺母 ZL15F.2.5-9

AJUSTING NUT ZL15F.2.5-9

2



31

28809028560181

差速器左壳 ZL15F.2.5-3

DIFF. LEFT CASE ZL15F.2.5-3

1



32

28809028560221

从动锥齿轮(右) Z=35 ZL15F.2.5-7A

DRIVEN BEVEL GEAR (RIGHT)Z=35

ZL15F.2.5-7A

1



33

7200000190

铆钉 ZL15F.2.5-4

RIVET ZL15F.2.5-4

12



34

7200000166

差速器轴承盖 ZL15F.2.5-2

DIFFERENTIAL MECHANISM BEARING CAP ZL15F 2 5-2

2



35

28809028560401

锁片 ZL80-06.5.2-7

LOCK PLATE ZL80-06.5.2-7

4



36

4011000844

螺栓 GB5785-M14*1.5*70- 10.9

BOLT GB5785-M14*1.5*70- 10.9

4



37

28809028560251

调整螺母锁片 ZL15F.2.5- 18 ADJUST

NUT LOCK PLATE ZL15F.2.5- 18

2



38

4015000036

垫圈 GB93-8-65Mn

WASHER GB93-8-65Mn

2



39

4011000841

螺栓 GB5783-M8*16- 10.9

BOLT GB5783-M8*16- 10.9

2















4.12
主减速器总成(后桥) FINAL
DRIVE
ASSEMBLY
(REAR
AXLE)















标号 Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注

Remark

1

4016000261

销 GB91-3.2*40EpZn–Q235A

PIN GB91-3.2*40EpZn–Q235A

1



2

28809028560311

开槽螺母 M20*1.5 ZL15F.2.5.1- 14

NOTCH NUT M20*1.5 ZL15F.2.5.1- 14

1



3

7200000172

垫圈 ZL15F.2.5.1- 12

WASHER ZL15F.2.5.1- 12

1



4

28809028560131

O 形圈 36*4.5 ZL15F.2.5.1- 13

O–RING 36*4.5 ZL15F.2.5.1-13

1



5

28809028560381

输入法兰 ZL15F.2.5.1-8Q

INPUT FLANGE ZL15F.2.5.1-8Q

1



6

28809028560271

防尘罩 ZL15F.2.5.1- 11

DUST SHROUD ZL15F.2.5.1- 11

1



7

28809028560441

油封 FB 47*84*12.5 ZL15F.2.5.1- 10

TAPER DRIVE GEAR SEAL FB 47*84*12.5 ZL15F.2.5.1-10

1



8

4011000843

螺栓 GB5786-M12*1.25*45EpZn– 10.9

BOLT GB5786-M12*1.25*45EpZn– 10.9

6



9

4015000026

垫圈 GB93-12-65Mn

WASHER GB93-12-65Mn

6



10

28809028560461

轴承盖 ZL15F.2.5.1-7D

BEARING COVER ZL15F.2.5.1-7D

1



11

28809028560451

止推垫圈φ65*φ37*6 ZL15F.2.5.1-6

THRUST WASHER Φ65*Φ37*6 ZL15F.2.5.1-6

1



12

7200000138

轴承 GB297-32309

BEARING GB297-32309

2



13

7200000209

轴承调整垫片 ZL15F.2.5.1-4

WASHER ZL15F.2.5.1-4

1



14

7200000211

轴承隔套 ZL15F.2.5.1-3

BEARING ISOLATED BUSHING ZL15F.2.5.1-3

1



15

28809028560471

轴承套 ZL15F.2.5.1-2D

BEARING SEAT ZL15F.2.5.1-2D

1



16

7200000173

调整垫片 ZL15F.2.5- 1

WAHSER ZL15F.2.5- 1

1



17

28809028560481

主动锥齿轮 (右) Z=6 ZL15F.2.5.1- 1B

DRIVE BEVEL GEAR (RIGHT) Z=6

ZL15F.2.5.1- 1B

1



18

4021000206

滚动轴承 GB283-NF205

BEARING GB283-NF205

1



19

4015000130

挡圈 GB894.1-25-65Mn

RING SNAP GB894.1-25-65Mn

1



20

28809028560491

主减壳 ZL15F.2.5-8A

FINAL DRIVE HOUSING ZL15F.2.5-8A

1



21

28809028560421

行星齿轮垫 ZL15F.2.5- 12

PLANET GEAR WASHER ZL15F.2.5- 12

4



22

28809028560411

行星齿轮 Z=10 ZL15F.2.5- 13

PLANET GEAR Z=10 ZL15F.2.5- 13

4



23

28809028560431

行星齿轮轴 ZL15F.2.5- 11A

PLANET GEAR SHAFT ZL15F.2.5- 11A

1

















标号 Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注

Remark

24

28809028560141

半轴齿轮 Z=16 ZL15F.2.5- 14

AXLE SHAFT GEAR Z=16 ZL15F.2.5- 14

2



25

28809028560151

半轴齿轮垫 ZL15F.2.5- 15

AXLE SHAFT GEAR WASHER ZL15F.2.5- 15

2



26

28809028560171

差速器右壳 ZL15F.2.5- 10

DIFF. RIGHT CASE ZL15F.2.5- 10

1



27

28809028560281

防松垫片 ZL15F.2.5- 17

LOCK PLATE ZL15F.2.5- 17

4



28

28809028560161

差速器壳螺栓 M10*50 ZL15F 2 5- 16

DIFF CASE BOLT M10*50 ZL15F 2 5- 16

8



29

7200000139

轴承 GB297-32210

BEARING GB297-32210

2



30

7200000174

调整螺母 ZL15F.2.5-9

AJUSTING NUT ZL15F.2.5-9

2



31

28809028560181

差速器左壳 ZL15F.2.5-3

DIFF. LEFT CASE ZL15F.2.5-3

1



32

28809028560231

从动锥齿轮(左) Z=35 ZL15F 2 5-7B

DRIVEN BEVEL GEAR (LEFT)Z=35 ZL15F 2 5-7B

1



33

7200000190

铆钉 ZL15F.2.5-4

RIVET ZL15F.2.5-4

12



34

7200000166

差速器轴承盖 ZL15F.2.5-2

DIFFERENTIAL MECHANISM BEARING CAP ZL15F 2 5-2

2



35

28809028560401

锁片 ZL80-06.5.2-7

LOCK PLATE ZL80-06.5.2-7

4



36

4011000844

螺栓 GB5785-M14*1.5*70- 10.9

BOLT GB5785-M14*1.5*70- 10.9

4



37

28809028560251

调整螺母锁片 ZL15F.2.5- 18

ADJUST NUT LOCK PLATE ZL15F.2.5- 18

2



38

4015000036

垫圈 GB93-8-65Mn

WASHER GB93-8-65Mn

2



39

4011000841

螺栓 GB5783-M8*16- 10.9

BOLT GB5783-M8*16- 10.9

2
