标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

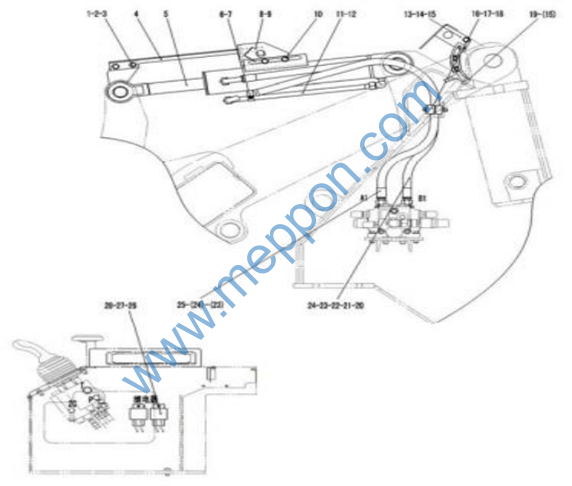

1

4120001153

动臂油缸 HSGL-90*50*640-965

LIFT CYLINDER HSGL-90*50*640-965

2

2

29130006521

左动臂缸小腔钢管

TUBE

1

3

29130006531

左动臂缸大腔钢管

TUBE

1

4

4030000242

O 形圈 GB3452.1- 12.5*1.80G

O–RING GB3452.1- 12.5*1.80G

4

5

29130006541

右动臂腔小腔钢管

TUBE

1

6

29130006551

右动臂缸大腔钢管

TUBE

1

7

29130008271

动臂联三通钢管

THREE–WAY OIL TUBE

1

8

4030000501

O 形圈 GB3452.1- 15.0*1.80G

O–RINGGB3452.1- 15.0*1.80G

2

9

4041000582

直接头 LGB120-02630

CONNECTOR LGB120-02630

2

10

4041000685

O 形圈 LGB168-12631

O–RING LGB168-12631

2

11

4041000827

软管 LGB128-406080

HOSE LGB128-406080

2

12

4041001375

软管 LGB128－406070

HOSE LGB128－406070

2

13

29130006561

动臂联三通钢管

TUBE

1

14

29130009681

管夹

PIPE CLIP

2

15

4011000461

螺栓 GB16674-M8*16EpZn-8.8

BOLT GB16674-M8*16EpZn-8.8

4

16

29130006571

动臂联大腔二通钢管

TUBE

2

17

29130006581

动臂联小腔二通钢管

TUBE

2

18

4041001225

U 形螺栓 LGB159-11826

U–BOLT LGB159- 11826

4

19

4041001226

底板 LGB160- 1826

SOLEPLATE LGB160-1826

4

20

4013000028

螺母 GB6170-M6EpZn-8

NUT GB6170-M6EpZn-8

8

21

4015000207

垫圈 GB97.1-6EpZn-300HV

WASHER GB97.1-6EpZn-300HV

8

22

4011000455

螺栓 GB16674-M8*25EpZn-8.8

BOLT GB16674-M8*25EpZn-8.8

2

23

29130011671

动臂缸胶管

HOSE

4

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

1

4015000177

垫圈 GB97.1-14EpZn-300HV

WASHER GB97.1- 14EpZn-300HV

2

2

4011000145

螺栓 GB16674-M14*35EpZn-8.8

BOLT GB16674-M14*35EpZn-8.8

2

3

4013000013

螺母 GB6170-M14EpZn-8

NUT GB6170-M14EpZn-8

2

4

29140009491

转斗指示板

INDICATION ROD OF TILT CYLINDER

1

5

4120001085

转斗油缸 HSGL– 100*55*404-779P

TILT CYLINDER HSGL– 100*55*404-779P

1

6

4011000461

螺栓 GB16674-M8*16EpZn-8.8

BOLT GB16674-M8*16EpZn-8.8

2

7

29140006531

管夹

PIPE CLIP

1

8

29140008381

接近开关支架

FRAME OF ADJACENT SWICH

1

9

4130000010

接近开关 J7-D10B1

APPROACH SWITCH J7-D10B1

1

10

4011000479

螺栓 GB16674-M12*30EpZn-8.8

BOLT GB16674-M12*30EpZn-8.8

2

11

4030000501

O 形圈 GB3452.1- 15.0*1.80G

O–RINGGB3452.1- 15.0*1.80G

1

12

29140006541

转斗缸大腔钢管

BIG CHAMBER TUBE OF TILT CYLINDER

1

13

29140007541

接近开关支架

FRAME OF ADJACENT SWICH

1

14

4011000137

螺栓 GB16674-M12*20EpZn-8.8

BOLT GB16674-M12*20EpZn-8.8

4

15

4130000678

接近开关 J7-D10B1/08

APPROACH SWITCH J7-D10B1/08

1

16

29140006551

压板

PRESS PLATE

1

17

29140006561

橡胶板

RUBBER PLATE

2

18

4011000282

螺栓 GB16674-M10*75EpZn-8.8

BOLT GB16674-M10*75EpZn-8.8

2

19

29140007551

动臂指示板

INDICATIONG PLATE OF LIFTING CYLINDER

1

20

29140009571

转斗缸胶管

HOSE OF TILT CYLINDER

1

21

4041000187

直接头 LGB120-02622

JOINT LGB120-02622

1

22

4041000771

O 形圈 LGB168-11924

O–RING LGB168-11924

1

23

4041000685

O 形圈 LGB168-12631

O–RING LGB168-12631

2

24

4041000582

直接头 LGB120-02630

CONNECTOR LGB120-02630

2

25

29140009561

转斗缸胶管

HOSE OF TILT CYLINDER

1

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

26

4130000011

中间继电器 JD2914

MIDDLE RELAY JD2914

2

27

4014000048

螺钉 GB818-M5*12EpZn-4.8

SCREW GB818-M5*12EpZn-4.8

2

28

4015000110

垫圈 GB97.1-5EpZn-300HV

WASHER GB97.1-5EpZn-300HV

2

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

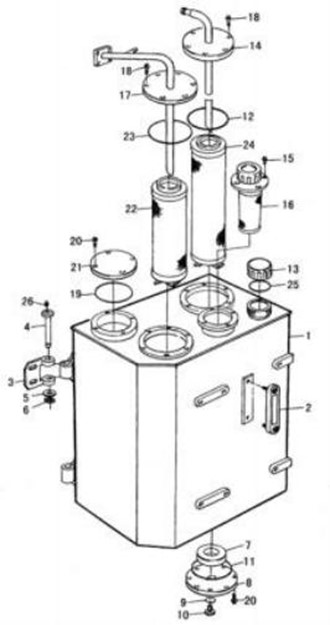

1

29100008321

液压油箱体

HYDRAULIC TANK BODY

1

2

4120000093

液位计

WZ-200 GAUGE LEVEL YWZ-200

1

3

29100006531

合页

TABIE–FLAD

2

4

29100006541

销轴

PIN

2

5

29100006551

垫圈

WASHER

2

6

4015000018

挡圈 GB894.1- 18-65Mn

SNAP RING GB894.1- 18-65Mn

2

7

4190000007

环形磁铁 LG03-CT70*32*14

RING MAGNET LG03-CT70*32*14

1

8

29100006561

放油法兰总成

OIL DROPTING FLANGE

1

9

4030000211

O 形圈 GB3452.1-30.0*2.65G

O–RING GB3452.1-30.0-2.65G

1

10

4041000192

螺塞 LGB135-03341

PLUG LGB13503341

1

11

4030000210

O 形圈 GB3452.1- 165*3.55G

O–RING GB3452.1- 165*3.55G

1

12

4030000208

O 形圈 GB3452.1- 132*3.55G

O–RING GB3452.1- 132*3.55G

1

13

4120000761

换气过滤器 L1.0807-51

STRAINER L1.0807-51

1

14

29100006581

吸油法兰总成

OIL INTER FLANGE ASS‘Y

1

15

4011000461

螺栓 GB16674-M8*16EpZn-8.8

BOLT GB16674-M8*16EpZn-8.8

4

16

4120000452

加油滤芯 SFM-323M

OIL–SUPPLYING FILTER SFM-323M

1

17

29100006591

回油法兰总成

OIL RETURN FLANGE ASS‘Y

1

18

4011000481

螺栓 GB16674-M8*30EpZn-8.8

BOLT GB16674-M8*30Ep.Zn-8.8

12

19

4030000213

O 形圈 GB3452.1-67.0*2.65G

O–RING GB3452.1-67*2.55G

1

20

4011000458

螺栓 GB16674-M8*20EpZn-8.8

BOLT GB16674-M8*20Ep.Zn-8.8

12

21

29100006601

法兰

FLANGE

1

22

29100006611

回油滤芯

OIL–RETURNING FILTER

1

23

4030000209

O 形圈 GB3452.1- 136*3.55G

O–RING GB3452.1- 136*3.55G

1

24

29100006621

吸油滤芯

FILTER

1

25

4030000030

O 形圈 GB3452.1-40.0*2.65G

O–RING GB3452.1-40.0*2.65G

1
