标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

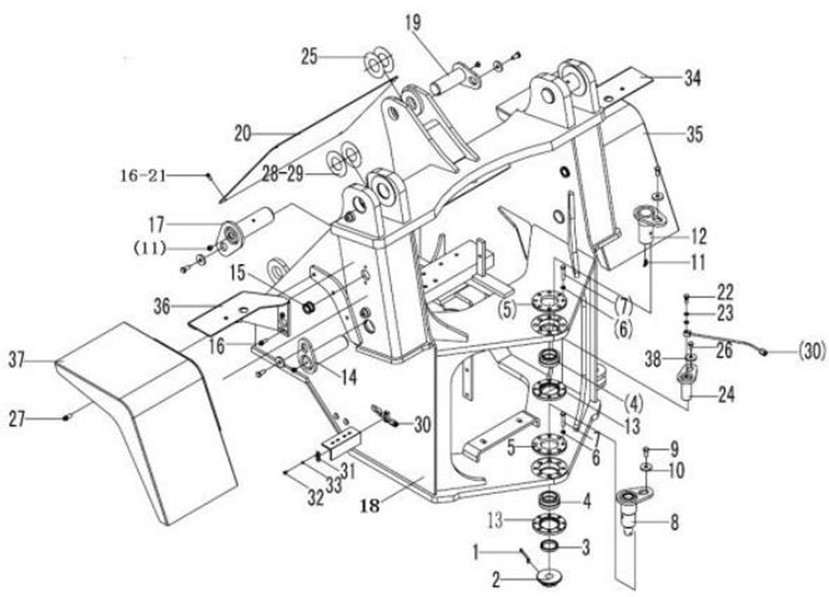

1

4016000145

销轴 GB882-B10*28EpZn-35

PIN GB882-B10*28EpZn-35

1

2

4016000183

开口销 GB91-3.2*22EpZn–Q235A

PIN GB91-3.2*22EpZn–Q235A

1

3

4011000455

螺栓 GB16674-M8*25EpZn-8.8

BOLT GB16674-M8*25EpZn-8.8

4

4

4120000988

操纵机构总成 LG23-CZJG-918

OPERATING GEAR LG23-CZJG-918

1

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注

Remark

1

4016000113

开口销 GB91-6.3*63EpZn–Q235A

SPLIT PIN GB91-6.3*63EpZn–Q235A

1

2

29250001061

开槽螺母

SLOTTED NUT Y

1

3

29250006521

套

BUSH

1

4

4021000050

关节轴承 GB9163-GE50ES-2RS

BEARING GB9163-GE50ES-2RS

2

5

29250006531

端盖

END COVER

2

6

4015000025

垫圈 GB93-10-65Mn

WASHER GB93-10-65Mn

16

7

4011000048

螺栓 GB5782-M10*50EpZn-8.8

BOLT GB5782-M10*50EpZn-8.8

16

8

29250006541

下铰接销

DOWN ARTICULATION PIN

1

9

4011000197

螺栓 GB5783-M12*25EpZn-8.8

BOLT GB5783-M12*30EpZn-8.8

7

10

4040000001

垫圈 LGB001- 12

WASHER LGB001-12*45*6

7

11

4030000065

油杯 JB7940.1-M10*1

GREASE NIPPLE JB7940.1-M10*1

9

12

29250006551

上铰接销

UP ARTICULATION PIN

1

13

29250006561

盘

DISC

2

14

4043000321

销轴 LGB301-50*104*190G-40Cr

PIN LGB301-50*104*190G-40Cr

2

15

29250001351

走线胶套

RUBBER SLEEVE

4

16

4015000256

垫圈 GB96.1-8EpZn-300HV

WASHER GB96.1-8EpZn-300HV

4

17

4043000322

销轴 LGB301-60*98*190G-40Cr

PIN LGB301-60*98*190-40Cr

2

18

29240007781

前车架

FRONT FRAME

1

19

4043000148

销轴 LGB301-50*80*145G-40Cr

PIN LGB301-50*75*145-40Cr

1

20

29250006571

前盖板

FRONT HOOD

1

21

4011000102

螺栓 GB5783-M8*16EpZn-8.8

BOLT GB5783-M8*16EpZn-8.8

4

22

29250000291

通油螺栓

BOLT

2

23

29250000301

垫片

WASHER

4

24

29250007971

前转向销轴

PIN

2

25

4043000067

垫片 LGB303-50*100*1

SPACER LGB303-50*100*1

2

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注

Remark

26

4011000081

螺栓 GB5783-M10*20EpZn-8.8

BOLT GB5783-M10*20EpZn-8.8

2

27

4011000560

螺栓 GB16674-M12*25EpZn-8.8

BOLT GB16674-M12*25EpZn-8.8

10

28

4043000151

垫片 LGB303-60*120*1

SPACER LGB303-60*120*1

4

29

4043000141

垫片 LGB303-60*120*2

SPACER LGB303-60*120*2

4

30

29250006581

转向销油管

OIL TUBE FOR PIN

2

31

29250000311

管卡

Plate

2

32

4014000024

螺钉 GB818-M6*10EpZn-4.8

SCREW GB818-M6*10EpZn-4.8

4

33

4015000035

垫圈 GB93-6-65Mn

WASHER GB93-6-65Mn

4

34

29250006591

右灯架

RIGHT BRACKET OF LAMP

1

35

29250006601

右前挡泥瓦

RIGHT FRONT FENDER

1

36

29250006611

左灯架

LEFT BRACKET OF LAMP

1

37

29250006621

左前挡泥瓦

LEFT FRONT FENDER

1

38

4040000008

垫圈 LGB001- 10

WASHER LGB001-10

2

标号

Item

零件代号

Part No

零件名称

Part Name

数量

Q‘ty

备注 Remark

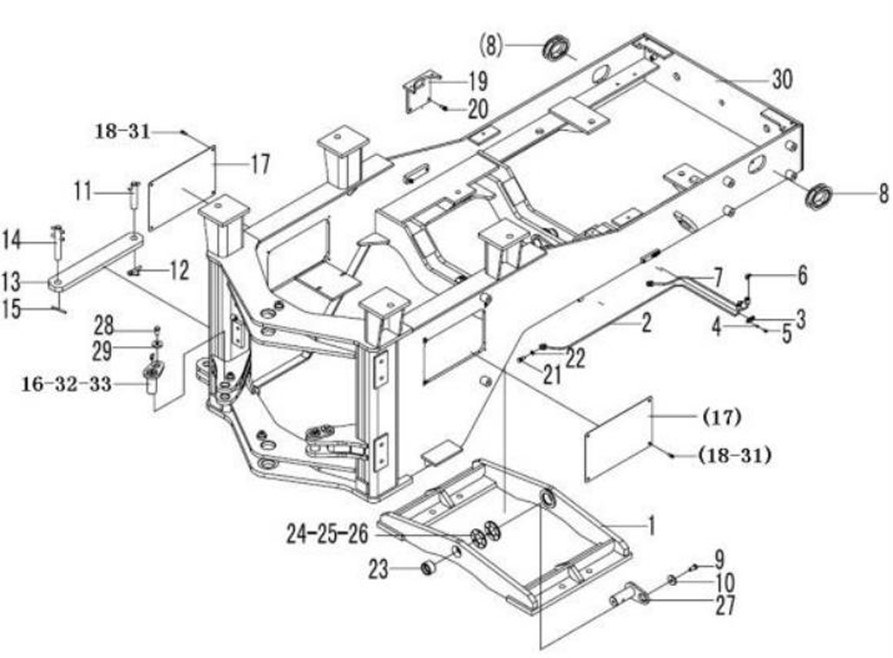

1

29270008621

副车架

OSCILLATING FRAME

1

2

29270006582

副车架前油管

FRONT OIL TUBE OF SOCILLATING FRAME

1

3

29250000311

管卡

Plate

2

4

4015000035

垫圈 GB93-6-65Mn

WASHER GB93-6-65Mn

4

5

4014000024

螺钉 GB818-M6*10EpZn-4 8

SCREW GB818-M6*10EpZn-4 8

4

6

4030000065

油杯 JB7940.1-M10*1

GREASE NIPPLE JB7940.1-M10*1

4

7

29270006601

副车架后油管

REAR OIL TUBE OF SOCILLATING FRAME

1

8

29270009101

走线胶套

RUBBER SLOEVE

2

9

4011000087

螺栓 GB5783-M12*20EpZn-8 8

BOLT GB5783-M12*20EpZn-8 8

2

10

4040000001

垫圈 LGB001- 12

WASHER LGB001-12*45*6

2

11

29270006651

锁定杆前销轴

FRONT PIN OF MOUNT BAR

1

12

29270000081

卡环

HOLDING RING

1

13

29270006671

锁定杆

MOUNT BAR

1

14

29270006681

锁定杆后销轴

REAR PIN OF MOUNT BAR

1

15

4016000194

开口销 GB91-8*50EpZn–Q235A

SPLIT PIN GB91-8*50EpZn–Q235A

1

16

29250007971

前转向销轴

PIN

2

17

29270006701

盖板

COVER PLATE

2

18

4011000102

螺栓 GB5783-M8*16EpZn-8.8

BOLT GB5783-M8*16EpZn-8.8

8
