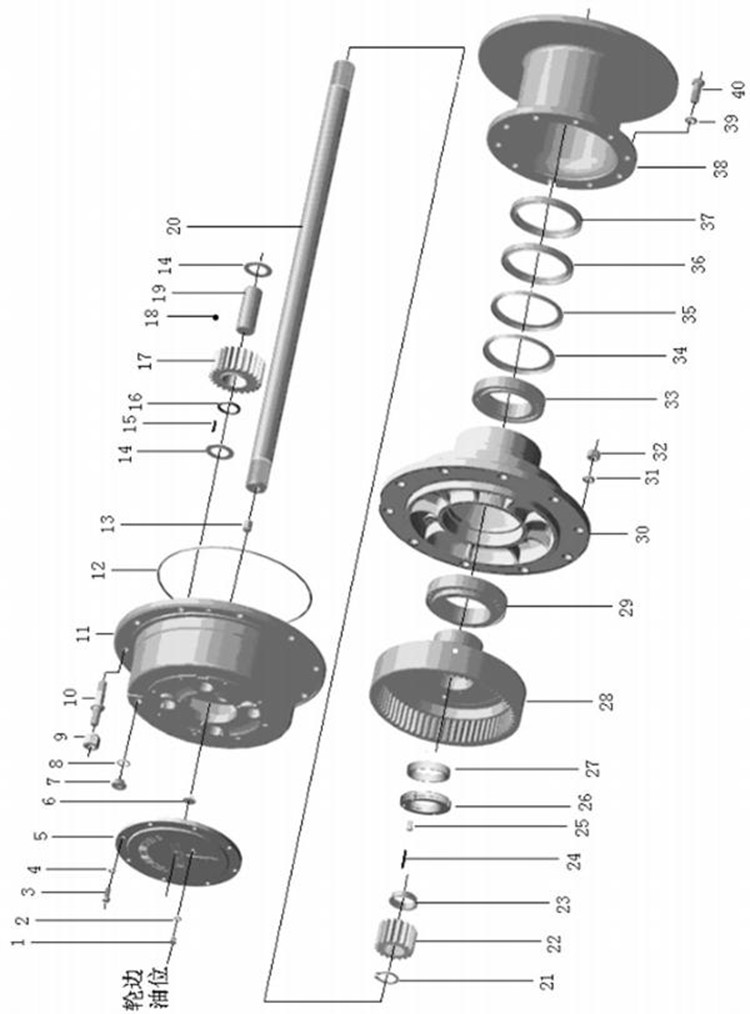

1

50M.00-13A

轮边油位塞

Plug

2

2

JB982-12

组合垫圈 12

Combined washer

2

3

GB5785-M12X1.25X25

螺栓 M12X1.25X25

Bolt

16

4

GB93-12

弹垫 12

Spring washer

16

5

50M.04J

端盖(山推标识)

End cover(Shantui Logo)

2

6

50M.00-11

轮边端盖挡块

Snap ring

2

7

50MA.02

油位塞

Plug

4

8

GB3452.1-26.5×2.65

O 形密封圈 26.5X2.65

O-ring

4

9

05.01.01.024C

05.01.01.024B

轮辋螺母组合(右旋)

轮辋螺母组合(左旋)

Nut for rim(R)

Nut for rim(L)

12

12

10

05.01.01.023C

05.01.01.023B

轮辋螺栓(右旋)

轮辋螺栓(左旋)

Bolt for rim(R)

Bolt for rim(L)

12

12

11-19

02.01.01.08C

行星轮总成

Planet gear assembly

2

11

50M.00-05X

行星轮架

Planet gear carrier

2

12

50M.00-18

密封圈

Seal ring

2

13

50M.00-12

调整支柱

Adjusting pin

2

14

50M.00-09

行星轮垫片

Washer for planetary gear

16

15

50M.00-08

滚针

Roller needle

432

16

50M.00-10

行星轮中间隔套

Space bushing

8

17

50M.00-06

行星轮

Planetary gear

8

18

GB308-3/8

钢球 Φ3/8

Steel ball

8

19

50M.00-15

行星轮轴

Shaft of planetary gear

8

20

50M.00-01

半轴

Shaft

2

21

GB894.2-50

挡圈 50

Snap ring

2

22

50M.00-14

太阳轮

Sun gear

2

23

50M.00-16

隔套

Spacer

2

24

Φ1.5×220

铁丝

Iron wire

2

25

50MA.00-03

紧固螺栓

Fastening bolt

4

26

50M.00-17A

槽螺母

Slot nut

2

27

50M.03A.01-02

套

Sleeve

2

28

50M.03B

齿圈支承总成

Internal gear assy.

2

29

GB297-32026

轴承 32026

Bearing

2

30

50MA.00-01A

轮毂

Hub

2

31

GB93-22

弹垫 22

Spring washer

24

32

GB6171-M22X1.5

螺母M22×1.5 Nut

24

33

GB297-32024

轴承32024 Bearing

2

34

50MA.00-02A

垫圈

Washer

2

35

GB893.1-180

挡圈180

Snap ring

2

36

GB13871-B150X180X15

油封B150X180X15 Oil seal

2

37

GB13871-FB150X180X15

油封FB150X180X15 Oil seal

2

38

504002B

制动盘

Brake disk

2

39

GB93-20

弹垫20

Spring washer

20

40

404010

制动盘螺栓 Bolt for brake disk

20
