SHANTUI L55-C5 PARTS CATALOG 15

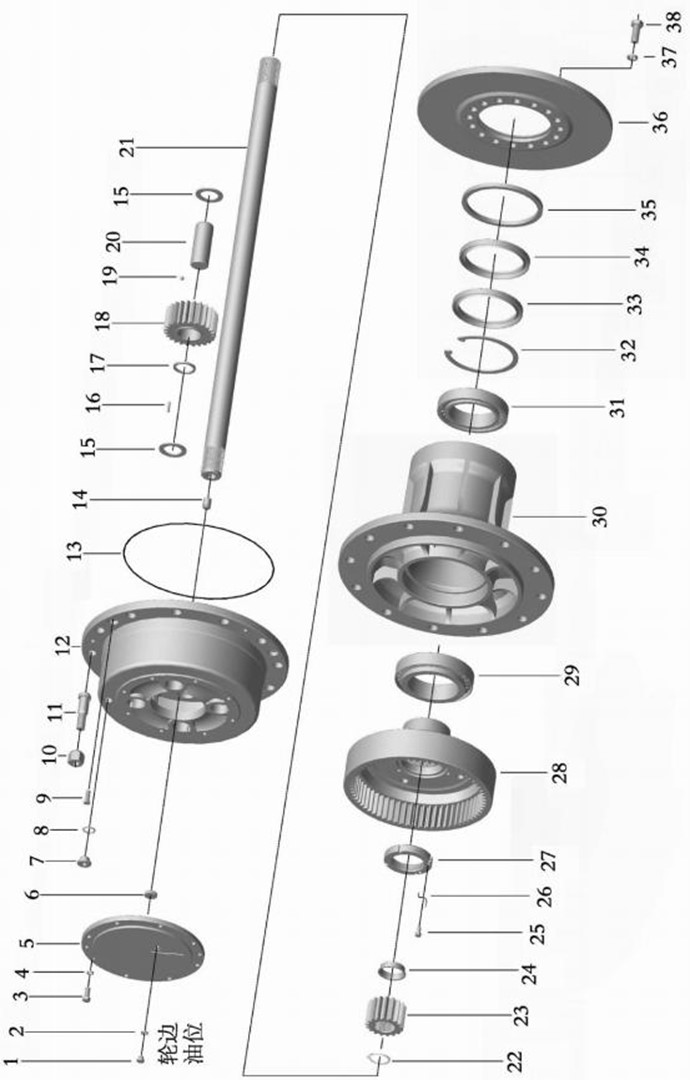

第 16.2 图 前桥轮边减速器总成(1457-18-05000) FIG. 16.2 Front Axle Planetary Reductor Assembly
|
1 |
50M.00-13A |
轮边油位塞 |
Plug |
2 |
|
|
2 |
JB982-12 |
组合垫圈 12 Combined washer |
2 |
||
|
3 |
GB5785-M12X1.25X25 |
螺栓 M12X1.25X25 Bolt |
16 |
||
|
4 |
GB93-12 |
弹垫 12 |
Spring washer |
16 |
|
|
5 |
50M.04J |
端盖(山推标识) End cover(Shantui Logo) |
2 |
||
|
6 |
50M.00-11 |
轮边端盖挡块 Snap ring |
2 |
||
|
7 |
50MA.02 |
油位塞 |
Plug |
4 |
|
|
8 |
GB3452.1-26.5×2.65 |
O 形密封圈 26.5X2.65 O-ring |
4 |
||
|
9 |
GB5783-M10X25 |
螺栓 M10X25 Bolt |
8 |
||
|
10 |
05.01.01.024C 05.01.01.024B |
轮辋螺母组合(右旋) 轮辋螺母组合(左旋) |
Nut for rim(R) Nut for rim(L) |
12 12 |
|
|
11 |
05.01.15.001A 05.01.15.001 |
轮辋螺栓(右旋) 轮辋螺栓(左旋) |
Bolt for rim(R) Bolt for rim(L) |
12 12 |
|
|
12 |
50MC.00-03 |
行星轮架 Planet gear carrier |
2 |
||
|
13 |
50M.00-18 |
密封圈 |
Seal ring |
2 |
|
|
14 |
50M.00-12 |
调整支柱 Adjusting pin |
2 |
||
|
15 |
50M.00-09 |
行星轮垫片 Washer for planetary gear |
16 |
||
|
16 |
50M.00-08 |
滚针 |
Roller needle |
432 |
|
|
17 |
50M.00-10 |
行星轮中间隔套 Space bushing |
8 |
||
|
18 |
50M.00-06 |
行星轮 |
Planetary gear |
8 |
|
|
19 |
GB308-3/8 |
钢球 Φ3/8 |
Steel ball |
8 |
|
|
20 |
50M.00-15 |
行星轮轴 Shaft of planetary gear |
8 |
||
|
21 |
50M.00-01 |
半轴 |
Shaft |
2 |
|
|
22 |
GB894.2-50 |
挡圈 50 |
Snap ring |
2 |
|
|
23 |
50M.00-14 |
太阳轮 |
Sun gear |
2 |
|
|
24 |
50M.00-16 |
隔套 |
Spacer |
2 |
|
|
25 |
50MA.00-03 |
紧固螺栓 |
Fasten bolt |
4 |
|
|
26 |
Φ1.5×220 |
铁丝 |
Iron wire |
2 |
|
|
27 |
JC50.00-04 |
槽螺母 |
Slot nut |
2 |
|
|
28 |
JC50.02A |
齿圈支承总成 Internal gear assy. |
2 |
||
|
29 |
GB297-32028A |
轴承 32028A Bearing |
2 |
||
|
30 |
JC50.00-02C |
轮毂 |
Hub |
2 |
|
|
31 |
GB297-32024A |
轴承 32024A Bearing |
2 |
||
|
32 |
GB893.1-180 |
挡圈180 |
Snap ring |
2 |
|
|
33 |
GB13871-B150X180X15 |
油封B150X180X15 Oil seal |
2 |
||
|
34 |
GB13871-FB150X180X15 |
油封FB150X180X15 Oil seal |
2 |
||
|
35 |
JC50.00-05 |
毡圈油封 |
Felt ring seal |
2 |
|
|
36 |
JC50.00-01 |
制动盘 |
Brake disk |
2 |
|
|
37 |
GB93-18 |
弹垫18 |
Spring washer |
32 |
|
|
38 |
50MBQ.00-01 |
制动盘螺栓 Bolt for brake disk |
32 |
||

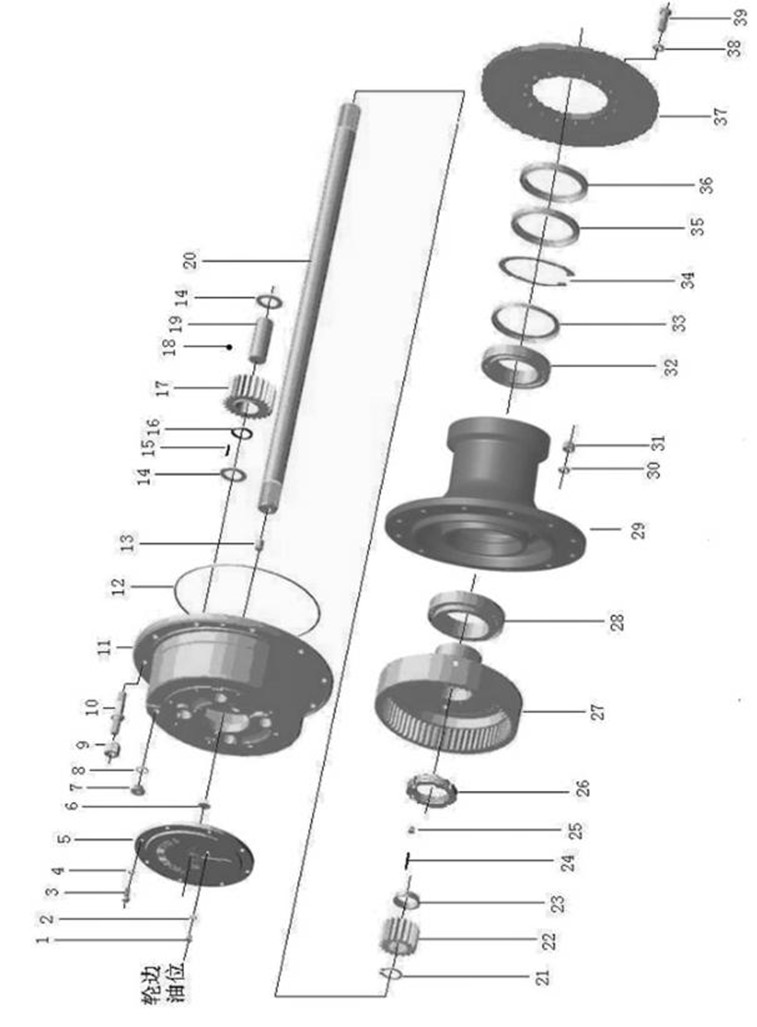

第 17.1 图 后桥轮边减速器总成(1457-18-02000) FIG. 17.1 Rear Axle Planetary Reductor Assembly
|
1 |
50M.00-13A |
轮边油位塞 |
Plug |
2 |
|
2 |
JB982-12 |
组合垫圈 12 |
Combined washer |
2 |
|
3 |
GB5785-M12X1.25X25 |
螺栓 M12X1.25X25 |
Bolt |
16 |
|
4 |
GB93-12 |
弹垫 12 |
Spring washer |
16 |
|
5 |
50M.04J |
端盖(山推标识) |
End cover(Shantui Logo) |
2 |
|
6 |
50M.00-11 |
轮边端盖挡块 |
Snap ring |
2 |
|
7 |
50MA.02 |
油位塞 |
Plug |
4 |
|
8 |
GB3452.1-26.5×2.65 |
O 形密封圈 26.5X2.65 |
O-ring |
4 |
|
9 |
05.01.01.024C 05.01.01.024B |
轮辋螺母组合(右旋) 轮辋螺母组合(左旋) |
Nut for rim(R) Nut for rim(L) |
12 12 |
|
10 |
05.01.01.023C 05.01.01.023B |
轮辋螺栓(右旋) 轮辋螺栓(左旋) |
Bolt for rim(R) Bolt for rim(L) |
12 12 |
|
11-19 |
02.01.01.08C |
行星轮总成 |
Planet gear assembly |
2 |
|
11 |
50M.00-05X |
行星轮架 |
Planet gear carrier |
2 |
|
12 |
50M.00-18 |
密封圈 |
Seal ring |
2 |
|
13 |
50M.00-12 |
调整支柱 |
Adjusting pin |
2 |
|
14 |
50M.00-09 |
行星轮垫片 |
Washer for planetary gear |
16 |
|
15 |
50M.00-08 |
滚针 |
Roller needle |
432 |
|
16 |
50M.00-10 |
行星轮中间隔套 |
Space bushing |
8 |
|
17 |
50M.00-06 |
行星轮 |
Planetary gear |
8 |
|
18 |
GB308-3/8 |
钢球 Φ3/8 |
Steel ball |
8 |
|
19 |
50M.00-15 |
行星轮轴 |
Shaft of planetary gear |
8 |
|
20 |
50M.00-01 |
半轴 |
Shaft |
2 |
|
21 |
GB894.2-50 |
挡圈 50 |
Snap ring |
2 |
|
22 |
50M.00-14 |
太阳轮 |
Sun gear |
2 |
|
23 |
50M.00-16 |
隔套 |
Spacer |
2 |
|
24 |
Φ1.5×220 |
铁丝 |
Iron wire |
2 |
|
25 |
50MA.00-03 |
紧固螺栓 |
Fastening bolt |
4 |
|
26 |
50M.00-17A |
槽螺母 |
Slot nut |
2 |
|
27 |
50M.03B |
齿圈支承总成 |
Internal gear assy. |
2 |
|
28 |
GB297-32026 |
轴承 32026 |
Bearing |
2 |
|
29 |
50MBQ.00-03G |
轮毂 |
Hub |
2 |
|
30 |
GB93-22 |
弹垫 22 |
Spring washer |
24 |
|
31 |
GB6171-M22X1.5 |
螺母 M22×1.5 |
Nut |
24 |
件 11-19 组成行星轮架总成(Planet gear assembly is made up of part NO.11-19)
