32

GB297-32024

轴承32024 Bearing

2

33

50MA.00-02A

垫圈

Washer

2

34

GB893.1-180

挡圈180

Snap ring

2

35

GB13871-B150X180X15

油封B150X180X15 Oil seal

2

36

GB13871-FB150X180X15

油封FB150X180X15 Oil seal

2

37

JC50.00-01A

制动盘

Brake disk

2

38

GB93-18

弹垫18

Spring washer

20

39

50MBQ.00-01

制动盘螺栓 Bolt for brake disk

20

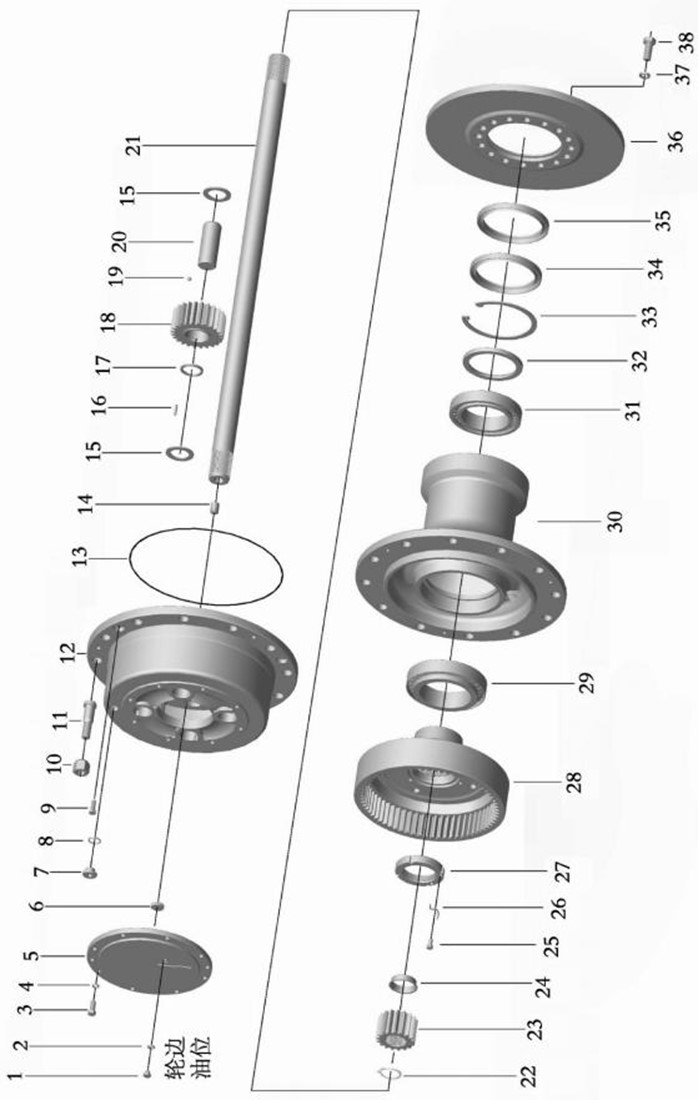

1

50M.00-13A

轮边油位塞

Plug

2

2

JB982-12

组合垫圈 12 Combined washer

2

3

GB5785-M12X1.25X25

螺栓 M12X1.25X25 Bolt

16

4

GB93-12

弹垫 12

Spring washer

16

5

50M.04J

端盖(山推标识) End cover(Shantui Logo)

2

6

50M.00-11

轮边端盖挡块 Snap ring

2

7

50MA.02

油位塞

Plug

4

8

GB3452.1-26.5X2.65

O 形密封圈 26.5X2.65 O-ring

4

9

GB5783-M10X25

螺栓 M10X25 Bolt

8

10

05.01.01.024C

05.01.01.024B

轮辋螺母组合(右旋) 轮辋螺母组合(左旋)

Nut for rim(R)

Nut for rim(L)

12

12

11

05.01.15.001A

05.01.15.001

轮辋螺栓(右旋)

轮辋螺栓(左旋)

Bolt for rim(R)

Bolt for rim(L)

12

12

12

50MC.00-03

行星轮架 Planet gear carrier

2

13

50M.00-18

密封圈

Seal ring

2

14

50M.00-12

调整支柱 Adjusting pin

2

15

50M.00-09

行星轮垫片 Washer for planetary gear

16

16

50M.00-08

滚针

Roller needle

432

17

50M.00-10

行星轮中间隔套 Space bushing

8

18

50M.00-06

行星轮

Planetary gear

8

19

GB308-3/8

钢球 Φ3/8

Steel ball

8

20

50M.00-15

行星轮轴 Shaft of planetary gear

8

21

50M.00-01

半轴

Shaft

2

22

GB894.2-50

挡圈 50

Snap ring

2

23

50M.00-14

太阳轮

Sun gear

2

24

50M.00-16

隔套

Spacer

2

25

50MA.00-03

紧固螺栓 Fastening bolt

4

26

Φ1.5×220

铁丝

Iron wire

2

27

50M.00-17A

槽螺母

Slot nut

2

28

50M.03D

齿圈支承总成 Internal gear assy.

2

29

GB297-32026

轴承 32026

Bearing

2

30

50MC.00-01

轮毂

Hub

2

31

GB297-32024A

轴承 32024A Bearing

2

32

50MA.00-02A

垫圈

Washer

2

33

GB893.1-180

挡圈180

Snap ring

2

34

GB13871-B150X180X15

油封B150X180X15 Oil seal

2

35

GB13871-FB150X180X15

油封FB150X180X15 Oil seal

2

36

JC50.00-01A

制动盘

Brake disk

2

37

GB93-18

弹垫18

Spring washer

32

38

50MBQ.00-01

制动盘螺栓 Bolt for brake disk

32
