SHANTUI L55-C5 PARTS CATALOG 17

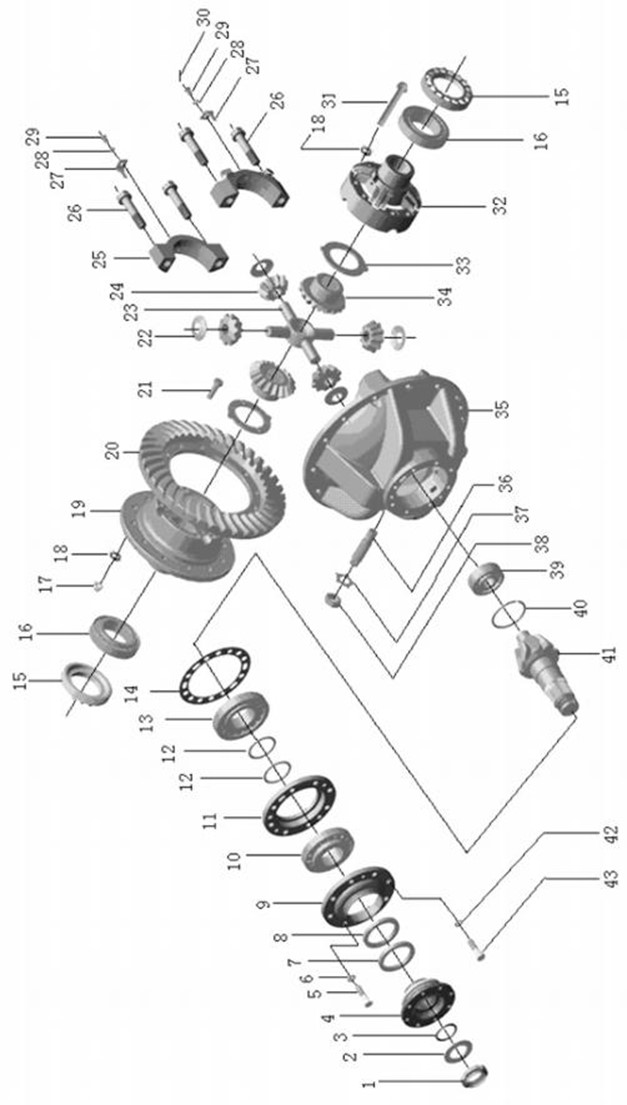

第 18.1 图 前桥主传动总成(1457-18-01000) FIG. 18.1 Front Axle Main Transmission Assembly
| 1 |
50M.01-01 |
主减速器锁紧螺母 Locknut |
1 |
|
| 2 |
50M.01-02 |
垫圈 |
Washer |
1 |
| 3 |
50M.01-24 |
O型密封圈 |
O-ring |
1 |
| 4 |
02.01.01.01F |
法兰 |
Flange |
1 |
| 5 |
GB5785-M12X1.5X55 |
螺栓M12X1.5X55 Bolt |
1 |
|
| 6 |
GB93-12 |
弹垫12 |
Spring washer |
1 |
| 7 |
GB13871-FB80X100X10 |
油封FB80X100X10 Oil seal |
1 |
|
| 8 |
GB13871-B80X100X10 |
油封B80X100X10 Oil seal |
1 |
|
| 9 |
50M.01-03 |
密封盖 |
Sealing gland |
1 |
| 10 |
GB297-31313 |
轴承31313 |
Bearing |
1 |
| 11 |
50M.01-04 |
轴承套 |
Bearing bushing |
1 |
| 12 |
50M.01-06A |
调整套 |
Adjusting sleeve |
2 |
| 13 |
GB297-31314 |
轴承31314 |
Bearing |
1 |
| 14 |
50M.01-23 |
调整垫片 Adjusting washer |
1 set |
|
| 15 |
JC50 .01.01-02 |
调整螺母( ) Adjusting nut(F) |
2 |
|
| 16 |
Inch 47686/47620A |
轴承 |
Bearing |
2 |
| 17 |
GB6171-M14X1.5 |
螺母M14X1.5 Nut |
12 |
|
| 18 |
50M.01-26 |
垫圈 |
Washer |
24 |
| 19 |
JC50 .01.03.01-01 |
Differential cage |
1 |
|
| 20 |
50M.01-14A |
从动螺旋伞齿轮 Driven bevel gear |
1 |
|
| 21 |
50M.01-13T |
盆齿紧固螺栓 Bolt |
12 |
|
| 22 |
JC50.01.03.02-03 |
锥齿轮垫片 Washer for bevel gear |
4 |
|
| 23 |
JC50 .01.03.02-04 |
十字轴 Differential crossing |
1 |
|
| 24 |
JC50.01.03.02-02 |
锥齿轮 |
Bevel gear |
4 |
| 25 |
JC50.01.01-03 |
Bearing seat |
2 |
|
| 26 |
50M.01-10 |
主减速器螺栓 Bolt for main reductor |
4 |
|
| 27 |
404319B |
锁紧片 |
Lock plate |
2 |
| 28 |
GB93-10 |
弹垫10 |
Spring washer |
2 |
| 29 |
GB32.2-M10X1X20 |
螺栓M10X1X20 Bolt |
2 |
|
| 30 |
Φ1.5X450 |
铁丝Φ1.5 |
Iron wire |
2 |
| 31 |
GB5785-M14X1.5X80 |
螺栓M14X1.5X80 Bolt |
12 |
|
第 18 图 前桥主传动总成(1457-18-01000) FIG. 18 Front Axle Main Transmission Assembly
| 32 |
JC50.01.03.01-02 |
差速器小壳(前桥) |
Differential cage(F) |
1 |
| 33 |
50M.01-09C |
半轴齿轮垫片 |
Thrust washer |
2 |
| 34 |
JC50.01.03.02-01 |
半轴齿轮(前桥) |
Axle shaft gear(F) |
2 |
| 35 |
JC50.01.01-01 |
主减速器壳(前桥) |
Differential cage(F) |
1 |
| 36 |
50L.01.03 |
止推螺栓 |
Bolt |
1 |
| 37 |
50L.01-23 |
锁紧片 |
Lock plate |
1 |
| 38 |
GB6173-M27X2 |
螺母M27X2 |
Nut |
1 |
| 39 |
142807Y |
英制轴承 |
Bearing |
1 |
| 40 |
GB305-90/96.5 |
止动环90/96.5 |
Stop ring |
1 |
| 41 |
JC50.01.02.01A |
主动螺旋伞齿轮(前桥) |
Driving bevel gear(F) |
1 |
| 42 |
GB93-14 |
弹垫14 |
Spring washer |
7 |
| 43 |
GB5785-M14X1.5X55 |
螺栓M14X1.5X55 |
Bolt |
7 |
注意：件 21 和 43 组成前后桥主从动齿轮组合，请用户按组购买。
前桥 02.01.10F.02
后桥 02.01.01R.02
