SHANTUI L55-C5 PARTS CATALOG 21

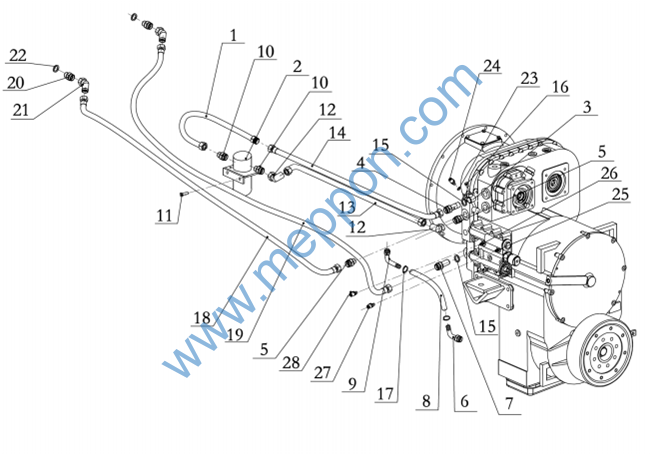

第 23 图 变速管路总成
FIG.23 Shift Piping Assembly
|
1 |
1457-75-01000 |
滤油器钢管 |
Filter steel tube |
1 |
|
|
2 |
1455-75-06000 1455-75-06001 |
滤油器 滤芯 |
Oil filter Filter core assy. |
1 1 |
|
|
3 |
1457-75-02000 |
接头体 |
Joint |
1 |
|
|
4 |
1457-75-00001 |
接头体 |
Joint |
1 |
|
|
5 |
1455-75-00002 |
变速箱接头 |
Joint |
ZL50G2-05002 |
2 |
|
6 |
1452-75-00001 |
锥形接头 |
Joint |
DG953-12014 |
1 |
|
7 |
1455-75-00003 |
长接头体 |
Long joint |
ZL50G3-12019 |
1 |
|
8 |
1457-75D-01000 |
软管总成 |
Hose |
1 |
|
|
9 |
1455-75-04000 |
发动机飞轮壳接头 |
Joint |
ZL50G3-12017 |
1 |
|
10 |
1455-75-00001 |
滤油器接头 |
Joint |
2 |
|
|
11 |
GB16674.1-M10X20 |
螺栓M10X20 |
Bolt |
2 |
|
|
12 |
03201-01220 |
EW直角组合接头 |
Joint |
2 |
|
|
13 |
03012-13771452 |
软管 |
Hose |
1 |
|
|
14 |
03012-13771652 |
软管 |
Hose |
1 |
|
|
15 |
07303-03038 |
密封垫圈 |
Sealing washer |
5 |
|
|
16 |
03212-00140 |
内六角油口端堵头 |
Block |
1 |
|
|
17 |
07280-02323 |
管夹 |
Clip |
2 |
|
|
18 |
03012-13771952 |
软管 |
Hose |
1 |
|
|
19 |
03012-13772802 |
软管 |
Hose |
1 |
|
|
20 |
1455-75-00004 |
散热器进油接头 |
Oil inlet joint |
DG956WⅡ-05008 |
2 |
|
21 |
03221-01220 |
EV45°组合接头 |
Joint |
2 |
|
|
22 |
07303-02735 |
密封垫圈 |
Sealing ring |
2 |
|
|
23 |
07303-01420 |
密封垫圈 |
Sealing ring |
1 |
|
|
24 |
F2320-14000 |
变矩器油温传感器 |
Sensor |
1 |
|
|
25 |
1455-07V-00002 |
过渡接头 |
Joint |
1 |
|
|
26 |
1455-07B-00003 |
过渡接头 |
Joint |
1 |
|
|
27 |
D2301-08000 |
变速压力开关 |
Pressure switch |
D2570-08001 |
1 |
|
28 |
D2301-07010 |
倒报开关 |
Back off switch |
1 |
第 24 图 转向液压系统
FIG.24 Steering Hydraulic System
|
1 |
1457-76-01000 |
转向器 |
Steering gear |
1 |
|
2 |
GB16674.1-M10X25 |
螺栓M10X25 Bolt |
4 |
|
|
3 |
1457-76-05000 |
吸油软管 Oil suction pipe |
1 |
|
|
4 |
07280-08029 |
T型喉箍 |
T-clamp |
4 |
|
5 |
03014-1C842052 |
软管 |
Pipe |
1 |
|
6 |
03014-13882650 |
软管 |
Pipe |
1 |
|
7 |
07010-24038 |
O型圈 |
O-ring |
4 |
|
8 |
07371-31255 |
法兰 |
Flange |
6 |
|
9 |
GB16674.1-M10X30 |
螺栓M10X30 Bolt |
12 |
|
|
10 |
1457-76-00001 |
U型板 |
U-plate |
3 |
|
11 |
1457-76-00002 |
橡胶管夹 |
Rubber clip |
6 |
|
12 |
GB16674.1-M10X60 |
螺栓M10X60 Bolt |
2 |
|
|
13 |
GB6170-M10 |
螺母M10 |
Nut |
9 |
|
14 |
1457-76-00014 |
法兰接头 |
Joint |
2 |
|
15 |
1457-76-00005 |
支架 |
Bracket |
1 |
|
16 |
GB16674.1-M10X20 |
螺栓M10X20 Bolt |
8 |
|
|
17 |
GB16674.1-M10X75 |
螺栓M10X75 Bolt |
8 |
|
|
18 |
1457-76-00005 |
支架 |
Bracket |
2 |
|
19 |
1457-76-12000 |
转向泵 |
Steering pump |
1 |
|
20 |
GB898-AM12X35 |
螺柱AM12X35 Double-screw bolt |
2 |
|
|
21 |
GB93-12 |
弹簧垫圈12 Spring washer |
8 |
|
|
22 |
GB6170-M12 |
螺母M12 |
Nut |
4 |
|
23 |
1457-76-06000 |
吸油硬管 Oil suction tube |
1 |
|
|
24 |
07010-24057 |
O型圈 |
O-ring |
1 |
|
25 |
GB16674.1-M12X35 |
螺栓M12X35 Bolt |
6 |
|
|
26 |
03004-11331450 |
软管 |
Pipe |
1 |
|
27 |
03206-01320 |
管接头 |
Joint |
3 |
|
28 |
03201-01100 |
管接头 |
Joint |
2 |
|
29 |
1455-76-00003 |
优先阀接头 |
Joint |
1 |
|
30 |
03201-01220 |
管接头 |
Joint |
1 |
|
31 |
1457-76-00010 |
U型板 |
U-plate |
1 |
|
32 |
1457-76-00003 |
橡胶管夹 |
Rubber clip |
6 |
