0

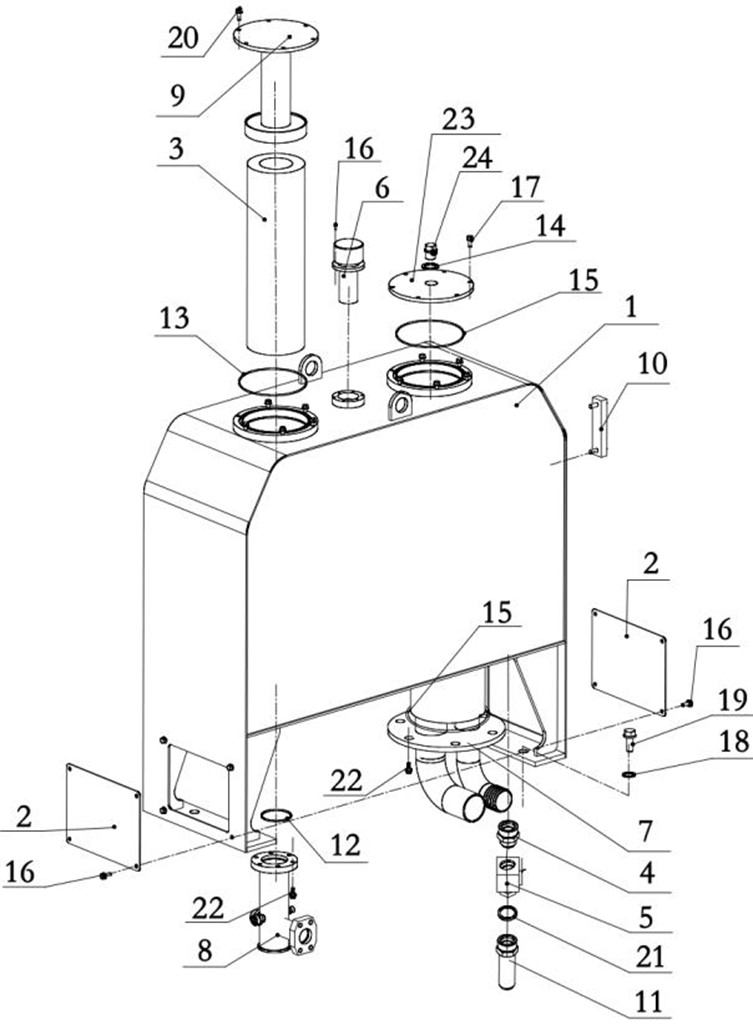

1457-60D-A1000

机油箱总成 Engine tank assy.

1

1

1457-60D-03000

箱体

Tank body

1

2

1457-60-00022

板

Plate

2

3

1457-60-10000

回油滤芯 Oil return filter

1

4

1457-60-00023

接头

Joint

1

5

1457-60-02100

球阀KHB-22LR Ball valve

1

6

1455-60-06000

加油滤清呼吸器 Breather valve

1

7

1457-60-13000

吸油管总成 Oil suction tube

1

8

1457-60-11000

回油管 Oil return tube

1

9

1457-60-09000

滤芯顶盖 Top cover

1

10

1455-04-04000

液位计 Level indicator

1

11

1457-60-00024

放油接头 Oil release joint

1

12

07000-12135

O型圈

O-ring

1

13

07009-15230

O型圈

O-ring

1

14

07303-04253

组合垫圈42 Combined washer

1

15

07009-13200

O型圈

O-ring

2

16

GB16674.1-M8X16

螺栓M8X16 Bolt

12

17

GB16674.1-M8X20

螺栓M8X20 Bolt

6

18

GB95-20

垫圈20

Washer

4

19

GB5783-M20X55

螺栓M20X55 Bolt

6

20

GB16674.1-M10X20

螺栓M10X20 Bolt

6

21

07303-01825

组合垫圈18 Washer

1

22

GB16674.1-M8X25

螺栓M8X25 Bolt

12

23

1457-60-12000

上盖总成 Top cover

1

24

JB1000-M42X2

螺塞M42X2 Screw plug

1

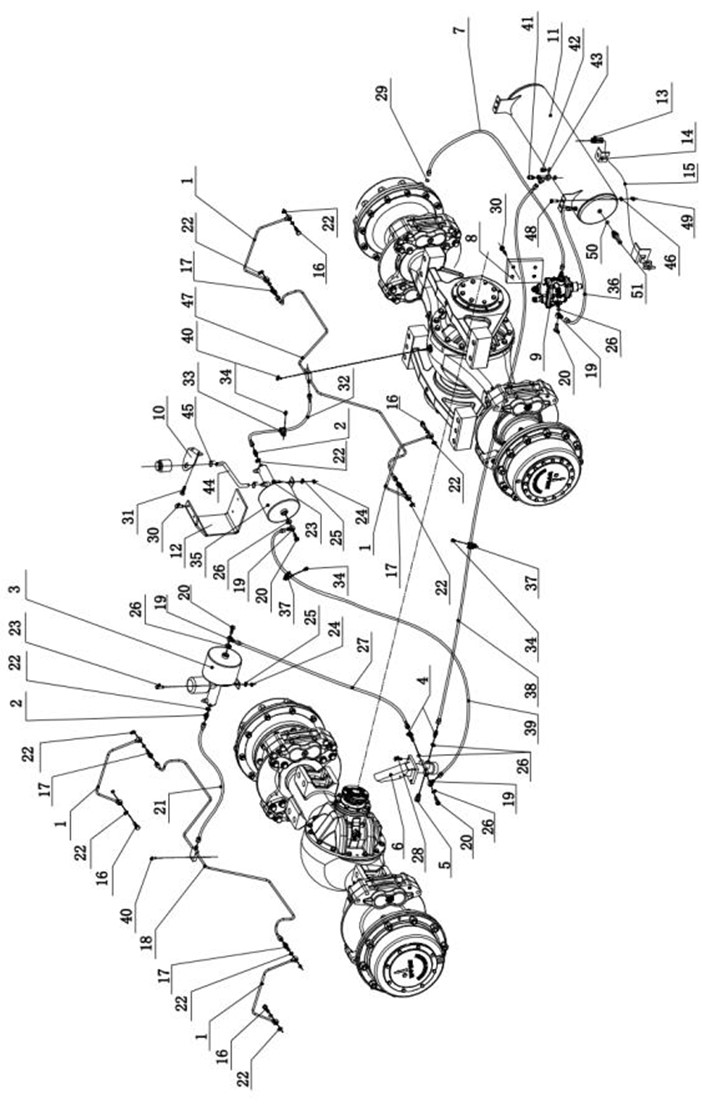

1

1455-77-14000

刹车管

Brake tube

4

2

1455-77-00001

接头体

Joint

2

3

1455-77-01000

空气加力泵 Air boosting pump

1

4

1455-77-00002

接头体

Joint

2

5

1455-77-28000

制动灯开关 Brake lamp switch

1

6

1455-77-37000

气制动阀 Air brake valve

1

7

1452-77-01000

空压机出气管 Compressor outlet pipe

1

8

1457-77-00001

板

Plate

1

9

1455-77-06000

油水分离器组合阀 Group valve

1

10

1457-77-00006

支架

Bracket

2

11

1455-77-09000

储气筒

Air cylinder

1

12

1457-77-09000

加力泵安装板 Plate

1

13

1455-77-10000

手动放水阀 Manual water drain valve

1

14

1452-77-00002

支架

Braket

1

15

1457-77-10000

放水阀拉线 Bracing wire

1

16

1455-77-00007

铰接螺栓

Link bolt

4

17

1455-77-00008

铰接螺栓

Link bolt

4

18

1457-77-06000

刹车管

Brake tube

1

19

1455-77-07000

铰接接头

Link bolt

4

20

1455-77-00005

铰接螺栓

Link bolt

4

21

03040-257001000

前刹车泵至前桥制动软管 Tube

1

22

07303-01218

组合垫圈12 Combined washer

18

23

GB16674.1-M12X35

螺栓M12X35 Bolt

4

24

GB6170-M12

螺母M12

Nut

4

25

GB97.1-12

垫圈12

Washer

4

26

07303-02230

组合垫圈22 Combined washer

10

27

03040-157101800

前刹车泵至脚制动阀软管 Tube

1

28

GB16674.1-M8X30

螺栓M8X30 Bolt

4

29

07303-01420

组合垫圈14 Combined washer

2

30

GB16674.1-M12X25

螺栓M12X25 Bolt

4

31

GB16674.1-M10X20

螺栓M10X20 Bolt

2

32

03040-257001500

后刹车泵至后桥制动软管 Tube

1
