SHANTUI L55-C5 PARTS CATALOG 27
第 31 图 制动系统

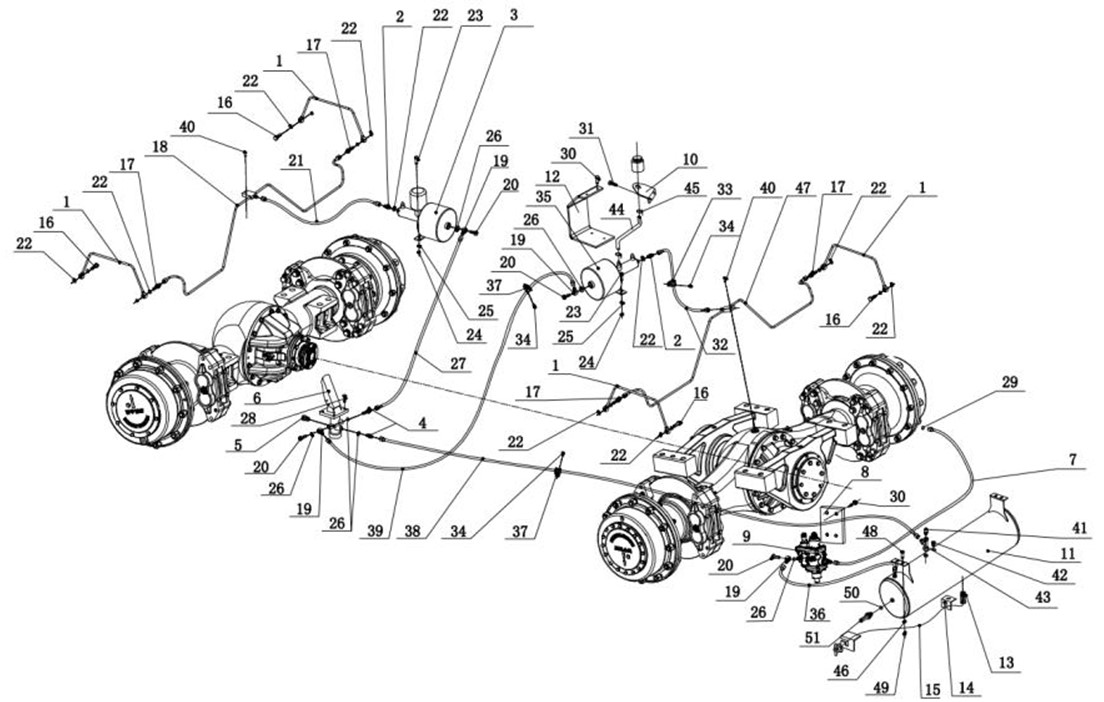

FIG.31 Brake System
|
33 |
08035-01806 |
套管夹 |
Clamp |
3 |
|
|
34 |
GB16674.1-M6X12 |
螺栓M6X12 |
Bolt |
6 |
|
|
35 |
1455-77-02000 |
空气加力泵 Air boosting pump |
1 |
||
|
36 |
03040-15710060450 |
组合阀至储气筒气管 Air pipe |
1 |
||
|
37 |
08043-01806 |
套管夹 |
Clamp |
4 |
|
|
38 |
03040-157102950 |
储气筒至脚制动阀气管 Air pipe |
1 |
||
|
39 |
03040-155101550 |
脚制动阀至后加力泵气管 Air pipe |
1 |
||
|
40 |
GB16674.1-M12X30 |
螺栓M12X30 Bolt |
2 |
||
|
41 |
D2300-01010 |
油压传感器 Oil pressure sensor |
1 |
||
|
42 |
1455-77V-01000 |
丝堵 |
Screw plug block |
1 |
|
|
43 |
1455-77-22000 |
三通接头 |
T-joint |
DG938-07019A |
1 |
|
44 |
1457-77-08000 |
低压耐油胶管 Oil pipe |
1 |
||
|
45 |
07280-02323 |
管夹 |
Clip |
2 |
|
|
46 |
GB97.1-10 |
垫圈10 |
Washer |
4 |
|
|
47 |
1457-77-07000 |
刹车管 |
Brake tube |
1 |
|
|
48 |
GB16674.1-M10X25 |
螺栓M10X25 Bolt |
4 |
||
|
49 |
GB6170-M10 |
螺母M10 |
Nut |
4 |
|
|
50 |
07303-02230 |
密封垫圈22 Sealing ring |
1 |
||
|
51 |
1455-77-09008 |
放气阀 Air release valve |
1 |
||
第 32 图 驻车制动系统

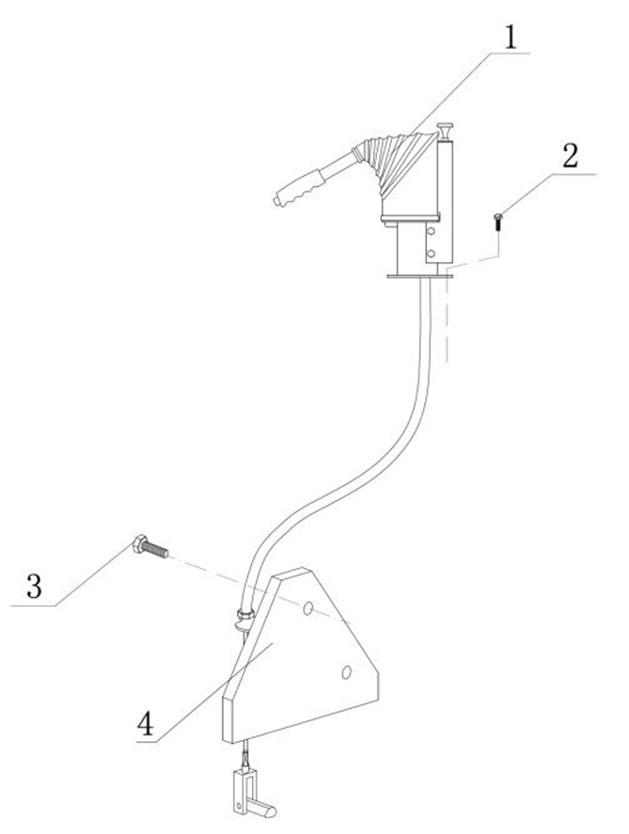

FIG.32 Parking Brake System
|
1 |
1457-17-01000 |
驻车制动软轴总成 Parking brake flexible shaft |
1 |
||
|
2 |
GB16674.1-M10X25 |
螺栓 M10X25 Bolt |
4 |
||
|
3 |
1452-17-02000 |
支架 |
Bracket |
DG953-08001 |
1 |
|
4 |
GB5783-M10X35 |
螺栓 M10X35 Bolt |
2 |
||
