0

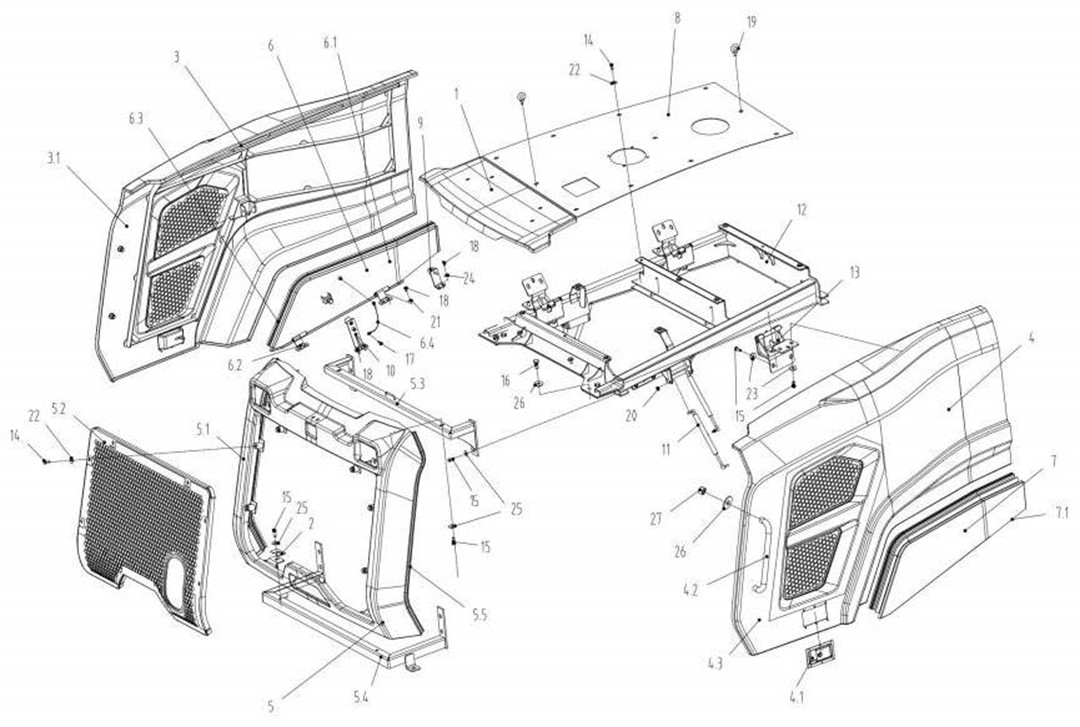

1457-50-B0000

机罩总成

Engine hood assembly

1

1

1457-50-00007

后顶盖

Rear top cover

1

2

1457-50-00008

调整垫

Gasket

8

3

1457-50-19000

左侧门组件

Side door assembly(L)

1

3.1

1457-50-19100

左侧门

Side door(L)

1

4

1457-50-20000

右侧门组件

Side door assembly(R)

1

4.1

1455-50-03300

机罩锁

Hood lock

1

4.2

1457-50-11000

扶手

Handrail

1

4.3

1457-50-20100

右侧门

Side door(R)

1

5

1457-50-21000

后尾门总成

End door assembly

1

5.1

1457-50-21100

后尾门

End door

1

5.2

1457-50-21200

护网

Net

1

5.3

1457-50-21300

上支架

Upper bracket

1

5.4

1457-50-21400

下支架

Lower bracket

1

5.5

1457-50-21001

密封条

Sealing strip

1

6

1457-50-22000

左小门组件

Side door assembly(L)

1

6.1

1457-50-22100

左小门

Side door(L)

1

6.2

1457-50-22200

铰链

Hinge

2

6.3

1457-50-22001

门密封条

Sealing strip

1

6.4

1457-50-22300

拉线

Bracing wire

1

7

1457-50-23000

右小门组件

Side door assembly (R)

1

7.1

1457-50-23100

右侧门

Side door(R)

1

8

1457-50-24000

顶盖板

Top cover plate

1

9

1457-50-28000

缓冲座

Seat

4

10

1457-50-29000

卡扣座

Seat

2

11

1457-50-30000

气弹簧

Air spring

4

12

1457-50-31000

顶框

Top frame

1

13

1457-50-32000

侧门铰链

Side door hinge

4

14

GB5783-M10X25

螺栓M10X25

Bolt

17

15

GB5783-M12X30

螺栓M12X30

Bolt

30

16

GB5783-M16X35

螺栓M16X35

Bolt

7

17

GB5783-M6X16

螺栓M6X16

Bolt

2

18

GB5783-M8X25

螺栓M8X25

Bolt

20

19

GB825-M10

吊环螺钉M10

Screw bolt

2

20

GB889.1-M8

螺母M8

Nut

8

21

GB96.1-8

垫圈8

Washer

8

22

GB96.1-10

垫圈10

Washer

17

23

GB96.1-12

垫圈12

Washer

20

24

GB97.1-8

垫圈8

Washer

12

25

GB97.1-12

垫圈12

Washer

10

26

GB97.1-16

垫圈16

Washer

11

27

GB6170-M16

螺母M16

Nut

4
