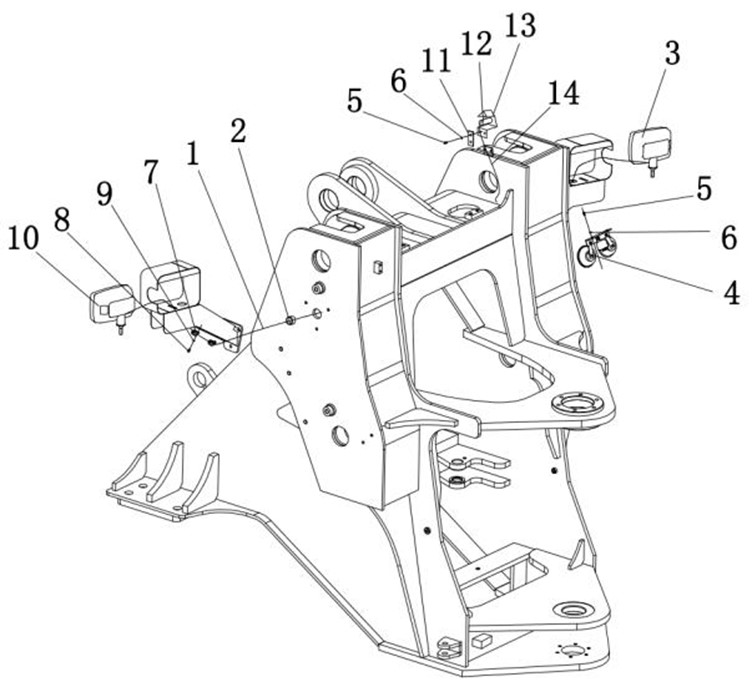

1

1457-07-05000

前灯线束 Front lamp wiring line

1

2

1455-07-00011

绝缘套1 Insulating sleeve2

ZL50G2-15013

4

3

D2451-00300

D2451-00301

右前组合大灯 Front Lamp(R)

海拉右前组合大灯 Hella Front Lamp(R)

D2401-07004

D2401-07002

1

1

4

D2711-11800

电喇叭 Electric horn

1

5

GB5783-M8X20

螺栓M8X20 Bolt

4

6

GB93-8

弹垫8 Spring Washer

4

7

08043-01406

套管夹

Clasp

D2930-01400

20

8

GB818-M6X10

螺钉M6X10 Screw bolt

20

9

GB93-6

弹垫6 Spring Washer

20

10

D2451-00310

D2451-00311

左前组合大灯 Front Lamp(L)

海拉左前组合大灯 Hella Front Lamp(L)

D2401-07003

D2401-07001

1

1

11

1455-07-00001

接近开关支架 Bracket

1

12

D2581-00500

接近开关 Switch

1

13

1455-07-02000

护板

Protection plate

1

14

1457-07V-03000

举升限位线束 Wire

1

1

1457-07-02000

主线束 Wiring harness

1

2

1457-07-00003

风扇线束支架 Wiring bracket

1

3

GB93-8

弹簧垫圈8 Spring washer

4

4

GB16674.1-M8X25

螺栓M8X25 Bolt

4

5

08043-01406

套管夹

Clamp

D2930-01400

3

6

GB93-6

弹簧垫圈6 Spring washer

14

7

GB818-M6X10

螺钉M6X10 Screw bolt

14

8

08043-40820

箍

Clamp

20

9

D2020-07000

发电机612600091062 Generator assembly

D2031-07001

1

10

D2250-00010

ECU控制器WISE15 Controller

D2941-00002

1

11

D2051-07500

起动机QD2827DU-WX Starter assembly

D2051-00803

1

12

1457-07-04000

电磁风扇线束 Wire

1
