识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

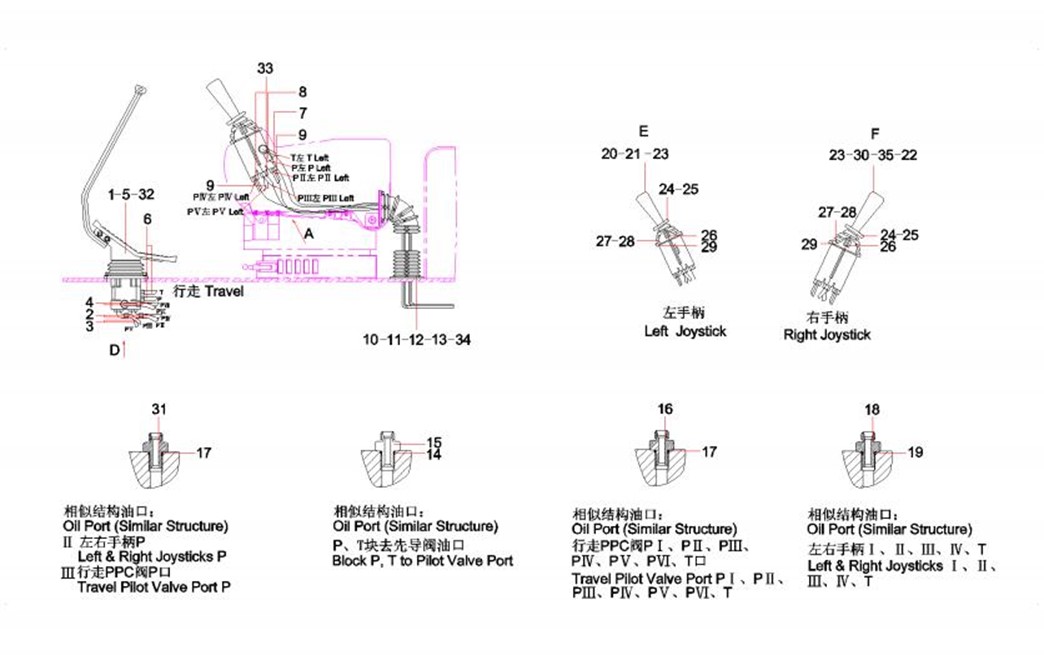

2-67-1

1

A210111000197

4

螺栓M10×25GB5783 10.9级

Bolt

2-67-2

2

B230103002705

2

胶管

Hose

2-67-3

3

B230103004319

2

胶管

Hose assembly

2-67-4

4

21020054

2

胶管

Hose

2-67-5

5

60004101

1

脚踏阀

Valve, foot

2-67-6

6

B230103000982

2

胶管

Hose

2-67-7

7

B230103002263

1

胶管

Hose, rubber

2-67-8

8

A831211120000

1

胶管

Hose, rubber

2-67-9

9

B230103000985

3

胶管

Hose

2-67-10

10

A820601990304

2

法兰

Flange

2-67-11

11

A820601990336

2

波纹管

Bellows

2-67-12

12

A210111000079

8

螺栓

Bolt

2-67-13

13

24000632

8

垫圈6GB97.1 达克锈

Washer

2-67-14

14

A230101000247

8

O形圈

O-ring

2-67-15

15

A820205000839

6

接头

Connector

2-67-16

16

A820205000940

7

接头

Connector

2-67-17

17

B230101000047

8

O形圈

O-ring

2-67-18

18

A820205000946

10

接头

Connector

2-67-19

19

B230101000049

10

O形圈

O-ring

2-67-20

20

B229900001613

1

左手柄

Joystick, left

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-69-21

21

60116344

1

插入件

Insertion piece

2-69-22

22

A229900006438

1

插入件

Insertion piece

2-69-23

23

A210264000022

2

自攻螺钉

Screw, self-tapping

2-69-24

24

11050165

2

手柄

Handle, grip

2-69-25

25

A210308000006

2

螺母

Nut M12×1.25GB6171

2-69-26

26

A210307000025

2

螺母

Nut M14GB6170

2-69-27

27

A229900006446

2

罩

Hood

2-69-28

28

A229900001028

2

罩

Hood

2-69-29

29

A229900001027

2

板

Plate

2-69-30

30

B229900001614

1

右手柄

Joystick, right

2-69-31

31

60020078

3

过滤接头

Connector, filter

2-69-32

32

24000637

4

垫圈10GB97.1 达克锈

Washer 10GB97.1

2-69-33

33

60128281

2

胶管

Hose

2-69-34

34

11243401

2

胶套

Sleeve, rubber

2-69-35

35

A241200000875

1

按钮开关

Switch

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

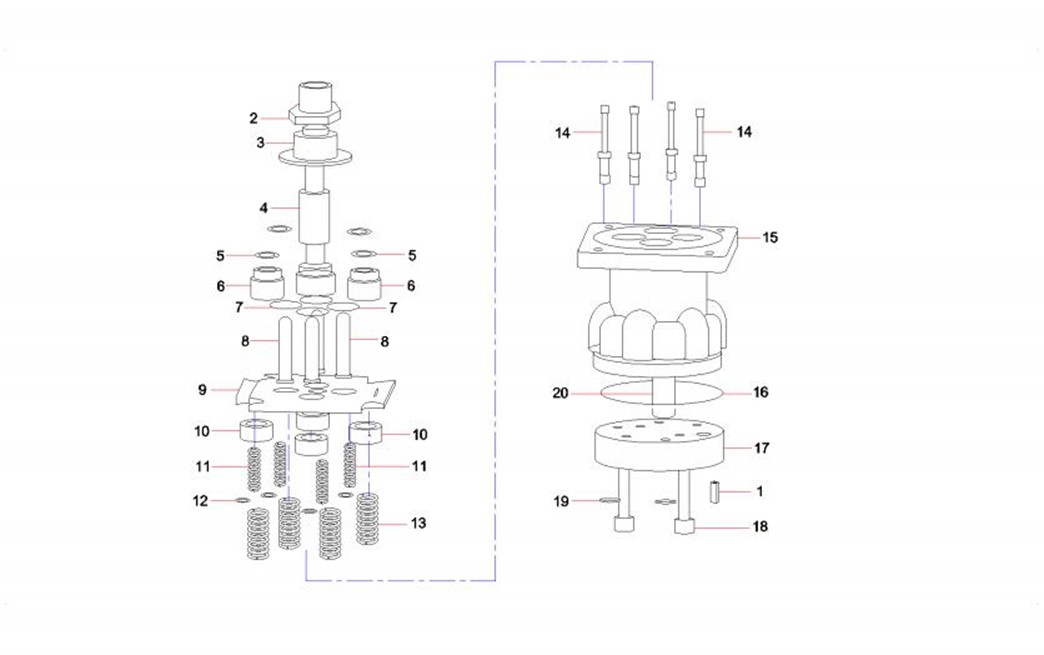

2-71-1

1

60008879

1

弹簧销

Pin, roll

2-71-2

2

60008604

1

调整螺母

Nut, adjusting

2-71-3

3

60008809

1

圆板

Plate, circular

2-71-4

4

60008602

1

接头

Connector

2-71-5

5

60008603

4

密封圈

Ring, seal

2-71-6

6

60008595

4

堵头

Plug

2-71-7

7

B230101000363

4

O形圈

O-ring

2-71-8

8

60008599

4

推动杆

Pushrod

2-71-9

9

60008811

1

板

Plate

2-71-10

10

60008758

4

弹簧座

Seat, spring

2-71-11

11

60008775

4

弹簧

Spring

2-71-12

12

60008597

4

垫圈

Washer

2-71-13

13

60008774

4

弹簧

Spring

2-71-14

14

60008760

4

滑轴

Spool

2-71-15

15

60008795

1

壳体

Housing

2-71-16

16

60008799

1

O形圈

O-ring

2-71-17

17

60008810

1

油口接板

Plate, connecting, oil port

2-71-18

18

60008786

2

内六角螺钉

Screw, socket head

2-71-19

19

60008598

2

密封垫圈

Washer, seal

2-71-20

20

60008806

1

衬套

Sleeve

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

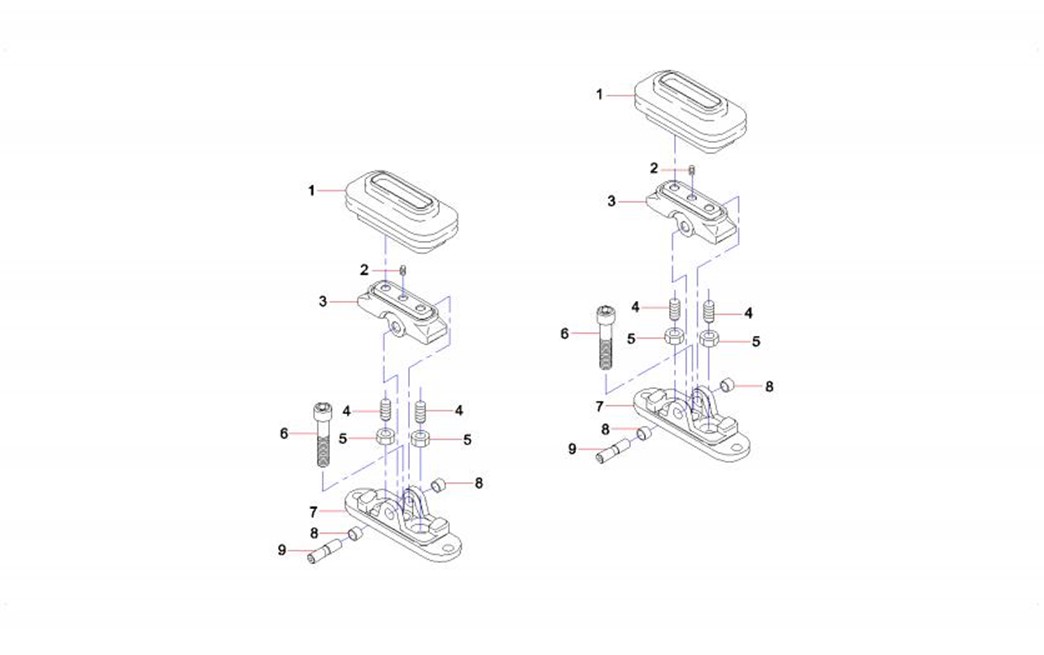

2-73-1

1

60008593

2

护罩

Cover, rubber

2-73-2

2

60038339

2

定位螺栓

Bolt, positioning

2-73-3

3

60008591

2

凸轮

Plate, cam

2-73-4

4

60008592

4

调整螺杆

Screw, adjusting

2-73-5

5

60038480

4

螺母

Nut

2-73-6

6

60038527

2

螺栓

Bolt

2-73-7

7

60008791

2

盖

Cover

2-73-8

8

60038181

4

衬套

Sleeve

2-73-9

9

60008585

2

凸轮轴

Camshaft

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

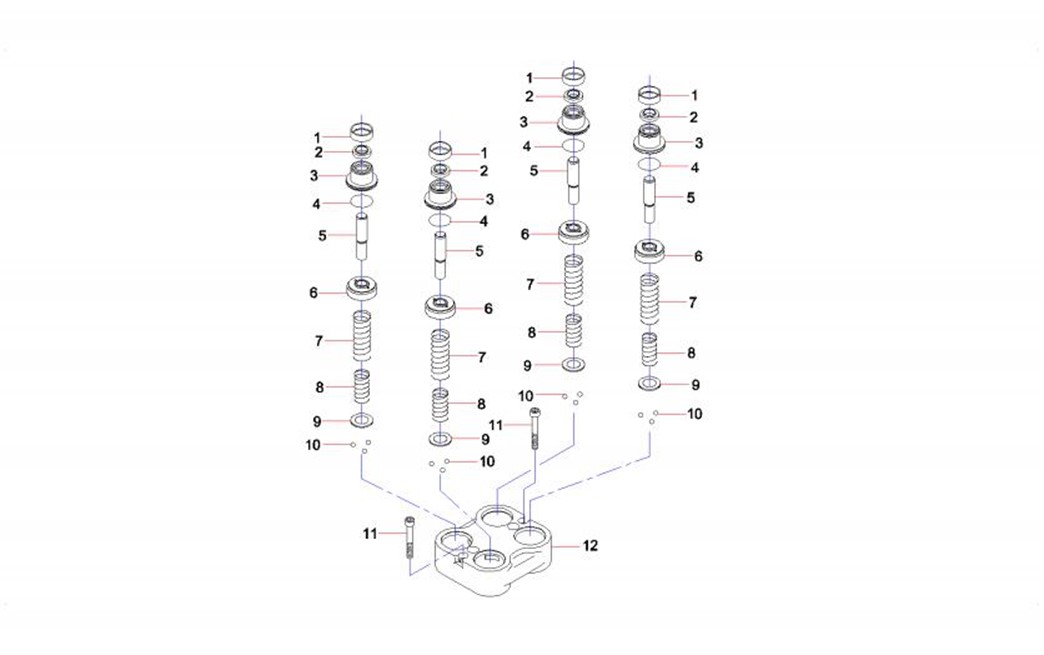

2-75-1

1

60008754

4

盖

Cover

2-75-2

2

60008776

4

防尘圈

Ring, dust

2-75-3

3

60008780

4

堵

Plug

2-75-4

4

60038720

4

O形圈

O-ring

2-75-5

5

60008813

4

推杆

Plunger

2-75-6

6

60008803

4

活塞

Piston

2-75-7

7

60008767

4

弹簧

Spring

2-75-8

8

60008766

4

弹簧

Spring

2-75-9

9

60008756

4

弹簧座

Seat, spring

2-75-10

10

60038140

12

轴承钢珠

Bearing, ball

2-75-11

11

60038563

2

内六角螺钉

Bolt

2-75-12

12

60038605

1

外壳(阻尼器)

Casing, damper
