识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-77-1

1

60038820

4

O形圈

O-ring

2-77-2

2

60008596

8

垫圈

Washer

2-77-3

3

60008757

4

弹簧座

Seat, spring

2-77-4

4

60038221

4

弹簧

Spring

2-77-5

5

60008594

4

弹簧

Spring

2-77-6

6

60008589

4

垫圈

Washer

2-77-7

7

60008597

4

垫圈

Washer

2-77-8

8

60008588

4

柱塞

Plunger

2-77-9

9

60038727

4

O形圈

O-ring

2-77-10

10

60008728

4

紧定螺钉

Setscrew

2-77-11

11

60038436

1

壳体

Housing

2-77-12

12

60038702

2

座

Seat

2-77-13

13

60038020

2

套

Collar

2-77-14

14

60038139

2

轴承钢珠

Bearing, ball

2-77-15

15

60038703

2

座

Seat

2-77-16

16

60038487

2

螺塞

Plug, screw

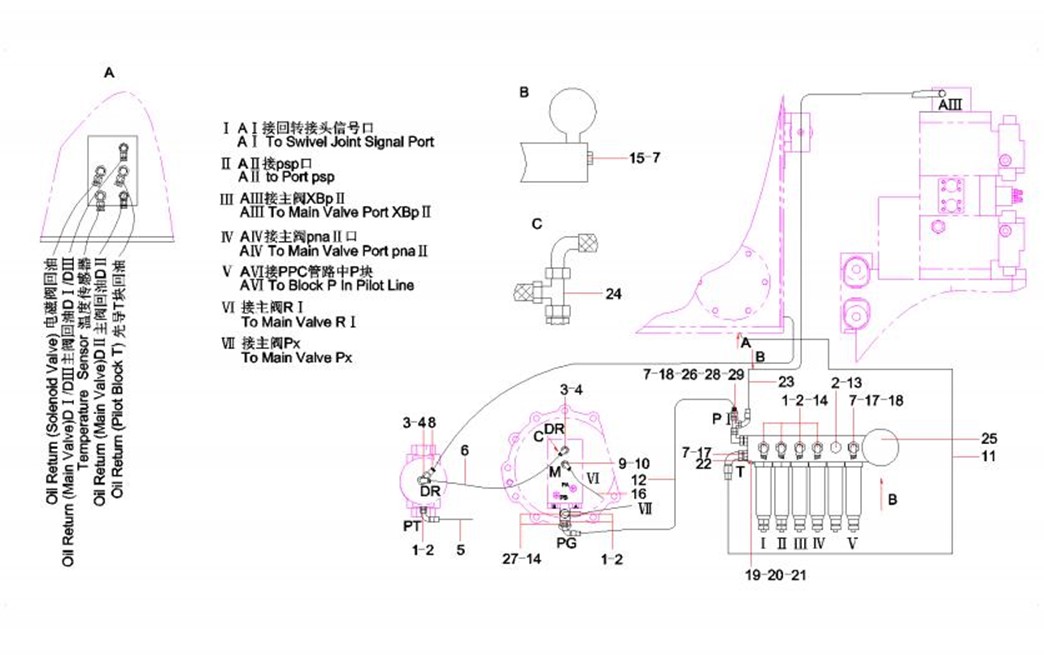

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-79-1

1

A820205000940

7

接头

Connector

2-79-2

2

B230101000047

8

O形圈

O-ring

2-79-3

3

A820205002280

2

接头

Connector

2-79-4

4

B230101000090

2

O形圈

O-ring

2-79-5

5

60000307

1

胶管

Rubber hose

2-79-6

6

21003803

1

胶管

Hose, rubber

2-79-7

7

B230101000049

4

O形圈

O-ring

2-79-8

8

B230103005259

1

胶管

Hose, rubber

2-79-9

9

A820205000945

1

G1-M30接头

Connector

2-79-10

10

B230101000050

1

O形圈

O-ring

2-79-11

11

B230103000602

1

胶管

Hose, rubber

2-79-12

12

B230103001258

1

胶管

Hose, rubber

2-79-13

13

A820205001771

1

堵头

Plug

2-79-14

14

B210780000418

6

管接头

Connector, pipe

2-79-15

15

A820205000947

1

堵头

Plug

2-79-16

16

B230103000863

1

胶管

Hose, rubber

2-79-17

17

A820205000961

2

G3/8-M18接头

Connector

2-79-18

18

B210780000024

2

管接头

Connector, pipe

2-79-19

19

A210204000358

2

螺钉M10×80GB70.1 10.9级

Screw

2-79-20

20

24000512

2

垫圈10GB93 达克锈

Washer 10GB93 达克锈

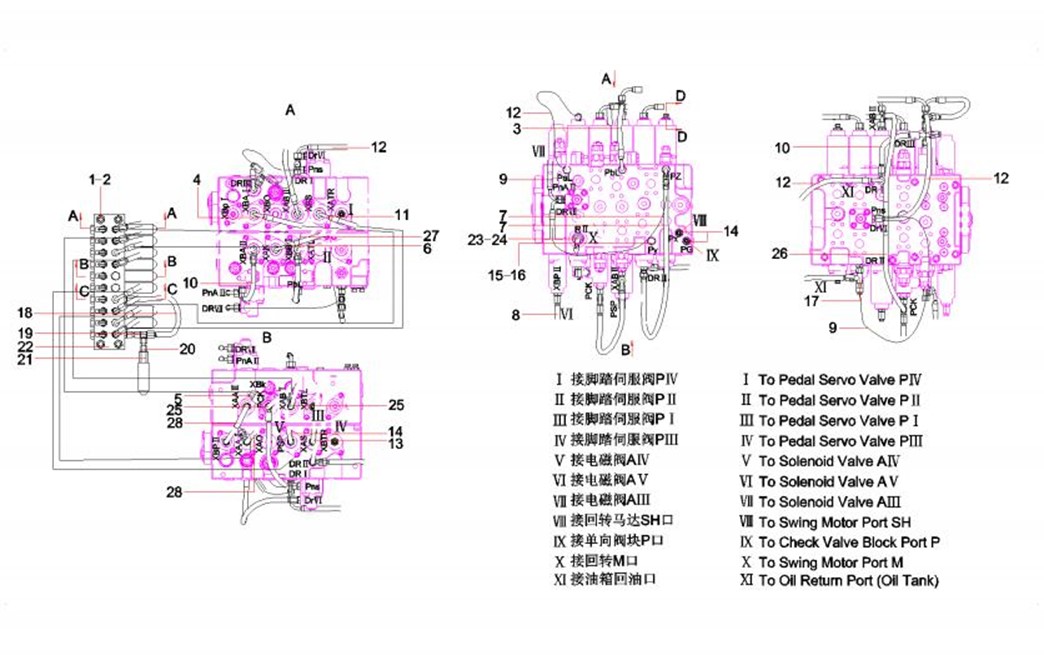

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-81-21

21

60060565

2

垫圈8GB96.1 达克锈

Washer

2-81-22

22

60136331

1

六联电磁换向阀组

Valve GP, solenoid, directional

2-81-23

23

B230103001022

1

胶管

Hose

2-81-24

24

B210780000018

1

管接头

Connector, pipe

2-81-25

25

60137145

1

蓄能器

Accumulator

2-81-26

26

12395992

1

G3/8-M18过滤接头

Connector, filter

2-81-27

27

B210780000170

1

管接头

Connector, pipe

2-81-28

28

B210780000827

1

管接头

Connector, pipe

2-81-29

29

B210780000016

1

管接头

Connector, pipe

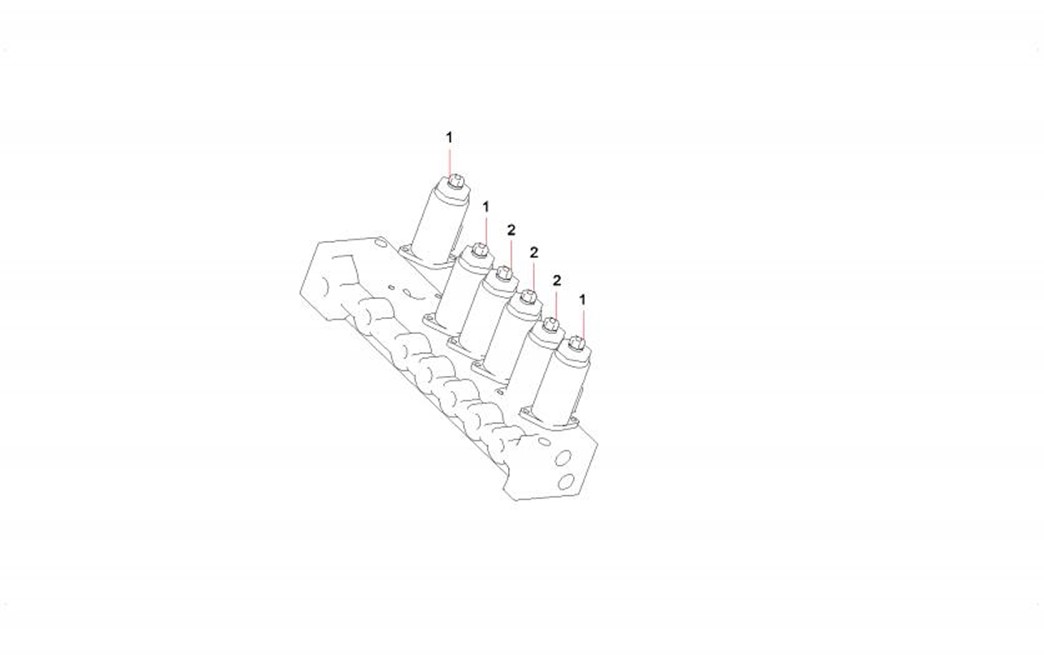

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-83-1

1

60065224

3

电磁切换阀

Valve, solenoid, changeover

2-83-2

2

60065222

3

电磁比例减压阀

Valve, solenoid, proportional

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-85-1

1

21008079

4

螺钉M10×85(GB70.1) 12.9级

Bolt

2-85-2

2

60060546

4

垫圈10GB96.1 达克锈

Washer

2-85-3

3

B230103004133

1

胶管

Hose

2-85-4

4

B230103005509

1

胶管

Hose

2-85-5

5

B230103002040

1

胶管

Hose, rubber

2-85-6

6

21020054

1

胶管

Hose

2-85-7

7

A831213065000

2

胶管

Hose

2-85-8

8

B230103000993

1

胶管

Hose, rubber

2-85-9

9

A831213050000

2

胶管

Hose, rubber

2-85-10

10

B230103002657

2

胶管

Hose

2-85-11

11

B230103004707

1

胶管

Hose

2-85-12

12

B230103000977

4

胶管

Hose, rubber

2-85-13

13

B230103005489

1

胶管

Hose

2-85-14

14

B230103000730

3

胶管

Hose, rubber

2-85-15

15

A820205001771

1

堵头

Plug

2-85-16

16

B230101000047

16

O形圈

O-ring

2-85-17

17

B210780000170

11

管接头

Connector, pipe

2-85-18

18

B230103002045

1

胶管

Hose

2-85-19

19

B220400000169

1

三通梭阀

Valve, shuttle, tee

2-85-20

20

B210780001045

2

管接头

Connector, pipe
