识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-107-1

1

A229900004761

1

雨刮器喷嘴

Nozzle, washer

2-107-2

2

60042511

1

雨刮器刮片

Blade,wiper

2-107-3

3

60042510

1

雨刮器刮杆

Rod,wiper

2-107-4

4

A229900003761

1

刮水器总成

Wiper GP

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

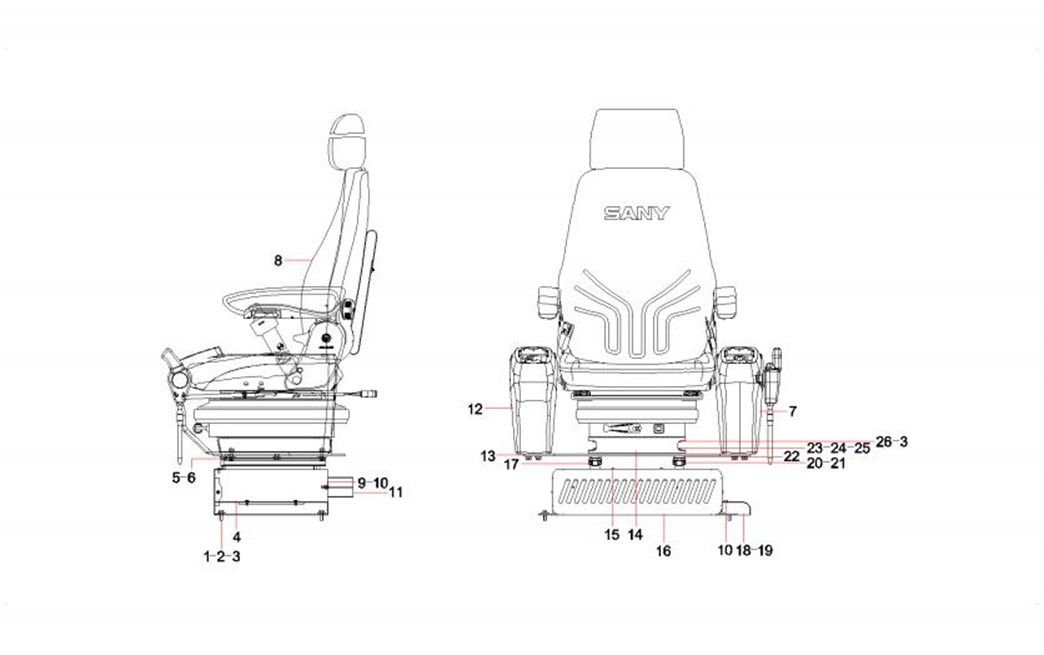

2-109-1

1

A210111000342

4

螺栓M8×16GB5783 10.9级

Bolt M8×16GB5783 10.9级

2-109-2

2

60060565

4

垫圈8GB96.1 达克锈

Washer

2-109-3

3

24000511

16

垫圈8GB93 达克锈

Washer 8GB93 达克锈

2-109-4

4

10428097

1

座椅下底座架

Bracket, lower base, seat

2-109-5

5

变更或见其他配置

8

螺栓

Bolt

2-109-6

6

24000637

8

垫圈10GB97.1 达克锈

Washer 10GB97.1

2-109-7

7

变更或见其他配置

1

左扶手箱总成

Left armrest box

2-109-8

8

B229900000265

1

机械悬浮式驾驶座椅

Seat, cab, mechanical suspension

2-109-9

9

变更或见其他配置

2

螺钉

Screw

2-109-10

10

24000632

4

垫圈6GB97.1 达克锈

Washer

2-109-11

11

10241175

1

风道连接法兰

Flange, coupling, air duct

2-109-12

12

变更或见其他配置

1

右扶手箱总成

Right armrest box

2-109-13

13

10115283

1

支撑平板

Plate, supporting

2-109-14

14

10115295

1

座椅上底座架

Bracket, upper base, seat

2-109-15

15

变更或见其他配置

4

螺钉

Screw

2-109-16

16

10140450

1

电装底座架前盖

Cover, seat bracket, front

2-109-17

17

60033517

1

座椅右导轨

Guide rail, seat, right

2-109-18

18

10344193

1

外护罩

Hood, outer

2-109-19

19

A210111000079

8

螺栓

Bolt

2-109-20

20

60033205

1

座椅左导轨

Guide rail, seat, left

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-111-21

21

B229900000494

1

座椅拉杆

Pull rod, seat

2-111-22

22

10130346

4

座椅导轨调整垫

Adjuster, guide rail, seat

2-111-23

23

A210307000012

8

螺母

Nut

2-111-24

24

24000633

8

垫圈8GB97.1 达克锈

Washer

2-111-25

25

A210204000164

4

螺钉

Screw

2-111-26

26

变更或见其他配置

4

螺栓

Bolt

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

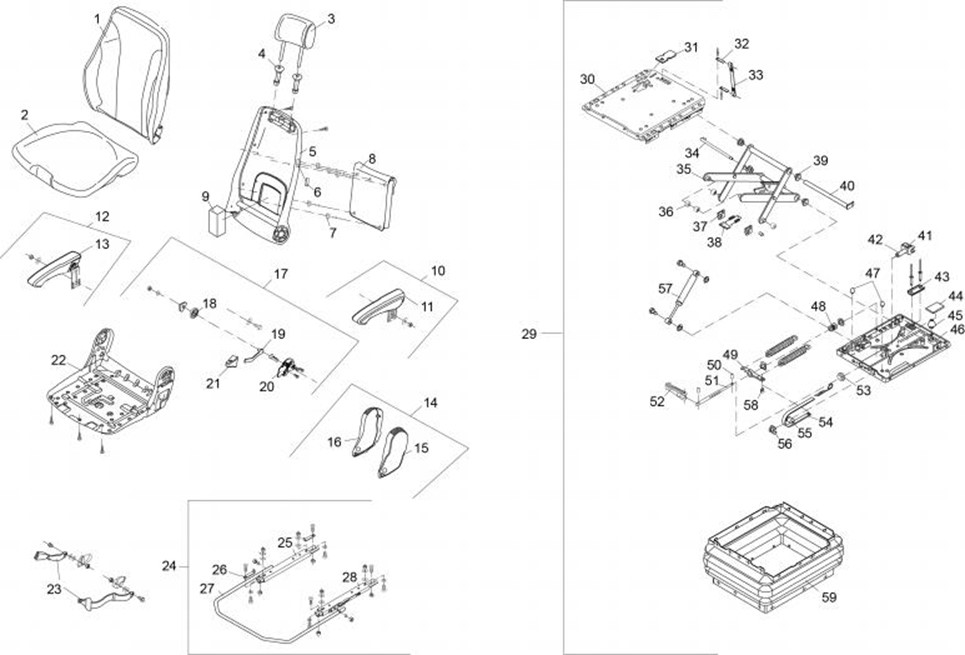

2-113-1

1

60153633

1

靠垫

Cushion, back

2-113-2

2

60153810

1

座垫

Cushion, seat

2-113-3

3

60153648

1

头枕

Headrest

2-113-4

4

60153704

1

衬套

Bushing

2-113-5

5

60153632

1

靠背

Backrest

2-113-6

6

60153625

1

黑色盖子

Cover, black

2-113-7

7

60153669

1

套环

Ring

2-113-8

8

60153650

1

文件袋

Bag, document

2-113-9

9

60153643

1

泡沫块

Foam

2-113-10

10

60153808

1

左扶手装置

Console AS (LH)

2-113-11

11

60153807

1

左扶手

Console (LH)

2-113-12

12

60153795

1

右扶手装置

Console AS (RH)

2-113-13

13

60153794

1

右扶手

Console (RH)

2-113-14

14

60153754

1

铰链封盖装置

Cover AS, hinge

2-113-15

15

60153664

1

左封盖

Cover LH

2-113-16

16

60153653

1

右封盖

Cover RH

2-113-17

17

60153756

1

靠背角度调节装置

Adjuster, backrest angle

2-113-18

18

60153711

1

弹簧支柱

Pillar, spring

2-113-19

19

60153831

1

左杠杆

Lever, left

2-113-20

20

60153626

1

活动板

Plate, movable

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-115-21

21

60153751

1

角度调节手柄

Handle, angle adjustment

2-115-22

22

60153812

1

座椅骨架

Framework, seat

2-115-23

23

60153695

1

安全带

Seat belt

2-115-24

24

60153746

1

滑轨装置

Rail AS

2-115-25

25

60153796

1

右滑轨

Rail, right

2-115-26

26

60153752

1

角支座

Support, angle

2-115-27

27

60153651

1

限位弯杆

Bar, limit

2-115-28

28

60153809

1

左滑轨

Rail, left

2-115-29

29

60153814

1

座椅悬挂总成

Suspension AS, seat

2-115-30

30

60153811

1

座垫固定板

Plate, seat-holding

2-115-31

31

60153656

1

整齐嵌板

Panel

2-115-32

32

60153646

1

嵌板

Panel

2-115-33

33

60153696

1

安全带短带

Belt, safety, short

2-115-34

34

60153701

1

插销

Pin

2-115-35

35

60153790

1

摇臂总成

Rocker AS

2-115-36

36

60153739

1

滚筒

Roll

2-115-37

37

60153733

1

隔板

Separator

2-115-38

38

60153647

1

条板

Strip

2-115-39

39

60153822

1

套筒

Sleeve

2-115-40

40

60153700

1

插销

Pin
