识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-137-1

1

11475138

1

扶手主体

Body, armrest

2-137-2

2

12046539

1

右下后视镜支架组件

Right lower bearer-rear view mirror

2-137-3

3

60126001

1

后视镜

View mirror

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

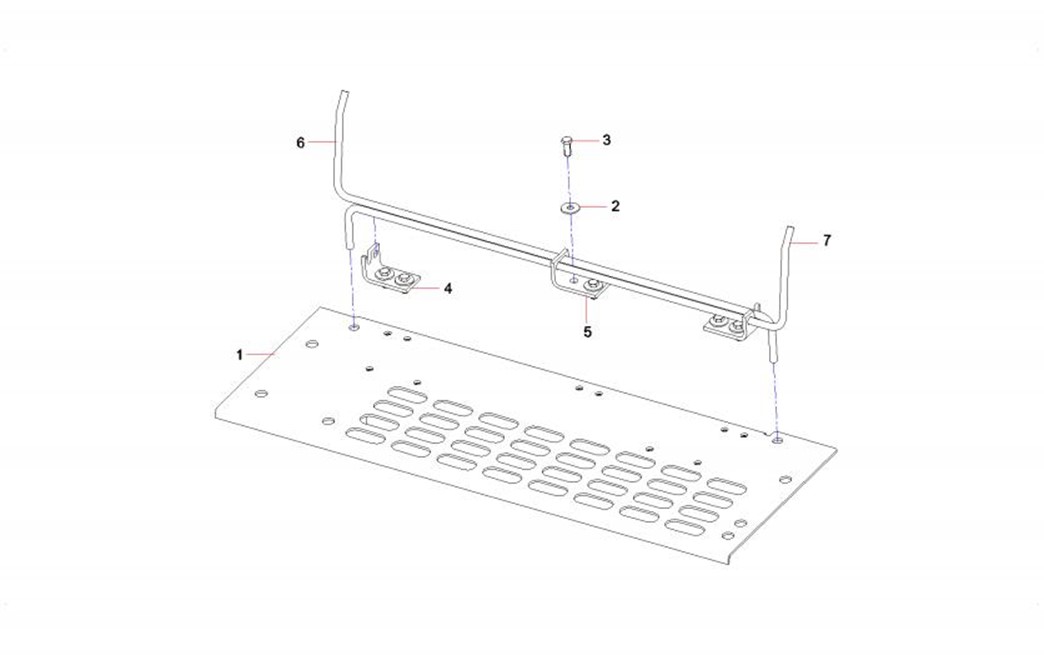

2-139-1

1

12628664

1

右上后盖板

Right upper rear cover

2-139-2

2

24000639

6

垫圈12GB97.1 达克锈

Washer 12GB97.1

2-139-3

3

A210111000202

6

螺栓M12×30GB5783 10.9级

Bolt M12×30GB5783

2-139-4

4

A820101342714

2

支架

Bracket

2-139-5

5

A820101342715

1

防摆套

Sleeve, anti-swing

2-139-6

6

A820301021326

1

前部弹簧

spring, torsional

2-139-7

7

A820301021327

1

后部弹簧

Spring, torsional

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

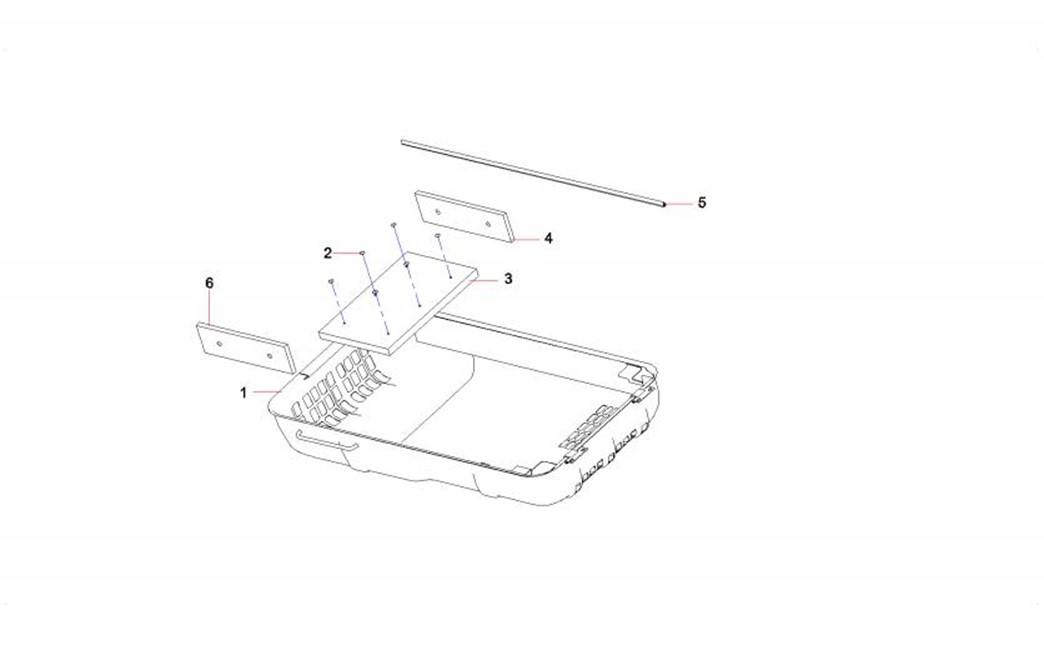

2-141-1

1

12627674

1

机顶罩总成

Bonnet Assy.SY265C9.1.6B.16.1

2-141-2

2

11961759

10

扣钉

Pintle

2-141-3

3

A820699000947

1

顶部海绵

Sponge, top

2-141-4

4

A820699001228

1

侧面海绵

Foam

2-141-5

5

11348911

1

密封条

Strip, sealing

2-141-6

6

12831195

1

侧面海绵

Side spongeSY265C9.1.6B.16-2

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

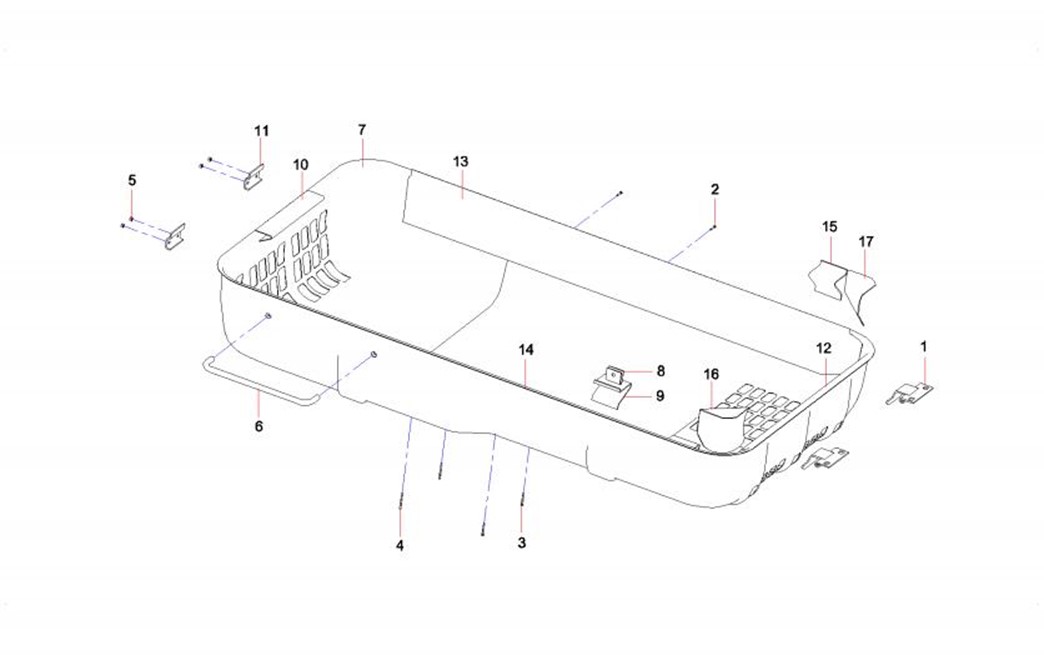

2-143-1

1

A810599000264

2

铰链

Hinge

2-143-2

2

60166958

4

螺柱

Stud

2-143-3

3

60166959

3

螺柱

Stud

2-143-4

4

60168508

3

螺柱

Threadedstud

2-143-5

5

A210307000012

4

螺母

Nut

2-143-6

6

A820299000358

1

机罩拉手

Handgrip, engine hood

2-143-7

7

12627673

1

机顶罩主壳体

Engine cover main

2-143-8

8

A820101213425

1

支撑座

Seat – Support

2-143-9

9

A820101330217

1

支撑板

Plate – Support

2-143-10

10

A820101346644

1

防摆罩

Hood – Anti-Swing

2-143-11

11

A820101342394

2

机罩锁安装座

Seat, mounting, engine hood lock

2-143-12

12

11254803

1

后部加强筋

Reinforcement

2-143-13

13

11254192

1

左侧加强筋

Reinforcement

2-143-14

14

11254541

1

右侧加强筋

Reinforcement

2-143-15

15

11254559

2

弹簧支承座

Seat – Spring

2-143-16

16

11254652

1

拐角加强筋

Reinforcement

2-143-17

17

11255109

1

拐角加强筋

Reinforcement

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

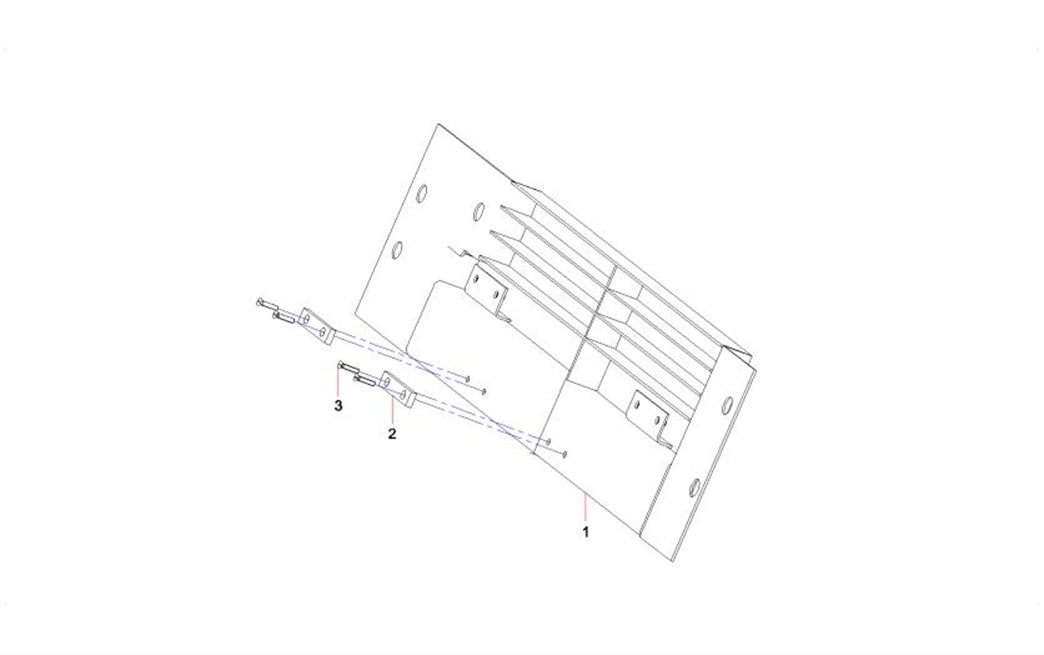

2-145-1

1

12628461

1

左上后盖板

Left Upper Rear Cover

2-145-2

2

A820606010409

2

橡胶块

Block, rubber

2-145-3

3

A210203000008

4

螺钉

Screw
