识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-267-1

1

60154106

1

散热器

Radiator

2-267-2

2

60215482

1

燃油冷却器

Fuel cooler

2-267-3

3

60154104

1

散热器

Radiator

2-267-4

4

60154105

1

散热器

Radiator

2-267-5

5

60125365

1

水箱盖

Cover, water tank

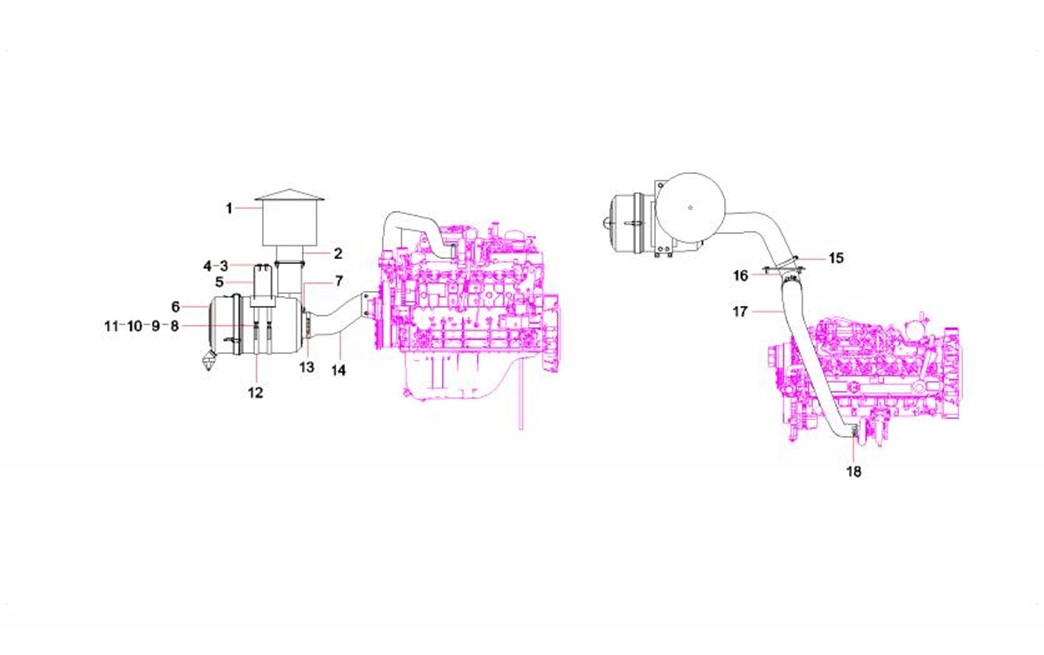

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-269-1

1

A222100000410

1

空气预滤器

Precleaner

2-269-2

2

12787411

1

预滤支架

Air inlet connecting

2-269-3

3

60060548

12

垫圈12GB96.1 达克锈

Washer 12GB96.1

2-269-4

4

A210111000101

16

螺栓M12×25GB5783 10.9级

Bolt

2-269-5

5

12787426

1

空滤托架

Air filtering

2-269-6

6

60210376

1

空气滤清器FRG130333 纳米

Air cleaner

2-269-7

7

60148482

1

空滤传感器

Sensor, air cleaner

2-269-8

8

A210111000270

2

螺栓M10×90GB5783 10.9级

Bolt

2-269-9

9

24000512

2

垫圈10GB93 达克锈

Washer 10GB93 达克锈

2-269-10

10

24000637

2

垫圈10GB97.1 达克锈

Washer 10GB97.1

2-269-11

11

A210307000036

2

螺母M10GB6170 10级

Nut

2-269-12

12

12214087

2

空滤管箍

Clamp

2-269-13

13

A229900002220

1

T型抱箍

Anchor ear, T-type

2-269-14

14

12787432

1

前进气胶管

front air intake rubber

2-269-15

15

A229900002263

2

T型抱箍

Anchor ear, T-type

2-269-16

16

12629296

1

进气管

Air Inlet TubeSY265C9M2K.1.3.4.1

2-269-17

17

12733228

1

进气胶管

air intake hoseSY265C9M2K.1.3.4

2-269-18

18

B229900001059

1

T型抱箍

Anchor ear, T-type

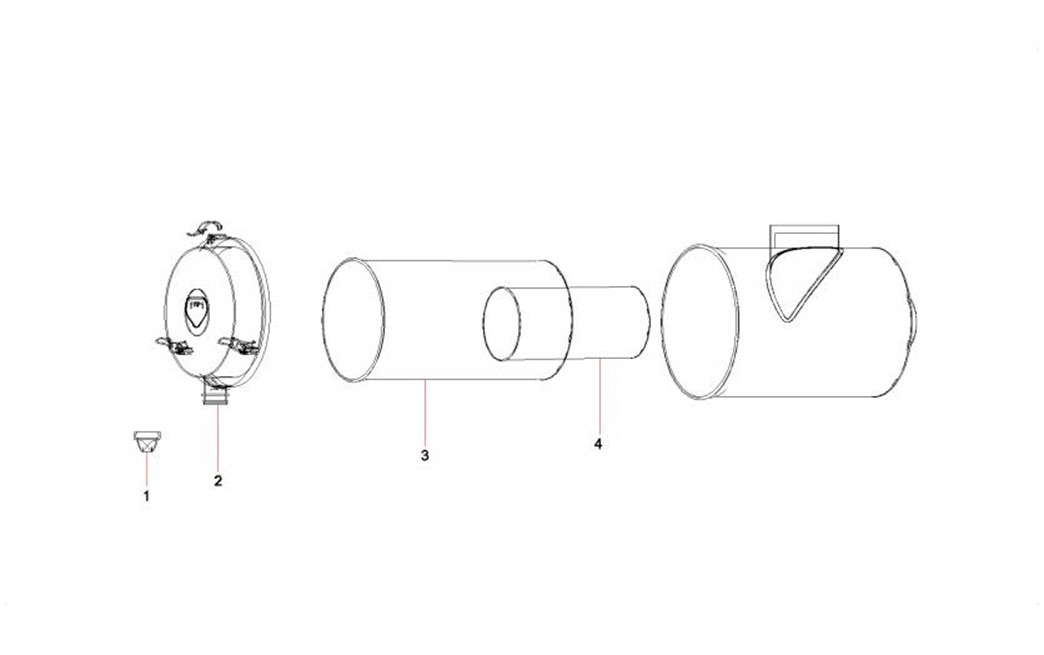

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-271-1

1

60213978

1

集尘嘴

Collector, dust

2-271-2

2

60213977

1

空滤盖

Cover, air cleaner

2-271-3

3

60207265

1

空气滤清器主滤芯R002504 纳米

Element, primary, air cleaner

2-271-4

4

60207264

1

空气滤清器安全滤芯

Element, safety, air cleaner

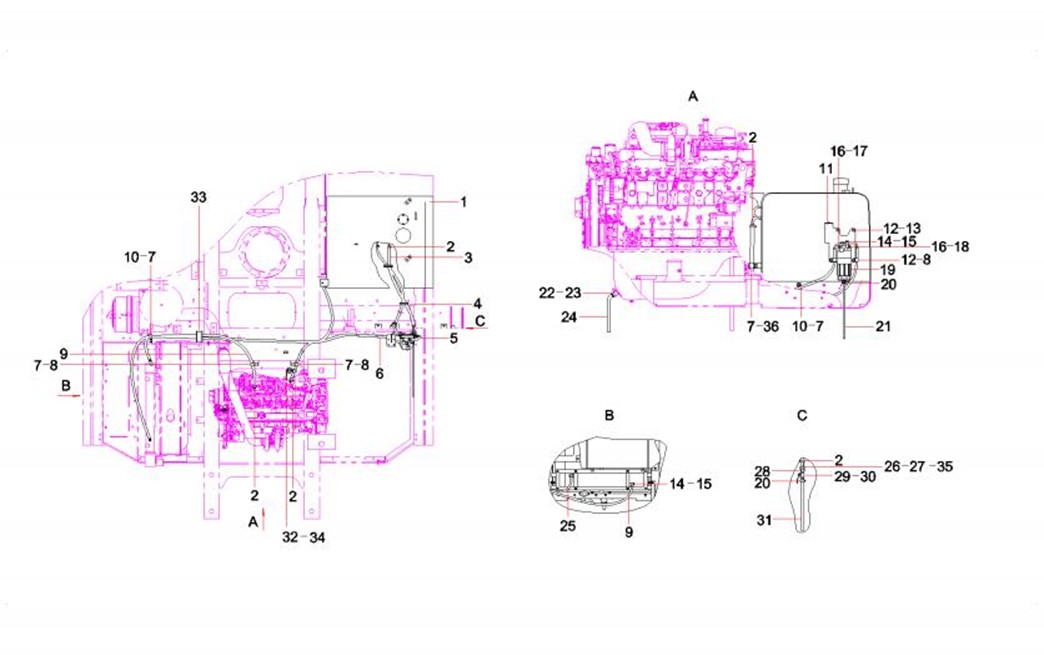

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-273-1

1

11994787

1

燃油箱总成

Tank GP, fuel

2-273-2

2

变更或见其他配置

6

喉箍

Hoop

2-273-3

3

12196669

1

进油管

Fuel inlet pipeSY265C9.1.3A.5-11

2-273-4

4

12212275

2

护套

protecting ring SY265C9.1.3A.5-12

2-273-5

5

12828422

1

油箱出油管

Oil-out tube of fuel

2-273-6

6

12828423

1

粗滤出油管

Oil-out tube of fuel

2-273-7

7

A210111000199

6

螺栓M12×20GB5783 10.9级

Bolt M12×20GB5783

2-273-8

8

60086355

5

线束固定夹

Clamp, harness

2-273-9

9

12828424

1

发动机出油管

oil-in tubeSY265C9M2K.1.3.5-3A

2-273-10

10

60149606

2

线束固定夹

Clamp, harness

2-273-11

11

12769809

1

燃油粗滤板总成

fuel filter

2-273-12

12

A210111000101

5

螺栓M12×25GB5783 10.9级

Bolt

2-273-13

13

变更或见其他配置

4

垫圈12GB97.1 达克锈

Washer 12GB97.1

2-273-14

14

A210434000008

8

垫圈

Washer

2-273-15

15

A210199000016

4

铰接螺栓

Bolt, articulated

2-273-16

16

24000637

3

垫圈10GB97.1 达克锈

Washer 10GB97.1

2-273-17

17

21005186

2

螺栓M10×40GB5783 10.9级

Bolt M10×40GB5783 10.9级

2-273-18

18

A210111000295

1

螺栓

Bolt

2-273-19

19

60064763

1

燃油粗滤器

Filter, fuel (primary)

2-273-20

20

A229900001345

3

软管环箍

Hoop, hose

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-275-21

21

A820606030737

1

粗滤水管

Hose AS, primary water filter

2-275-22

22

A210855000008

1

喉箍

Hoop

2-275-23

23

12725406

1

放油阀接头

jointSY265C9M2K.1.3.5-10B

2-275-24

24

12323167

1

放油管

Oil outlet hoseSY265C9.1.3A.5-14

2-275-25

25

12828425

1

燃油油散出油管

oil-in tubeSY265C9M2K.1.3.5-4A

2-275-26

26

A210307000028

1

螺母M16GB6170 10级

Nut

2-275-27

27

变更或见其他配置

1

垫圈8GB97.1 达克锈

Washer

2-275-28

28

11251714

1

接头

Adapter

2-275-29

29

60046622

1

燃油开关

Switch, fuel

2-275-30

30

11331654

1

接头

Adapter

2-275-31

31

11273607

1

软管

Hose

2-275-32

32

12859536

1

支架

BracketSY265C9M2K.1.3.5.3

2-275-33

33

11779657

2

胶套

Sleeve, rubber

2-275-34

34

A210111000342

1

螺栓M8×16GB5783 10.9级

Bolt M8×16GB5783 10.9级

2-275-35

35

12931354

1

垫片

GasketSY215C9M2KS.1.3.5-1

2-275-36

36

60086356

1

线束固定夹

Clamp, harness
