识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-7-1

1

A820606030424

2

护套

Sheath

3-7-2

2

A210110000307

72

螺栓

Bolt

3-7-3

3

60052677

60

螺栓

Bolt

3-7-4

4

A820101116020

2

马达盖板

Coverplate, motor

3-7-5

5

12110564

2

履带总成

Track Assembly

3-7-6

6

A210491000144

72

垫圈

Washer

3-7-7

7

11221884

2

驱动轮

Sprocket

3-7-8

8

10999958

18

支重轮总成

Roller AS, track

3-7-9

9

A810401990037

4

护板

Board, guard

3-7-10

10

A210111000221

16

螺栓M20×50GB5783 10.9级

Bolt

3-7-11

11

A210491000132

17

垫圈

Washer 20GB1230

3-7-12

12

12048195

1

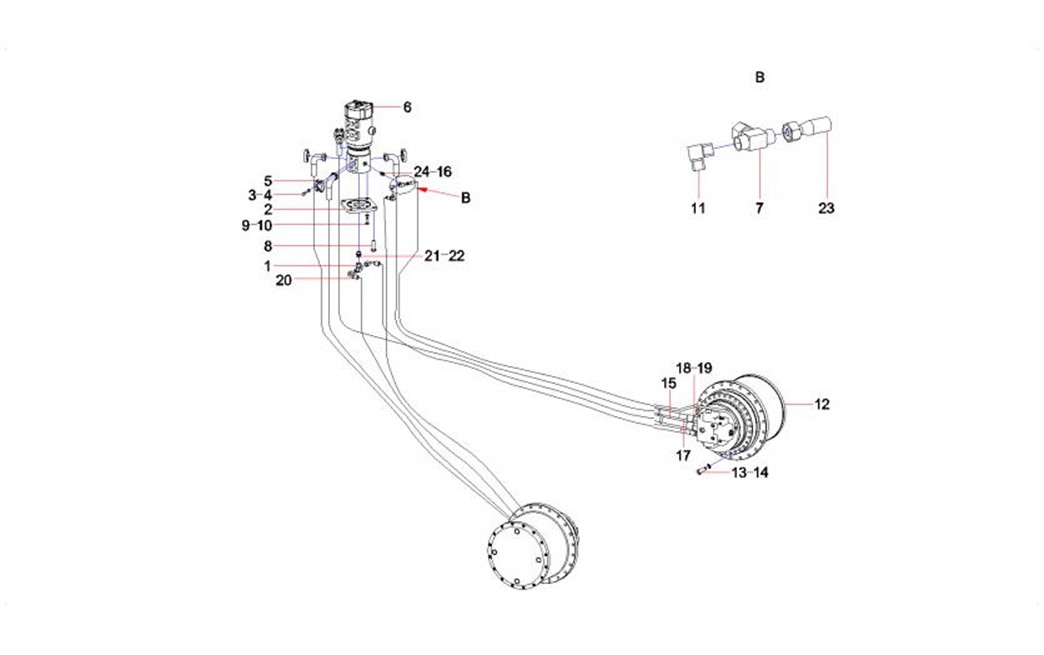

行走装置管路

Pipeline, Travel device

3-7-13

13

12168856

4

托链轮总成

Roller As, carrier

3-7-14

14

A210111000347

8

螺栓M16×90GB5783 10.9级

Bolt

3-7-15

15

24000641

60

垫圈16GB97.1 300HV 达克锈

Washer 16GB97.1

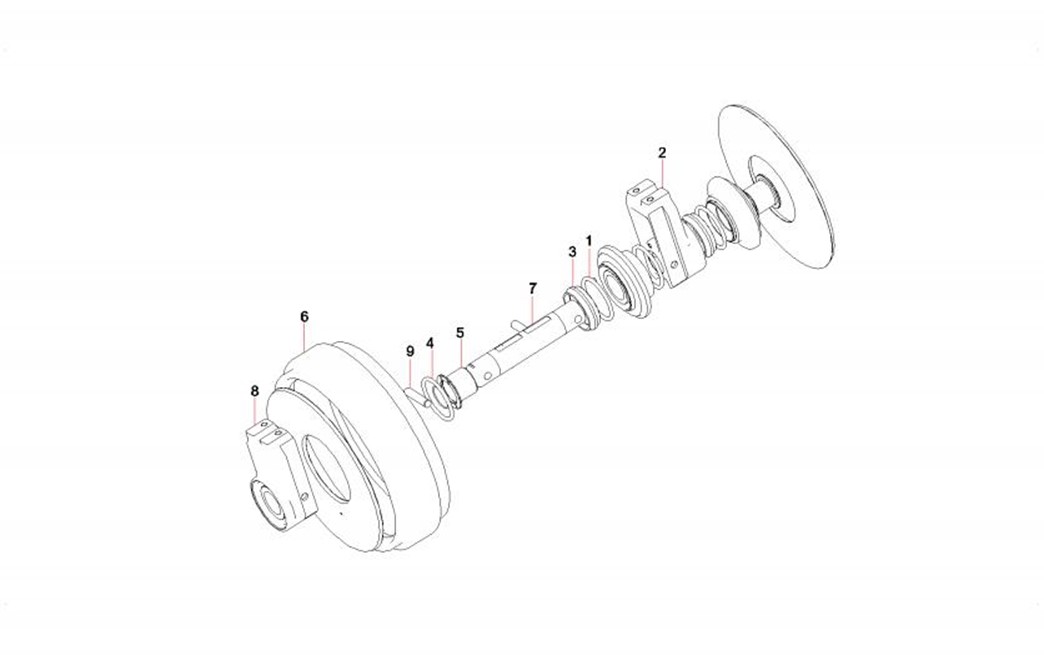

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-9-1

1

60027515

1

闷头螺塞

Plug, screw

3-9-2

2

11744340

1

右支座

Right-Support Abutment

3-9-3

3

60047793

2

支浮动油封

Seal, oil

3-9-4

4

A210608000081

2

O形圈

O-ring

3-9-5

5

60102940

2

衬套72×65×64.5 法兰

Bushing

3-9-6

6

11744348

1

引导轮轮体总成

Leading wheel body assembly

3-9-7

7

11744338

1

轴

shaft

3-9-8

8

11744339

1

左支座

Lelt-Support AbutmentSWY190A-

3-9-9

9

60102942

2

销

Pin,cylindrical

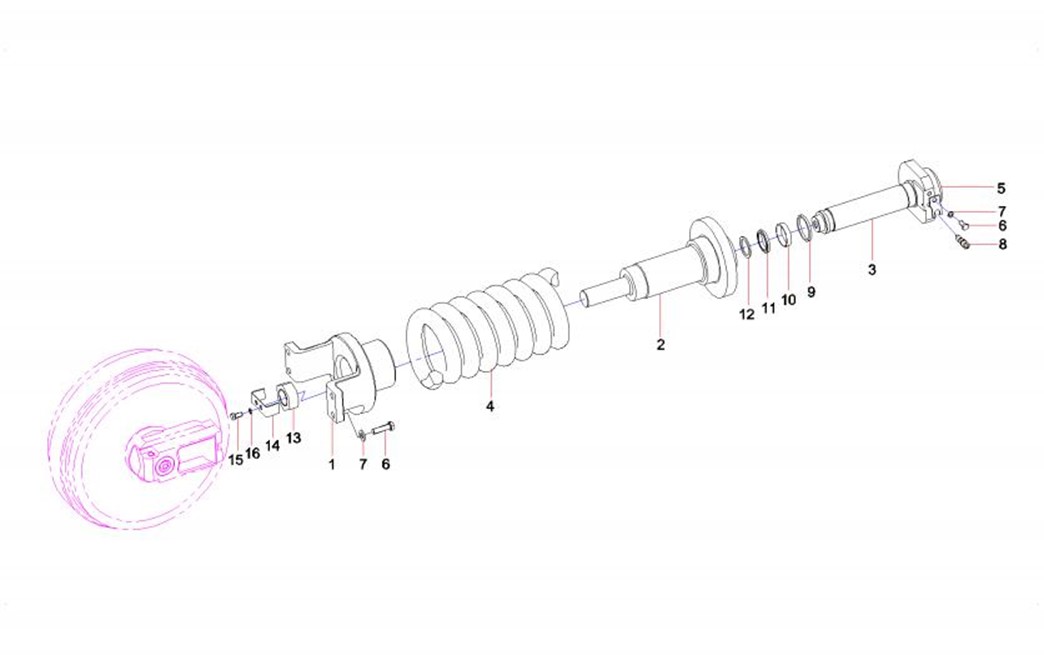

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-11-1

1

60047943

1

叉环

Mount, connecting

3-11-2

2

60047976

1

油缸

Cylinder

3-11-3

3

60047981

1

轴

Shaft

3-11-4

4

60047952

1

弹簧

Spring

3-11-5

5

A820101010372

1

支板

Plate, support

3-11-6

6

A210111000054

10

螺栓M16×55GB5783 10.9级

Bolt

3-11-7

7

A210491000118

10

垫圈

Washer

3-11-8

8

B229900000862

1

黄油阀

Valve, grease

3-11-9

9

60047992

1

防尘圈

Ring, dust

3-11-10

10

60047946

1

磨损修正圈

Ring, wear correction

3-11-11

11

60047995

1

密封圈

Ring, sealing

3-11-12

12

60047955

1

挡圈

Ring, retaining

3-11-13

13

60047966

1

螺母

Nut

3-11-14

14

60047950

1

锁片

Plate, lock

3-11-15

15

A210110000162

4

螺栓

Bolt

3-11-16

16

10132662

4

垫圈

Washer

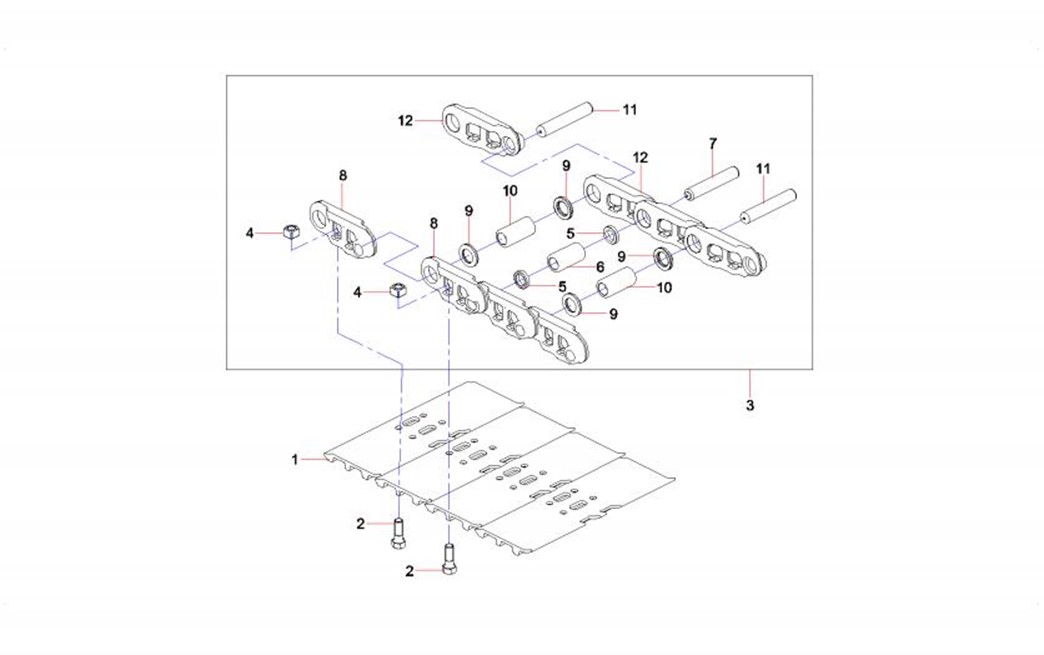

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-13-1

1

60001366

51

履带板

Shoe, track

3-13-2

2

60001368

204

履带螺栓

Bolt, track

3-13-3

3

12110572

1

链轨总成

track chainSTC190MB-6051.1

3-13-4

4

60110067

204

履带防松螺母

Check nut,crawler

3-13-5

5

12372220

2

主密封圈

Master SealSTC190MB-6051.1-9

3-13-6

6

12110565

1

主销套

master track bush

3-13-7

7

12110566

1

主销轴

master track pin

3-13-8

8

12110570

51

左链轨节

track link/LSTC190MB-6051.1-6

3-13-9

9

12110571

100

密封圈

Seal Ring

3-13-10

10

12110569

50

销套

track bushSTC190MB-6051.1-5

3-13-11

11

12110568

50

销轴

track pinSTC190MB-6051.1-4

3-13-12

12

12110573

51

右链轨节

track link/RSTC190MB-6051.1-

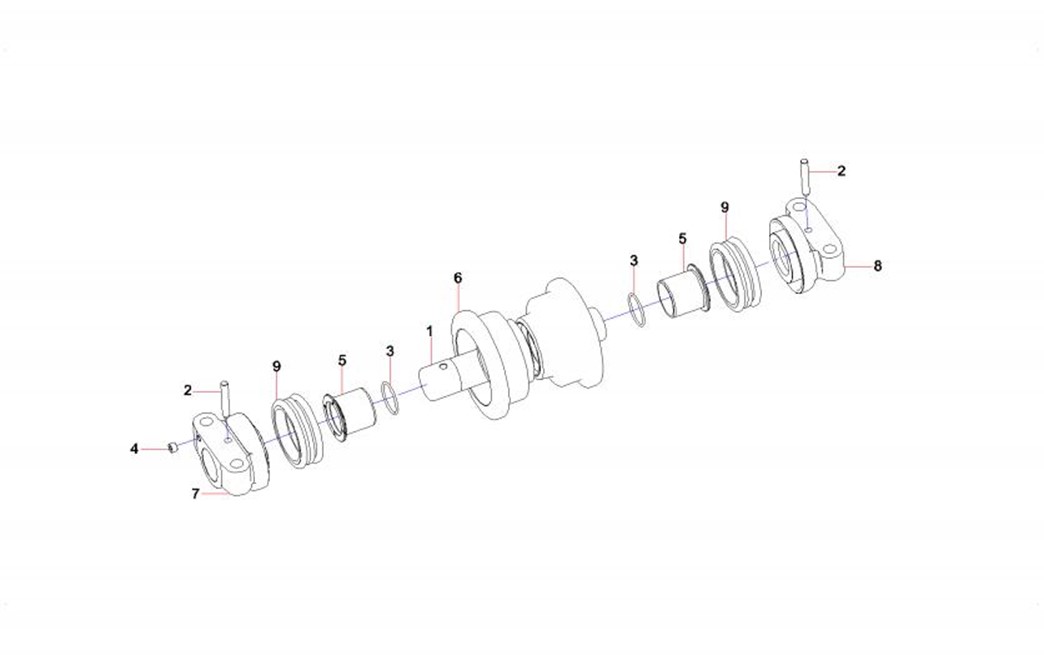

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-15-1

1

10999959

1

轴

Shaft

3-15-2

2

60029251

2

圆柱销

Pin,cylindrical

3-15-3

3

A210608000081

2

O形圈

O-ring

3-15-4

4

60027515

1

闷头螺塞

Plug, screw

3-15-5

5

60027516

2

轴套

Sleeve, shaft

3-15-6

6

10999964

1

支重轮轮体

Thrust wheel body

3-15-7

7

10999961

1

右轴端盖

Cover,shaft,right

3-15-8

8

10999960

1

左轴端盖

left_cover

3-15-9

9

60027514

2

浮封

Seal，floating
