识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-5-21

21

12681565

1

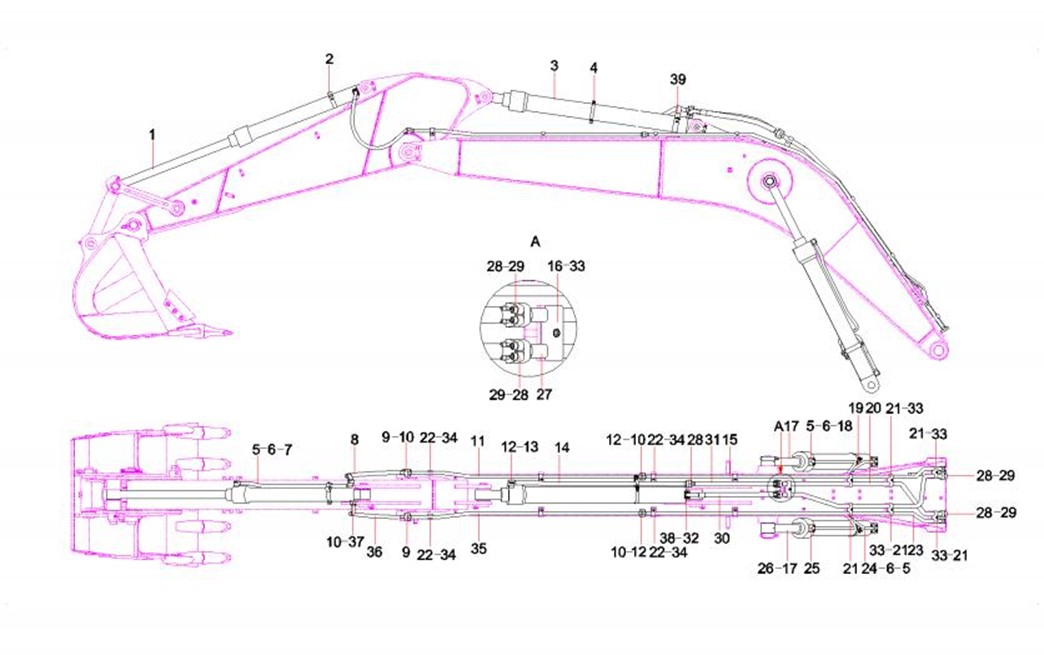

工作装置润滑油路

Lubricating circuitSY265C9.3.7B

4-5-22

22

10514130

2

轴套

Sleeve, shaft

4-5-23

23

11972528

2

销轴

Roll, pin

4-5-24

24

11972607

1

销轴

Roll, pin

4-5-25

25

11251492

2

树脂垫片

Gasket, resin

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

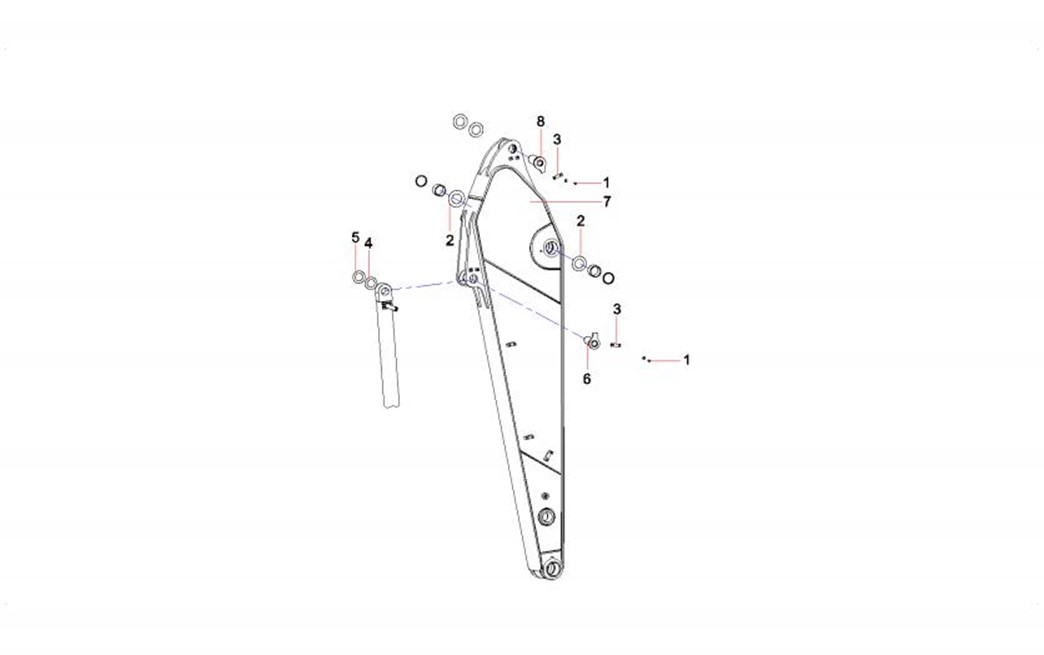

4-7-1

1

A210111000202

10

螺栓M12×30GB5783 10.9级

Bolt M12×30GB5783

4-7-2

2

A820102010387

2

垫片

Gasket

4-7-3

3

A820101119187

3

板

Plate

4-7-4

4

11112320

1

树脂垫片

Gasket, resin

4-7-5

5

11041905

1

树脂垫片

Gasket, resin

4-7-6

6

A810312110021

1

销轴

Roll, pin

4-7-7

7

11966119

1

斗杆

Arm

4-7-8

8

12644208

2

销轴

Lock pinSY265C9.3.13

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-9-1

1

12767602

1

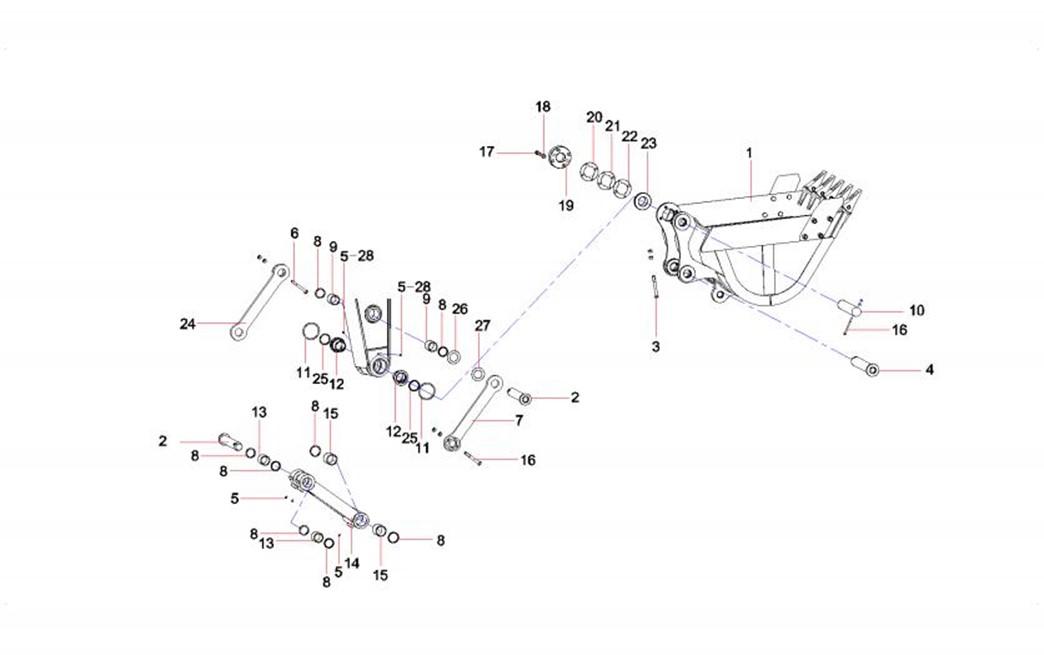

1.3方岩石铲斗

1.3 BucketSY265C.3.4C

4-9-2

2

11954088

2

销轴

Roll, pin

4-9-3

3

A210110000352

2

螺栓M20×180GB5782 10.9级

Bolt

4-9-4

4

11954086

1

销轴

Roll, pin

4-9-5

5

B229900000686

8

黄油嘴

Fitting, grease

4-9-6

6

A210110000300

2

螺栓M20×160GB5782 10.9级

Bolt

4-9-7

7

12629404

1

左摇杆

Right rockerSY265C9.3.5L

4-9-8

8

B230101000623

6

DSI防尘圈

DSI-ring, dustproof

4-9-9

9

A820202002975

2

轴套

Sleeve, shaft

4-9-10

10

11954084

1

销轴

Roll, pin

4-9-11

11

A210608000108

2

O形圈

O-ring

4-9-12

12

11744971

2

轴套

Sleeve, shaft

4-9-13

13

11967354

2

轴套

Sleeve, shaft

4-9-14

14

12629687

1

连杆

Connecting rod SY265C9.3.6A

4-9-15

15

10989145

2

轴套

Sleeve, shaft

4-9-16

16

A210110000347

2

螺栓M20×200GB5782 10.9级

Bolt

4-9-17

17

A210111000221

4

螺栓M20×50GB5783 10.9级

Bolt

4-9-18

18

变更或见其他配置

4

垫圈

Washer

4-9-19

19

11904436

1

板

Plate

4-9-20

20

11904433

4

调整垫片

Shim

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-11-21

21

11904434

4

调整垫片

Shim

4-11-22

22

11904435

4

调整垫片

Shim

4-11-23

23

11016610

1

套

Sleeve

4-11-24

24

12629405

1

右摇杆

Right rockerSY265C9.3.5R

4-11-25

25

60055872

4

DLI防尘圈

DLI-ring, dustproof

4-11-26

26

A820102010381

4

垫片

Gasket

4-11-27

27

A820102010382

2

垫片

Gasket

4-11-28

28

60098109

8

黄油嘴保护帽

Cap, grease fitting

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-13-1

1

60027481

1

铲斗油缸

Cylinder, bucket

4-13-2

2

11423738

1

管卡

Clip, pipe

4-13-3

3

60195529

1

斗杆油缸

Cylinder, arm

4-13-4

4

12262760

1

管夹

Clamp, pipe

4-13-5

5

A210609000136

5

O形圈

O-ring

4-13-6

6

A210204000356

20

螺钉M10×50GB70.1 10.9级

Screw

4-13-7

7

11416023

1

铲斗钢管

Tube, bucket

4-13-8

8

60142332

1

胶管

Hose

4-13-9

9

B210780000244

10

对开法兰

Flange, split

4-13-10

10

A210204000364

36

螺钉M10×45GB70.1 10.9级

Screw

4-13-11

11

12636999

1

钢管总成

Steel Pipe Assy.SY265C9.3.1.5A

4-13-12

12

B230101000456

3

O形圈

O-ring

4-13-13

13

A210204000354

4

螺钉M10×30GB70.1 10.9级

Screw

4-13-14

14

12637149

1

钢管总成

TubeSY265C9.3.1.8A

4-13-15

15

12636923

1

钢管总成

Steel Pipe Assy.SY265C9.3.1.4A

4-13-16

16

11859784

1

管夹

Clamp, pipe

4-13-17

17

60195528

2

动臂油缸

Cylinder, boom

4-13-18

18

12637033

1

油管组件

Oil Tube Assy.SY265C9.3.1.7A.1R

4-13-19

19

11996159

1

油管总成

Pipe GP, engine oil

4-13-20

20

12636787

1

钢管总成

Steel Pipe AssySY265C9.3.1.1A
