SANY SY60C SY60C9 SY60C9Y4R EXCAVATOR parts catalog 25

Meppon Co., Ltd Posted on by







IC

INDEX

PART NUMBER

QTY

PART NAME

3-13-1

1

60086233

2

Pin

3-13-2

2

60086231

1

Support, inner

3-13-3

3

60086229

2

Seal GP

3-13-4

4

A230101000256

2

O-ring

3-13-5

5

60086240

2

Sleeve, shaft

3-13-6

6

60086236

1

Shaft

3-13-7

7

60086234

1

Wheel, idler

3-13-8

8

60086232

1

Support, outer

3-13-9

9

60078263

1

Plug, screw

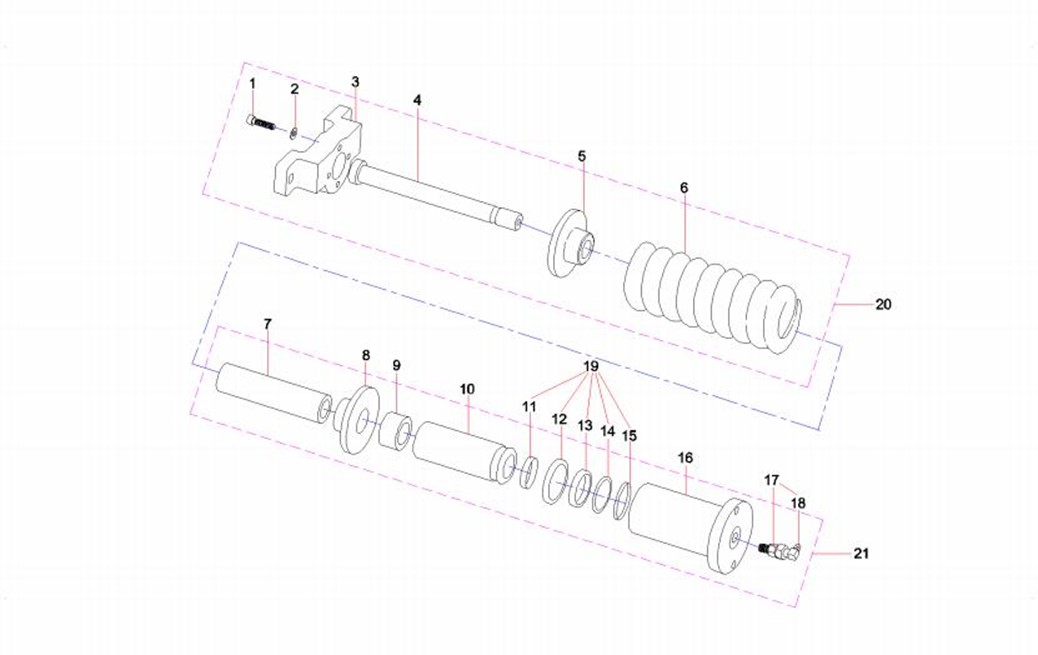

IC

INDEX

PART NUMBER

QTY

PART NAME

3-15-1

1

A210204000008

4

Screw M10×40GB70.1

3-15-2

2

A210401000001

4

Washer

3-15-3

3

60086243

1

Seat

3-15-4

4

60086227

1

Rod, pull

3-15-5

5

60086242

1

Bracket

3-15-6

6

60086224

1

Spring

3-15-7

7

60086220

1

Sleeve, locating

3-15-8

8

60086235

1

Bracket

3-15-9

9

60086226

1

Nut, fixing

3-15-10

10

60086241

1

Plunger

3-15-11

11

60063161

1

Ring,wearable

3-15-12

12

B230101000054

1

Seal Dust M55×69×8

3-15-13

13

B229900006176

1

Ring, bearing

3-15-14

14

60281351

1

Seal ring

3-15-15

15

60281352

1

Wearing ring

3-15-16

16

60086225

1

Block, cylinder

3-15-17

17

60202699

1

Tensioning Equipment Refiller

3-15-18

18

60337293

1

grease fitting

3-15-19

19

60337292

1

Tensioning device repair kit

3-15-20

20

60337289

1

Spring part of tensioning device

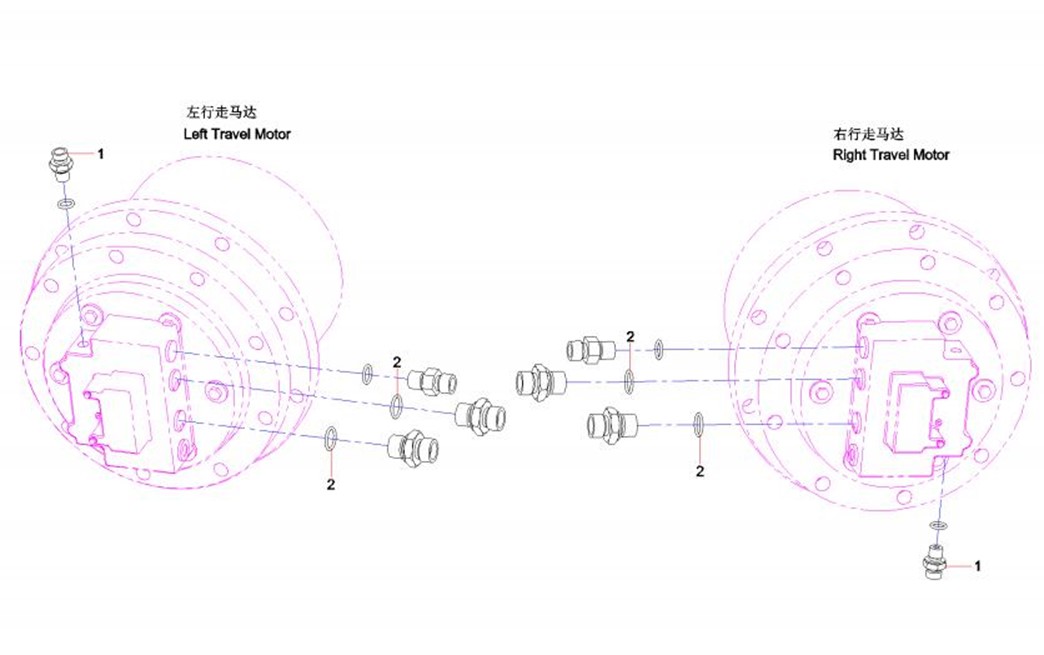

IC

INDEX

PART NUMBER

QTY

PART NAME

3-17-21

21

60337290

1

Oil cylinder of tensioning device

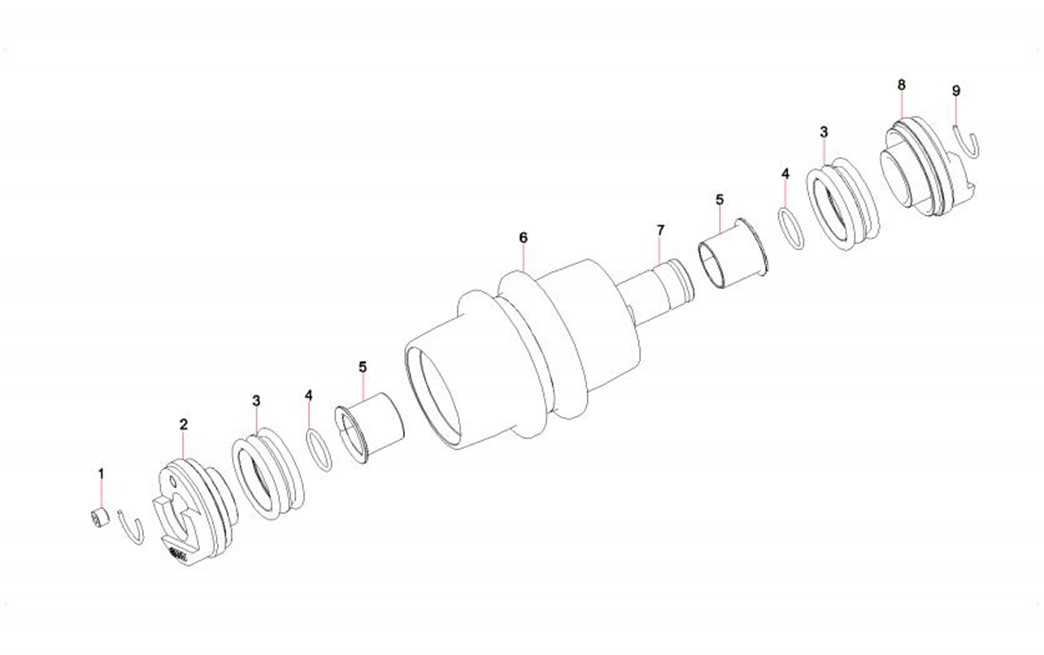

IC

INDEX

PART NUMBER

QTY

PART NAME

3-19-1

1

60047627

1

Plug, screw

3-19-2

2

11951608

1

right-cover

3-19-3

3

60117853

2

Seal oilfloating

3-19-4

4

B230101000036

2

O-ring 29.4×3.1JISB2401

3-19-5

5

60117091

2

Bushing

3-19-6

6

11951611

1

wheel body

3-19-7

7

11951606

1

shaft SWZ135A-1

3-19-8

8

11951607

1

left-cover

3-19-9

9

60117092

2

Bafflewiresteel

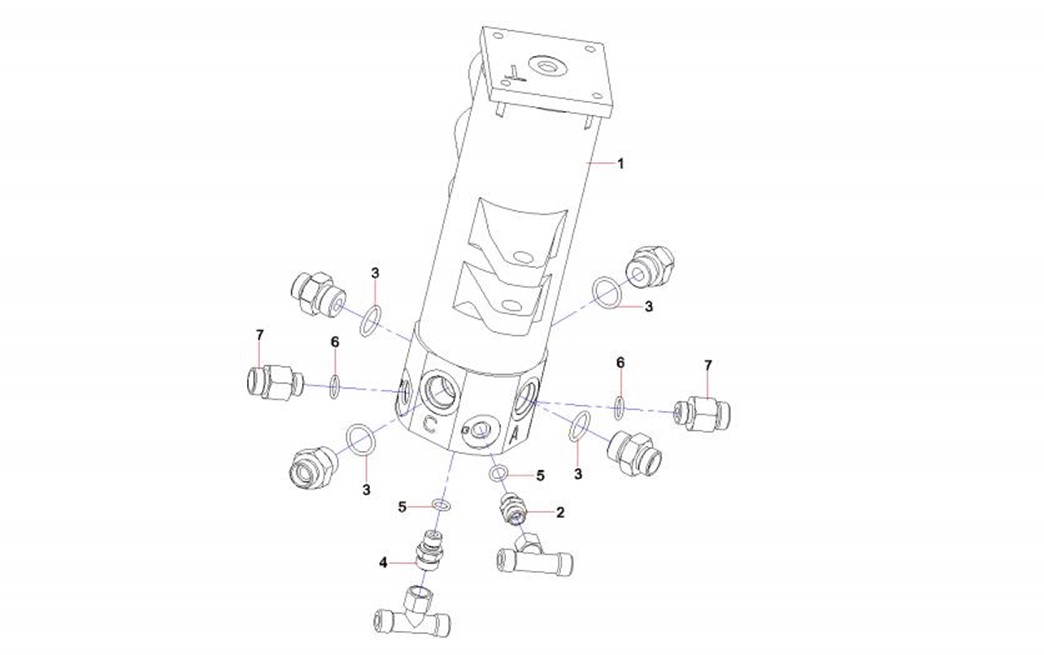

IC

INDEX

PART NUMBER

QTY

PART NAME

3-21-1

1

60190224

1

Center Swivel Joint

3-21-2

2

21002840

1

Fitting, pipe

3-21-3

3

A230101000244

4

O-ring

3-21-4

4

A820205000894

1

Connector

3-21-5

5

A230101000247

2

O-ring 10.9×2.3(JISB2401)

3-21-6

6

B230101000049

2

O-ring 13.8×2.4JISB2401

3-21-7

7

B229900003725

2

Fitting, Adapter
