SANY SY75C SY75C9 SY75C9I4R EXCAVATOR parts catalog 04

Meppon Co., Ltd Posted on by







IC

INDEX

PART NUMBER

QTY

PART NAME

2-21-1

1

60008391

1

Valve GP, slide

2-21-2

2

60008384

1

Valve, relief

2-21-3

3

60008394

1

Connecting piece, accumulator

2-21-4

4

60008395

1

Plug, screw

2-21-5

5

60008383

2

Valve, shuttle

2-21-6

6

60008401

1

Accumulator

2-21-7

7

60082591

2

Valve, solenoid, direct-current

2-21-8

8

60008387

1

Cover, lock

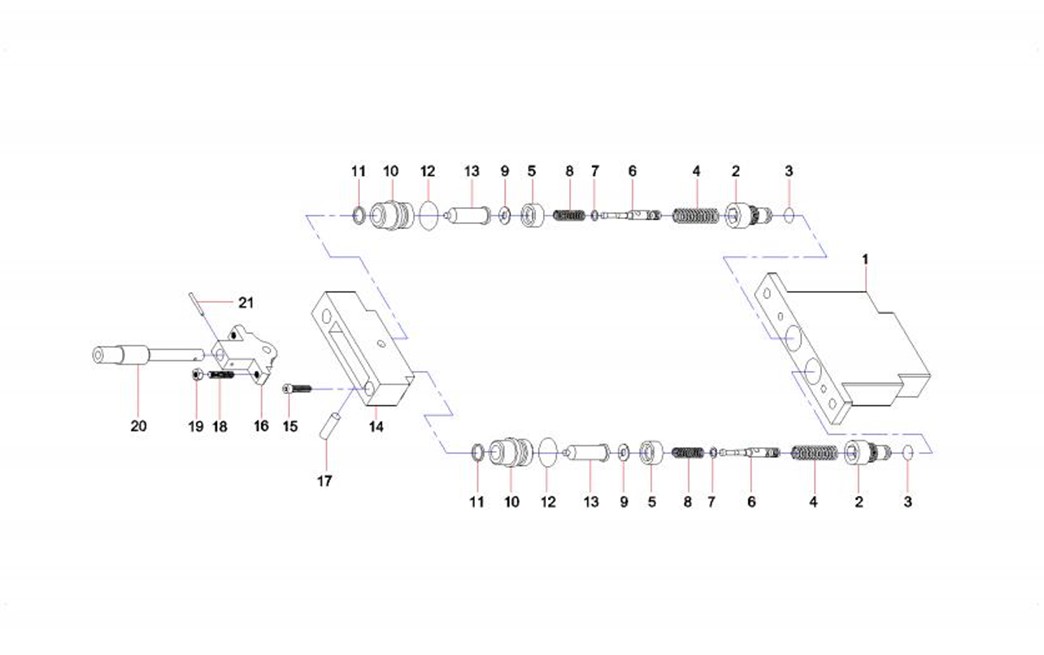

IC

INDEX

PART NUMBER

QTY

PART NAME

2-23-1

1

60082159

1

Body, valve

2-23-2

2

60082142

2

Plug

2-23-3

3

60082186

2

O-ring

2-23-4

4

60082149

2

Spring

2-23-5

5

60082154

2

Seat, spring

2-23-6

6

60082148

2

Spool, valve

2-23-7

7

60082153

2

Seat, spring

2-23-8

8

60082150

2

Spring

2-23-9

9

60082140

2

Ring, retaining

2-23-10

10

60082156

2

Plug

2-23-11

11

60082187

2

Ring, sealing, plunger

2-23-12

12

60038815

2

O-ring

2-23-13

13

60082171

2

Plunger

2-23-14

14

60082143

1

Cover

2-23-15

15

60082164

2

Bolt

2-23-16

16

60082147

1

Valve, guide

2-23-17

17

60082173

1

Pin

2-23-18

18

60082162

2

Bolt

2-23-19

19

60082161

2

Nut

2-23-20

20

60082169

1

Handle lever

















IC

INDEX

PART NUMBER

QTY

PART NAME

2-25-21

21

60082151

1

Dowel, spring

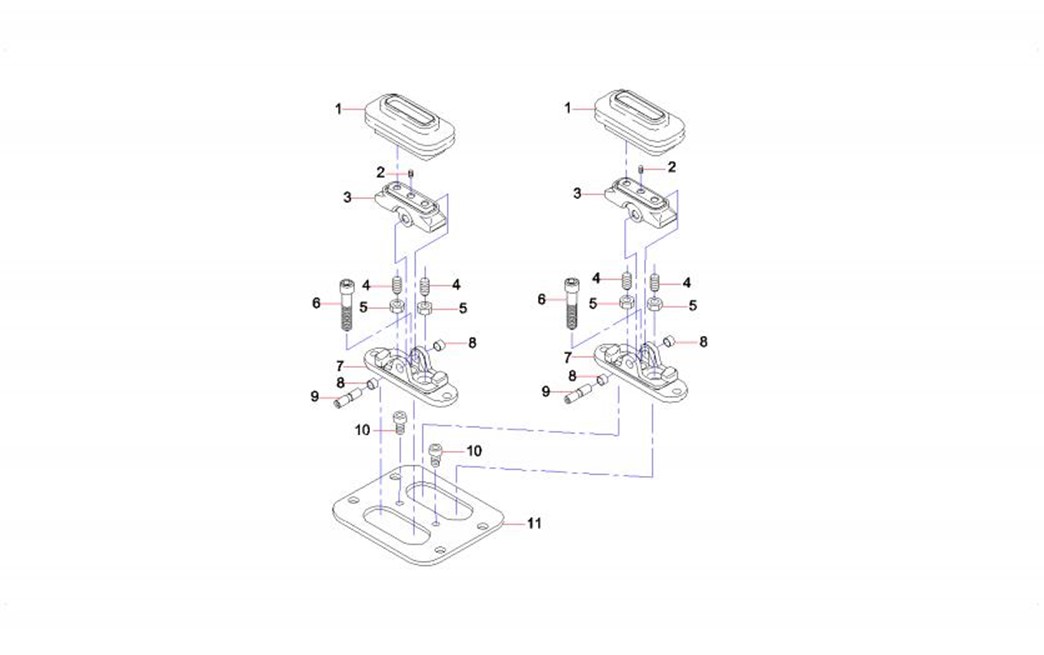

IC

INDEX

PART NUMBER

QTY

PART NAME

2-27-1

1

60237083

2

protective sleeve

2-27-2

2

60237082

2

set screw

2-27-3

3

60008591

2

Plate, cam

2-27-4

4

60008592

4

Screw, adjusting

2-27-5

5

60038480

4

Nut

2-27-6

6

60237078

2

screw

2-27-7

7

60237074

2

cover

2-27-8

8

60008690

2

Sleeve,shaft

2-27-9

9

60008585

2

Camshaft

2-27-10

10

60237073

2

screw

2-27-11

11

60237075

1

plate

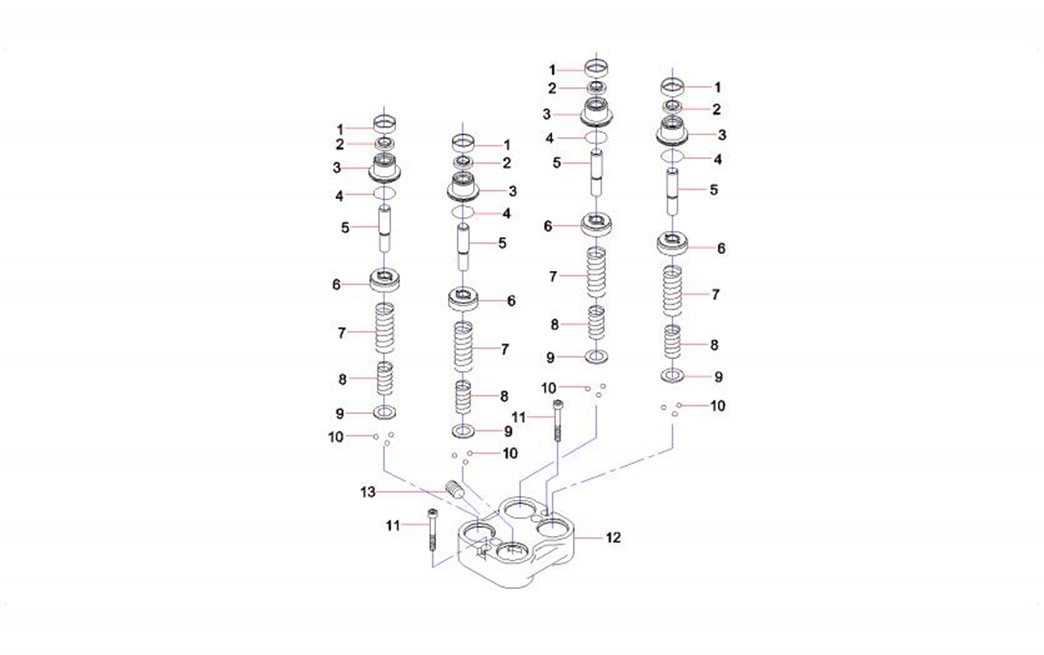

IC

INDEX

PART NUMBER

QTY

PART NAME

2-29-1

1

60008754

4

Cover

2-29-2

2

60163771

4

Ring, dust

2-29-3

3

60163768

4

PLUG

2-29-4

4

60038720

4

O-ring

2-29-5

5

60237076

4

rod

2-29-6

6

60008803

4

Piston

2-29-7

7

60008767

4

Spring

2-29-8

8

60008766

4

Spring

2-29-9

9

60008756

4

Seat, spring

2-29-10

10

60237077

12

roller

2-29-11

11

60038563

2

Bolt

2-29-12

12

60237072

1

casing

2-29-13

13

60008728

1

Setscrew
