XCMG LW550FN WHEEL LOADER PARTS MANUAL 17
|
860123944 EXHAUST ROCKER ARM SET 860167855 VALVE TRAIN GROUP |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860111875 6 NUT |
|
2 860111876 6 INTAKE ROCKER ARM |
|
3 860111872 6 ADJUSTMENT SCREW |
|

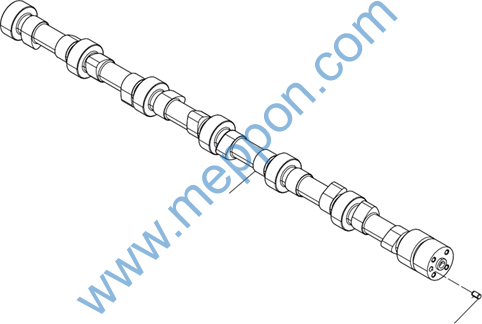

860111990 CAMSHAFT ASSY |
|
2 |
|
860111990 CAMSHAFT ASSY 860167855 VALVE TRAIN GROUP |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860118238 1 CAMSHAFT |
|
2 860132245 1 CYLINDRICAL PIN |
|
860123943 INTAKE ROCKER ARM ASSY |
|
2
3 |
|
860123943 INTAKE ROCKER ARM ASSY 860167855 VALVE TRAIN GROUP |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860111875 6 NUT |
|
2 860111877 6 INTAKE ROCKER ARM |
|
3 860111872 6 ADJUSTMENT SCREW |
|

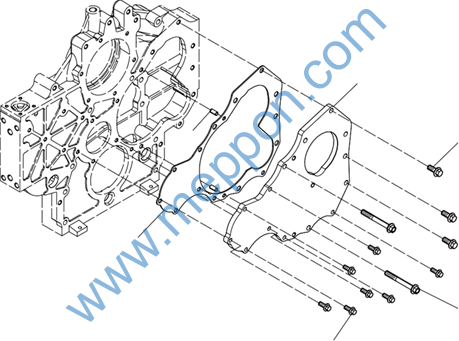

860167851 CAMSHAFT GEAR COVER GROUP |
|
1
5
3 4 |
|
860167851 CAMSHAFT GEAR COVER GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860131356 1 PLUG |
|
2 860167852 3 HEX BOLT |
|
3 860167853 2 HEX BOLT |
|
4 860167854 7 HEX BOLT |
|
5 860139921 1 SPACER |
|
6 860132246 2 CYLINDRICAL PIN |
|

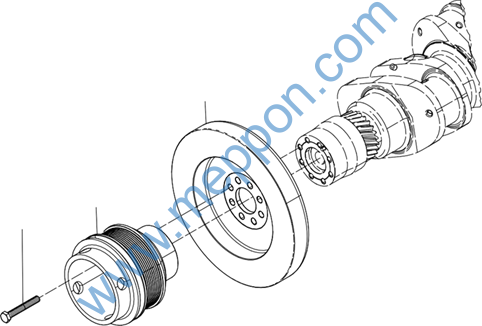

860167850 CRANKSHAFT PULLEY GROUP |
|
3 1
1 |
|
860167850 CRANKSHAFT PULLEY GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860131739 8 HEXAGON BOLT |
|
2 860131863 1 CRANKSHAFT PULLEY |
|
3 860125513 1 SHOCK CABSORBER |

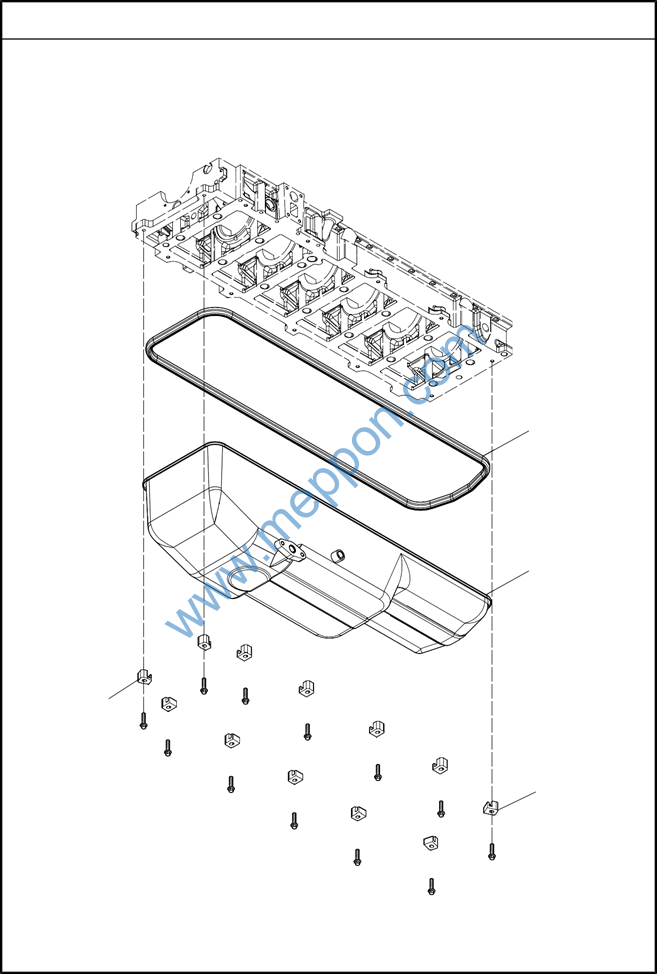

860507349 OIL PAN GROUP
1
2
4
3
|
860507349 OIL PAN GROUP 800157618 ENGINE |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860111858 1 OIL SUMP SEALING GASKET |
|
3 860111918 10 PAN HOLDER |
|
4 860153306 2 PAN HOLDER |
