XCMG ZL50GN WHEEL LOADER PARTS MANUAL 38
|
252919395 RIGHT LAMP HOLDER ASSEMBLY 252115067 FRONT FRAME ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 252919461 1 RIGHT LAMP HOLDER |
|
2 805004770 4 BOLT M10×20(DACROMET) GB/T16674.1-2004 |
|

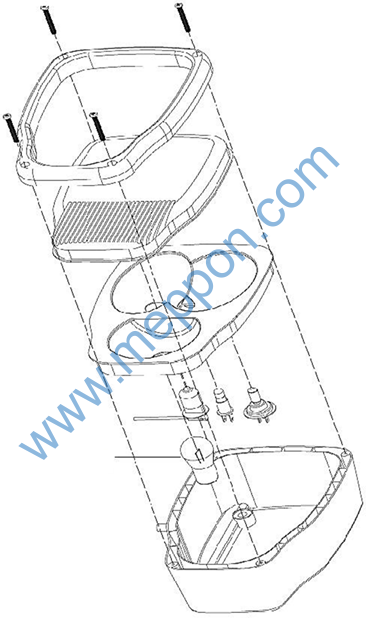

803593875 RIGHT HEADLAMP 252115067 FRONT FRAME ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860134404 1 QSDJ066HEADLAMP BULB |
|
11 10 18 13 1 12
9 2
26 4 15 3 25 6 7 5 8
17 3 16 14
23
19 20 20 24 24 22 22 21 22 |
|

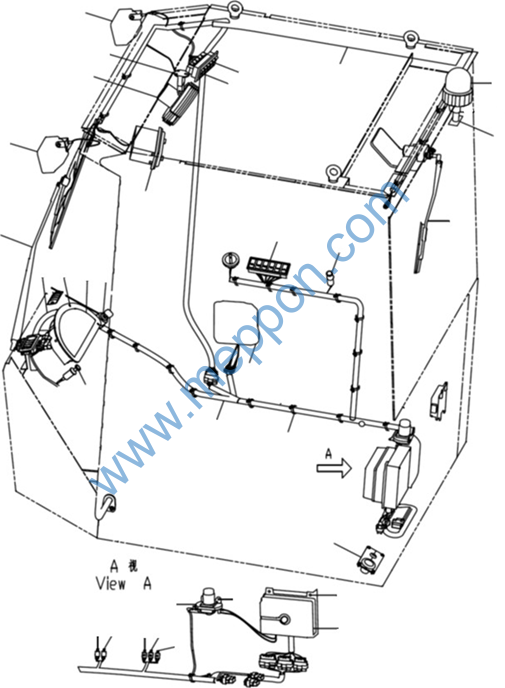

252116665 CAB ELECTRICAL SYSTEM 252116777 ELECTRIC SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 803596281 1 ROTATING ALARM LAMP |
|
2 803751329 1 WARNING LAMP BRACKET |
|
3 803587848 1 POWER SOCKET |
|
5 803589311 1 COMBINATIONAL INSTRUMENT |
|
6 803682373 1 COMBINATION INSTRUMENT HARNESS |
|
7 805101828 6 SCREW M5×14 GB/T819.1-2000 |
|
8 803608667 1 KEY SWITCH |
|
10 803544526 1 FAN |
|
11 805047994 4 SCREW M6×30 GB/T16674.1-2004 |
|
12 803589283 1 COMBINATION ROCKER SWITCH |
|
13 252116664 1 CAB WIRE |
|
14 801902724 25 NYLON NZ-4×200-2 |
|
15 803589284 1 COMBINATION ROCKER SWITCH |
|
16 252116659 1 WIRES |
|
17 803546207 1 SYRINGE |
|
18 803587864 1 REAR WIPER ROCKER SWITCH |
|
19 803684468 1 POWER SUPPLY RELAY |
|
20 805004709 6 BOLT M6×16(DACROMET) GB/T16674.1-2004 |
|
22 803611282 3 RELAY |
|
24 803608668 2 RELAY |
|
802138058 WINDSHIELD WIPER |
|
3
1 |
|
802138058 WINDSHIELD WIPER 252116665 CAB ELECTRICAL SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 802141469 1 EECTROMOTOR |
|
2 802141471 1 WIPER BLADE |
|
3 802141475 1 WIPER ARM |
|

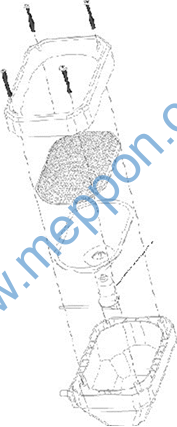

803545523 LIGHT |
|
|
|
803545523 LIGHT 252116778 REAR CHASSIS ELECTRICAL SYSTEM |
|
No. PART NUMBER QTY NAME NOTE PAGE |
|
1 860134405 1 JYDJ008 WORKING LAMP BULB |
|

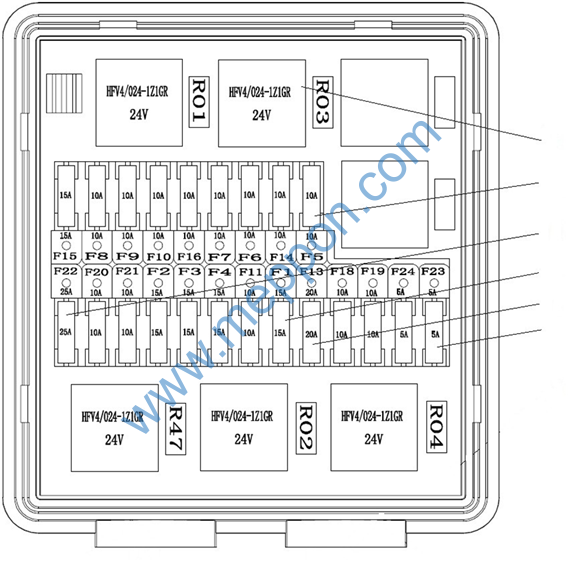

803690782 CENTRAL CONTROL BOX |
|
2
3 4 5 6 |
