803690782 CENTRAL CONTROL BOX

252116665 CAB ELECTRICAL SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803682286    7    HFV4/024-1Z1GR RELAY

2 803682280    12 FUSE 10A

3 803682283    1    ATS-25A FUSE25A

4 803682281    5    FUSE 15A

5 803682282    1    FUSE 20A

6 803682279    2    FUSE 5A

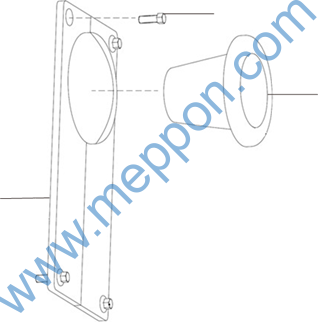

252116704 CAB HARNESS SEALING ASSEMBLY

3

2

1

252116704 CAB HARNESS SEALING ASSEMBLY

252116665 CAB ELECTRICAL SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252116705    2    SEALING PLATE

2 803587868    1    RUBBER JACKET    HT12×70

3 805004756    4    BOLT M8×20 (DACROMET)    GB/T16674.1-2004

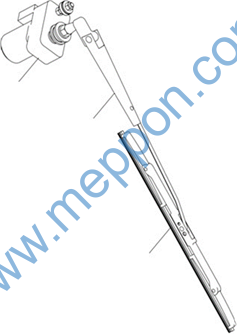

802138059 WINDSHIELD WIPER

1

3

2

802138059 WINDSHIELD WIPER

252116665 CAB ELECTRICAL SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 802141467    1    EECTROMOTOR

2 802141466    1    WIPER BLADE

3 802141468    1    WIPER ARM

803588584 FOLDING MACHINE

1
2

3

803588584 FOLDING MACHINE

252116665 CAB ELECTRICAL SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860138642    1    RADIO/AUDIO PLAYER ANTENNA

2 803588585    2    RADIO/AUDIO PLAYER SPEAKER

3 860138641    1    RADIO/AUDIO PLAYER UNIT

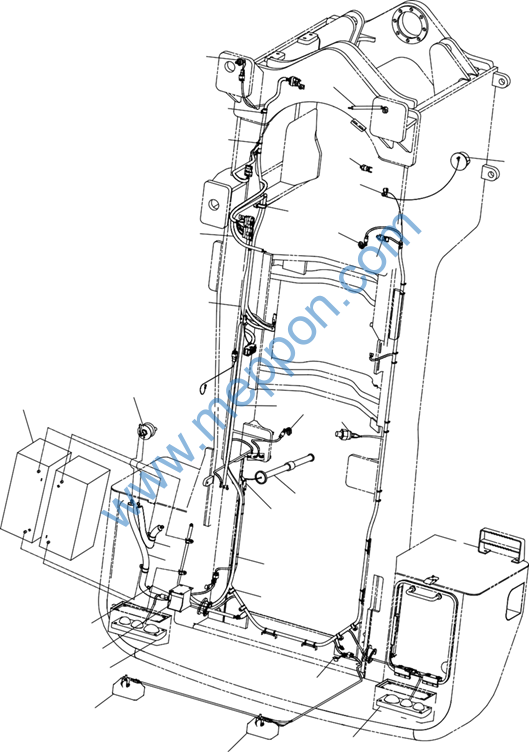

252116778 REAR CHASSIS ELECTRICAL SYSTEM

25

24

1

3    21    23

22

4

5    20

28

2

10    12    6 26

27

18 19

11

13    7

8

9

15

16    14

17

17    16

252116778 REAR CHASSIS ELECTRICAL SYSTEM

252116777 ELECTRIC SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 803199325    2    FERRULE Φ16    TJBC

2 252116780    1    REAR FRAME HARNESS

3 801970978    50 CONNECTOR CABLE TIE 4.8×190    GNP-190STB

4 803300794    1    FERRULE Φ35    TJBC

5 803688630    1    BATTERY CABLE

6 803684976    1    BATTERY CABLE

7 803684978    1    BATTERY CABLE

8 803199329    8    FERRULE Φ26    TJBC

9 803614143    1    BATTERY CABLE

10 803505989    2    BATTERY

11 803611380    1    BATTERY CABLE

12 803604579    1    BATTERY NEGATIVE SWITCH

13 803801015    1    BATTERY CABLE

14 803683146    2    DELPHI LOCATING BRACKET

15 803504584    1    REVERSING BEEPER

16 803587849    2    TAIL COMBINATION LAMP

17 803545523    2    LIGHT    390

18 803744087    2    DECHI SMALL BRACKET

19 803547375    1    FUEL SENSOR (DECHI PLUG-IN)

20 803547478    1    VDO TEMPERATURE SENSOR (DECHI PLUG-IN)

21 803678439    1    PRESSURE SWITCH

22 803199323    1    FERRULE Φ10    TJBC

23 803587871    1    AIR PRESSURE SENSOR

24 803604718    1    BATTERY CABLE

25 803678437    1    BRAKE LAMP SWITCH

26 803547476    1    VDOWATER TEMPERATURE SENSOR

27 803678442    1    PRESSURE SWITCH

28 803546617    1    PRESSURE SWITCH

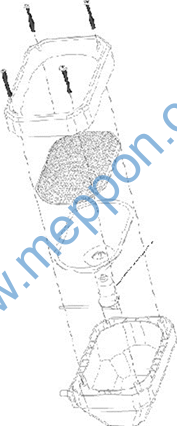

803545523 LIGHT
