252116778 REAR CHASSIS ELECTRICAL SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 860134405    1    JYDJ008 WORKING LAMP BULB

252911582 FRONT FRAME SYSTEM

4    5

6    7

3

8

9

2

1

10

11

12

252911582 FRONT FRAME SYSTEM

252116885 50GNV(I) WHEEL LOADER

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252917990    1    FRONT FRAMS

2 252910982    1    FIXED BOOM CYLINDER ASSY    394

3 252910974    1    FIXED BUCKET CYLINDER ASSY    396

4 252917993    1    FRONT COVER PLATE ASSY    398

5 252110953    1    RUBBER JACKET

6 252909892    2    RUBBER JACKET

7 252910983    1    FIXED BOOM ASSY    400

8 252910984    1    FRONT/REAR FRAME CONNECTION ASSY    402

9 252910985    1    FRONT FRAME UPPER HINGE HOLE ASSY    404

10 252910981    1    LOWER HINGE HOLE ASSY    406

11 252917739    1    FRONT FRAME LUBRICATION PIPELINE    408

12 252910976    1    FIXED STEERING PIN ASSY    410

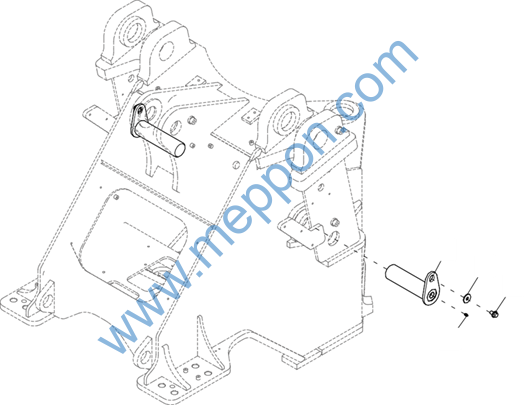

252910982 FIXED BOOM CYLINDER ASSY

1

2

3

4

252910982 FIXED BOOM CYLINDER ASSY

252911582 FRONT FRAME SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252100574    2    BOOM CYLINDER – FRAME PIN

2 253102301    2    SPACER

3 805048032    2    BOLT M16×25 (DACROMET)    GB/T16674.1-2004

4 801100343    2    OIL CUP M10×1    JB/T7940.1-1995

252910974 FIXED BUCKET CYLINDER ASSY

1

2

4 3

252910974 FIXED BUCKET CYLINDER ASSY

252911582 FRONT FRAME SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 269900193    6    ADJUSTING GASKET

2 252900387    1    BUCKET CYLINDER – FRONT FRAME HINGE PIN

3 253102301    1    SPACER

4 805048032    1    BOLT M16×25 (DACROMET)    GB/T16674.1-2004

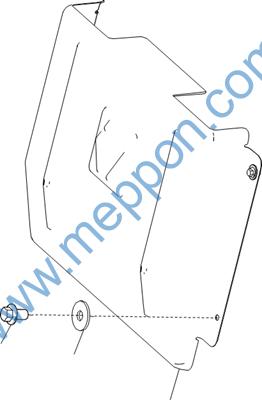

252917993 FRONT COVER PLATE ASSY

3    2

1

252917993 FRONT COVER PLATE ASSY

252911582 FRONT FRAME SYSTEM

No. PART NUMBER QTY NAME    NOTE    PAGE

1 252916877    1    COVER

2 805338267    4    WASHER 10    GB/T96.1-2002

3 805048005    4    BOLT M10×16(DACROMET)    GB/T16674.1-2004

252910983 FIXED BOOM ASSY

1 2

3

4

5 6
