FAST FC6A250-1 FC6A210 FA6A250 TRANSMISSION PARTS MANUAL C
|
基本变速箱 |
|
282-9537 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03605040 |
|
参考 参考 零件名称 参见 注 编号 图 零件号 数量 1 2 3 4 5 6 (产品层级) 页码 |
|
90 2 146-4263 2 SEAL-O-RING (O 形密封圈) |
|
91 4 183-3409 3 PLUG AS (螺塞组件) |
|
（每个包括） |
|
4 9S-8002 1 PLUG-O-RING (O 形圈螺塞) |
|
4 033-5853 1 SEAL-O-RING (O 形密封圈) |
|
92 3 1K-6984 1 RING-RETAINING (挡圈) |
|
93 2 5J-3886 1 SEAL-O-RING (O 形密封圈) |
|
94 4 5P-8245 1 WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈 (13.5X25.5X3-MM 厚)) |
|
95 3 6V-0506 1 RING-RETAINING (挡圈) |
|
96 4 6V-6228 2 SEAL-O-RING (O 形密封圈) |
|
97 3 6V-6764 1 RING-RETAINING (挡圈) |
|
98 4 7L-9061 3 SEAL-O-RING (O 形密封圈) |
|
99 1 7T-5594 1 RING-SEAL (密封圈) |
|
M 100 2 8C-3226 8 BOLT (M12X1.75X200-MM) (螺栓 (M12X1.75X200-MM)) |
|
M 101 4 8T-0162 1 BOLT (M12X1.75X160-MM) (螺栓 (M12X1.75X160-MM)) |
|
M 102 2 9X-2045 6 SCREW-TRUSS HEAD (M6X1X20-MM) (大圆头螺钉 (M6X1X20-MM)) |
|
103 1 8T-2572 1 SEAL-O-RING (O 形密封圈) |
|
M 104 4 8T-4183 19 BOLT (M12X1.75X40-MM) (螺栓 (M12X1.75X40-MM)) |
|
105 4 8T-4223 20 WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈 (13.5X25.5X3-MM 厚)) |
|
M 106 4 8T-5412 1 BOLT (M12X1.75X140-MM) (螺栓 (M12X1.75X140-MM)) |
|
107 4 307-2673 6 PLUG AS (螺塞组件) |
|
（每个包括） |
|
4 9S-8005 1 PLUG-O-RING (O 形圈螺塞) |
|
4 238-5080 1 SEAL-O-RING (O 形密封圈) |
|
108 2 9S-6929 1 SEAL-O-RING (O 形密封圈) |
|
M- 公制零件 |
SCBP4927-15 3 / 7 基本变速箱 27
|
基本变速箱 |
|
282-9537 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03605040 |
|

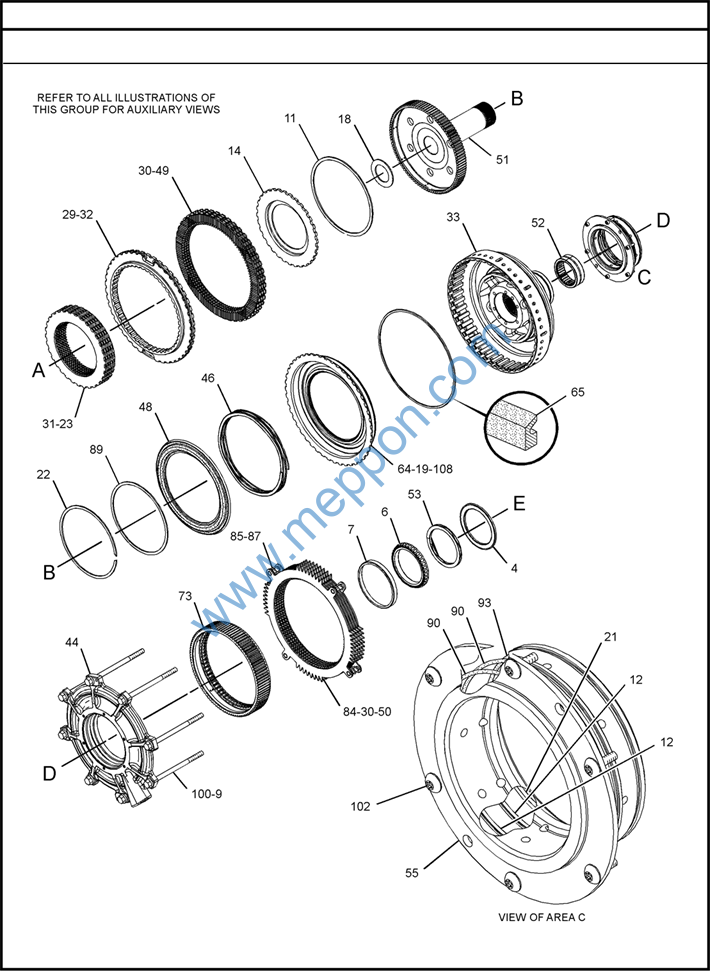

图1 g01357153 |
基本变速箱
282-9537 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03605040
|

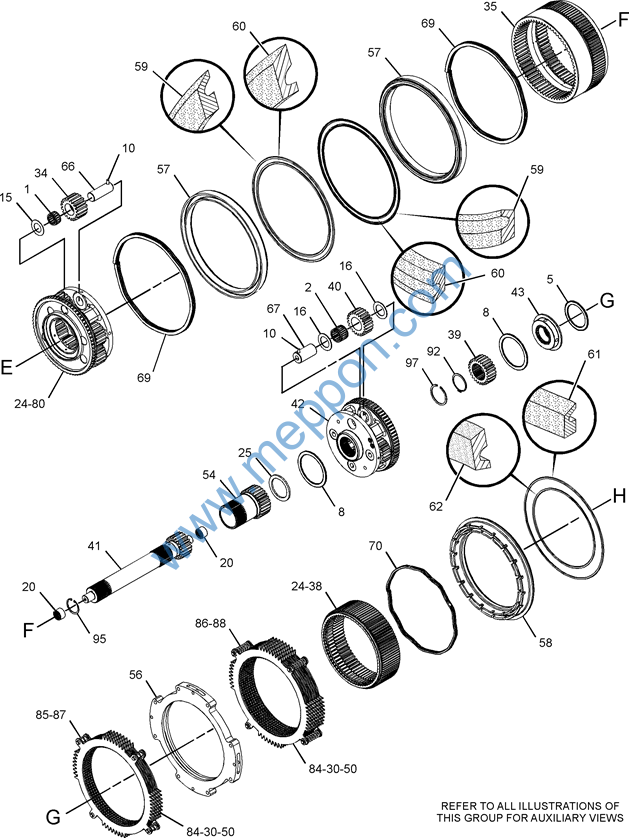

基本变速箱 |
|
282-9537 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03605040 |
|
图3 g01749233 |
|
基本变速箱 |
|
282-9537 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03605040 |
|

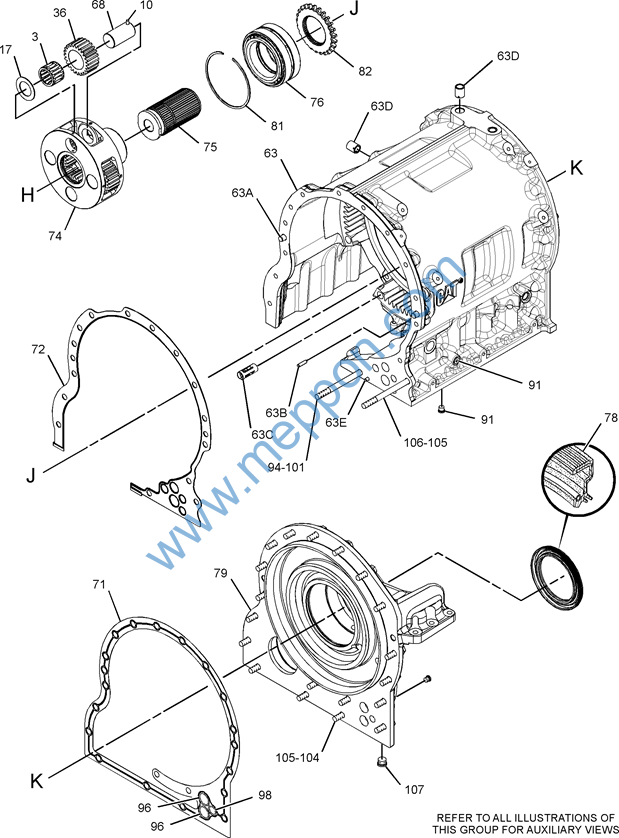

图4 <结束> g01795993 |
|
基本变速箱 |
|
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) 序列号: B3X1-向上 属于296-6568 变速箱配置总成, 265-5149 变速箱核心配置总成 SMCS-3160 i03604198 |
|
参考 参考 零件名称 参见 注 编号 图 零件号 数量 1 2 3 4 5 6 (产品层级) 页码 |
|
1 3 2S-0669 12 BEARING (轴承) |
|
2 3 5M-6126 4 BEARING AS-ROLLER (滚柱轴承组件) |
|
3 3 139-9313 4 BEARING-SPECIAL (专用轴承) |
|
4 1,3 257-8660 2 BEARING-THRUST (止推轴承) |
|
5 1,3 264-7794 2 BEARING-THRUST (止推轴承) |
|
6 2 265-7969 1 CONE-TAPERED (圆锥滚柱内环) |
|
7 2 265-7970 1 CUP-TAPERED ROLLER (圆锥滚柱外环) |
|
8 3 269-6932 2 BEARING-THRUST (止推轴承) |
|
9 2 2M-0849 8 WASHER-HARD (13.5X25.5X5-MM THK) (硬垫圈 (13.5X25.5X5-MM 厚)) |
|
10 3 3S-2708 14 PIN-SPRING (弹簧销) |
|
11 1 4D-7889 1 RING (环) |
|
12 2 6Y-5888 2 RING-SEAL (密封圈) |
|
13 1 7G-4822 4 RING-SEAL (密封圈) |
|
14 1 7T-5601 1 PLATE (板) |
|
15 3 8E-8300 12 DISC-THRUST (止推盘) |
|
16 3 8E-8304 8 DISC-THRUST (止推盘) |
|
17 3 8E-8306 8 DISC-THRUST (止推盘) |
|
18 1 8E-8313 1 DISC-THRUST (止推盘) |
|
19 2 8S-3370 1 RING-SEAL (密封圈) |
|
20 4 8T-1178 2 BEARING-ROLLER (滚柱轴承) |
|
21 1 9F-8477 1 RING-METAL SEAL (金属密封圈) |
|
22 2 9U-1741 1 RING-RETAINING (挡圈) |
|
23 1 134-8361 5 PLATE-CLUTCH (离合器板) |
|
24 3 140-9842 2 RING-LOCK (锁圈) |
|
25 3 140-9843 1 DISC-THRUST (止推盘) |
|
26 1 177-5241 1 RING-RETAINING (挡圈) |
|
27 2 177-5246 1 RING-SPACER (间隔环) |
|
28 1 177-6797 1 RING-SEAL (密封圈) |
|
29 1 189-2089 1 RING-LOCK (锁圈) |
|
30 1,2,3, 222-5203 18 DISC-FRICTION (磨擦盘) 4 |
|
31 1 223-7519 5 DISC-FRICTION (磨擦盘) |
|
32 1 261-4721 1 PLATE-CLUTCH (离合器板) |
|
33 1 261-4724 1 SHAFT AS (轴组件) |
|
1 9W-0717 3 PLUG (螺塞) |
|
34 2 261-4730 1 HUB AS (毂组件) |
|
2 9W-0717 6 PLUG (螺塞) |
|
35 3 263-2821 1 GEAR-RING (69/68-TEETH) (69/68-TEETH) (齿圈 (69/68-齿) (69/68-齿)) |
|
36 1 263-2838 1 HUB-CLUTCH (离合器毂) |
|
37 4 263-2840 1 GEAR-RING (68-TEETH) (68-TEETH) (齿圈 (68-齿) (68-齿)) |
|
38 3 263-2844 1 CARRIER-PLANETARY (行星齿轮托架) |
|
39 3 263-2846 1 CARRIER-BEARING (轴承支架) |
|
40 2 263-2847 1 MANIFOLD AS (歧管组件) |
|
2 277-0439 6 INSERT-THREADED (螺纹座圈) |
|
2 9S-8004 1 PLUG-O-RING (O 形圈螺塞) |
|
2 214-7568 1 SEAL-O-RING (O 形密封圈) |
|
41 1 264-4794 1 SPRING-WAVE (波形弹簧) |
|
42 2 264-4795 1 SPRING-WAVE (波形弹簧) |
|
43 1 264-4798 1 PISTON (活塞) |
|
44 2 264-4802 1 SEAL AS-BALANCE (平衡密封组件) |
|
45 1 264-4804 3 PLATE-CLUTCH (离合器板) |
|
46 2,3,4 264-4805 12 PLATE-CLUTCH (离合器板) |
|
基本变速箱 |
|
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03604198 |
|
参考 参考 零件名称 参见 注 编号 图 零件号 数量 1 2 3 4 5 6 (产品层级) 页码 |
|
47 1 264-7792 1 HUB (轮毂) |
|
48 1 264-7793 1 BEARING-NEEDLE (滚针轴承) |
|
49 2 264-7888 1 SPRING-WAVE (波形弹簧) |
|
50 2 265-0784 1 HOUSING-SEAL (密封件壳体) |
|
51 4 265-7028 1 PLATE-CLUTCH (离合器板) |
|
52 2,3 266-3667 2 PISTON (活塞) |
|
53 4 335-9139 1 PISTON (活塞) |
|
54 2,3 266-3670 2 RING-SEAL (密封圈) |
|
55 2,3 266-3671 2 RING-SEAL (密封圈) |
|
56 4 266-3673 1 RING-SEAL (密封圈) |
|
57 4 266-3675 1 RING-SEAL (密封圈) |
|
58 5 317-4571 1 CASE AS-TRANSMISSION (变速箱壳体组件) |
|
5 1A-2223 4 DOWEL (定位销) |
|
5 2H-1190 1 DOWEL (定位销) |
|
5 3H-0703 2 DOWEL (定位销) |
|
5 9M-4355 8 DAMPER-BOLT (螺栓减振器) |
|
M 5 265-6991 6 INSERT-THREADED (螺纹座圈) |
|
59 2 266-4193 1 RING-SEAL (密封圈) |
|
60 3 266-7072 6 SHAFT AS-PLANETARY (行星齿轮轴组件) |
|
（每个包括） |
|
3 2A-3746 1 PLUG-CUP (碗形塞) |
|
61 3 266-7073 4 SHAFT AS-PLANETARY (行星齿轮轴组件) |
|
（每个包括） |
|
3 0T-0200 1 PLUG-CUP (碗形塞) |
|
62 3 266-7074 4 SHAFT AS-PLANETARY (行星齿轮轴组件) |
|
（每个包括） |
|
3 0T-0200 1 PLUG-CUP (碗形塞) |
|
63 2,3 266-7077 2 SPRING-WAVE (波形弹簧) |
|
64 4 335-9140 1 SPRING-WAVE (波形弹簧) |
|
65 5 272-3616 1 GASKET (密封垫) |
|
66 5 339-5397 1 SEAL-INTEGRAL (整体式密封) |
|
67 2 273-5098 1 COUPLING (接头) |
|
68 3 273-9141 1 CARRIER-PLANETARY (行星齿轮托架) |
|
69 4 273-9146 1 SHAFT (轴) |
|
70 4 274-3961 1 BEARING AS-TAPERED ROLLER (圆锥滚柱轴承组件) |
|
71 1 274-6110 1 BEARING-INNER (RACE) (内轴承 (座圈)) |
|
72 5 274-7437 1 SEAL-LIP TYPE (唇形油封) |
|
73 5 275-3585 1 HOUSING (壳体) |
|
74 3 275-5519 1 CARRIER AS (托架组件) |
|
74A 3 277-3456 1 BUSHING (衬套) |
|
75 4 275-5737 1 RING-RETAINING (挡圈) |
|
76 4 275-5738 1 ROTOR-SENSOR (传感器转子) |
|
77 2,3,4 283-6363 6 PLATE-CLUTCH (离合器板) |
|
78 3 340-9914 8 SPRING (弹簧) |
|
79 4 340-9915 4 SPRING (弹簧) |
|
80 3 284-6012 8 PIN (销) |
|
81 4 284-6013 4 PIN (销) |
|
82 2 294-2693 1 PISTON (活塞) |
|
83 5 307-2673 6 PLUG AS (螺塞组件) |
|
（每个包括） |
|
5 9S-8005 1 PLUG-O-RING (O 形圈螺塞) |
|
5 238-5080 1 SEAL-O-RING (O 形密封圈) |
|
84 3 294-7962 1 GEAR-SUN (27-TEETH) (27-TEETH) (太阳齿轮 (27-齿) (27-齿)) |
|
85 3 294-7963 6 GEAR-PLANETARY (18-TEETH) (18-TEETH) (行星齿轮 (18-齿) (18-齿)) |
|
86 3 294-7964 1 GEAR-SUN (24-TEETH) (24-TEETH) (太阳齿轮 (24-齿) (24-齿)) |
|
87 3 294-7965 4 GEAR-PLANETARY (22-TEETH) (22-TEETH) (行星齿轮 (22-齿) (22-齿)) |
|
基本变速箱 |
|
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03604198 |
|
参考 参考 零件名称 参见 注 编号 图 零件号 数量 1 2 3 4 5 6 (产品层级) 页码 |
|
88 4 294-7966 1 SHAFT-CENTER (中间轴) |
|
89 3 294-7968 4 GEAR-PLANETARY (24-TEETH) (24-TEETH) (行星齿轮 (24-齿) (24-齿)) |
|
90 2 335-7915 1 SHIM (1.27-MM THK) (垫片 (1.27-MM 厚)) |
|
91 2 146-4263 2 SEAL-O-RING (O 形密封圈) |
|
92 5 183-3409 3 PLUG AS (螺塞组件) |
|
（每个包括） |
|
5 9S-8002 1 PLUG-O-RING (O 形圈螺塞) |
|
5 033-5853 1 SEAL-O-RING (O 形密封圈) |
|
93 3 1K-6984 1 RING-RETAINING (挡圈) |
|
94 2 5J-3886 1 SEAL-O-RING (O 形密封圈) |
|
95 5 5P-8245 1 WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈 (13.5X25.5X3-MM 厚)) |
|
96 1 6V-0506 1 RING-RETAINING (挡圈) |
|
97 5 6V-6228 2 SEAL-O-RING (O 形密封圈) |
|
98 3 6V-6764 1 RING-RETAINING (挡圈) |
|
M 99 5 6V-7673 1 BOLT (M12X1.75X50-MM) (螺栓 (M12X1.75X50-MM)) |
|
100 5 7L-9061 3 SEAL-O-RING (O 形密封圈) |
|
101 2 7T-5594 1 RING-SEAL (密封圈) |
|
M 102 2 8C-3226 8 BOLT (M12X1.75X200-MM) (螺栓 (M12X1.75X200-MM)) |
|
M 103 2 9X-2045 6 SCREW-TRUSS HEAD (M6X1X20-MM) (大圆头螺钉 (M6X1X20-MM)) |
|
104 1 8T-2572 1 SEAL-O-RING (O 形密封圈) |
|
M 105 5 8T-4183 20 BOLT (M12X1.75X40-MM) (螺栓 (M12X1.75X40-MM)) |
|
106 5 8T-4223 20 WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈 (13.5X25.5X3-MM 厚)) |
|
107 2 9S-6929 1 SEAL-O-RING (O 形密封圈) |
|
M- 公制零件 |
34 基本变速箱 3 / 8 SCBP4927-15
|

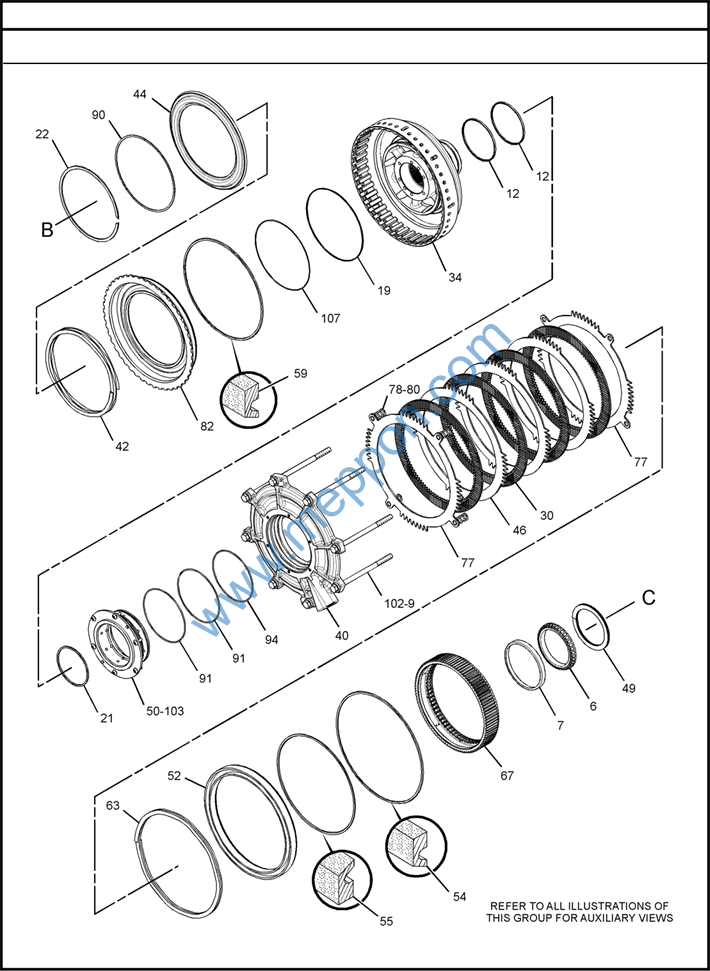

基本变速箱 |
|
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03604198 |
|
|

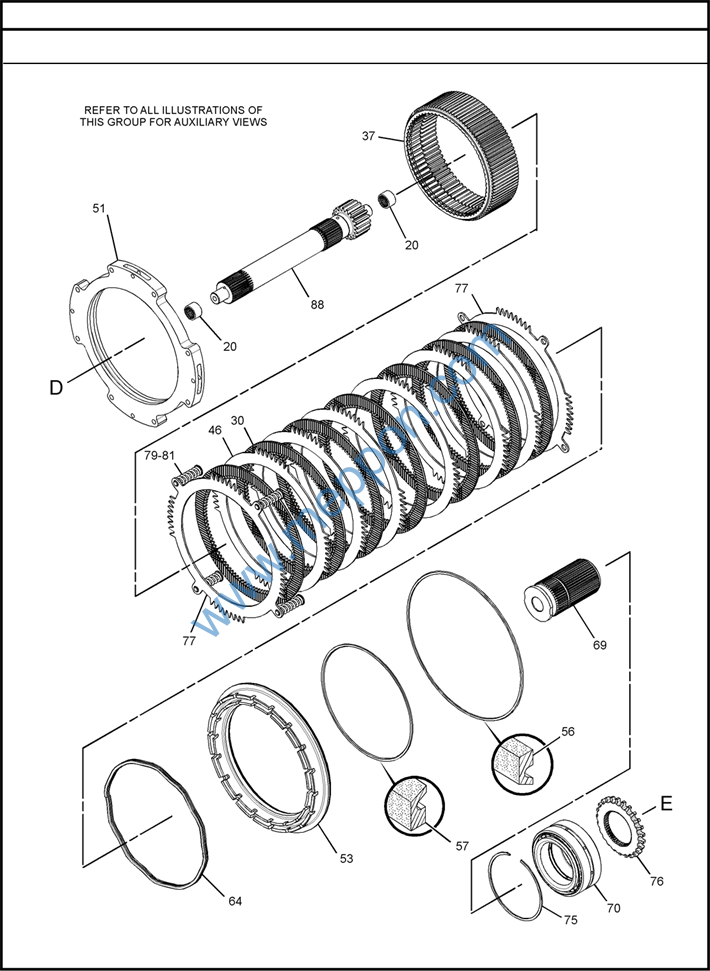

基本变速箱
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03604198

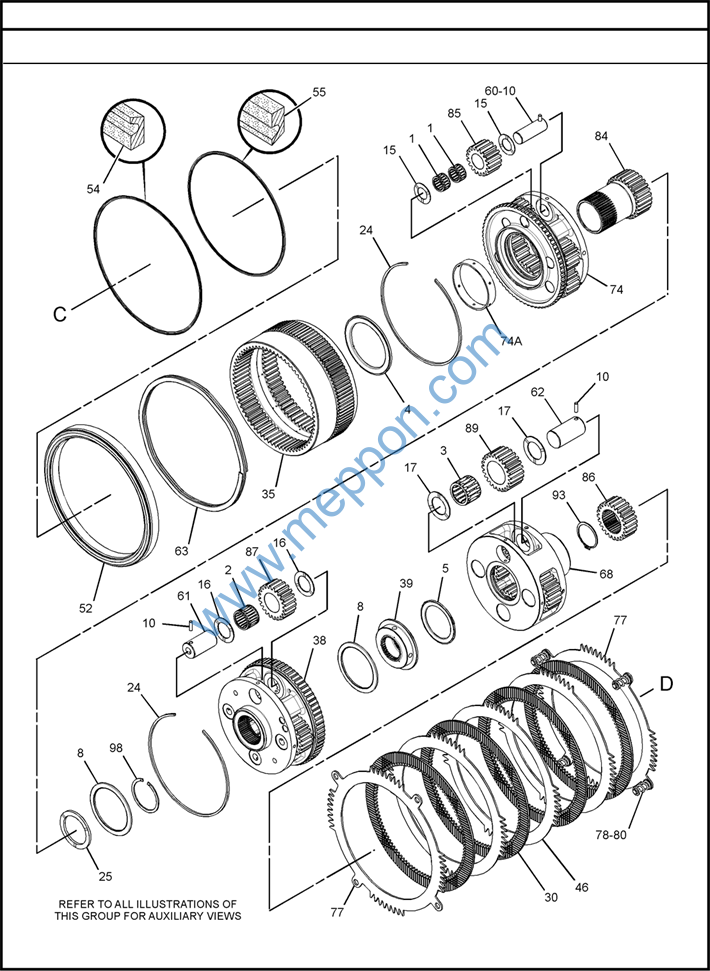

基本变速箱
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03604198

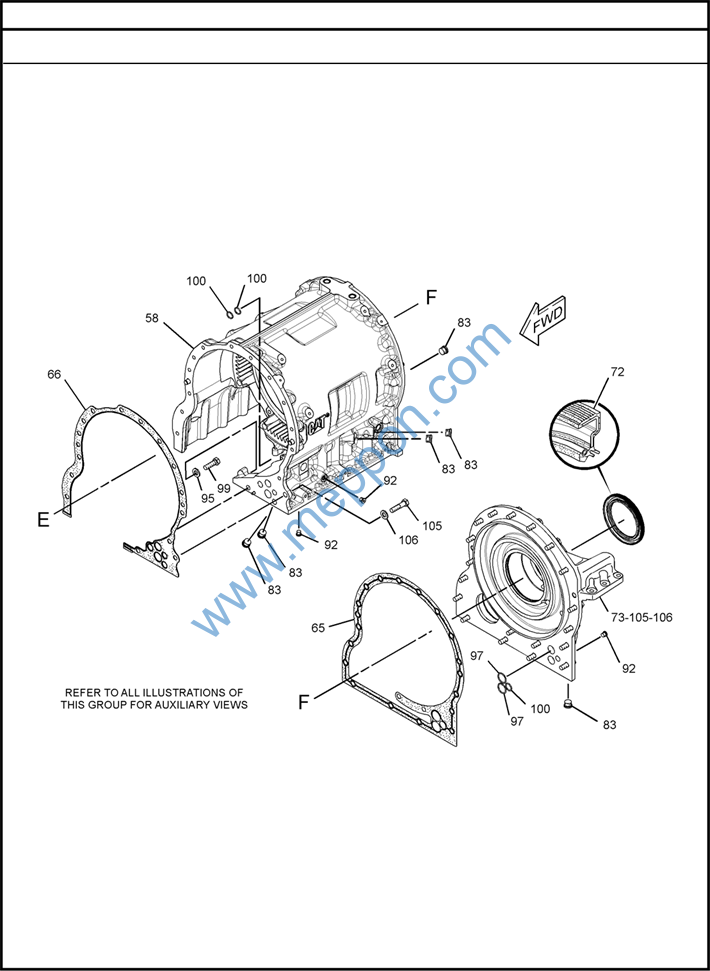

基本变速箱
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03604198

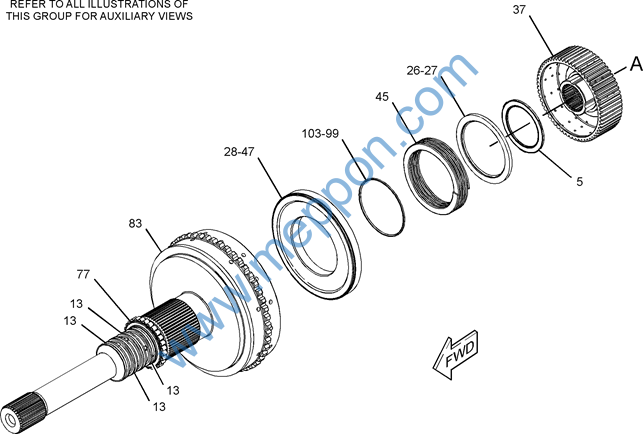

基本变速箱
296-5135 PLANETARY GP-TRANSMISSION (变速箱行星齿轮总成) (续) i03604198
|
基本变速箱 |
||||
|
297-3086 POWER TRAIN AR-OEM–6-SPEED (动力传动系配 |
||||
|
置总成-OEM–6-速) |
||||
|
序列号: B3X1-向上 |
||||
|
12-V，C-13 发动机，无减速器 |
||||
|
SMCS-3000, 3003, 4000 i03565674 |
||||
|
注 |
零件号 |
数量 |
零件名称 1 2 3 4 5 6 (产品层级) |
参见页码 |
|
Y |
298-3860 |
1 |
CONTROL GP-TRANSMISSION (KEYPAD SHIFTER) (变速箱控制总成 (键盘式换档器)) |
243 |
|
Y |
287-5733 |
1 |
TRANSMISSION AR-COMPLETE (整体变速箱配置总成) |
52 |
|
230-4009 |
1 |
PLUG AS-CONNECTOR (12-PIN) (接头插头组件 (12-针)) |
||
|
264-7034 |
1 |
SEAL-CONNECTOR (接头密封圈) |
||
|
Y-另有图示 |
||||
|
<结束> |
||||
|
297-3180 POWER TRAIN AR-OEM–6-SPEED (动力传动系配 |
||||
|
置总成-OEM–6-速) |
||||
|
序列号: B3X1-向上 |
||||
|
12-V，C-15 发动机，无减速器，深集油槽 |
||||
|
SMCS-3000, 3003, 4000 i03571512 |
||||
|
注 |
零件号 |
数量 |
零件名称 1 2 3 4 5 6 (产品层级) |
参见页码 |
|
Y |
298-3860 |
1 |
CONTROL GP-TRANSMISSION (KEYPAD SHIFTER) (变速箱控制总成 (键盘式换档器)) |
243 |
|
Y |
290-0600 |
1 |
TRANSMISSION AR (变速箱配置总成) |
46 |
|
230-4009 |
1 |
PLUG AS-CONNECTOR (12-PIN) (接头插头组件 (12-针)) |
||
|
264-7034 |
1 |
SEAL-CONNECTOR (接头密封圈) |
||
|
Y-另有图示 |
||||
|
<结束> |
||||
|
307-2972 POWER TRAIN AR-OEM–6-SPEED (动力传动系配 |
||||
|
置总成-OEM–6-速) |
||||
|
序列号: B3X1-向上 |
||||
|
12-V，C-13 发动机，无减速器，浅集油槽 |
||||
|
SMCS-3000, 3003, 4000 i03358824 |
||||
|
注 |
零件号 |
数量 |
零件名称 1 2 3 4 5 6 (产品层级) |
参见页码 |
|
Y |
298-3860 |
1 |
CONTROL GP-TRANSMISSION (KEYPAD SHIFTER) (变速箱控制总成 (键盘式换档器)) |
243 |
|
Y |
307-1996 |
1 |
TRANSMISSION AR-COMPLETE (整体变速箱配置总成) |
59 |
|
Y-另有图示 |
||||
|
<结束> |
||||
