变速箱输入

289-9547 FASTENER GP-COUPLING–TRANSMISSION (连接紧

固件总成–变速箱)

序列号: B3X1-向上

属于320-3066 驱动盘总成, 324-8938 变速箱配置总成, 270-4380, 287-5736, 287-5737, 288-0926,

288-0927, 299-8029, 307-1996, 308-1341, 308-2974, 308-6243, 311-3033, 312-6001, 312-6002,

312-6003, 312-6004, 312-6005, 312-6009, 312-6010, 312-6011, 312-8637, 314-9518, 315-0496,

316-6072, 316-8770, 317-9519, 321-1465, 325-5822 整体变速箱配置总成

也是一个附件

SMCS-3252, 3279    i02639792

零件名称    参见

注    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

M    8T-0271    12    BOLT-SOCKET HEAD (M10X1.5X35-MM) (内六角头螺栓

(M10X1.5X35-MM))

M- 公制零件

<结束>

289-9548 FASTENER GP-COUPLING–ENGINE (连接紧固件总

成–发动机)

序列号: B3X1-向上柔性盘

属于320-1224 动力传动系配置总成-OEM也是一个附件

SMCS-3252, 3279    i02852247

零件名称    参见

注    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

0S-1576    12    BOLT (5/8-18X2-IN) (螺栓 (5/8-18X2-IN))

<结束>

289-9549 FASTENER GP-COUPLING–TRANSMISSION (连接紧

固件总成–变速箱)

序列号: B3X1-向上

属于290-0600 变速箱配置总成, 287-5732, 287-5734, 287-5735, 299-8031, 311-4668, 312-6006,

312-6007, 316-0710, 317-2114, 323-5192, 324-9079 整体变速箱配置总成

SMCS-3252, 3279    i02639617

零件名称    参见

注    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

M    095-0670    12    BOLT (M12X1.75X45-MM) (螺栓 (M12X1.75X45-MM))

M- 公制零件

<结束>

变速箱输入

290-6001 FASTENER GP-COUPLING (连接紧固件总成)

序列号: B3X1-向上

提供用于到发动机安装件柔性盘的紧固件总成附件

SMCS-3252, 3279    i02658761

参考    参考    零件名称    参见

注    编号    图    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

M    1    1    6V-8154    8    BOLT (M16X2X150-MM) (螺栓 (M16X2X150-MM))

M- 公制零件

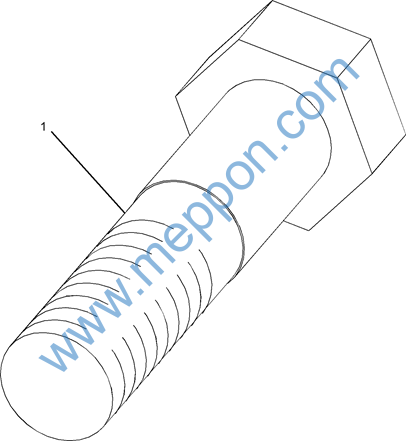

图1    <结束>    g01331178

变速箱输入

265-5132 HOUSING GP-TORQUE CONVERTER

(变矩器壳体总成)

序列号: B3X1-向上

属于296-6568 变速箱配置总成, 265-5149 变速箱核心配置总成

SMCS-3105    i02560655

参考    参考    零件名称    参见

注    编号    图    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

1    2    1B-6161    1    LOCK (锁)

2    2    2P-8986    1    CUP-BEARING (轴承外环)

3    2    2P-8987    1    CONE-BEARING (轴承内环)

4    2    4H-6112    1    BREATHER (TORQUE CONVERTER) (呼吸器 (变矩器))

5    2    4H-7859    1    LOCKNUT-BEARING (轴承锁紧螺母)

6    1    5P-8245    20    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

M    7    1    5P-8347    2    BOLT (M8X1.25X70-MM) (螺栓 (M8X1.25X70-MM))

8    2    6V-1720    1    PLATE-SERIAL NUMBER (TRANSMISSION) (序列号标牌

(变速箱))

9    2    6V-3551    1    SEAL-O-RING (O 形密封圈)

10    1    6V-5839    1    WASHER (11X21X2.5-MM THK) (垫圈 (11X21X2.5-MM

厚))

M    11    1    6V-5843    1    BOLT (M10X1.5X45-MM) (螺栓 (M10X1.5X45-MM))

12    2    6V-7421    2    CONE-SPECIAL TAPERED (专用圆锥滚柱轴承内环)

13    2    6V-7422    2    CUP-SPECIAL TAPERED (专用锥形帽)

14    1    7L-9061    2    SEAL-O-RING (O 形密封圈)

15    2    8H-7801    1    CONE-BEARING (TAPERED) (轴承内环 (圆锥))

16    2    8H-7803    1    CUP-BEARING (TAPERED ROLL) (轴承外环 (圆锥滚柱))

17    2    8T-4223    13    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

18    1    9M-1974    2    WASHER-HARD (8.8X16X2-MM THK) (硬垫圈

(8.8X16X2-MM 厚))

19    2    136-3378    1    SEAL-O-RING (O 形密封圈)

20    2    265-5834    1    MANIFOLD (歧管)

21    2    265-5835    1    MANIFOLD (歧管)

22    2    265-5839    1    GEAR (88-TEETH) (齿轮 (88-齿))

23    2    265-5840    1    GEAR (70-TEETH) (齿轮 (70 齿))

24    2    266-4181    1    HOUSING AS-TORQUE CONVERTER (变矩器壳体组件)

2    5M-7937    2    DOWEL (定位销)

M    2    265-6991    12    INSERT-THREADED (M16X2-THD) (螺纹座圈

(M16X2-螺纹))

M    2    266-4188    9    INSERT-THREADED (M8X1.25-THD) (螺纹座圈

(M8X1.25-螺纹))

25    2    270-1705    1    SEAL-LIP TYPE (唇形油封)

26    2    274-4251    2    RING-RETAINING (挡圈)

27    2    274-4252    1    RING-RETAINING (挡圈)

28    2    274-4253    1    COUPLER (连接器)

29    2    274-4254    1    RING-SEAL (密封圈)

30    2    274-6111    1    RACE-BEARING (轴承座圈)

31    2    274-9319    1    CARRIER AS-RING (环形支架)

2    1A-2223    1    DOWEL (定位销)

32    2    277-5830    1    SHIELD AS (护罩组件)

M    33    1    160-8750    13    BOLT (M12X1.75X65-MM) (螺栓 (M12X1.75X65-MM))

M    34    1    6V-5684    7    BOLT (M12X1.75X45-MM) (螺栓 (M12X1.75X45-MM))

M    35    2    8T-4184    13    BOLT (M12X1.75X45-MM) (螺栓 (M12X1.75X45-MM))

M- 公制零件

变速箱输入

265-5132 HOUSING GP-TORQUE CONVERTER (变矩器壳体总成) (续)    i02560655

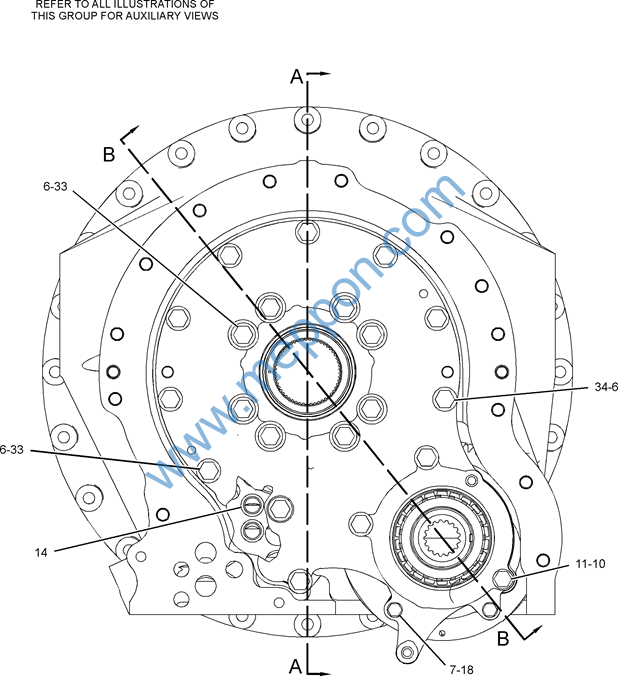

图1    g01265166

变速箱输入

265-5132 HOUSING GP-TORQUE CONVERTER (变矩器壳体总成) (续)    i02560655

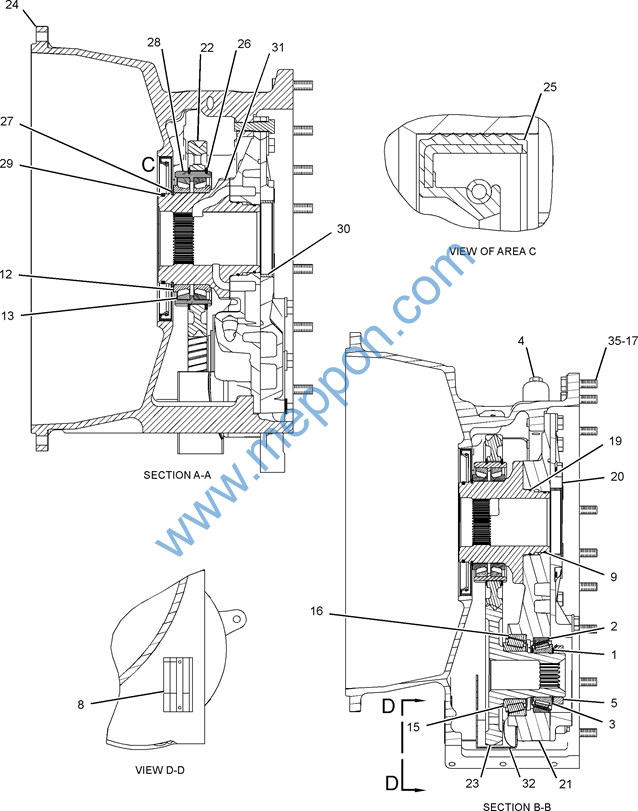

图2    <结束>    g01265164

变速箱输入

277-6890 HOUSING GP-TORQUE CONVERTER–RETARDER (变

矩器壳体总成–缓速器)

序列号: B3X1-667

属于282-9536 变速箱核心配置总成

SMCS-3105    i03682146

参考    参考    零件名称    参见

注    编号    图    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

1    2    1B-6161    1    LOCK (锁)

2    2    2P-8986    1    CUP-BEARING (轴承外环)

3    2    2P-8987    1    CONE-BEARING (轴承内环)

4    1    4H-6112    1    BREATHER (TORQUE CONVERTER) (呼吸器 (变矩器))

5    2    4H-7859    1    LOCKNUT-BEARING (轴承锁紧螺母)

6    2    5P-8245    20    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

M    7    2    5P-8347    2    BOLT (M8X1.25X70-MM) (螺栓 (M8X1.25X70-MM))

8    1    338-0891    1    PLATE-INFORMATION (TRANSMISSION) (信息标牌

(变速箱))

9    2    6V-3551    1    SEAL-O-RING (O 形密封圈)

M    10    2    6V-5684    7    BOLT (M12X1.75X45-MM) (螺栓 (M12X1.75X45-MM))

11    2    6V-5839    14    WASHER (11X21X2.5-MM THK) (垫圈 (11X21X2.5-MM

厚))

M    12    2    6V-5843    1    BOLT (M10X1.5X45-MM) (螺栓 (M10X1.5X45-MM))

13    1    6V-7421    2    CONE-SPECIAL TAPERED (专用圆锥滚柱轴承内环)

14    1    6V-7422    2    CUP-SPECIAL TAPERED (专用锥形帽)

15    1    7L-9061    2    SEAL-O-RING (O 形密封圈)

16    2    8H-7801    1    CONE-BEARING (TAPERED) (轴承内环 (圆锥))

17    2    8H-7803    1    CUP-BEARING (TAPERED ROLL) (轴承外环 (圆锥滚柱))

18    1    8T-4223    13    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

19    2    9M-1974    4    WASHER-HARD (8.8X16X2-MM THK) (硬垫圈

(8.8X16X2-MM 厚))

20    2    128-1663    2    RING-SEAL (密封圈)

21    2    136-3378    1    SEAL-O-RING (O 形密封圈)

22    2    257-8660    1    BEARING-THRUST (止推轴承)

23    2    265-5834    1    MANIFOLD (歧管)

24    2    304-8980    1    MANIFOLD (歧管)

25    1    295-8261    1    GEAR (55-TEETH) (齿轮 (55-齿))

26    2    265-5840    1    GEAR (70-TEETH) (齿轮 (70 齿))

27    1    270-1705    1    SEAL-LIP TYPE (唇形油封)

28    2    339-5397    1    SEAL-INTEGRAL (整体式密封)

30    1    274-4252    1    RING-RETAINING (挡圈)

32    1    274-4254    1    RING-SEAL (密封圈)

33    2    274-6111    1    RACE-BEARING (轴承座圈)

34    1    274-9319    1    CARRIER AS-RING (环形支架)

1    1A-2223    1    DOWEL (定位销)

35    2    277-5830    1    SHIELD AS (护罩组件)

M    2    8T-3612    2    NUT-WELD (M8X1.25-THD) (焊接螺母 (M8X1.25-螺纹))

36    1    277-6892    1    HOUSING AS-TORQUE CONVERTER (变矩器壳体组件)

1    5M-7937    2    DOWEL (定位销)

M    36A    1    265-6991    12    INSERT-THREADED (螺纹座圈)

M    36B    1    266-4188    9    INSERT-THREADED (螺纹座圈)

37    2    304-5101    1    HOUSING AS (壳体组件)

2    1A-2223    2    DOWEL (12.5-MM DIA) (定位销 (12.5-MM 直径))

2    2H-1190    1    DOWEL (6.2-MM DIA) (定位销 (6.2-MM 直径))

2    3H-0703    4    DOWEL (6.2-MM DIA) (定位销 (6.2-MM 直径))

38    2    304-5103    1    STATOR-RETARDER (减速器定子)

39    2    277-6901    1    ROTOR-RETARDER (减速器转子)

40    2    304-5104    1    STATOR-RETARDER (减速器定子)

M    41    1    287-3144    7    STUD (双头螺栓)

M    42    2    095-0658    13    BOLT-SOCKET HEAD (M10X1.5X70-MM) (内六角头螺栓

(M10X1.5X70-MM))

M    43    2    172-9966    13    BOLT (M12X1.75X65-MM) (螺栓 (M12X1.75X65-MM))

变速箱输入

277-6890 HOUSING GP-TORQUE CONVERTER (变矩器壳体总成) (续)    i03682146

参考    参考    零件名称    参见

注    编号    图    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

44    2    183-3408    1    PLUG AS (螺塞组件)

2    9S-8004    1    PLUG-O-RING (O 形圈螺塞)

2    214-7568    1    SEAL-O-RING (O 形密封圈)

M    45    1    8T-4244    7    NUT (M12X1.75-THD) (螺母 (M12X1.75-螺纹))

M    46    1    8T-5092    6    BOLT (M12X1.75X150-MM) (螺栓 (M12X1.75X150-MM))

M    47    2    6V-2317    2    BOLT (M8X1.25X30-MM) (螺栓 (M8X1.25X30-MM))

M- 公制零件

变速箱输入

277-6890 HOUSING GP-TORQUE CONVERTER (变矩器壳体总成) (续)    i03682146

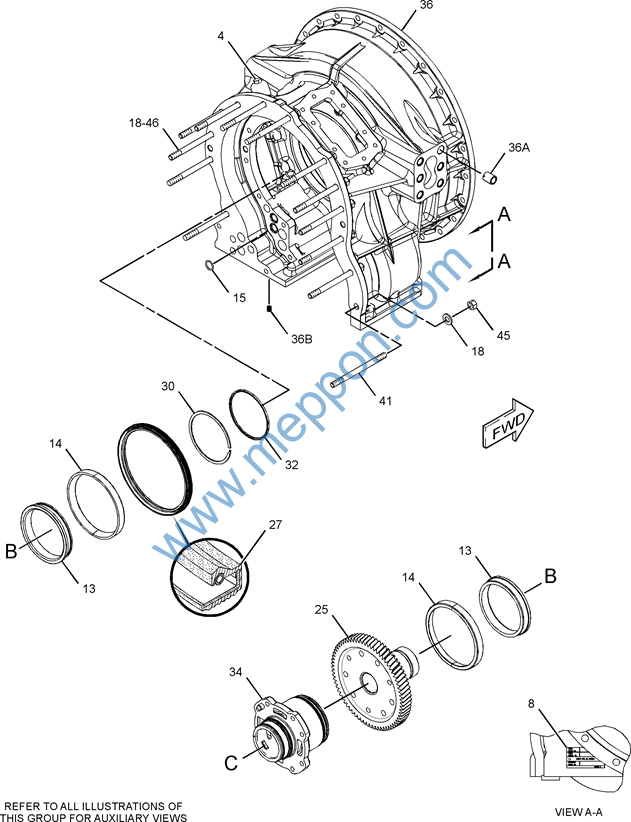

图1    g01602253

变速箱输入

277-6890 HOUSING GP-TORQUE CONVERTER (变矩器壳体总成) (续)    i03682146

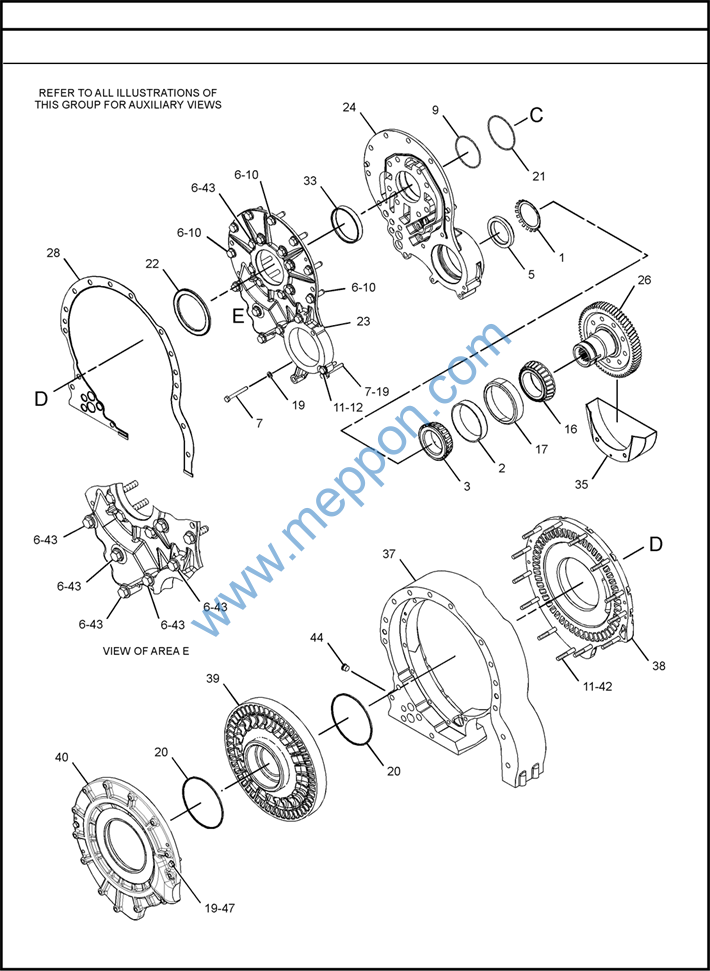

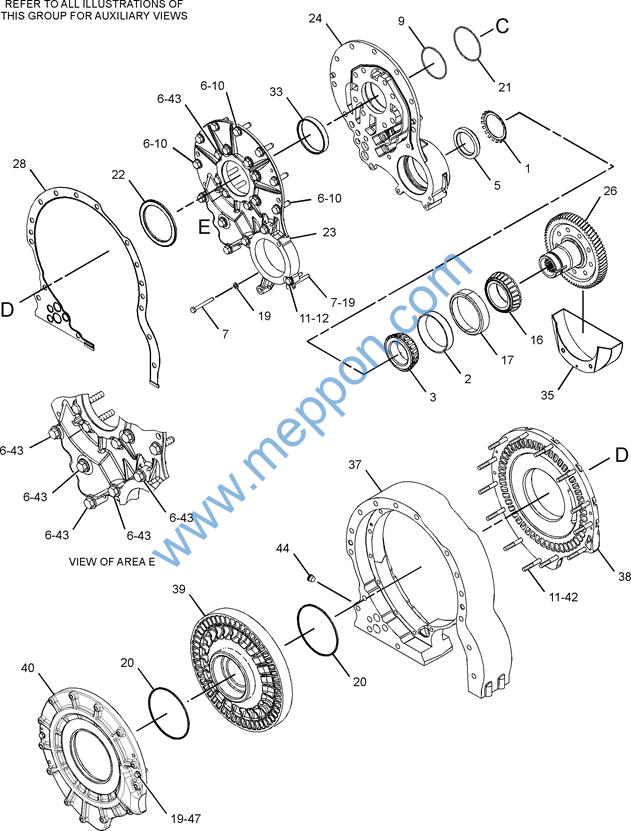

图2    <结束>    g01602993

变速箱输入

277-6890 HOUSING GP-TORQUE CONVERTER–RETARDER (变

矩器壳体总成–缓速器)

序列号: B3X668-向上

属于282-9536 变速箱核心配置总成

SMCS-3105    i04157330

参考    参考    零件名称    参见

注    编号    图    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

1    2    1B-6161    1    LOCK (锁)

2    2    2P-8986    1    CUP-BEARING (轴承外环)

3    2    2P-8987    1    CONE-BEARING (轴承内环)

4    1    4H-6112    1    BREATHER (TORQUE CONVERTER) (呼吸器 (变矩器))

5    2    4H-7859    1    LOCKNUT-BEARING (轴承锁紧螺母)

6    2    5P-8245    20    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

M    7    2    5P-8347    2    BOLT (M8X1.25X70-MM) (螺栓 (M8X1.25X70-MM))

8    1    338-0891    1    PLATE-INFORMATION (TRANSMISSION) (信息标牌

(变速箱))

9    2    6V-3551    1    SEAL-O-RING (O 形密封圈)

M    10    2    6V-5684    7    BOLT (M12X1.75X45-MM) (螺栓 (M12X1.75X45-MM))

11    2    6V-5839    14    WASHER (11X21X2.5-MM THK) (垫圈 (11X21X2.5-MM

厚))

M    12    2    6V-5843    1    BOLT (M10X1.5X45-MM) (螺栓 (M10X1.5X45-MM))

13    1    6V-7421    2    CONE-SPECIAL TAPERED (专用圆锥滚柱轴承内环)

14    1    6V-7422    2    CUP-SPECIAL TAPERED (专用锥形帽)

15    1    7L-9061    2    SEAL-O-RING (O 形密封圈)

16    2    8H-7801    1    CONE-BEARING (TAPERED) (轴承内环 (圆锥))

17    2    8H-7803    1    CUP-BEARING (TAPERED ROLLER) (轴承外环

(圆锥滚柱))

18    1    8T-4223    13    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

19    2    9M-1974    4    WASHER-HARD (8.8X16X2-MM THK) (硬垫圈

(8.8X16X2-MM 厚))

20    2    128-1663    2    RING-SEAL (密封圈)

21    2    136-3378    1    SEAL-O-RING (O 形密封圈)

22    2    257-8660    1    BEARING-THRUST (止推轴承)

23    2    265-5834    1    MANIFOLD (歧管)

24    2    304-8980    1    MANIFOLD (歧管)

25    1    295-8261    1    GEAR (55-TEETH) (齿轮 (55-齿))

26    2    265-5840    1    GEAR (70-TEETH) (齿轮 (70 齿))

27    1    270-1705    1    SEAL-LIP TYPE (唇形油封)

28    2    339-5397    1    SEAL-INTEGRAL (整体式密封)

30    1    274-4252    1    RING-RETAINING (挡圈)

32    1    274-4254    1    RING-SEAL (密封圈)

33    2    274-6111    1    RACE-BEARING (轴承座圈)

34    1    274-9319    1    CARRIER AS-RING (环形支架)

1    1A-2223    1    DOWEL (定位销)

35    2    277-5830    1    SHIELD AS (护罩组件)

M    2    8T-3612    2    NUT-WELD (M8X1.25-THD) (焊接螺母 (M8X1.25-螺纹))

36    1    277-6892    1    HOUSING AS-TORQUE CONVERTER (变矩器壳体组件)

1    5M-7937    2    DOWEL (定位销)

M    36A    1    265-6991    12    INSERT-THREADED (螺纹座圈)

M    36B    1    266-4188    9    INSERT-THREADED (螺纹座圈)

37    2    304-5101    1    HOUSING AS (壳体组件)

2    1A-2223    2    DOWEL (12.5-MM DIA) (定位销 (12.5-MM 直径))

2    2H-1190    1    DOWEL (6.2-MM DIA) (定位销 (6.2-MM 直径))

2    3H-0703    4    DOWEL (6.2-MM DIA) (定位销 (6.2-MM 直径))

38    2    304-5103    1    STATOR-RETARDER (减速器定子)

39    2    277-6901    1    ROTOR-RETARDER (减速器转子)

40    2    304-5104    1    STATOR-RETARDER (减速器定子)

CM    41    1    287-3144    8    STUD (双头螺栓)

M    42    2    095-0658    13    BOLT-SOCKET HEAD (M10X1.5X70-MM) (内六角头螺栓

(M10X1.5X70-MM))

M    43    2    172-9966    13    BOLT (M12X1.75X65-MM) (螺栓 (M12X1.75X65-MM))

变速箱输入

277-6890 HOUSING GP-TORQUE CONVERTER (变矩器壳体总成) (续)    i04157330

参考    参考    零件名称    参见

注    编号    图    零件号    数量    1 2 3 4 5 6 (产品层级)    页码

44    2    183-3408    1    PLUG AS (螺塞组件)

2    9S-8004    1    PLUG-O-RING (O 形圈螺塞)

2    214-7568    1    SEAL-O-RING (O 形密封圈)

CM    45    1    8T-4244    8    NUT (M12X1.75-THD) (螺母 (M12X1.75-螺纹))

CM    46    1    8T-5092    5    BOLT (M12X1.75X150-MM) (螺栓 (M12X1.75X150-MM))

M    47    2    6V-2317    2    BOLT (M8X1.25X30-MM) (螺栓 (M8X1.25X30-MM))

C-与早期型号有别

M- 公制零件

变速箱输入

277-6890 HOUSING GP-TORQUE CONVERTER (变矩器壳体总成) (续)    i04157330

图1    g01602253

变速箱输入

296-5812 HOUSING GP-TORQUE CONVERTER

(变矩器壳体总成)

序列号: B3X1-向上

属于265-5149 变速箱核心配置总成

SMCS-3105

i04156839

参考

注    编号

参考    零件名称

图    零件号    数量    1 2 3 4 5 6 (产品层级)

参见页码

1

1    1B-6161    1    LOCK (锁)

2

1    2P-8986    1    CUP-BEARING (轴承外环)

3

1    2P-8987    1    CONE-BEARING (轴承内环)

4    1    4H-6112    1    BREATHER (TORQUE CONVERTER) (呼吸器 (变矩器))

5

1    4H-7859    1    LOCKNUT-BEARING (轴承锁紧螺母)

6

1    5P-8245    20    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

M    7

1    5P-8347    2    BOLT (M8X1.25X70-MM) (螺栓 (M8X1.25X70-MM))

8

1    338-0891    1    PLATE-INFORMATION (TRANSMISSION) (信息标牌

(变速箱))

9

1    6V-3551    1    SEAL-O-RING (O 形密封圈)

10    1    6V-5839    1    WASHER (11X21X2.5-MM THK) (垫圈 (11X21X2.5-MM

厚))

M    11

1    6V-5843    1    BOLT (M10X1.5X45-MM) (螺栓 (M10X1.5X45-MM))

12

1    6V-7421    2    CONE-SPECIAL TAPERED (专用圆锥滚柱轴承内环)

13

1    6V-7422    2    CUP-SPECIAL TAPERED (专用锥形帽)

14

1    7L-9061    2    SEAL-O-RING (O 形密封圈)

15

1    8H-7801    1    CONE-BEARING (TAPERED) (轴承内环 (圆锥))

16

1    8H-7803    1    CUP-BEARING (TAPERED ROLLER) (轴承外环

(圆锥滚柱))

17

1    8T-4223    13    WASHER-HARD (13.5X25.5X3-MM THK) (硬垫圈

(13.5X25.5X3-MM 厚))

18

1    9M-1974    2    WASHER-HARD (8.8X16X2-MM THK) (硬垫圈

(8.8X16X2-MM 厚))

19

1    136-3378    1    SEAL-O-RING (O 形密封圈)

20

1    265-5834    1    MANIFOLD (歧管)

21

1    304-8980    1    MANIFOLD (歧管)

22

1    265-5840    1    GEAR (70-TEETH) (齿轮 (70 齿))

23

1    266-4181    1    HOUSING AS-TORQUE CONVERTER (变矩器壳体组件)

1    5M-7937    2    DOWEL (定位销)

M

1    265-6991    12    INSERT-THREADED (螺纹座圈)

M

1    266-4188    9    INSERT-THREADED (螺纹座圈)

24

1    270-1705    1    SEAL-LIP TYPE (唇形油封)

25

1    274-4254    1    RING-SEAL (密封圈)

26

1    274-6111    1    RACE-BEARING (轴承座圈)

27

1    274-9319    1    CARRIER AS-RING (环形支架)

1    1A-2223    1    DOWEL (定位销)

28

1    277-5830    1    SHIELD AS (护罩组件)

M    1    8T-3612    2    NUT-WELD (M8X1.25-THD) (焊接螺母 (M8X1.25-螺纹))

29

1    295-8261    1    GEAR (55-TEETH) (齿轮 (55-齿))

M    30

1    172-9966    13    BOLT (M12X1.75X65-MM) (螺栓 (M12X1.75X65-MM))

M    31

1    6V-5684    7    BOLT (M12X1.75X45-MM) (螺栓 (M12X1.75X45-MM))

M    32

1    8T-4184    13    BOLT (M12X1.75X45-MM) (螺栓 (M12X1.75X45-MM))

33

1    274-4252    1    RING-RETAINING (挡圈)

M- 公制零件
