XCMG XZ200 HORIZONTAL DIRECTIONALDRILL SPARE PARTS CATALOGUE 10
|

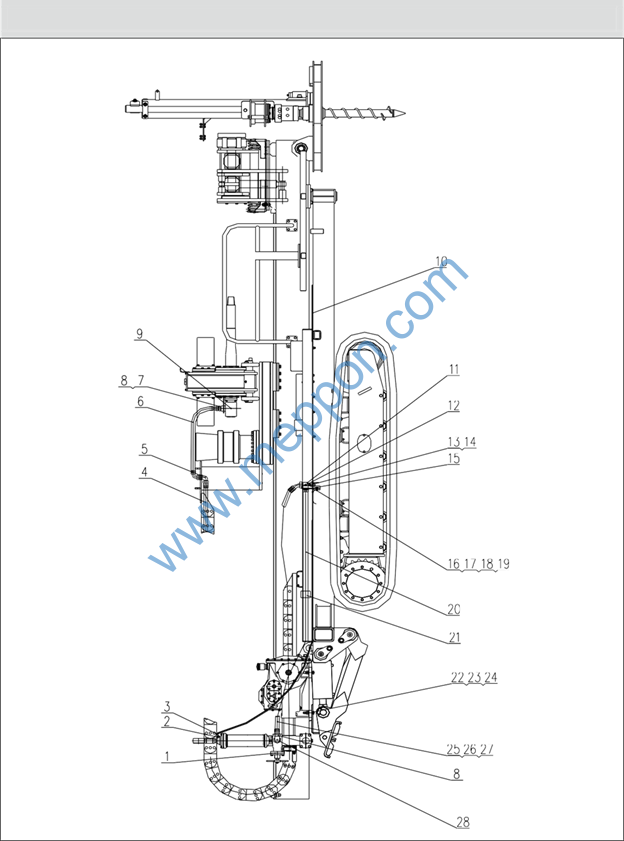

425101456 泥浆泵送系统 Mud Systerm 标配 Standard |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
803076608 |
泥浆泵 |
Mud Pump |
1 |
YWB200-160B |
|
2 |
803164277 |
接头 |
Coupler |
1 |
|
|
3 |
803190730 |
接头 |
Coupler |
1 |
|
|
4 |
803379494 |
软管总成 |
Hose |
1 |
|
|
5 |
803374358 |
直角隔壁式接头 |
Coupler |
1 |
|
|
6 |
803191945 |
软管总成 |
Hose |
1 |
|
|
7 |
803103152 |
接头体 |
Coupler Body |
1 |
|
|
8 |
803164301 |
接头 |
Coupler |
1 |
|
|
9 |
425101457 |
旋转接头 |
Mud Swivel |
1 |
|
|
10 |
803376924 |
软管总成 |
Hose |
1 |
|
|
11 |
425500150 |
三通接头 |
Tee |
1 |
|
|
12 |
803192108 |
油口堵塞 |
Cap |
1 |
|
|
13 |
803076308 |
通球阀 |
Shutoff valve |
1 |
|
|
14 |
803190783 |
直通接头 |
Adapter |
1 |
|
|
15 |
803374362 |
接头螺母 M36×2 |
Nut |
1 |
|
|
16 |
425101165 |
连接板 |
PLate |
1 |
|
|
17 |
805300010 |
垫圈 8 |
Washer Speing8 |
2 |
GB/T93 |
|
18 |
805000033 |
螺栓 M8×16 |
Bolt M8×16 |
2 |
GB/T5783 |
|
19 |
805200045 |
螺母 M8 |
Nut M8 |
2 |
GB/T6170 |
|
20 |
803383195 |
管夹 |
Pipe Clincher |
1 |
|
|
21 |
803379497 |
软管总成 |
Hose |
1 |
|
|
22 |
805000092 |
螺栓 M16×80 |
Bolt M16×80 |
2 |
GB/T5783 |
|
23 |
805200210 |
螺母 M16 |
Nut M16 |
4 |
GB/T6184 |
|
24 |
805000217 |
螺栓 M16×100 |
Bolt M16×100 |
2 |
GB/T5782 |
|
25 |
425101458 |
泥浆防冻装置 |
Antifreeze |
1 |
|
|
26 |
425101467 |
清洗装置 |
WashingDevice |
1 |
|
|
27 |
425101470 |
单向阀 |
Check Valve |
1 |
|
|
28 |
803191068 |
直通接头 |
Adapter |
1 |
|
注： XZ200水平定向钻机泥浆泵备件图册
425101744 泥浆泵送系统 Mud Systerm 选配 Option
|
425101744 泥浆泵送系统 Mud Systerm 选配 Option |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
803076592 |
泥浆泵 |
Mud Pump |
1 |
YBW250-200-150C |
|
2 |
803164277 |
接头 |
Coupler |
1 |
|
|
3 |
803190730 |
接头 |
Coupler |
1 |
|
|
4 |
803379494 |
软管总成 |
Hose |
1 |
|
|
5 |
803374358 |
直角隔壁式接头 |
Coupler |
1 |
|
|
6 |
803191945 |
软管总成 |
Hose |
1 |
|
|
7 |
803103152 |
接头体 |
Coupler Body |
1 |
|
|
8 |
803164301 |
接头 |
Coupler |
1 |
|
|
9 |
425101457 |
旋转接头 |
Mud Swivel |
1 |
|
|
10 |
803376924 |
软管总成 |
Hose |
1 |
|
|
11 |
425500150 |
三通接头 |
Tee |
1 |
|
|
12 |
803192108 |
油口堵塞 |
Cap |
1 |
|
|
13 |
803076308 |
通球阀 |
Shut Off Valve |
1 |
|
|
14 |
803190783 |
直通接头 |
Adapter |
1 |
|
|
15 |
803374362 |
接头螺母 M36×2 |
Nut |
1 |
|
|
16 |
425101165 |
连接板 |
PLate |
1 |
|
|
17 |
805300010 |
垫圈 8 |
Spring Washer |
2 |
GB/T93 |
|
18 |
805000033 |
螺栓 M8×16 |
Bolt |
2 |
GB/T5783 |
|
19 |
805200045 |
螺母 M8 |
Nut |
2 |
GB/T6170 |
|
20 |
803383195 |
管夹 |
Pipe Clincher |
1 |
|
|
21 |
803379497 |
软管总成 |
Hose |
1 |
|
|
22 |
805000092 |
螺栓 M16×80 |
Bolt |
2 |
GB/T5783 |
|
23 |
805200210 |
螺母 M16 |
Nut |
4 |
GB/T6184 |
|
24 |
805000217 |
螺栓 M16×100 |
Bolt |
2 |
GB/T5782 |
|
25 |
425101745 |
泥浆防冻装置 |
AntifreezeDevice |
1 |
|
|
26 |
425101467 |
清洗装置 |
Washing Device |
1 |
|
|
27 |
425101470 |
单向阀 |
Check Valve |
1 |
|
|
28 |
803191068 |
直通接头 |
Adapter |
1 |
|
注：XZ200水平定向钻机泥浆泵送系统备件图册

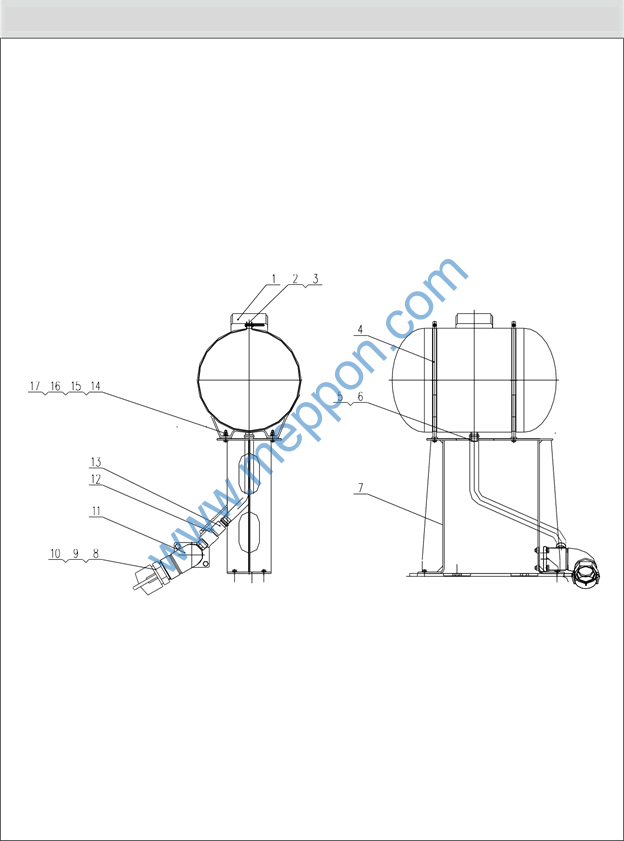

425101458 泥浆防冻装置 Mud Antifreeze Device 选配 Option
|
425101458 泥浆防冻装置 Mud Antifreeze Device 选配 Option |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
425400405 |
防冻液罐 |
Antifreeze Pot |
1 |
|
|
2 |
805000057 |
螺栓 M6×60 |
Bolt |
2 |
GB/T5783 |
|
3 |
805200053 |
螺母 M6 |
Nut |
2 |
GB/T6170 |
|
4 |
425400404 |
支架 |
Bracket |
2 |
|
|
5 |
805801461 |
喉箍 d32 |
Worm Clamp |
2 |
JB/T8870 |
|
6 |
425400406 |
PVC 透明软管 |
PVC Hose |
1 |
|
|
7 |
425401248 |
支架 |
Bracket |
1 |
|
|
8 |
803374338 |
快速接头 |
Fhc Body |
1 |
TYPE:C2″ |
|
9 |
803377639 |
快速接头 |
Fhc Body |
1 |
TYPE:F2″ |
|
10 |
803377638 |
快速接头 |
Fhc Body |
1 |
TYPE:DC2″ |
|
11 |
425101463 |
进水口接头 |
Inlet Coupler |
1 |
YWB200-160B 使用 |
|
425101746 |
进水口接头 |
Inlet Coupler |
1 |
YBW250-200-150C 使用 |
|
|
12 |
803076317 |
通球阀 |
Check Valve |
1 |
Q11F-64P-1″ |
|
13 |
800787608 |
水管接头 |
Pipe Coupler |
1 |
DN25 |
|
14 |
805300010 |
垫圈 8 |
Washer Speing8 |
8 |
GB/T93 |
|
15 |
805004734 |
螺栓 M8×35 |
Bolt |
8 |
GB/T5782 |
|
16 |
805300069 |
垫圈 8 |
Spring Washer |
8 |
GB/T97.1 |
|
17 |
805200045 |
螺母 M8 |
Nut |
4 |
GB/T6170 |
注：XZ200 水平定向钻机泥浆泵泥浆防冻装置备件图册。

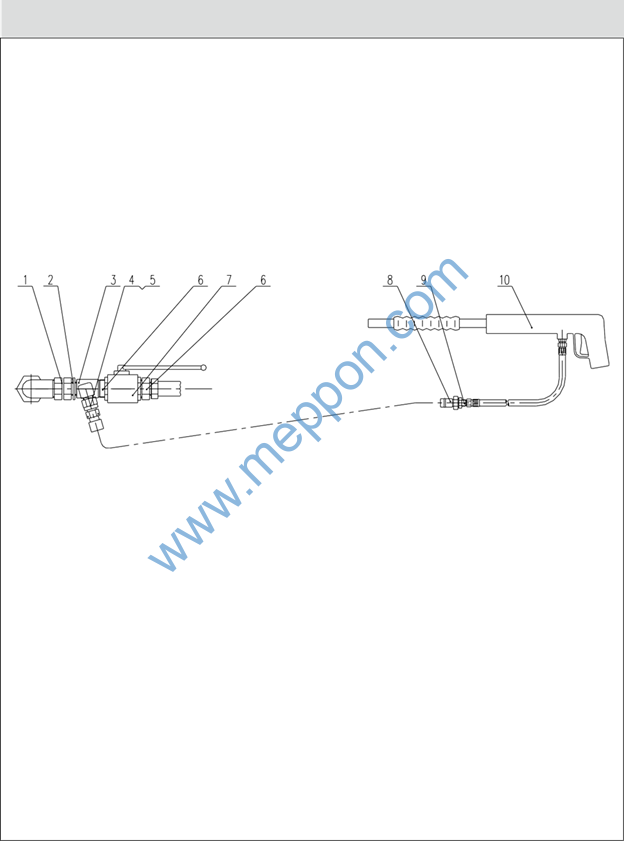

425101467 泥浆清洗装置 Mud Washing Device 选配 Option
|
425101467 泥浆清洗装置 Mud Washing Device 选配 Option |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
803375280 |
接头 |
Coupler |
1 |
|
|
2 |
803191852 |
直通接头 |
Adapter |
1 |
|
|
3 |
425101468 |
接头体 |
Coupler Body |
1 |
|
|
4 |
803190692 |
直角组合接头 |
Straight Coupling |
1 |
|
|
5 |
803190750 |
直通组合接头 |
Straight Coupling |
1 |
|
|
6 |
803174637 |
接头 |
Coupler |
2 |
|
|
7 |
803076948 |
通球阀 |
Shutoff Valve |
1 |
|
|
8 |
803377640 |
快换接头 |
Fhc Body |
1 |
|
|
9 |
425500344 |
接头体 |
Coupler Body |
1 |
|
|
10 |
840540445 |
水枪(带胶管) |
Water Pistol（with hose） |
1 |
|
注：XZ200 水平定向钻机泥浆泵泥浆清洗装置备件图册。

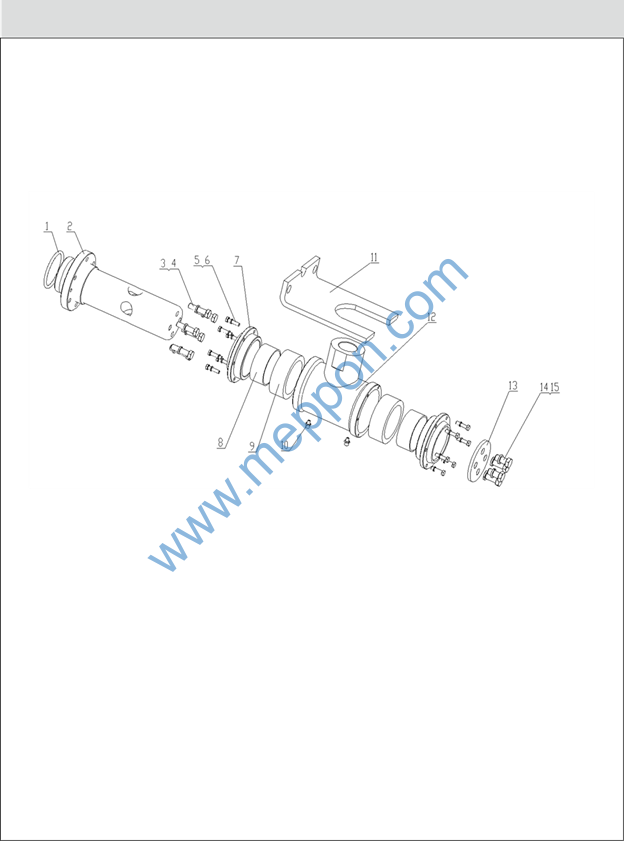

425101457 旋转接头 Mud Swivel
|
425101457 旋转接头 Mud Swivel |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
819908793 |
O 形圈 50×3.55 |
O-Ring |
1 |
GB/T3452.1 |
|
2 |
425100255 |
芯轴 |
Core Axis |
1 |
|
|
3 |
805300010 |
垫圈 8 |
Spring Washer |
6 |
GB/T93 |
|
4 |
805000020 |
螺栓 M8×30 |
Screw |
6 |
GB/T5783 |
|
5 |
805100059 |
螺钉 M6×20 |
Bolt |
12 |
GB/T5783 |
|
6 |
805300030 |
垫圈 6 |
Washer |
12 |
GB/T93 |
|
7 |
425100257 |
端盖 |
Cover |
2 |
|
|
8 |
800553534 |
自润滑轴承 |
Axletree |
2 |
SF-1 5020 |
|
9 |
803377695 |
V 型组合密封 |
Fours Sets Of V-Shaned |
2 |
GB/T10708.1 |
|
10 |
801100340 |
油杯 M6×1 |
Zerk |
2 |
JB/T7940.1 |
|
11 |
425102182 |
弯板 |
Angle Block |
1 |
|
|
12 |
425100258 |
壳体 |
Adjust Tab |
1 |
|
|
13 |
425101423 |
挡板 |
Baffle |
1 |
|
|
14 |
805300014 |
垫圈 10 |
Washer |
4 |
GB/T93 |
|
15 |
805000714 |
螺栓 M12×20 |
Bolt |
4 |
GB/T5783 |
