XCMG XZ320/A/B/D HORIZONTAL DIRECTIONAL DRILL SPARE PARTS CATALOGUE 16
|

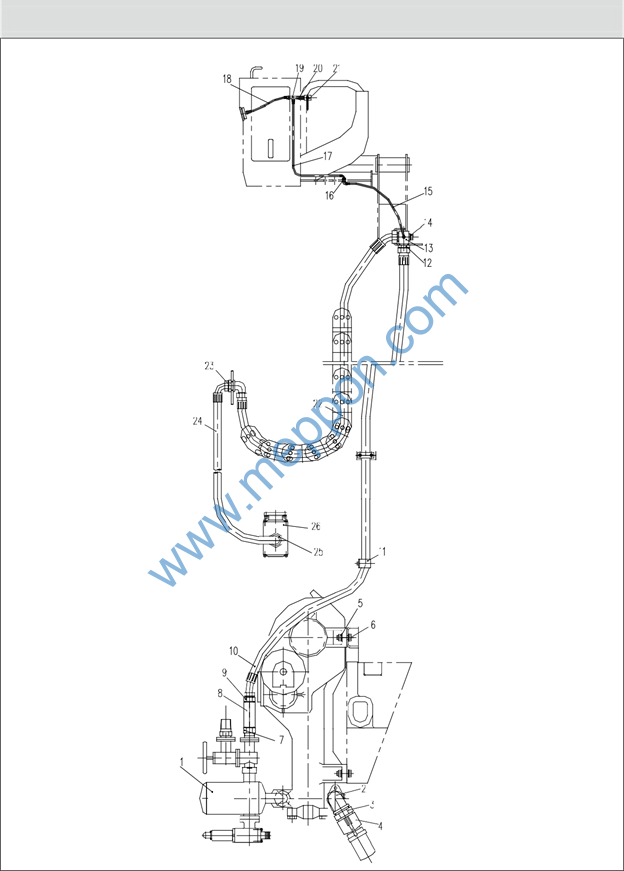

0041613000 泥浆泵送系统 Mud Systerm |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
101000732 |
泥浆泵 |
Mud Pump |
1 |
BW-320F |
|
2 |
106000190 |
90°弯头 |
Coupler |
1 |
GB/T3289.2 |
|
3 |
106000036 |
快速接头 |
Fhc Body |
1 |
TYPE:C |
|
4 |
106000035 |
快速接头 |
Fhc Body |
1 |
TYPE:F |
|
5 |
104000057 |
螺栓 M16×60 |
Bolt M16×60 |
4 |
GB/T5782 |
|
6 |
104030167 |
螺母 M16 |
Nut M16×60 |
4 |
GB/T6184 |
|
7 |
101030201 |
油口堵塞 |
Cap |
1 |
DTG1/2ED |
|
8 |
0041713001 |
长接头 |
Coupler |
1 |
|
|
9 |
0041213001 |
接头 |
Coupler |
1 |
|
|
10 |
101022508 |
软管总成 |
Tube |
1 |
N2SNHEHA424224-3800 |
|
11 |
101010276 |
管夹 |
Pipe clincher |
2 |
TLPG3-542 |
|
12 |
101020780 |
接头螺母 M52×2 |
Nut M52×2 |
1 |
N42L |
|
13 |
0041213002 |
三通接头 |
Coupler |
1 |
|
|
14 |
101030197 |
油口堵塞 |
Cap |
1 |
DTM16×1.5ED |
|
15 |
101020819 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1235 |
|
16 |
101020766 |
接头 |
Coupler |
1 |
L08L/30N |
|
17 |
101020816 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1575 |
|
18 |
101023307 |
软管总成 |
Tube |
1 |
N1SNHAA0080804-260 |
|
19 |
101022532 |
接头 |
Coupler |
1 |
YL08L |
|
20 |
101020742 |
接头 |
Coupler |
1 |
I08L/24N |
|
21 |
106000291 |
通球阀 |
Shutoff valve |
1 |
Q11F-64P-1/4″ |
|
22 |
101022507 |
软管总成 |
Tube |
1 |
N2SNHEHA353520-4200 |
|
23 |
101020771 |
接头 |
Coupler |
1 |
L35L/41N |
|
24 |
101025462 |
软管总成 |
Tube |
1 |
N2SNHAHA353520-1200 |
|
25 |
101025050 |
接头 |
Coupler |
1 |
I35LG1 1/2ED |
|
26 |
0041613037 |
旋转接头 |
Mud Swivel |
1 |
|
注：XZ320、XZ320A、XZ320B 水平定向钻机配衡阳泥浆泵备件图册。
0041613000 泥浆泵送系统 Mud Systerm
|

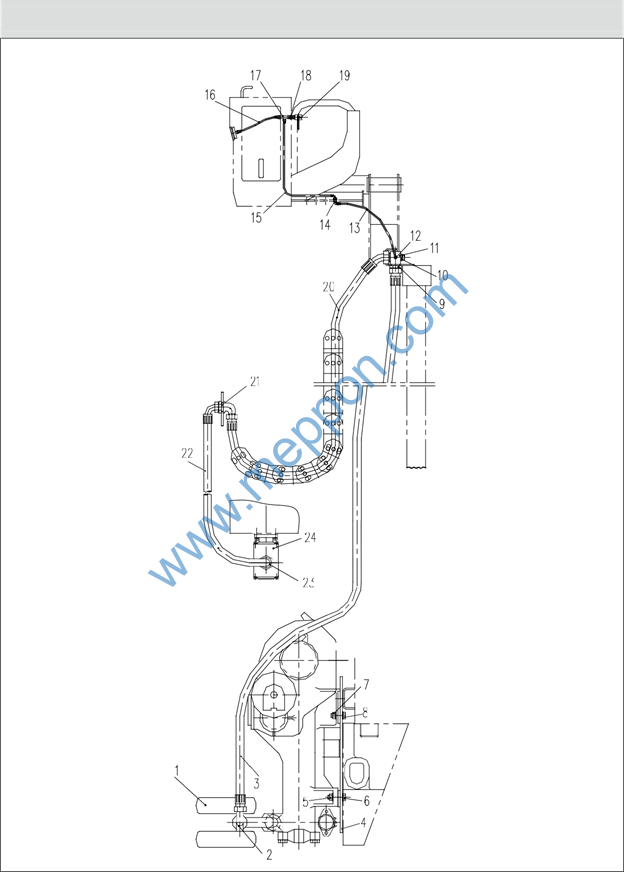

0041613000 泥浆泵送系统 Mud Systerm |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
101000732 |
泥浆泵 |
Mud Pump |
1 |
BW-320F |
|
2 |
106000190 |
90°弯头 |
Coupler |
1 |
GB/T3289.2 |
|
3 |
106000036 |
快速接头 |
Fhc Body |
1 |
TYPE:C |
|
4 |
106000035 |
快速接头 |
Fhc Body |
1 |
TYPE:F |
|
5 |
104000057 |
螺栓 M16×60 |
Bolt M16×60 |
4 |
GB/T5782 |
|
6 |
104030167 |
螺母 M16 |
Nut M16×60 |
4 |
GB/T6184 |
|
7 |
101030201 |
油口堵塞 |
Cap |
1 |
DTG1/2ED |
|
8 |
0041713001 |
长接头 |
Coupler |
1 |
|
|
9 |
0041213001 |
接头 |
Coupler |
1 |
|
|
10 |
101022508 |
软管总成 |
Tube |
1 |
N2SNHEHA424224-3800 |
|
11 |
101010276 |
管夹 |
Pipe Clincher |
2 |
TLPG3-542 |
|
12 |
101020780 |
接头螺母 M52×2 |
Nut M52×2 |
1 |
N42L |
|
13 |
0041213002 |
三通接头 |
Coupler |
1 |
|
|
14 |
101030197 |
油口堵塞 |
Cap |
1 |
DTM16×1.5ED |
|
15 |
101020819 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1235 |
|
16 |
101020766 |
接头 |
Coupler |
1 |
L08L/30N |
|
17 |
101020816 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1575 |
|
18 |
101023307 |
软管总成 |
Tube |
1 |
N1SNHAA0080804-260 |
|
19 |
101022532 |
接头 |
Coupler |
1 |
YL08L |
|
20 |
101020742 |
接头 |
Coupler |
1 |
I08L/24N |
|
21 |
106000291 |
通球阀 |
Shutoff Valve |
1 |
Q11F-64P-1/4″ |
|
22 |
101029711 |
软管总成 |
Tube |
1 |
N2SNHEHA353520-5700 |
|
23 |
101020771 |
接头 |
Coupler |
1 |
L35L/41N |
|
24 |
101025462 |
软管总成 |
Tube |
1 |
N2SNHAHA353520-1200 |
|
25 |
101025050 |
接头 |
Coupler |
1 |
I35LG1 1/2ED |
|
26 |
0041613037 |
旋转接头 |
Mud Swivel |
1 |
|
注：XZ320D 水平定向钻机配衡阳泥浆泵备件图册。
0041613000 泥浆泵送系统 Mud Systerm
|

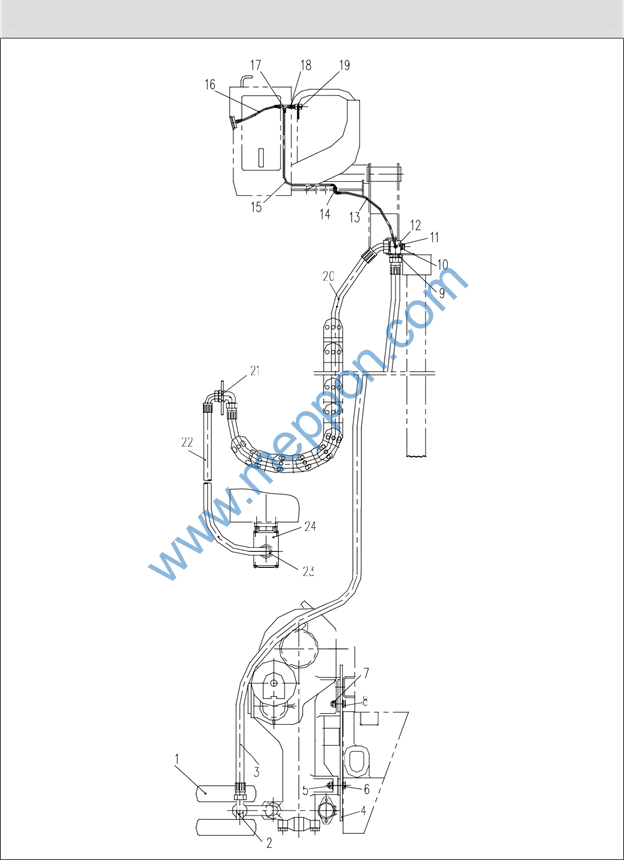

0041613000 泥浆泵送系统 Mud Systerm |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
106000269 |
泥浆泵 |
Mud Pump |
1 |
YWB-320/250/180C |
|
2 |
0041613027 |
转换接头 |
Coupler |
1 |
|
|
3 |
101028294 |
软管总成 |
Hose |
1 |
N381HAHF423520-4300 |
|
4 |
0041613022 |
连接板 |
Plate |
1 |
|
|
5 |
104030018 |
螺母M20 |
Nut M20 |
2 |
GB/T6170 |
|
6 |
104000316 |
螺栓 M20×80 |
Bolt M20×80 |
2 |
GB/T5782 |
|
7 |
104030167 |
螺母 M16 |
Nut M16 |
2 |
GB/T6170 |
|
8 |
104000473 |
螺栓 M16×75 |
Bolt M16×75 |
2 |
GB/T5782 |
|
9 |
101020780 |
接头螺母 M52×2 |
Nut M52×2 |
1 |
N42L |
|
10 |
101030197 |
油口堵塞 |
Cap |
1 |
DTM16×1.5ED |
|
11 |
0041213002 |
三通接头 |
Coupler |
1 |
|
|
12 |
101020005 |
接头 |
Coupler |
1 |
I08LM12×1.5ED |
|
13 |
101020819 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1235 |
|
14 |
101020766 |
接头 |
Coupler |
1 |
L08L/30N |
|
15 |
101020816 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1575 |
|
16 |
101023307 |
软管总成 |
Tube |
1 |
N1SNHAA0080804-260 |
|
17 |
101022532 |
接头 |
Coupler |
1 |
YL08L |
|
18 |
101020742 |
接头 |
Coupler |
1 |
I08L/24N |
|
19 |
106000291 |
通球阀 |
Shutoff valve |
1 |
Q11F-64P-1/4″ |
|
20 |
101022507 |
软管总成 |
Tube |
1 |
N2SNHEHA353520-4200 |
|
21 |
101020771 |
接头 |
Coupler |
1 |
L35L/41N |
|
22 |
101025462 |
软管总成 |
Tube |
1 |
N2SNHAHA353520-1200 |
|
23 |
101025050 |
接头 |
Coupler |
1 |
I35LG1 1/2ED |
|
24 |
0041613037 |
旋转接头 |
Mud Swivel |
1 |
|
注：XZ320、XZ320A、XZ320B 水平定向钻机配雷克泥浆泵备件图册。
0041613000 泥浆泵送系统 Mud Systerm
|
0041613000 泥浆泵送系统 Mud Systerm |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
106000269 |
泥浆泵 |
Mud Pump |
1 |
YWB-320/250/180C |
|
2 |
0041613027 |
转换接头 |
Coupler |
1 |
|
|
3 |
101028294 |
软管总成 |
Hose |
1 |
N381HAHF423520-4300 |
|
4 |
0041613022 |
连接板 |
Plate |
1 |
|
|
5 |
104030018 |
螺母M20 |
NutM20 |
2 |
GB/T6170 |
|
6 |
104000316 |
螺栓 M20×80 |
Bolt M20×80 |
2 |
GB/T5782 |
|
7 |
104030167 |
螺母 M16 |
NutM16 |
2 |
GB/T6170 |
|
8 |
104000473 |
螺栓 M16×75 |
Bolt M16×75 |
2 |
GB/T5782 |
|
9 |
101020780 |
接头螺母 M52×2 |
NutMM52×2 |
1 |
N42L |
|
10 |
101030197 |
油口堵塞 |
Cap |
1 |
DTM16×1.5ED |
|
11 |
0041213002 |
三通接头 |
Coupler |
1 |
|
|
12 |
101020005 |
接头 |
Coupler |
1 |
I08LM12×1.5ED |
|
13 |
101020819 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1235 |
|
14 |
101020766 |
接头 |
Coupler |
1 |
L08L/30N |
|
15 |
101020816 |
软管总成 |
Tube |
1 |
N1SNHFHA080804-1575 |
|
16 |
101023307 |
软管总成 |
Tube |
1 |
N1SNHAA0080804-260 |
|
17 |
101022532 |
接头 |
Coupler |
1 |
YL08L |
|
18 |
101020742 |
接头 |
Coupler |
1 |
I08L/24N |
|
19 |
106000291 |
通球阀 |
Shutoff valve |
1 |
Q11F-64P-1/4″ |
|
20 |
101029711 |
软管总成 |
Tube |
1 |
N2SNHEHA353520-5700 |
|
21 |
101020771 |
接头 |
Coupler |
1 |
L35L/41N |
|
22 |
101025462 |
软管总成 |
Tube |
1 |
N2SNHAHA353520-1200 |
|
23 |
101025050 |
接头 |
Coupler |
1 |
I35LG1 1/2ED |
|
24 |
0041613037 |
旋转接头 |
Mud Swivel |
1 |
|
注：XZ32D 水平定向钻机配雷克泥浆泵备件图册。
0041613000 泥浆泵送系统 Mud Systerm
|

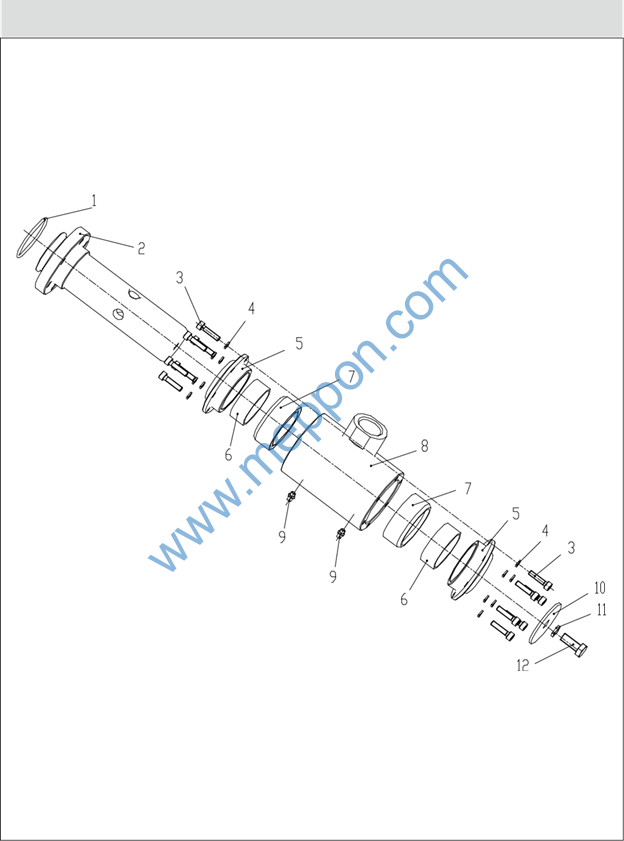

0041613000 泥浆泵送系统 Mud Systerm |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
101030139 |
O 型圈 |
O-Ring |
1 |
GB/T3452.1 |
|
2 |
0041613012 |
芯轴 |
Core Axis |
1 |
|
|
3 |
104000409 |
螺栓 M6×25 |
Bolt M6×25 |
12 |
GB/T5783 |
|
4 |
104040009 |
垫圈 6 |
Washer Speing 6 |
12 |
GB/T93 |
|
5 |
0041613030 |
端盖 |
Cover |
2 |
|
|
6 |
105000181 |
自润滑轴承 |
Axletree |
2 |
SF-1 7030 |
|
7 |
108040228 |
V 型组合密封 |
Fours Sets Of V-Shaned Combination Seal |
2 |
GB/T10708.1 |
|
8 |
0041613016 |
壳体 |
Adjust Tab |
1 |
|
|
9 |
108000019 |
油杯 |
Grease Cup |
2 |
JB/T7940.1 |
|
10 |
0041613008 |
盖板 |
Cover |
1 |
|
|
11 |
104040005 |
垫圈 10 |
Washer Speing 10 |
1 |
GB/T93 |
|
12 |
104000121 |
螺栓 M10×20 |
Bolt M10×20 |
1 |
GB/T5783 |
注：XZ320、XZ320A、XZ320B、XZ320D 水平定向钻机泥浆泵送系统备件图册

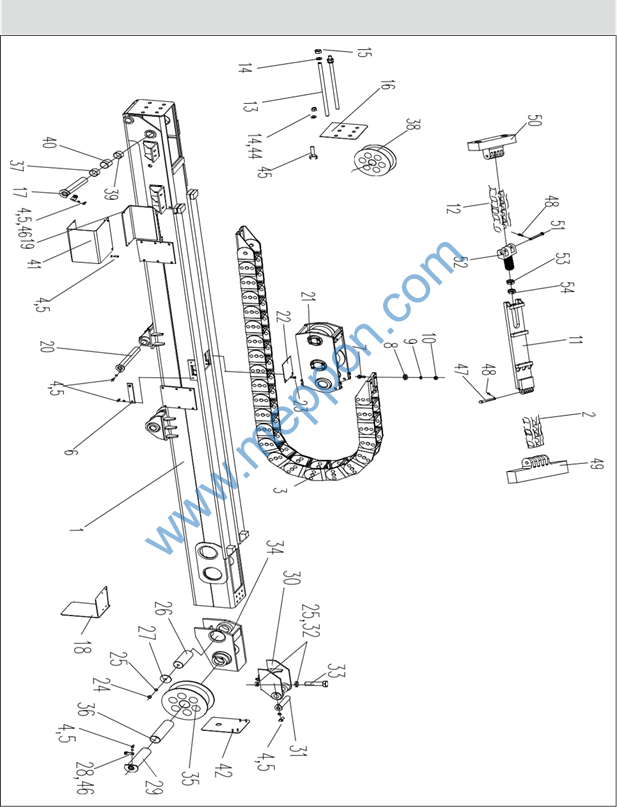

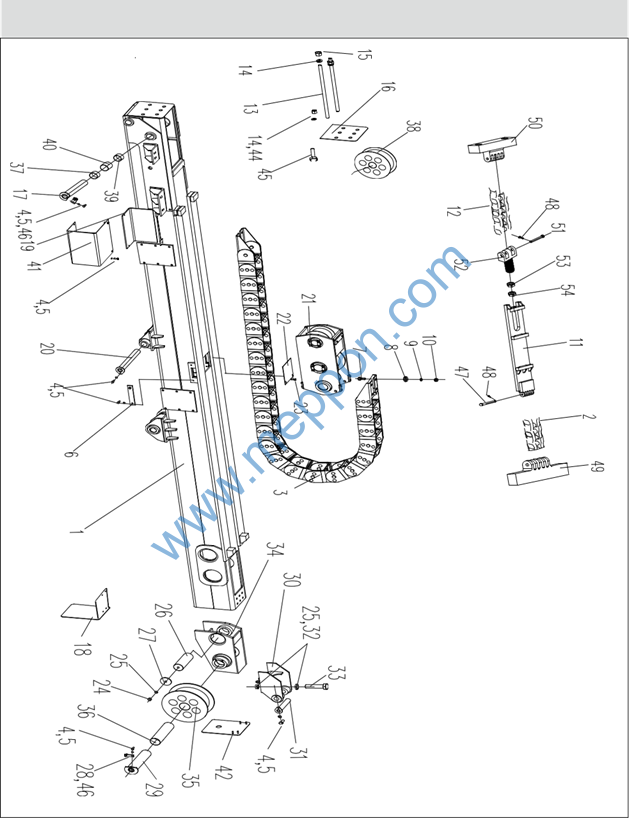

0042402000 钻架 Drill Frame
|
0042402000 钻架 Drill Frame |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
0042402001 |
钻架结构 |
Frame |
1 |
|
|
2 |
103060216 |
板式链 LH2466-219 |
Chain |
2 |
GB/T6074 |
|
3 |
103060073 |
拖链 TL125Ⅲ-300X150X3000 |
Hose Trac |
1 |
|
|
4 |
104000082 |
螺栓 M10X30 |
Bolt |
18 |
GB/T5783 |
|
5 |
104040008 |
垫圈 10 |
Washer |
18 |
GB/T93 |
|
6 |
0041602040 |
挡板 |
Baffle |
2 |
|
|
7 |
104000086 |
螺栓 M8X30 |
Bolt |
10 |
GB/T5783 |
|
8 |
104040007 |
垫圈 8 |
Washer |
10 |
GB/T93 |
|
9 |
104040081 |
垫圈 8 |
Washer |
16 |
GB/T97.1 |
|
10 |
104030024 |
螺母 M8 |
Nut |
8 |
GB/T6170 |
|
11 |
0041602041 |
滑板 |
Slide Bar |
1 |
|
|
12 |
103060217 |
板式链 LH2088-159 |
Chain |
1 |
GB/T6074 |
|
13 |
0041602050 |
拉杆 |
Stick |
2 |
|
|
14 |
104030039 |
螺母 M24 |
Nut |
8 |
GB/T6170 |
|
15 |
104030154 |
螺母 M24 |
Nut |
4 |
GB/T6172.1 |
|
16 |
0042402008 |
前衬板 |
Front |
1 |
|
|
17 |
0041602056 |
轴 |
Axes |
1 |
|
|
18 |
0042402012 |
安装板 |
Mount |
1 |
|
|
19 |
0042402017 |
虎钳阀安装板 |
Vice Valve |
1 |
|
|
20 |
0041602066 |
轴 |
Axes |
1 |
|
|
21 |
0041602069 |
滑架 |
Frame |
1 |
|
|
22 |
0041602084 |
盖板 |
Cover |
1 |
|
|
23 |
104020001 |
螺钉 M6X10 |
Bolt |
4 |
GB/T65 |
|
24 |
104000331 |
螺栓 M16X35 |
Bolt |
2 |
GB/T5783 |
|
25 |
104040004 |
垫圈 16 |
Washer |
8 |
GB/T93 |
|
26 |
0041602085 |
轴 |
Pin |
1 |
|
|
27 |
0041602086 |
挡板 |
Baffle |
2 |
|
0042402000 钻架 Drill Frame
|
0042402000 钻架 Drill Frame |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
28 |
0041602087 |
挡板 |
Baffle |
1 |
|
|
29 |
0041602088 |
轴 |
Pin |
1 |
|
|
30 |
0041602091 |
支架 |
Bracket |
1 |
|
|
31 |
0041602096 |
轴 |
Pin |
2 |
|
|
32 |
104030087 |
螺母 M16 |
Nut |
6 |
GB/T6170 |
|
33 |
104000245 |
螺栓 M16X65 |
Bolt |
6 |
GB/T5782 |
|
34 |
0042402009 |
内固定架 |
Mount |
1 |
|
|
35 |
0041602107 |
大链轮 |
Roller |
1 |
|
|
36 |
105000135 |
自润滑轴承 |
Spring Bushing |
4 |
SF-1 8080 |
|
37 |
0041602108 |
轴套 |
Bushing |
2 |
|
|
38 |
0041602109 |
前链轮 |
Front Roller |
1 |
|
|
39 |
105000137 |
自润滑轴承 |
Spring Bushing |
2 |
SF-1 6040 |
|
40 |
105000136 |
自润滑轴承 |
Spring Bushing |
2 |
SF-1 6070 |
|
41 |
0041602110 |
盖板 |
Cover |
1 |
|
|
42 |
0042402012 |
安装板 |
Mounting Plate |
1 |
选装 |
|
43 |
105000138 |
自润滑轴承 |
Spring Bushing |
4 |
SF-1 5060 |
|
44 |
104040022 |
垫圈 24 |
Washer |
4 |
GB/T93 |
|
45 |
104000427 |
螺栓 M24X45 |
Bolt |
4 |
GB/T5783 |
|
46 |
0041602112 |
挡板 |
Baffle |
1 |
|
|
47 |
0041602038 |
销 |
Tapered Pin |
2 |
|
|
48 |
104070193 |
销 4X18 |
Tapered Pin |
4 |
GB/T91 |
|
49 |
0041602039 |
接头 |
Coupler |
1 |
|
|
50 |
0041602048 |
拉杆 |
Stick |
1 |
|
|
51 |
004140237 |
销轴 |
Pin |
2 |
|
|
52 |
0041602049 |
接头 |
Coupler |
1 |
|
|
53 |
104030231 |
螺母 M27X2 |
Nut |
1 |
GB/T6171 |
|
54 |
104030230 |
螺母 M27X2 |
Nut |
1 |
GB/T6173 |
0041802000 钻架 Drill Frame
