XCMG XZ500 HORIZONTAL DIRECTIONAL DRILL SPARE PARTS CATALOGUE 02

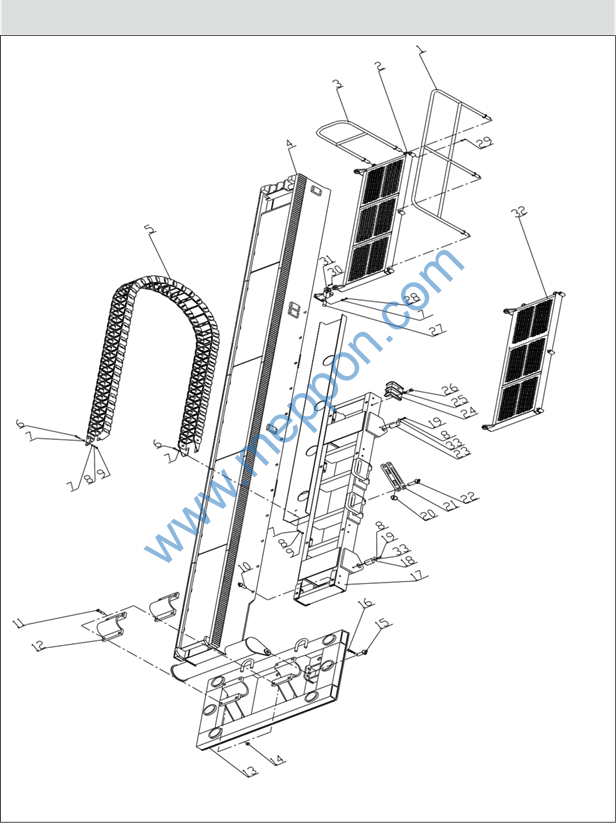

0042102000 钻架 Drill Frame
|
0042102000 钻架 Drill Frame |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
30 |
104070018 |
销 5X50 |
Pin |
4 |
GB/T91 |
|
31 |
0042102028 |
支座 |
Bolster |
4 |
选配 |
|
32 |
0041502167 |
踏板 |
Plate |
1 |
|
|
33 |
0041901131 |
挡板 |
Plate |
4 |
|
注释：XZ500 水平定向钻机钻架备件图册

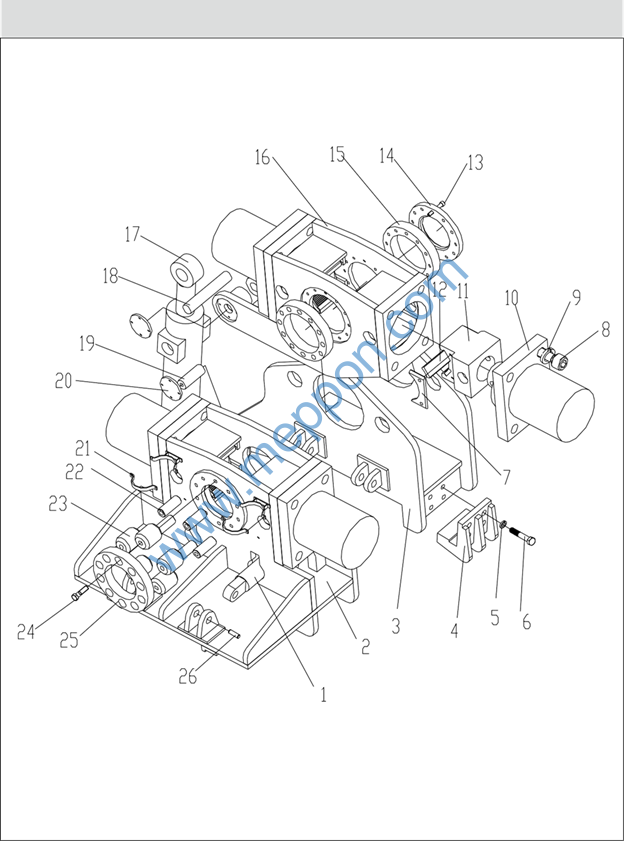

0041905121 虎钳 Clamp
|
0041905121 虎钳 Clamp |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
0041912047 |
油缸 |
Cylinder |
2 |
|
|
2 |
0041905132 |
前虎钳体 |
Clamp |
1 |
|
|
3 |
0041905122 |
下虎钳体 |
Clamp |
1 |
|
|
4 |
0041905206 |
钩板 |
Hook Plate |
4 |
|
|
5 |
104040006 |
垫圈 20 |
Washer |
16 |
GB/T93 |
|
6 |
104000125 |
螺栓 M20X45 |
Bolt |
16 |
GB/T5783 |
|
7 |
0041905213 |
挡板 |
Baffle |
8 |
|
|
8 |
104000936 |
螺钉 M36X95 |
Bolt |
16 |
GB/T70.1 |
|
9 |
104040066 |
垫圈 36 |
Washer |
16 |
GB/T93 |
|
10 |
0041912080 |
油缸 |
Cylinder |
4 |
|
|
11 |
0041905210 |
保持块 |
Holding |
4 |
|
|
12 |
0041905211 |
虎牙 |
Tooth |
8 |
|
|
13 |
104020386 |
螺钉 M12X75 |
Screw |
12 |
GB/T70.1 |
|
14 |
0041905164 |
环板一 |
Plate |
1 |
|
|
15 |
0041905165 |
环板二 |
Plate |
1 |
|
|
16 |
0041905155 |
上虎钳体 |
Clamp |
1 |
|
|
17 |
0041912054 |
油缸 |
Cylinder |
1 |
|
|
18 |
0041905168 |
销轴 |
Pin |
1 |
|
|
19 |
0041905169 |
销轴 |
Pin |
2 |
|
|
20 |
0041905039 |
封板 |
Baffle |
4 |
|
|
21 |
0041505078 |
板 |
Plate |
2 |
|
|
22 |
004110498 |
管 |
Pipe |
5 |
|
|
23 |
004110497 |
滚轮 |
Idler Wheel |
5 |
|
|
24 |
004110499 |
螺栓 |
Bolt |
5 |
|
|
25 |
0041905167 |
压板 |
Baffle |
1 |
|
|
26 |
0041905214 |
销轴 |
Pin |
4 |
|

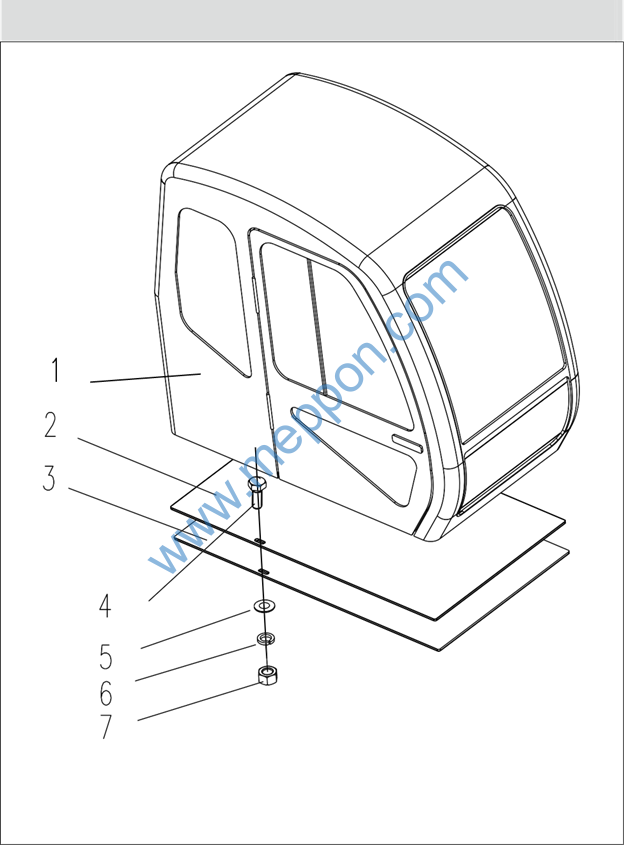

0042114000 驾驶室总成 Cab Assembly
|
0042114000 驾驶室总成 Cab Assembly |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
0041914001 |
驾驶室 |
Cab |
1 |
|
|
2 |
0041914019 |
橡胶底板 |
Rubber Board |
1 |
|
|
3 |
0041914017 |
驾驶室底板 |
Cab Base Batten |
1 |
|
|
4 |
104000374 |
螺栓M12X65 |
Bolt |
14 |
GB/T5783 |
|
5 |
104040053 |
垫圈12 |
Spring Washer |
14 |
GB/T97.1 |
|
6 |
104040005 |
垫圈12 |
Washer |
14 |
GB/T93 |
|
7 |
104030012 |
螺母M12 |
Nut |
14 |
GB/T6170 |

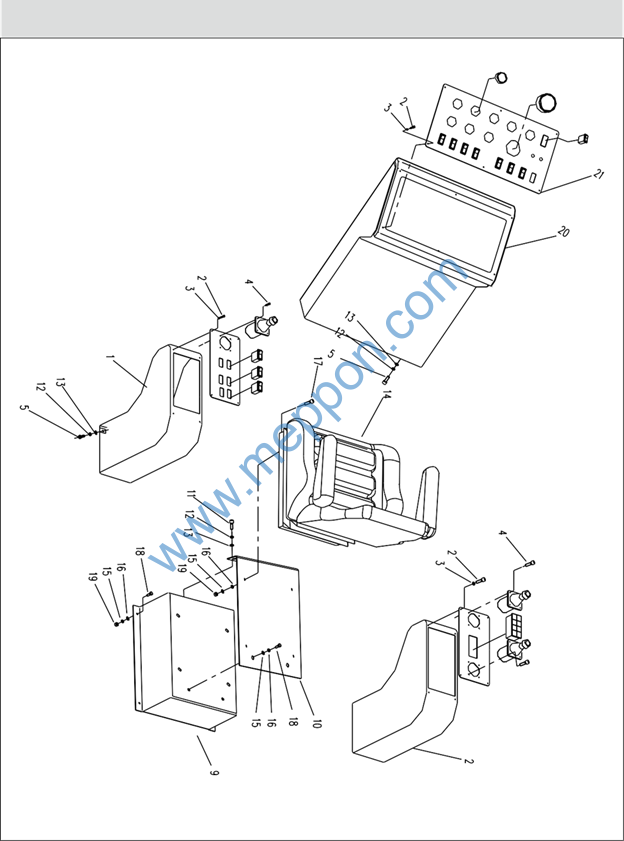

0042114001 操作台总成 Manipulative Desk
|
0042114001 操作台总成 Manipulative Desk |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
0042114002 |
左操作台 |
Left Control Board |
1 |
|
|
2 |
104020328 |
螺钉 M5X12 |
Blot |
12 |
GB/T65 |
|
3 |
104040070 |
垫圈 5 |
Spring Washer |
12 |
GB/T93 |
|
4 |
104020300 |
螺钉 M5X20 |
Blot |
4 |
GB/T65 |
|
5 |
104000074 |
螺栓 M10X36 |
Nut |
12 |
GB/T5783 |
|
6 |
0042114003 |
左面板 |
Left Panel Board |
1 |
|
|
7 |
0042114004 |
右操作台 |
Right Control Board |
1 |
|
|
8 |
0042114005 |
右面板 |
Right Panel Board |
1 |
|
|
9 |
0041514011 |
座椅安装座 |
Seat Mount |
1 |
|
|
10 |
0041514028 |
座椅安装板 |
Seat Mount Board |
1 |
|
|
11 |
104000085 |
螺栓 M10X25 |
Blot |
1 |
GB/T5783 |
|
12 |
104040030 |
垫圈 10 |
Washer |
13 |
GB/T97.1 |
|
13 |
104040008 |
垫圈 10 |
Spring Washer |
13 |
GB/T93 |
|
14 |
111020030 |
座椅 |
Seat |
1 |
|
|
15 |
104040081 |
垫圈 8 |
Washer |
1 |
GB/T97.1 |
|
16 |
104040007 |
垫圈 8 |
Spring Washer |
12 |
GB/T93 |
|
17 |
104000130 |
螺栓 M8X25 |
Blot |
4 |
GB/T5783 |
|
18 |
104000264 |
螺栓 M8X35 |
Blot |
16 |
GB/T5783 |
|
19 |
104030024 |
螺母 M8 |
Nut |
8 |
GB/T6170 |
|
20 |
0042114006 |
前操作台总成 |
Front Control Box |
1 |
|
|
21 |
0042114007 |
前面板 |
Front Panel |
1 |
|

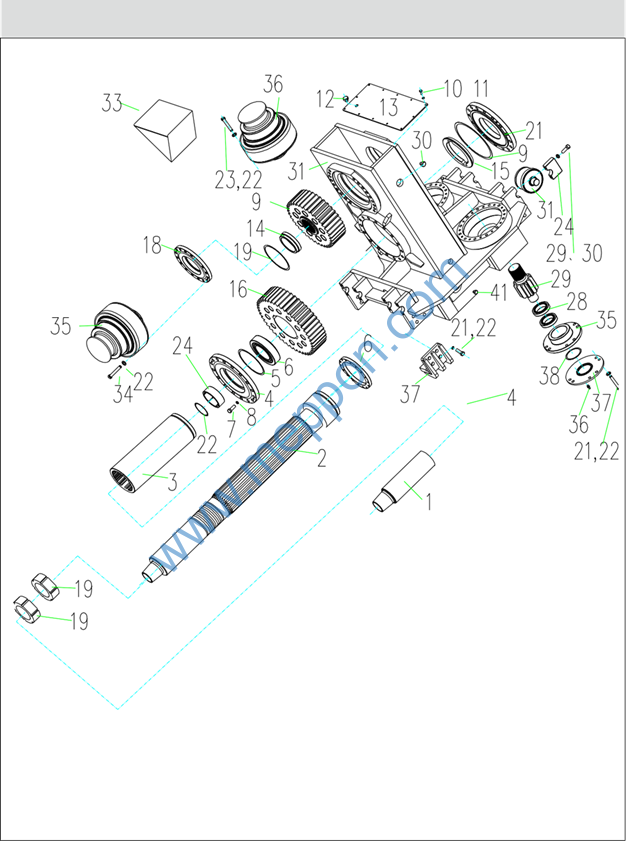

0042104000 动力头总成 The Power Unit
