XCMG XZ500 HORIZONTAL DIRECTIONAL DRILL SPARE PARTS CATALOGUE 03
|

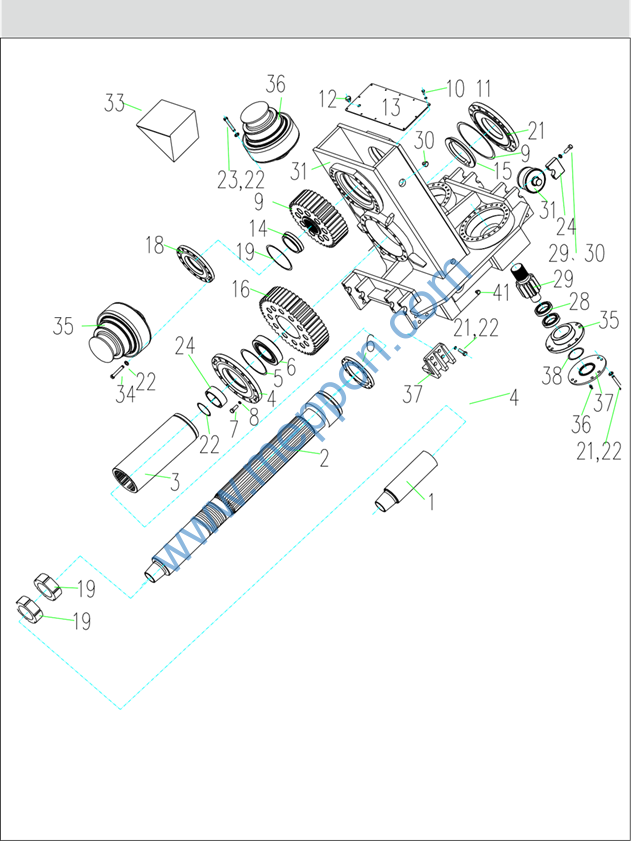

0041904000 动力头总成 The Power Unit |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
0042104024 |
短接头 |
CONNECT |
1 |
|
|
2 |
0042104023 |
芯轴 |
ARBOR |
1 |
|
|
3 |
0042104025 |
主轴 |
ARBOR |
1 |
|
|
4 |
0041904008 |
轴承前端盖 |
END CAP |
1 |
|
|
5 |
0041904009 |
轴承端盖调整垫 |
BACKUP PLATE |
10 |
|
|
6 |
105010184 |
轴承 |
BEARING |
2 |
GB/T297 |
|
7 |
104000056 |
螺栓 M20X80 |
BOLT |
32 |
GB/T5783 |
|
8 |
104040006 |
垫圈 20 |
WASHER |
32 |
GB/T93 |
|
9 |
0042104022 |
小齿轮 |
GEAR |
1 |
|
|
10 |
104040007 |
垫圈 8 |
WASHER |
6 |
GB/T93 |
|
11 |
104000091 |
螺栓 M8X20 |
BOLT |
6 |
GB/T5783 |
|
12 |
101040094 |
透气塞 M12 |
CORK |
1 |
TQS-1 |
|
13 |
0042104027 |
盖板 |
COVER PLATE |
1 |
|
|
14 |
0042104031 |
上轴环 |
CIRCLE |
2 |
|
|
15 |
0041904013 |
下轴环 |
WASHER |
10 |
|
|
16 |
0042104030 |
大齿轮 |
GEAR |
1 |
|
|
17 |
0042104032 |
后端盖 |
END CAP |
1 |
|
|
18 |
101030448 |
油封 |
OIL SEAL |
4 |
|
|
19 |
0041904018 |
阻挡螺母 |
NUT |
2 |
|
|
20 |
108030010 |
油标 A20 |
NONIUS |
1 |
JB/T7941.2 |
|
21 |
104000014 |
螺栓 M16X85 |
BOLT |
28 |
GB/T5782 |
|
22 |
104040004 |
垫圈 16 |
WASHER |
44 |
GB/T93 |
|
23 |
104020153 |
螺钉 M16X55 |
SCREW |
16 |
GB/T70.1 |
|
24 |
0041904020 |
滚轮压板 |
HOLDDOWN |
4 |
|
|
25 |
0042104028 |
轴承套 |
SLEEVE |
4 |
JB/T7940.1 |
|
26 |
108000019 |
油杯 M6X1 |
GREASE CUP |
4 |
|
0041904000 动力头总成 The Power Unit
|
0041904000 动力头总成 The Power Unit |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
27 |
0041904026 |
齿轮轴轴承端盖 |
BEARING |
4 |
GB/T288 |
|
28 |
105010185 |
轴承 |
GEAR SHAFT |
4 |
|
|
29 |
0042104029 |
齿轮轴 |
CORK |
2 |
|
|
30 |
101030208 |
油口堵塞 |
IDLER PULLEY |
1 |
DTM27X2ED |
|
31 |
0041904030 |
滚轮 |
CASE |
4 |
|
|
32 |
0042104001 |
箱体 |
TAILSTOCK |
1 |
|
|
33 |
0042104033 |
管路固定板 |
BOLT |
1 |
|
|
34 |
104020338 |
螺栓 M16X160 |
REDUCTOR |
24 |
GB/T5783 |
|
35 |
103021185 |
减速机 |
REDUCTOR |
1 |
|
|
36 |
103021184 |
减速机 |
BOARD |
2 |
|
|
|
0041904021 |
钩板 |
GEAR SHAFT |
4 |
|

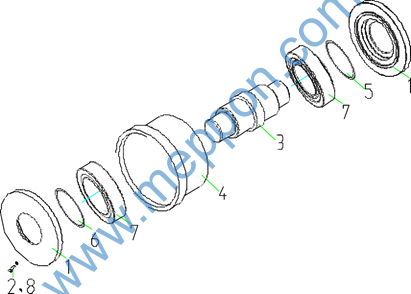

滚轮总成 Idler Pulley Unit
|
0041604000 滚轮 Idler Pulley Unit |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
0041904031 |
滚轮端盖 |
END CAP |
2 |
|
|
2 |
104020382 |
螺钉 M6X16-10.9 |
SCREW |
24 |
GB/T70.1 |
|
3 |
0041904032 |
滚轮主轴 |
BACKBONE |
1 |
|
|
4 |
0041904033 |
滚轮外壳 |
SHELL |
1 |
|
|
5 |
0041904034 |
滚轮垫片 |
BACKUP PLATE |
8 |
|
|
6 |
108040225 |
油封 FB60X80X10 |
GREASE PACKING |
2 |
GB/T13871 |
|
7 |
105010186 |
轴承 6212 |
PILLOW |
2 |
GB/T276 |
|
8 |
104040009 |
垫圈 6 |
CLOUT |
24 |
GB/T93 |

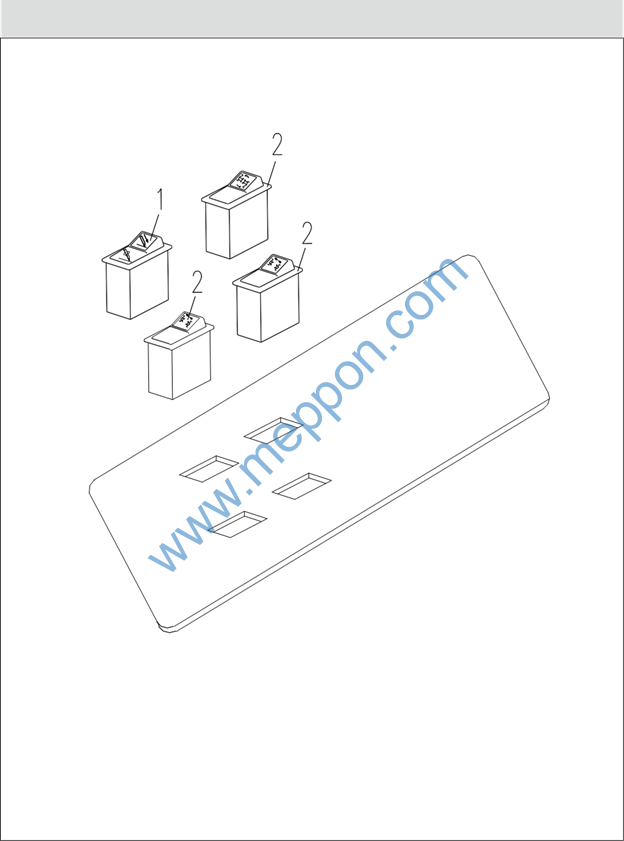

0042110003 左操作板总成 Left Control Panel
|
0042110003 左操作板总成 Left Control Panel |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
102040515 |
翘板开关 |
Switch |
1 |
JK988-052 |
|
2 |
102040507 |
翘板开关 |
Switch |
3 |
JK988-057 |
注：XZ500 水平定向钻机左仪表板总成

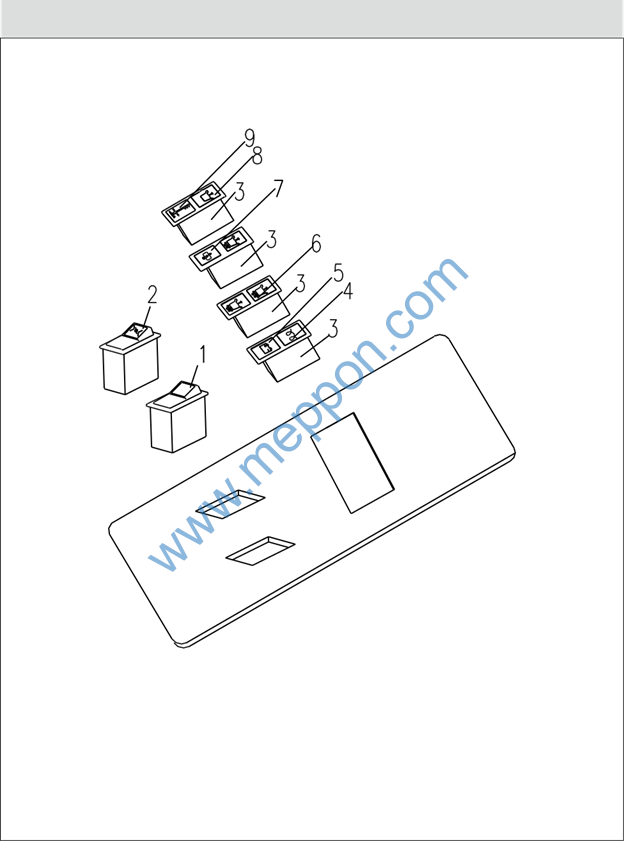

0042110015 右操作板总成 Right Control Panel
|
0042110015 右操作板总成 Right Control Panel |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
102040508 |
翘板开关 |
Switch |
1 |
JK988-004 |
|
2 |
102040507 |
翘板开关 |
Switch |
3 |
JK988-057 |
|
3 |
102000156 |
指示灯 |
Light |
8 |
8SQZ.359.001 |
|
4 |
102050122 |
预热指示标志板 |
Sign Plate |
1 |
8SQZ.867.000 |
|
5 |
102050122 |
充电指示标志板 |
Sign Plate |
1 |
8SQZ.867.000 |
|
6 |
102050122 |
滤油器标志板 |
Sign Plate |
3 |
8SQZ.867.000 |
|
7 |
102050122 |
油温标志板 |
Sign Plate |
1 |
8SQZ.867.000 |
|
8 |
102050122 |
油压标志板 |
Sign Plate |
1 |
8SQZ.867.000 |
|
9 |
102050122 |
水温标志板 |
Sign Plate |
1 |
8SQZ.867.000 |
