XCMG XZ680A HORIZONTAL DIRECTIONALDRILL SPARE PARTS CATALOGUE 01

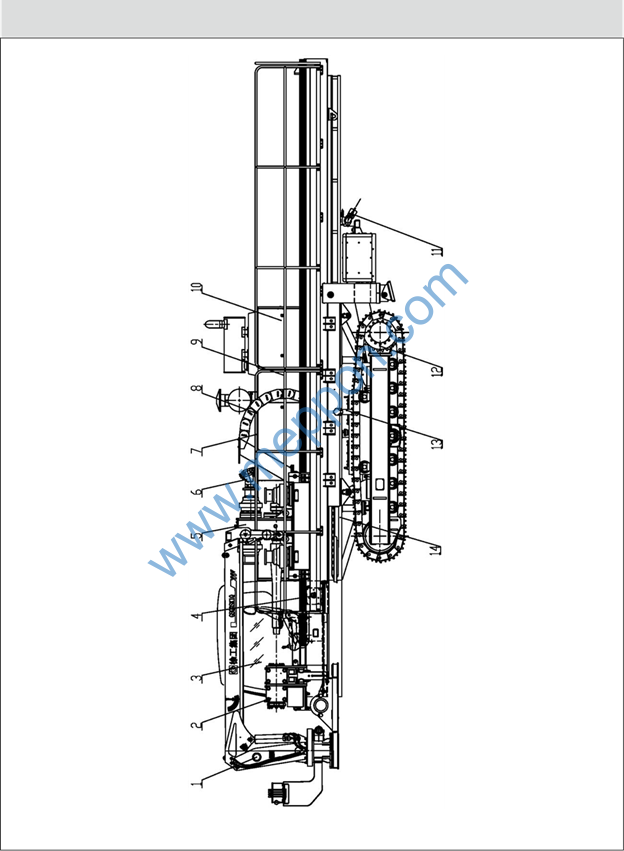

425802063 XZ680A水平定向钻机 XZ680A Horizontal Directional Drill
425802063 XZ680A 水平定向钻机 XZ680A Horizontal Directional Drill
|
序号 |
物料代码 |
名称 |
数量 |
备注 |
|
|
No. |
Part Number |
Part Name |
Q’ty |
Remark |
|
|
1 |
425802410 |
随车起重机 |
Lorry Crane |
1 |
|
|
2 |
425801751 |
虎钳 |
Clamp |
1 |
|
|
3 |
426100857 |
驾驶室总成 |
Cab Assembly |
1 |
|
|
4 |
425801791 |
冷暖装置 |
Heating and Cooling Equipment |
1 |
|
|
5 |
425801953 |
动力头总成 |
The Power Unit |
1 |
|
|
6 |
425802384 |
液压系统 |
Hydraulic System |
1 |
|
|
7 |
425801820 |
钻架 |
Drill Frame |
1 |
|
|
8 |
425803115 |
电气控制系统 |
Electirc System |
1 |
|
|
9 |
425801790 |
发动机总成 |
Engine System |
1 |
|
|
10 |
425802228 |
机棚 |
Engine Hood&Covers |
1 |
|
|
11 |
425802206 |
泥浆泵送系统 |
Mud Systerm |
1 |
|
|
12 |
425802064 |
底盘 |
Track Group |
1 |
|
|
13 |
425801795 |
燃油箱 |
Fuel Tank |
1 |
|
|
14 |
425802991 |
动力平台 |
Platform Assembly |
1 |
注：XZ680A水平定向钻备件图册。

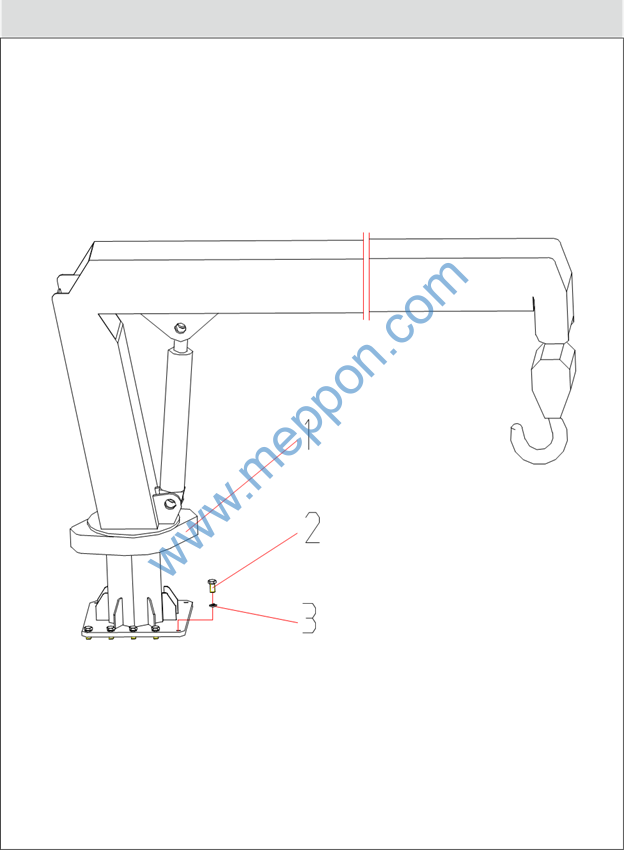

425802410 随车起重机 Lorry Crane
注：XZ680A 水平定向钻随车起重机备件图册。
|
425802410 随车起重机 Lorry Crane |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
|
|
1 |
819950942 |
随车起重机 |
Lorry Crane |
1 |
|
|
2 |
805000131 |
螺栓 M24×45 |
Bolt |
24 |
GB/T5783 |
|
3 |
805300034 |
垫圈 24 |
Washer |
24 |
GB/T93 |
注：XZ680A 水平定向钻随车起重机备件图册。

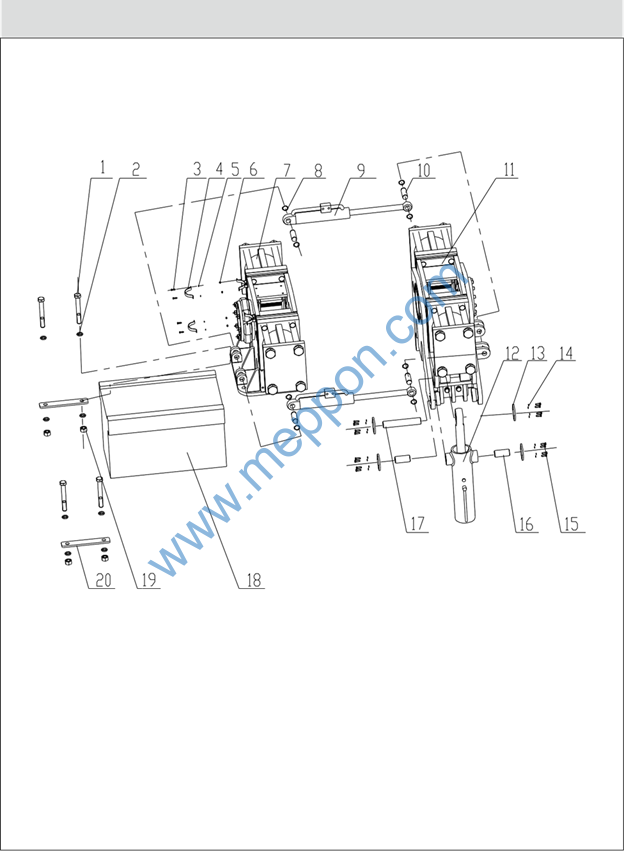

425801751 虎钳Clamp
注：XZ680A 水平定向钻虎钳备件图册。
|
序号 |
物料代码 |
名称 |
数量 |
备注 |
||
|
No. |
Part Number |
Part Name |
Q’ty |
Remark |
||
|
1 |
805046881 |
螺栓 |
M24×180 |
Bolt |
4 |
GB/T5782（达克罗） |
|
2 |
805338365 |
垫圈 |
24 |
Washer |
4 |
GB/T93 (达克罗) |
|
3 |
805000525 |
螺栓 |
M6×20 |
Bolt |
4 |
GB/T5783 |
|
4 |
426100265 |
板 |
Plate |
2 |
||
|
5 |
805300030 |
垫圈 |
6 |
Washer |
4 |
GB/T93-1987 |
|
6 |
805200053 |
螺母 |
M6 |
Nut |
4 |
GB/T6170 |
|
7 |
425801768 |
前虎钳 |
Clamp |
1 |
||
|
8 |
805400002 |
挡圈 30 |
Washer |
8 |
GB/T894.1 |
|
|
9 |
803077849 |
滑移油缸 |
Cylinder |
1 |
||
|
10 |
425800212 |
销轴 |
Shaft |
4 |
||
|
11 |
425801780 |
后虎钳 |
Clamp |
1 |
||
|
12 |
803077848 |
旋转油缸 |
Cylinder |
|||
|
13 |
425800211 |
封板 |
Plate |
4 |
||
|
14 |
805300010 |
垫圈 8 |
Washer |
16 |
GB/T93 |
|
|
15 |
805000017 |
螺栓 M8×25 |
Bolt |
16 |
GB/T5783 |
|
|
16 |
425801789 |
销轴 |
Shaft |
2 |
||
|
17 |
425800226 |
销轴 |
Shaft |
1 |
||
|
19 |
805200300 |
螺母 |
Nut |
4 |
GB/T6170 |
|
|
20 |
425801788 |
托板 |
Plate |
2 |
||
注：XZ680A水平定向钻虎钳备件图册。

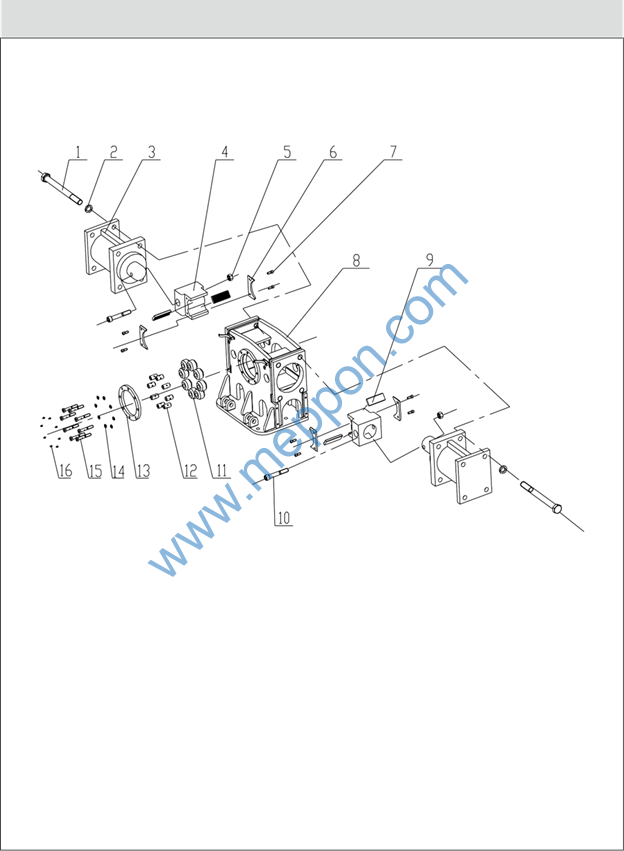

425801751 虎钳Clamp
|
425801751 |
虎钳 Clamp |
|||||
|
序号 No. |
物料代码 Part Number |
名称 Part Name |
数量 Q’ty |
备注 Remark |
||
|
1 |
805047604 |
螺栓 M36×395 |
Bolt |
8 |
GB/T5782（达克罗） |
|
|
2 |
805338444 |
垫圈 36 |
Washer |
8 |
GB/T93 (达克罗) |
|
|
3 |
803077847 |
夹紧油缸 |
Cylinder |
2 |
||
|
4 |
425800218 |
保持块 |
Jaw Block |
2 |
||
|
5 |
805200117 |
螺母 M24 |
Nut |
2 |
GB/T6170 |
|
|
6 |
425800219 |
挡板 |
Plate |
4 |
||
|
7 |
805100039 |
螺钉 M12×30 |
Screw |
8 |
GB/T70.1 |
|
|
8 |
425801769 |
前虎钳体 |
Clamp |
1 |
||
|
9 |
425800220 |
虎牙 |
Gripper Insert |
4 |
||
|
10 |
805140534 |
螺钉 M24×150 |
Screw |
2 |
GB/T70.1（达克罗） |
|
|
11 |
425500476 |
滚轮 |
Idler Wheel |
8 |
||
|
12 |
425500477 |
管 |
Pipe |
8 |
||
|
13 |
425801758 |
挡板 |
Plate |
1 |
||
|
14 |
805300011 |
垫圈 16 |
Washer |
8 |
GB/T93 |
|
|
15 |
426300421 |
螺栓 |
Bolt |
8 |
||
|
16 |
801138906 |
油杯 M8×1 |
Cap |
8 |
JB/T7940.1 |
|

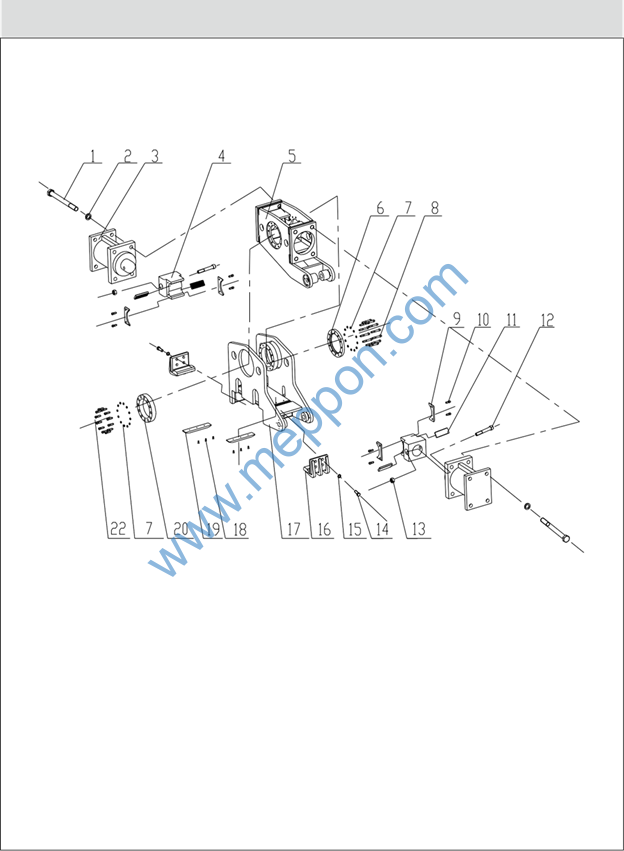

425801751 虎钳Clamp
