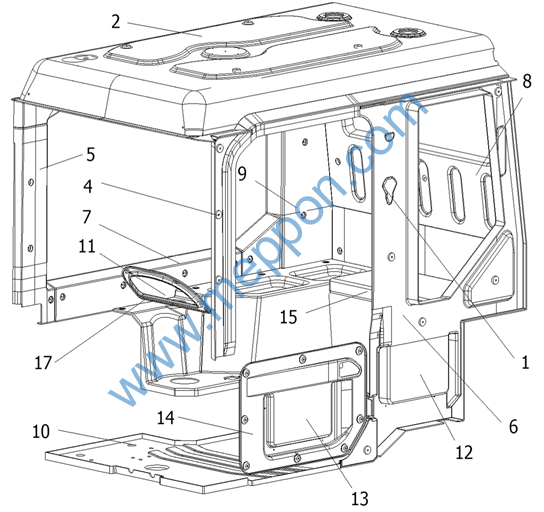

内饰总成（SWK-I-2020）（801F06000000）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

Interior Assembly（SWK-I-2020）

1

3

4

5

6

7

8

9

10

11

12

13

14

15

17

332040000429

332040000417

332040000423

332040000424

332040000425

332040000426

332040000427

332040000428

332040000418

332040000419

332040000420

332040000421

332040000415

332040000438

302490060429

S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1

coat hook ceiling left column

side perimeter front firht column side perimeter left right side circumgerence mat

drink holder net

front a net door interior rear

seat cushion

instrument panel decoration

衣帽挂钩顶棚

前左立柱侧围前右立柱侧围左侧围

右侧围后围

后右立柱侧围地垫

杯架 网兜 前网兜门内饰

后排座椅坐垫仪表台装饰件

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

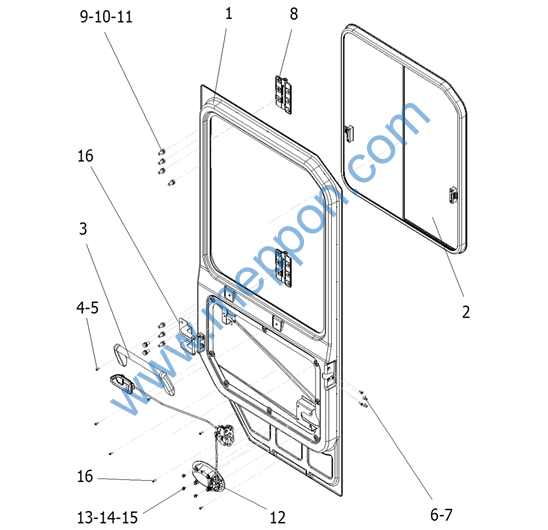

门总成（801F01000000）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

Door Assembly

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

801F01020000

332040000386

750908000054

701323008009

701510008003

701310008007

701310006008

332040000379

701104010032

701504010004

701510010004

801F01010000

701309006018

701510006003

701504006002

701310006005

801F01050000

S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1

welding on the door door window

inside handrail SW-Ⅳ screw

WASHER

screw screw door hige BOLT WASHER WASHER

door lock assembly screw

WASHER WASHER

screw threshold mechanism

门焊合 车门活动窗

门内扶手SW-Ⅳ螺钉

垫圈 螺钉 螺钉 门铰链螺栓 垫圈 垫圈

门锁总成螺钉 垫圈 垫圈 螺钉

门限位机构

1

1

1

2

2

2

3

2

18

18

18

1

4

4

4

9

1

门限位机构（801F01050000）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

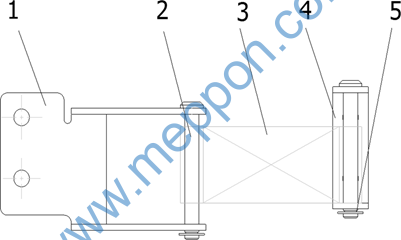

Threshold mechanism

1

2

3

4

5

302560003493

303990000609

302560003494

302560003495

701518009001

S1 S1 S1 S1 S1

limit bracket limit pin limit braid

limit bracket 2 ratainer ring

限位支架1限位销

限位编织布带限位支架2

挡圈

1

2

1

1

2

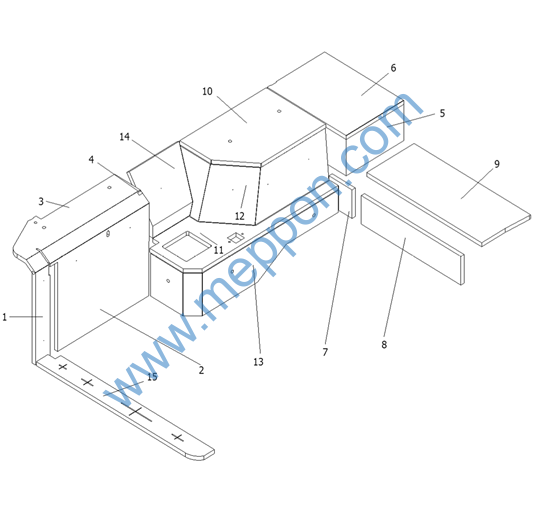

司机室海绵包（801F17000000）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

DRIVER’s cab

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

302560003449

302560003450

302560003451

302560003665

302540028350

302560003460

302560003461

302040005106

302490058419

302560003615

302560003616

302560003617

302560003666

302560003694

302560003454

S2 S2 S2 S2 S2 S2 S2 S2 S2 S2 S2 S2 S2 S2 S1

righ front heat insulation sponge1

insulation sponge2

righ front heat insulation sponge3 righ front heat insulation sponge4

heat insulation sponge in the rear tool box 1

in the rear tool box 2

heat insulation sponge in the rear tool box 3 heat insulation sponge in the rear tool box 4 heat insulation sponge in the rear tool box 5

on the instrment panel

heat insulation sponge on the instrment panel on the right 2

heat insulation sponge on the instrment panel on the right 3

heat insulation sponge on the instrment panel on the right 4

heat insulation sponge on the instrment panel on the right 5

sealing sponge on the access door bottm plate

右前隔热海绵1右前隔热海绵2右前隔热海绵3前下隔热海绵4

后工具箱隔热海绵1 后工具箱隔热海绵2 后工具箱隔热海绵3 后工具箱隔热海绵4 后工具箱隔热海绵5 右侧仪表台隔热海绵1右侧仪表台隔热海绵2右侧仪表台隔热海绵3右侧仪表台隔热海绵4右侧仪表台隔热海绵5检修门底板密封海绵

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

仪表台部件（801F07000000）S2

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

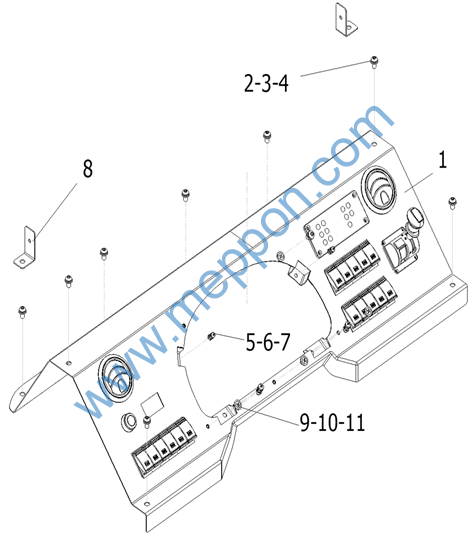

Instrument panel compoment

1

2

3

4

5

6

7

8

9

10

11

801F07010000

701161000101

701504000801

701510008004

701310005007

701504005002

701510005002

302560003554

701302006046

701506006001

701510006007

S3 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1

instrument panel welding SCREW WASHER WASHER SCREW WASHER WASHER

fastening plate under curtain SCREW WASHER WASHER

仪表台焊接螺钉

垫圈垫圈螺钉垫圈垫圈

窗帘下固定板螺钉

垫圈垫圈

1

10

10

10

4

4

2

2

5

5

5

选配方案1（801F31000000）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

Optional scheme 1

1

801F12020000

S1

right wiper assembly 01F

右雨刮器总成01F

1

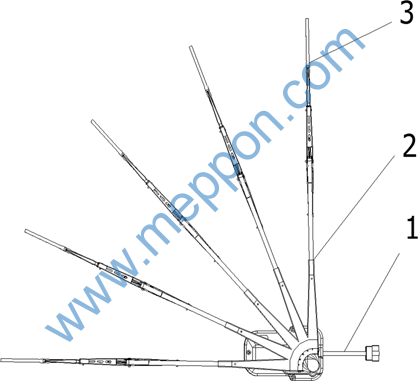

右雨刮器总成01F（801F12020000）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

Right wiper assembly 01F

1

2

3

720002000038

720230000127

720230000128

S1

right wiper assembly 01F right wiper assembly 01F right wiper assembly 01F

右雨刮器电机01F右雨刮器刷杆01F右雨刮器刮片01F

1

1

1

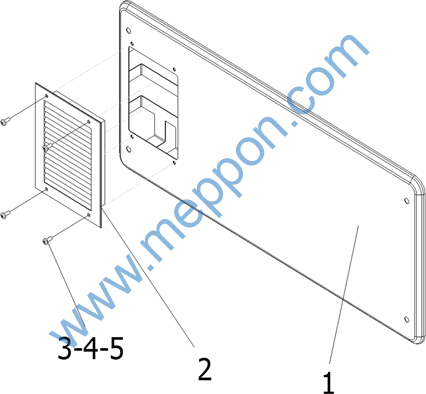

SWK105R前检修门总成（801F05000004）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

SWK105R front access door assembly

1

2

3

4

5

801F05010004

332040000383

701309006017

701504006002

701510006003

S1 S1 S1 S1 S1

SWK105R front access door welded

access door ventilation grille

SCREW WASHER WASHER

SWK105R前检修门焊合检修门换气格栅

螺钉垫圈垫圈

1

1

4

4

4

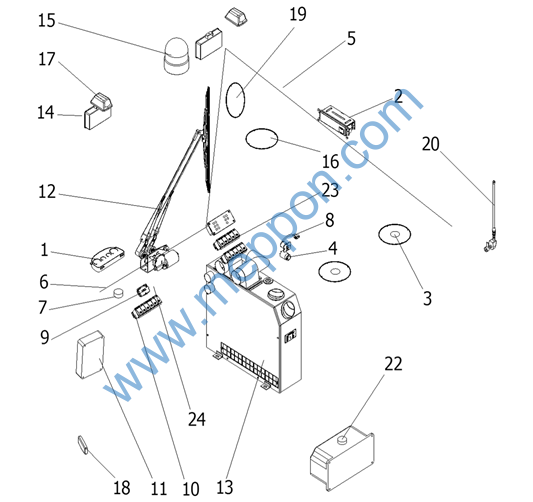

电器总成（SWK105）（801F12000001）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

Electrical assembly

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

22

23

24

801R97050001

720404000026

720407000041

720411000006

332040000390

801R97020001

750203010051

720301000427

750732010021

760160000011

801R97080001

801F12010000

720408000229

729904000150

750129000072

720302000238

720050000066

790009000016

720409000169

720226000006

801F12030000

801R97060001

750713000051

S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S2

combination instrument assembly

construction machinery radio XG9819

speaker MW78 LC951G cigarette

lighter ceiling wiringharness

instrument panel wiringharness

buzzer MT202103M01A

USB interface MT208626M01A

OBD diagnostic MT20832M01A

plate switch set JK992-1 central electrical box front wiper assembly 01F

air condditiong indoor unit FYK-22S

front working light BC11003 roof alarm light BC51002 interior top light BC41001 cletatnce lamp BC33031 side turn signal BC33033

auto motive fan ZF502 8寸 DC 24V

rubber antenna QT1290

mine card scrubber assembly -5L

warping plate switch set

warping plate switch set JK992-2

组合仪表总成

工程机械收音机XG9819喇叭MW78

白象牌LC951G型点烟器顶棚线束

仪表台线束

蜂鸣器MT202103M01A USB接口MT208626M01A OBD诊断口MT20832M01A

翘板开关组JK992-1中央电器盒

前雨刮器总成01F 空调室内机FYK-22S前工作灯BC11003 车顶报警灯BC51002内饰顶灯BC41001 示廓灯BC33031

侧转向灯BC33033

车用风扇ZF502 8寸 DC 24V

橡胶天线QT1290 矿卡洗涤器总成-5L翘板开关组

翘板开关组JK992-2

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

2

2

1

1

1

1

1

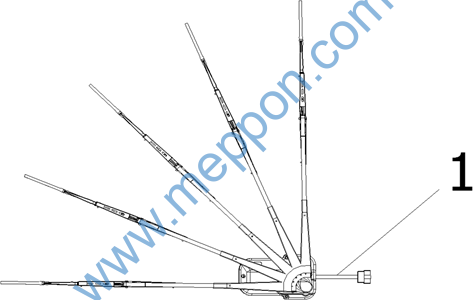

前雨刮器总成01F（801F12010000）

序号

POS.

编码

COD.

版本

VER.

DESCRIPTION

名    称

数量

QTY

适用号机

SUIT NUM

互换

INT

选配

CHO

front wiper assembly 01F

1

2

3

720002000039

720002000040

720002000041

S1 S1 S1

front wiper assembly 01F front wiper assembly 01F front wiper assembly 01F

前雨刮器电机01F前雨刮器刷杆01F前雨刮器刮片01F

1

1

1
