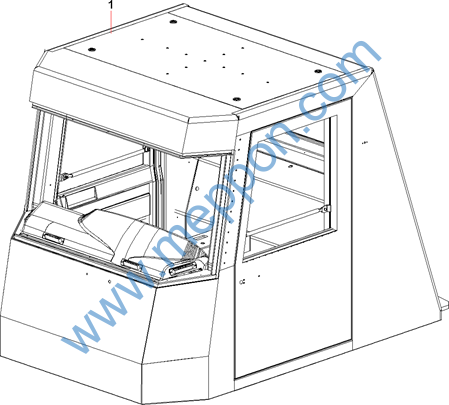

Item No.

Part No.

Description

Qty.

Remark

1

12952316

Subassembly of rigid dump truck cab

1

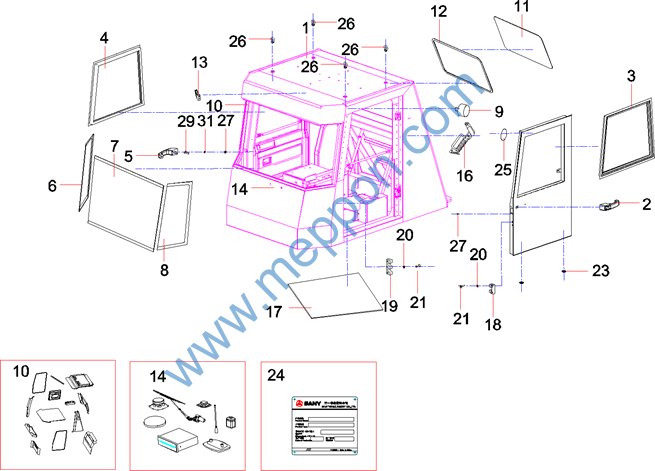

Item No.

Part No.

Description

Qty.

Remark

1

12985767

Body, cab JKGX06.1

1

2

60066750

Inner & outer door handle

1

3

11404619

Window, left sliding

1

4

11404618

Right sliding window

1

5

60066749

Inner & outer door handle

1

6

11400593

Right-front window glass

1

7

11400591

Front window glass

1

8

11400592

Left-front window glass

1

9

12685035

Block, rubber limit

4

10

12990476

Assembly, of, SRT95C, decoration JKGX06.

1

11

11400590

rear window glass

1

12

A230105000068

Rubber strip, side window

3

13

A229900005559

Hook, hat & coat

1

14

11550237

Electrical system,cab

1

16

60001291

Emergency hammer

1

17

60014125

Plate, isolation

3

18

12561580

Block, spacing

2

19

12562203

Block, limit

2

20

A210459000005

Washer 8GB956.2

10

21

23002292

Screw

10

23

60042056

Plug

4

24

11270627

Nameplate

1

Item No.

Part No.

Description

Qty.

Remark

25

60101155

Stick sheet

4

26

A210491000001

Screw

4

27

A210405000006

Washer

10

29

A210210000005

Screw

6

31

A210401000016

Washer

14

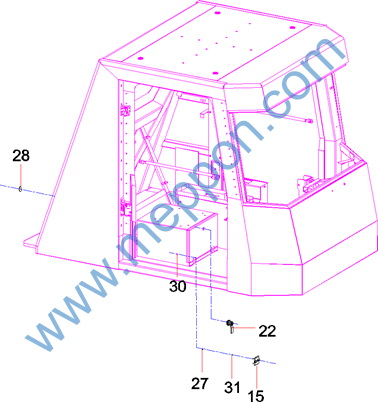

Item No.

Part No.

Description

Qty.

Remark

15

60013491

Hinge

2

22

60002574

Lock, door

1

27

A210405000006

Washer

10

28

60014124

Pintle, fixed

21

30

A210307000016

Nut

8

31

A210401000016

Washer

14

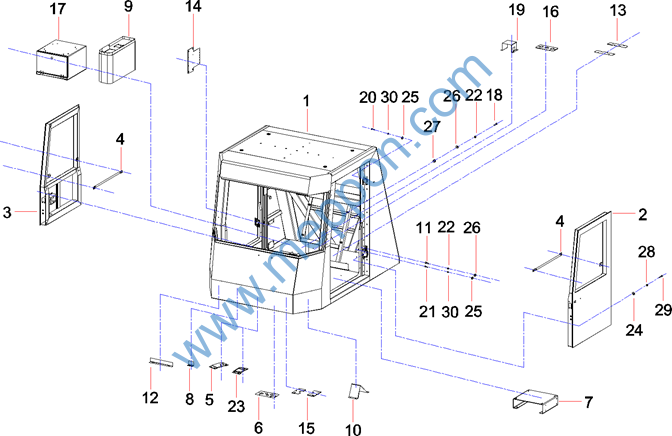

Item No.

Part No.

Description

Qty.

Remark

1

12987519

Assembly, driver’s cab welding JKGX06.1.

1

2

12548962

Assembly, door welding left

1

3

12985800

Assembly, door welding right JKGX06.1.2

1

4

12561215

Rod, pull

2

5

11545917

Plate,mounting,throttle

1

6

13280401

Installation plate JKGX06.1-10

1

7

11717212

Main seat bracket

1

8

11908894

Lower baffle left bracket

1

9

11551574

Box, central controlling

1

10

12940586

Pedal SRT55C.330A.1-29

1

11

A210111000204

Bolt

2

12

11908858

Lower baffle right bracket

1

13

13280402

Plate JKGX06.1-11

2

14

12985763

Equipment, installation plate for electr

1

15

12985760

Cover plateJKGX06.1-1

2

16

12742639

Plate, aviation plug fixedSRT45.330A.1.1

1

17

12985807

Toolbox JKGX06.1.3

1

18

A210111000040

Bolt

4

19

11717356

Cluster cover plate

1

20

A210111000024

Bolt

6

21

21005186

Bolt M10×40GB5783 Grade 10.9

4

22

A210401000002

Washer

6

Item No.

Part No.

Description

Qty.

Remark

23

11545913

Plate,mounting,brake,foot

1

24

A210405000007

Washer

4

25

A210405000011

Washer

10

26

A210405000001

Washer

6

27

A210307000001

Nut

4

28

A210401000017

Washer

4

29

A210111000293

Bolt

4

30

A210401000001

Washer

10

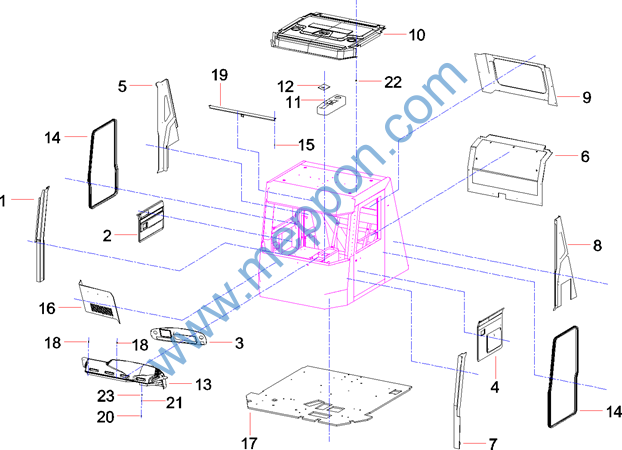

Item No.

Part No.

Description

Qty.

Remark

1

12961512

Right, upright, column, protective, plat

1

2

11401418

Left door protective plate

1

3

12743970

Panel, of, instrument, panelSRT45.330A.1

1

4

12961519

Right, door, decoration, panelJKGX06.2-2

1

5

12963963

Right-side, protective, panelJKXG06.2-3

1

6

11401432

Rear, cover, plate

1

7

11401444

Left, upright, column, protective, plate

1

8

11401430

Left-hand, decorating, plate

1

9

11401426

Rear coaming plate

1

10

11401447

Top, decorative, parts

1

11

12746831

Panel, of, middle, controlling, consoleS

1

12

12745657

Middle, controlling, platform, transitio

1

13

12758490

Instrument, panelSRT45.330A.1.2-5

1

14

13068700

Seal, door, opening

2

15

11115686

Tapping, bolt

8

16

11487587

Lower baffle

1

17

13124565

Floor, leatherJKXG06.2-5

1

18

11115687

Inner, hexagon screw

19

19

A229900010230

Sun shading

1

20

A210307000016

Nut

6

21

A210404000009

Washer

6

22

12053491

Screw

79

Item No.

Part No.

Description

Qty.

Remark

23

A210111000081

Bolt

3

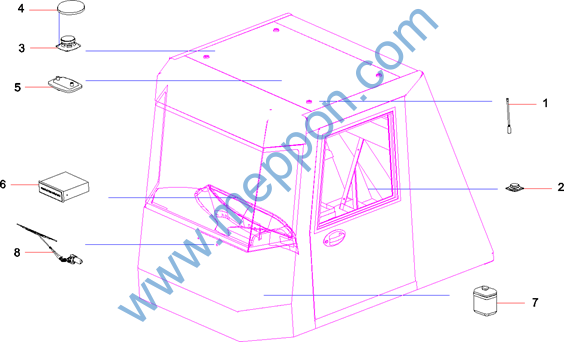

Item No.

Part No.

Description

Qty.

Remark

1

60023704

Antenna

1

2

11443728

Harness,cab

1

3

60023703

Horn

1

4

60052997

Horn cover

1

5

A241100000498

Roof lamp, auman

1

6

60197594

Radio

1

7

A229900000113

Washer

1

8

60062132

Front window wiper

1

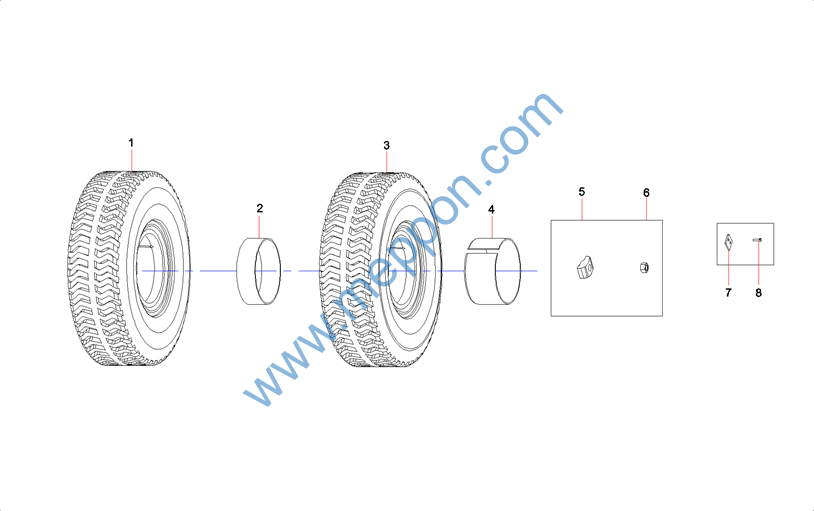

Item No.

Part No.

Description

Qty.

Remark

1

11508135

Rear inner tyre and rim assembly

1

2

60036997

Spacer-Band

1

3

11508134

Rear outer tyre and rim assembly

1

4

60037006

Wedge-Band

1

5

10235251

Clamp

27

6

60010517

Nut M24 10 grade

27

7

11508132

Plate

1

8

A210111000197

Bolt

2

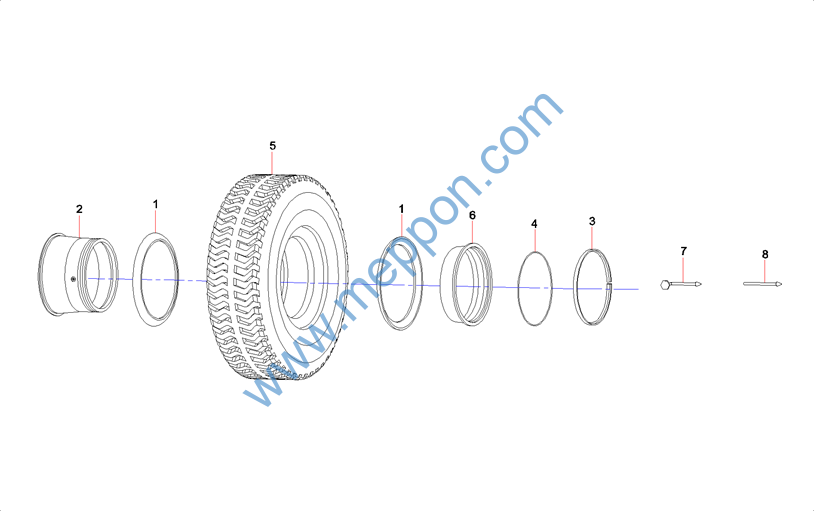

Item No.

Part No.

Description

Qty.

Remark

1

60036995

Flange

2

2

60036991

Rim

1

3

60036993

Lockring

1

4

60037011

O-ring

1

5

60004579

Tyre

1

6

60037008

Band-bead Seat

1

7

60037002

Valve Stem Assy

1

8

60037012

Valve Extension Bar

1
