Item No.

Part No.

Description

Qty.

Remark

1

60036995

Flange

2

2

60036991

Rim

1

3

60036993

Lockring

1

4

60037011

O-ring

1

5

60004579

Tyre

1

6

60037008

Band-bead Seat

1

7

60037003

Valve Stem Assy

1

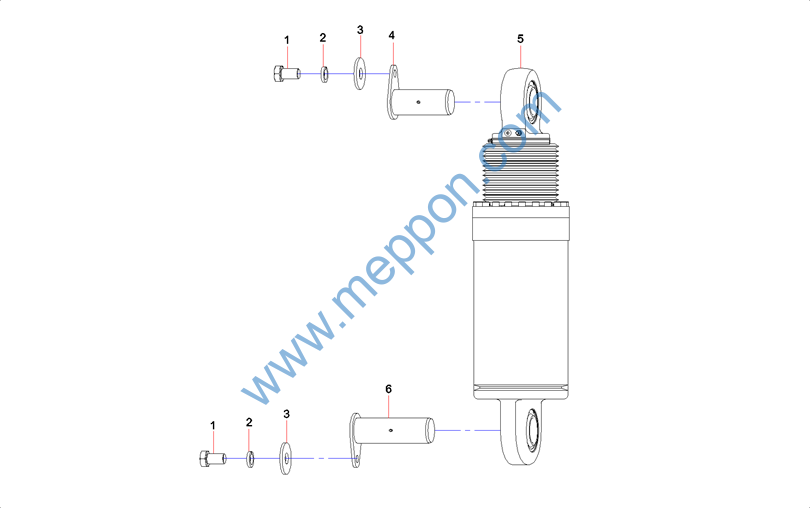

Item No.

Part No.

Description

Qty.

Remark

1

A210111000199

Bolt M12×20GB5783 Grade 10.9

2

2

24000513

Washer 12GB93 DACROMET

2

3

A210404000004

Washer

2

4

11911540

Pin

1

5

12690092

Rear Suspension Cylinder

1

6

11911542

Pin

1

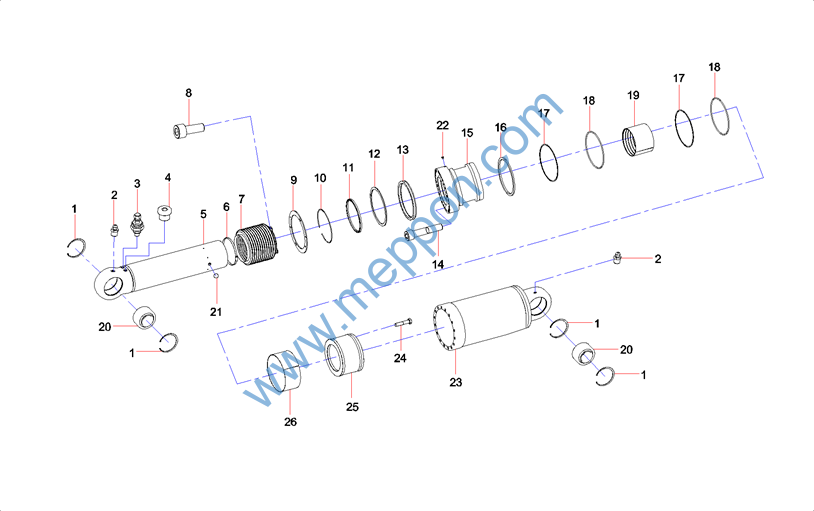

Item No.

Part No.

Description

Qty.

Remark

1

A210416000009

Retainer Ring 160GB893.1

4

2

A210804000002

Oil cup

2

3

A220400000599

Charge valve

1

4

21008717

Plug

1

5

12689291

Piston rod

1

6

60006914

Clamp

1

7

10480089

Dust boot

1

8

A210204000130

Screw

6

9

11840368

Plate

1

10

11609348

Retainer ring

1

11

60096932

Seal-wiper

1

12

60199313

Backup ring

1

13

60199311

Seal

1

14

A210204000266

Bolt

28

15

12688780

Guide sleeve

1

16

60199312

Buffer seal

1

17

60004637

Retainer ring

2

18

60004642

O-ring

2

19

60004635

Wear ring

1

20

60141787

Bearing

2

21

A210661000003

Steel ball

2

22

A210777000094

Plug

1

Item No.

Part No.

Description

Qty.

Remark

23

12688902

Cylinder tube assy.

1

24

A210204000351

Screw

20

25

12689121

Piston

1

26

60070629

Wear ring

1

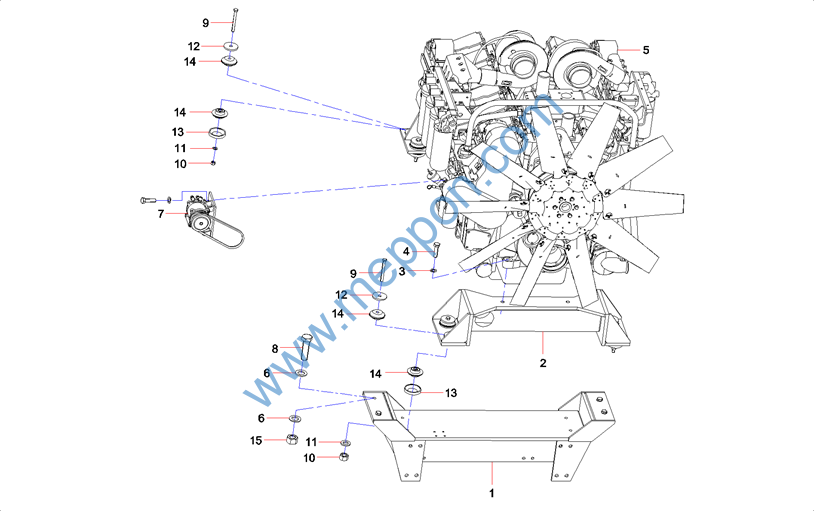

Item No.

Part No.

Description

Qty.

Remark

1

10499998

Crossbeam

1

2

10499530

Front support

1

3

A210444000002

Washer 22GB1230

2

4

A210110000333

Bolt

2

5

12955665

Engine installation

1

6

A210491000132

Washer

8

7

11576510

Compressor installation

1

8

A210111000063

Bolt M20×70GB5783 Grade 10.9

4

9

A210111000210

Bolt

8

10

A210307000028

Nut

8

11

A210491000118

Washer

8

12

10499508

Washer

8

13

10499509

Washer

8

14

60004630

Shock mount

16

15

A210307000029

Nut

4

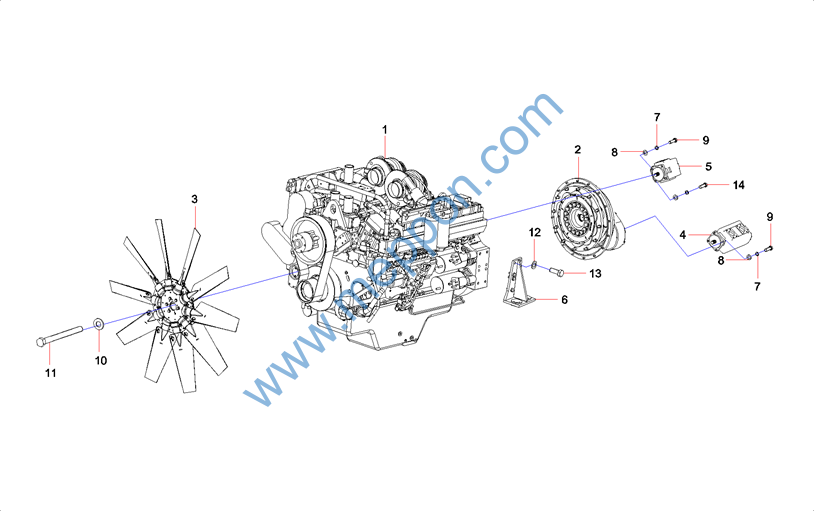

Item No.

Part No.

Description

Qty.

Remark

1

B220200000163

Engine

1

2

12867945

Engine – power takeoff

1

3

60004631

Fan

1

4

60000875

Double-gear pump

1

5

60156509

Gear Pump

1

6

11617835

Rear Mount

2

7

24000513

Washer 12GB93 DACROMET

8

8

24000639

Washer 12GB97.1

8

9

A210111000204

Bolt

6

10

A229900009503

Washer

6

11

60008339

Bolt

6

12

24000646

Washer

16

13

A210111000221

Bolt

16

14

A210111000202

Bolt

2

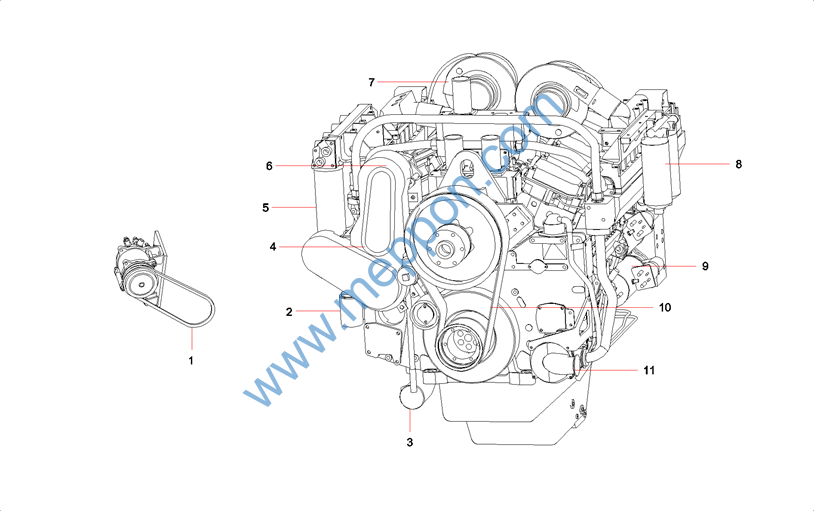

Item No.

Part No.

Description

Qty.

Remark

1

11576509

V Belt

1

2

21019723

Filter, water

2

3

60015010

Water pump GP

1

4

60025678

Alternator Belt

1

5

B222100000595

Filter, engine oil

4

6

60030981

Alternator

1

7

60015007

Turbocharger

2

8

A222100000615

Filter, diesel

1

9

60225753

Starting motor

2

10

60009584

Belt, fan

1

11

60225754

Water pump

1

Item No.

Part No.

Description

Qty.

Remark

1

A222100000616

Element, filter, separator, water

1

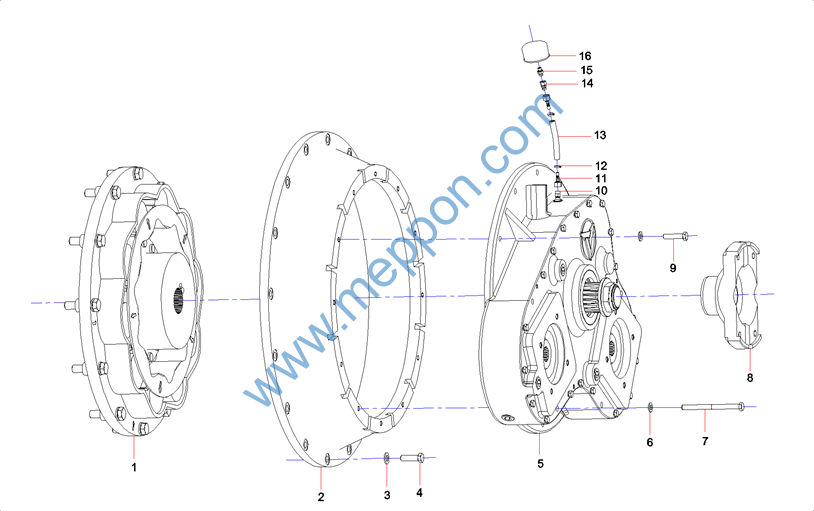

Item No.

Part No.

Description

Qty.

Remark

1

60234833

Flanging coupling

1

2

11605792

Transitional disc

1

3

A210491000121

Washer

16

4

A210111000204

Bolt

16

5

12867826

PTO assembly

1

6

A210491000120

Washer

10

7

A210111000003

Bolt

4

8

60001255

Yoke

1

9

A210111000120

Bolt

6

10

60006416

Pipe connector

1

11

A210770000455

Domestic rubber hose coupling

2

12

A210855000005

Hoop

2

13

12867932

Breathing tube

1

14

A229900006533

Connector, pipe

1

15

21002854

Connector, pipe

1

16

60133933

Breather

1

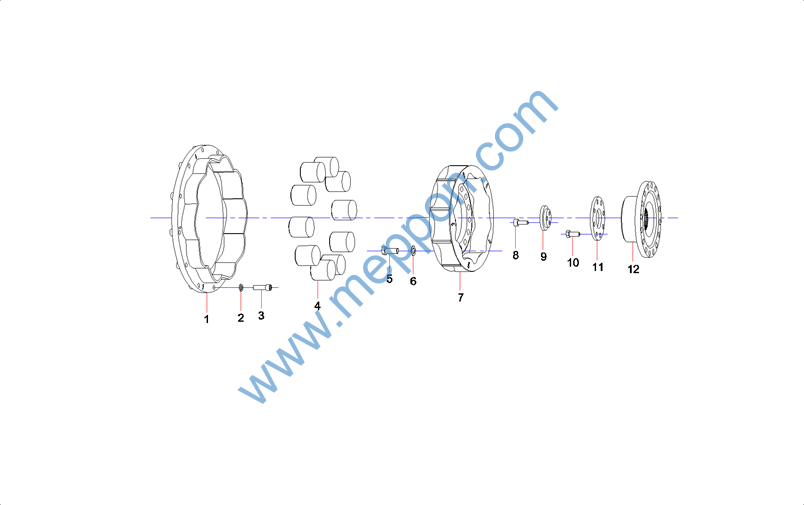

Item No.

Part No.

Description

Qty.

Remark

1

60234613

Outer ring, aluminum

1

2

21029362

Washer

8

3

A210204000183

Screw M16×55GB70.1

8

4

60122936

Elastic body

10

5

24000168

Bolt

16

6

21028776

Washer

16

7

60234612

Inner ring, aluminum

1

8

21010958

Bolt

3

9

60232728

Pressure cover

1

10

A210111000202

Bolt

8

11

60232729

Pressure cover

1

12

60234611

Sleeve, shaft

1

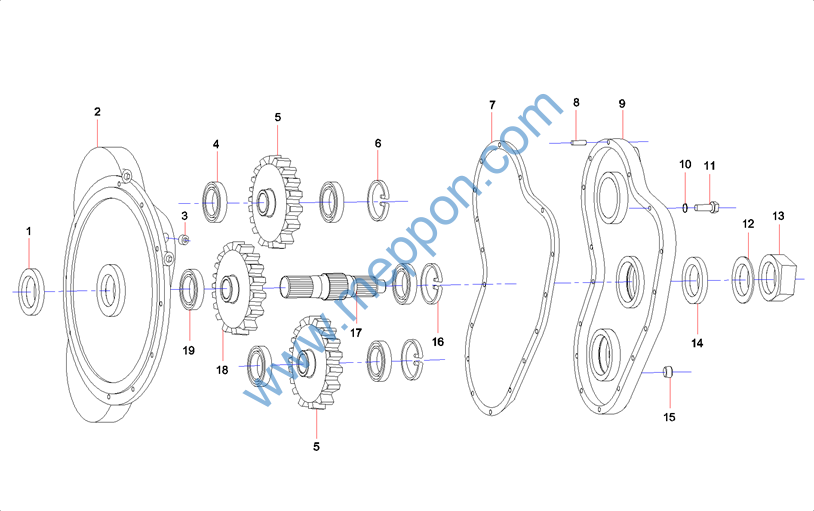

Item No.

Part No.

Description

Qty.

Remark

1

60227257

Oil seal

1

2

12118761

shell seat

1

3

60005843

Plug,screw

3

4

60104956

Bearing

4

5

11122006

Driven gear

2

6

A210416000003

Retainer Ring 100GB893.1

2

7

11122005

Cushion

1

8

A210551000028

Pin

2

9

12865924

Shell cover

1

10

A210401000017

Washer

19

11

A210110000277

Bolt M8×60GB5782

19

12

12124584

Washer

1

13

12126766

Nut

1

14

60227256

Oil seal

1

15

10662925

Inner hex screw plug

6

16

A210416000047

Snap ring

1

17

12118854

Drive shaft

1

18

12122158

Drive gear

1

19

60129016

Bearing

2
