SANY SRT95C Off-highway truck 14RT95100040 PARTS BOOK 08
Compressor installation
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
11519994 |
Adjusting connecting rod |
1 |
|
|
2 |
11576511 |
Compressor bracket |
1 |
|
|
3 |
11576509 |
V Belt |
1 |
|
|
4 |
21008534 |
Screw |
2 |
|
|
5 |
21022626 |
Compressor TYJ2-100 |
1 |
|
|
6 |
A210307000025 |
Nut M14GB6170 |
1 |
|
|
7 |
A210111000294 |
Bolt |
1 |
|
|
8 |
24000512 |
Washer 10GB93 |
3 |
|
|
9 |
24000637 |
Washer |
3 |
|
|
10 |
A210307000036 |
Nut |
3 |
|
|
11 |
12117684 |
Adjusting gasket |
1 |
Group 10

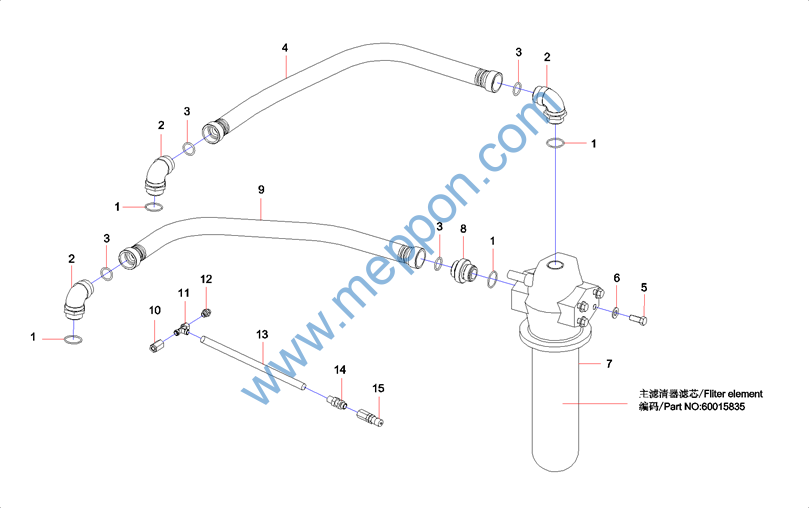

Transmission oil filter assembly
Transmission oil filter assembly
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60008434 |
O-ring |
4 |
|
|
2 |
A229900009496 |
Elbow |
3 |
|
|
3 |
60008433 |
O-ring |
4 |
|
|
4 |
10504474 |
Hose assembly 1 |
1 |
|
|
5 |
A229900009500 |
Bolt |
4 |
|
|
6 |
A229900009503 |
Washer |
4 |
|
|
7 |
A222100000611 |
Filter |
1 |
|
|
8 |
A229900009497 |
Adaptor |
1 |
|
|
9 |
10504476 |
Hose assembly 2 |
1 |
|
|
10 |
11215142 |
Connector |
1 |
|
|
11 |
21003059 |
Pipe connector |
1 |
|
|
12 |
A229900009829 |
Adaptor |
1 |
|
|
13 |
11902262 |
Hose |
1 |
|
|
14 |
21007672 |
Pipe connector |
1 |
|
|
15 |
21083668 |
Testing connector |
1 |
|

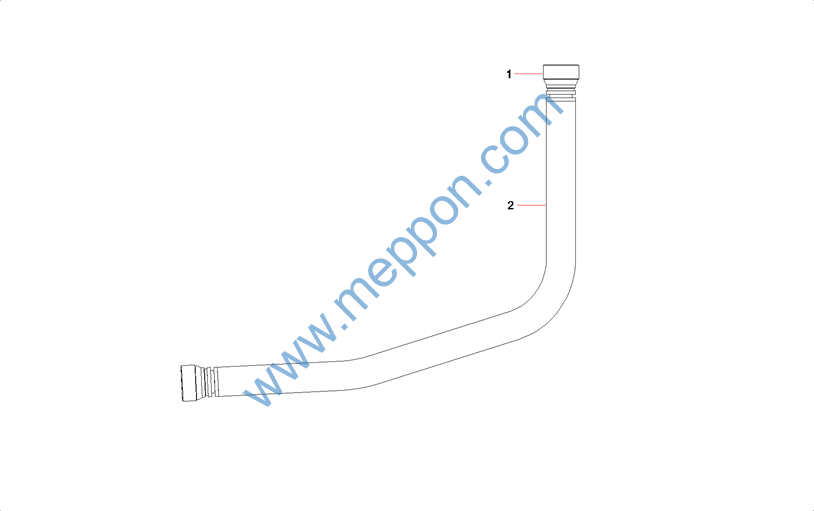

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A229900009498 |
Adaptor |
2 |
|
|
2 |
10504473 |
Hose,rubber |
4 |
|

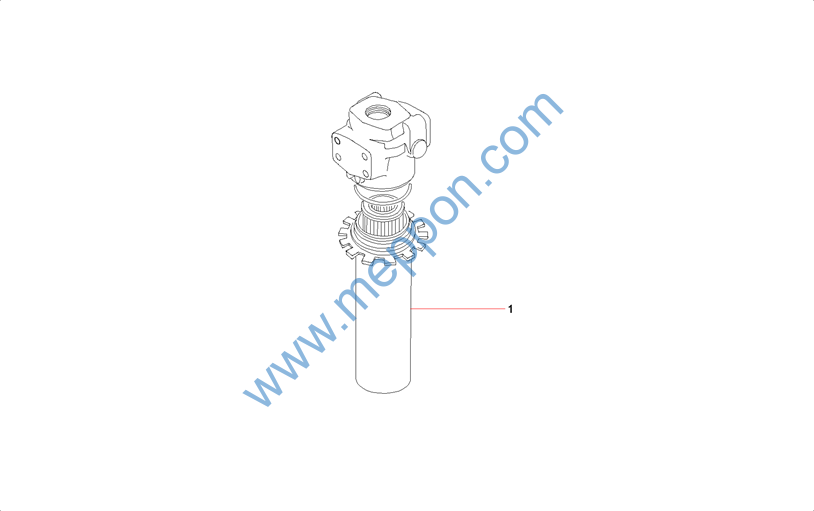

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60015835 |
Filter element,transmission |
1 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A229900009498 |
Adaptor |
2 |
|
|
2 |
10504475 |
Hose,rubber |
4 |
PARTS BOOK
PARTS BOOK
Group 11
Transmission and mounting
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A210111000446 |
Bolt |
2 |
|
|
2 |
A210491000132 |
Washer |
4 |
|
|
3 |
11627037 |
Retainer plate |
2 |
|
|
4 |
60001062 |
Shock mount |
2 |
|
|
5 |
11627039 |
Ringer |
2 |
|
|
6 |
A210307000029 |
Nut |
2 |
|
|
7 |
12951890 |
Transmission mounting |
1 |
|
|
8 |
A230200000169 |
Clamp, cord |
2 |
|
|
9 |
60223368 |
Overflow tubing |
1 |
|
|
10 |
60000419 |
Clamp, hose |
1 |
|
|
12 |
A210111000197 |
Bolt |
1 |
|
|
13 |
24000637 |
Washer |
2 |
|
|
14 |
24000512 |
Washer 10GB93 |
4 |
|
|
15 |
A210307000036 |
Nut |
1 |
|
|
16 |
A229900009583 |
Bolt |
1 |
|
|
17 |
11624261 |
Transmission retarder control |
1 |
|
|
18 |
A210110000213 |
Bolt |
2 |
|
|
19 |
A210491000122 |
Washer |
4 |
|
|
20 |
11627040 |
Retainer plate |
2 |
|
|
21 |
A222000000074 |
Shock mount |
4 |
|
|
22 |
11627038 |
Ringer |
2 |
|
|
23 |
A210307000007 |
Nut M24GB6170 Grade 10 |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
24 |
A229900009501 |
Screw |
4 |
|
|
25 |
A229900009504 |
Washer |
4 |
|
|
26 |
24000514 |
Washer 16GB93 |
4 |
|
|
27 |
12753728 |
Fixed Plate |
4 |
|
|
28 |
60007612 |
Filler hose |
1 |
|
|
29 |
12951887 |
Fixed Plate |
1 |
|
|
30 |
A210111000012 |
Bolt |
2 |
|
|
31 |
12701266 |
Rupper pad |
1 |
|
|
32 |
60008275 |
U-clamp |
2 |
|
|
33 |
13083324 |
Rubber padSRT95C.153-4 |
1 |
|
|
34 |
13083323 |
Fixed plateSRT95C.153-3 |
1 |
|
|
35 |
A210111000026 |
Bolt |
2 |

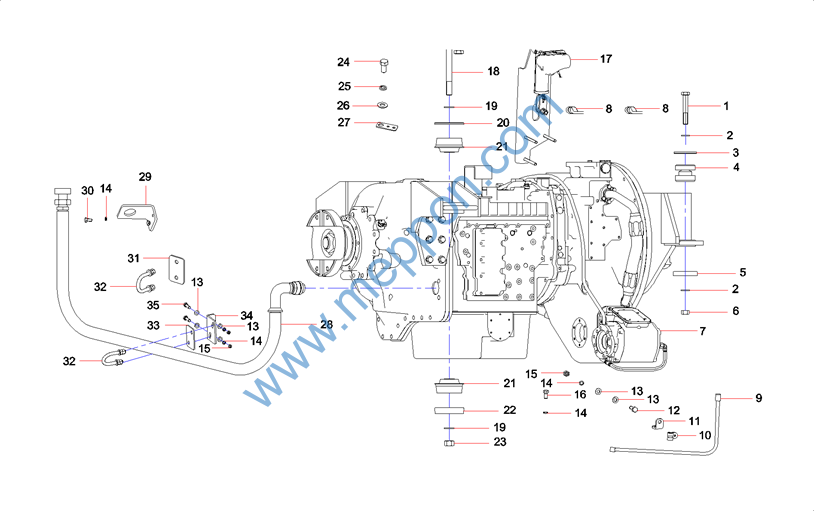

Transmission mounting

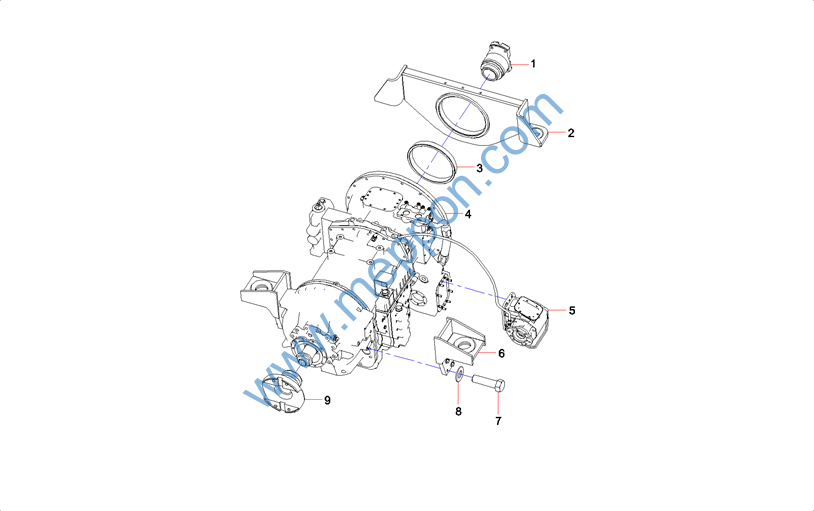

SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60001257 |
Input flange |
1 |
|
|
2 |
12951893 |
Trunnion |
1 |
|
|
3 |
11626929 |
Sleeve,nylon |
1 |
|
|
4 |
60000233 |
Transmission |
1 |
|
|
5 |
12951895 |
Power take-off assembly |
1 |
|
|
6 |
12951894 |
Bracket |
2 |
|
|
7 |
60044697 |
Bolt |
12 |
|
|
8 |
A229900009504 |
Washer |
12 |
|
|
9 |
60001256 |
Output flange |
1 |

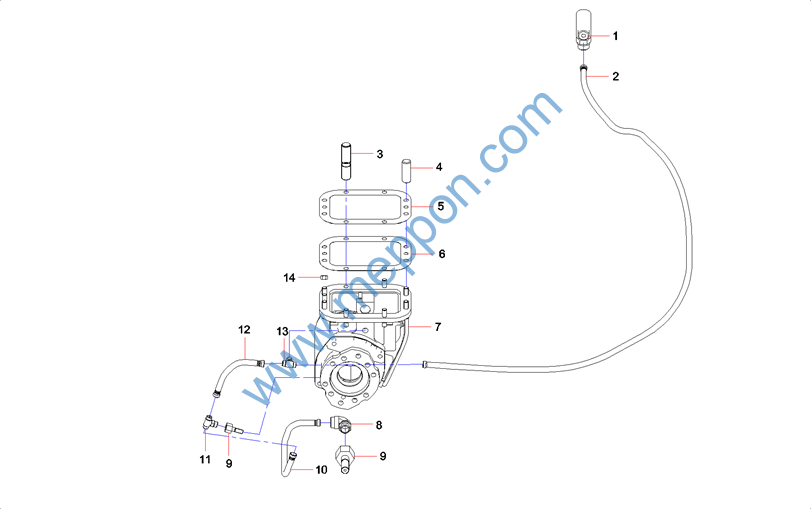

Power take-off assembly
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60006906 |
Lube connector |
1 |
|
|
2 |
60006911 |
Hose assembly |
1 |
|
|
3 |
60006907 |
Stud |
8 |
|
|
4 |
60007095 |
Pin |
2 |
|
|
5 |
60006902 |
Gasket |
1 |
|
|
6 |
60006903 |
Gasket |
1 |
|
|
7 |
60082337 |
Power take-off |
1 |
|
|
8 |
60006904 |
Elbow |
1 |
|
|
9 |
60006908 |
Adapter |
2 |
|
|
10 |
60006913 |
Hose assembly |
1 |
|
|
11 |
60006905 |
Adapter |
1 |
|
|
12 |
60006912 |
Hose assembly |
1 |
|
|
13 |
60006910 |
Adapter |
1 |
|
|
14 |
60006909 |
Nut，self-locking |
8 |

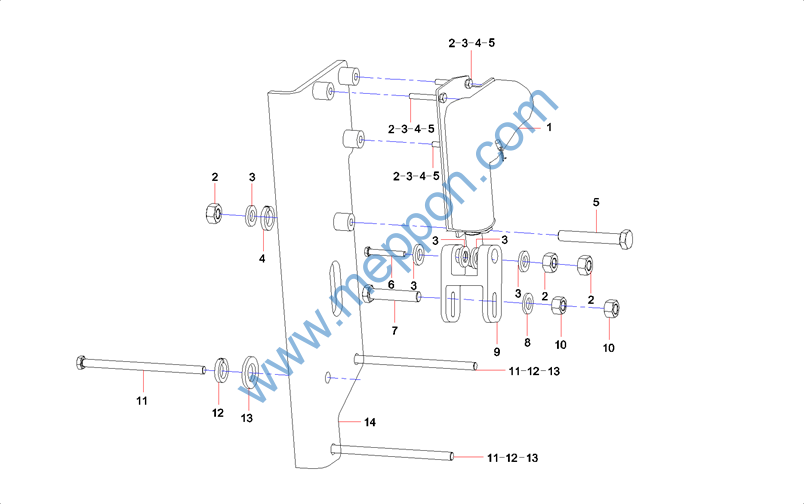

Transmission retarder control
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60067753 |
Linear actuator |
1 |
|
|
2 |
A210307000016 |
Nut |
6 |
|
|
3 |
24000632 |
Washer |
8 |
|
|
4 |
60060564 |
Washer |
4 |
|
|
5 |
A210111000084 |
Bolt |
4 |
|
|
6 |
A210110000319 |
Bolt |
1 |
|
|
7 |
A210110000012 |
Bolt |
1 |
|
|
8 |
24000639 |
Washer 12GB97.1 |
1 |
|
|
9 |
13255767 |
Connecting board SRT95.151A-3 |
1 |
|
|
10 |
A210307000031 |
Nut |
2 |
|
|
11 |
60009687 |
Bolt |
3 |
|
|
12 |
24000512 |
Washer 10GB93 |
3 |
|
|
13 |
A210491000120 |
Washer |
3 |
|
|
14 |
11624264 |
Fixed plate |
1 |
PARTS BOOK
PARTS BOOK
Group 12

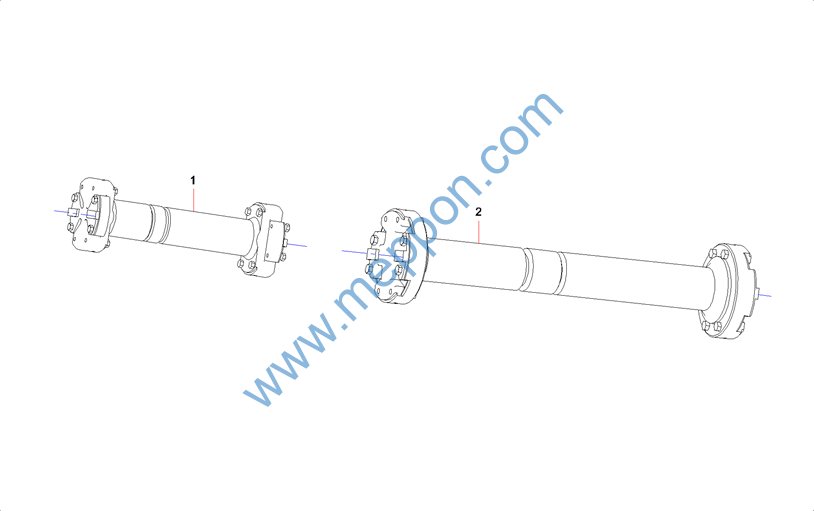

Driveline installation
