SANY SRT95C Off-highway truck 14RT95100040 PARTS BOOK 09
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60001267 |
Front driveline |
1 |
|
|
2 |
60001261 |
Rear driveline |
1 |
|

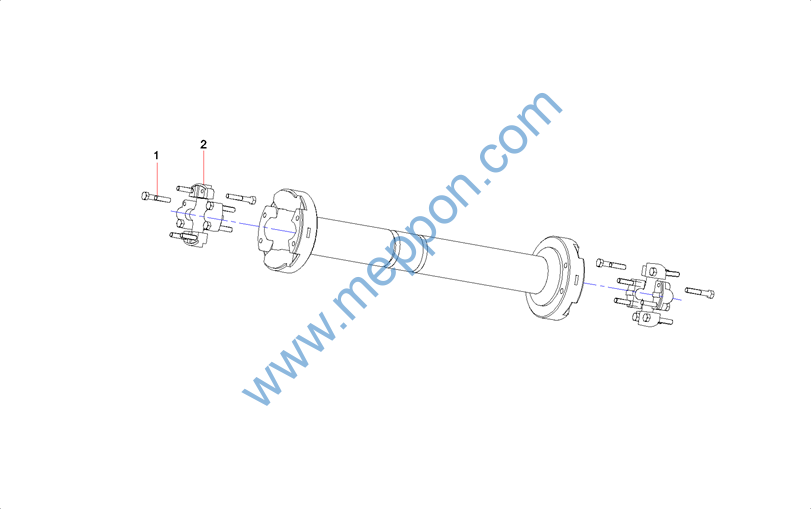

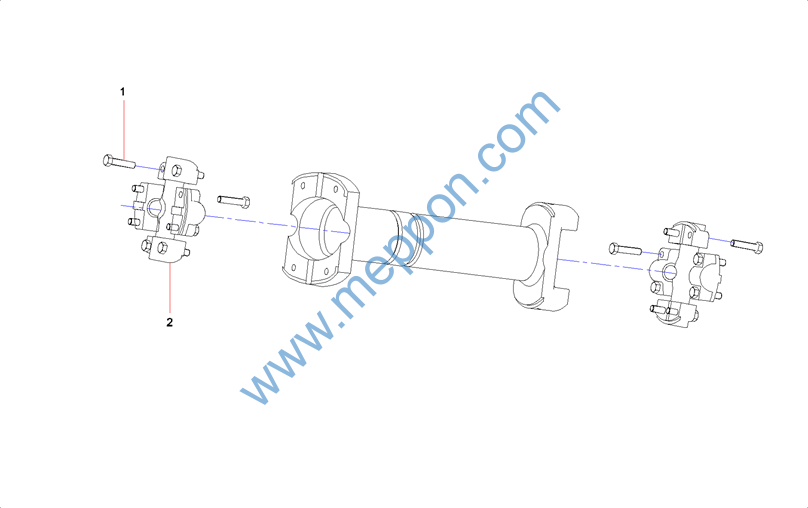

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60011099 |
Front Transmission Shaft Assy bolt |
8 |
|
|
2 |
60027405 |
Cross shaft,transmission,front |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60011098 |
Rear transmission shaft assem bolt |
8 |
|
|
2 |
60027404 |
Shaft,cross,transmission shaft,rear |
2 |
PARTS BOOK
PARTS BOOK
Group 13

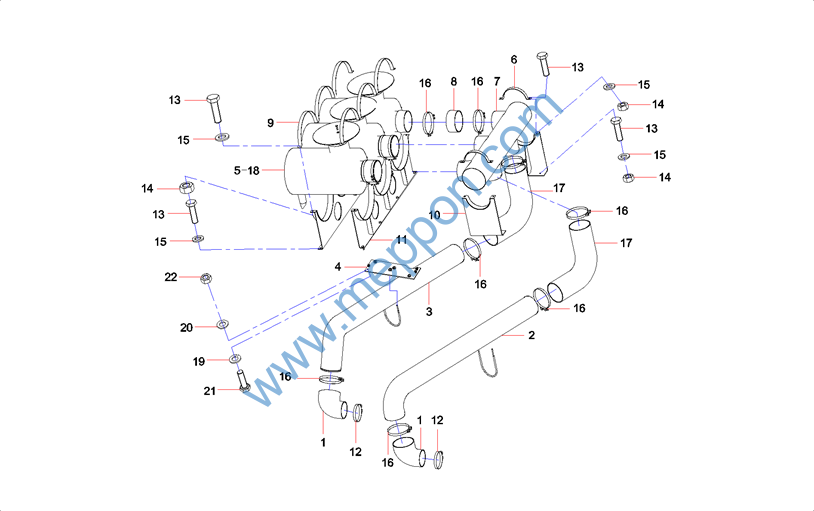

Air cleaner and pipeline installation
Air cleaner and pipeline installation
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
10492435 |
Elbow |
2 |
|
|
2 |
10492433 |
Intake tube |
1 |
|
|
3 |
10492434 |
Intake tube |
1 |
|
|
4 |
12951950 |
Fixed device |
1 |
|
|
5 |
A222100000601 |
Air cleaner |
3 |
|
|
6 |
10492437 |
Mounting band |
2 |
|
|
7 |
10492443 |
Plenum chamber |
1 |
|
|
8 |
10492436 |
Tube |
3 |
|
|
9 |
10492438 |
Mounting band |
2 |
|
|
10 |
10492450 |
Bracket |
2 |
|
|
11 |
10492454 |
Bracket |
2 |
|
|
12 |
60250990 |
T Model Anchor Ear |
2 |
|
|
13 |
A210111000026 |
Bolt |
24 |
|
|
14 |
A210307000036 |
Nut |
16 |
|
|
15 |
24000637 |
Washer |
24 |
|
|
16 |
60250989 |
T Model Anchor Ear |
12 |
|
|
17 |
10504206 |
Tube |
2 |
|
|
18 |
60013897 |
Main cartridge,air filter |
3 |
|
|
19 |
24000513 |
Washer 12GB93 DACROMET |
4 |
|
|
20 |
24000639 |
Washer 12GB97.1 |
16 |
|
|
21 |
A210111000203 |
Bolt |
4 |
|
|
22 |
A210307000031 |
Nut |
4 |

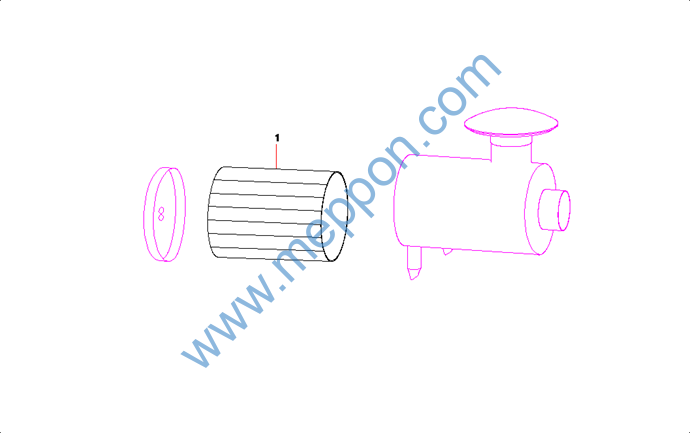

Air cleaner
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60013897 |
Main cartridge,air filter |
2 |
PARTS BOOK
PARTS BOOK
Group 14

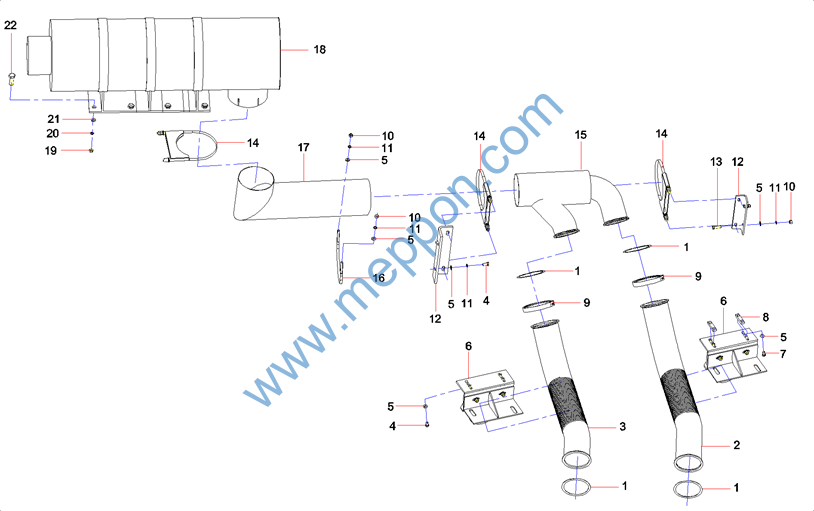

Exhaust tube installation srt95c.191
Exhaust tube installation srt95c.191
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
10694157 |
Gasket |
4 |
|
|
2 |
12946181 |
Exhaust tube |
1 |
|
|
3 |
12946179 |
Exhaust tube |
1 |
|
|
4 |
A210111000101 |
Bolt |
6 |
|
|
5 |
24000639 |
Washer 12GB97.1 |
14 |
|
|
6 |
12946197 |
Fixed clamp assembly |
2 |
|
|
7 |
A210111000203 |
Bolt |
4 |
|
|
8 |
13176321 |
Plate |
2 |
|
|
9 |
60195993 |
Connector |
2 |
|
|
10 |
A210307000031 |
Nut |
4 |
|
|
11 |
24000513 |
Washer 12GB93 DACROMET |
14 |
|
|
12 |
12946189 |
Plate |
2 |
|
|
13 |
A210111000204 |
Bolt |
2 |
|
|
14 |
12946192 |
Fixed clamp |
3 |
|
|
15 |
12946186 |
Exhaust tube assembly |
1 |
|
|
16 |
12946191 |
U-bolt |
1 |
|
|
17 |
13367056 |
Exhaust tube SRT95C.191-1 |
1 |
|
|
18 |
60259198 |
Muffler |
1 |
|
|
19 |
A210307000029 |
Nut |
8 |
|
|
20 |
24000515 |
Washer 20GB93 DACROMET |
8 |
|
|
21 |
24000646 |
Washer |
8 |
|
|
22 |
A210111000061 |
Bolt |
8 |

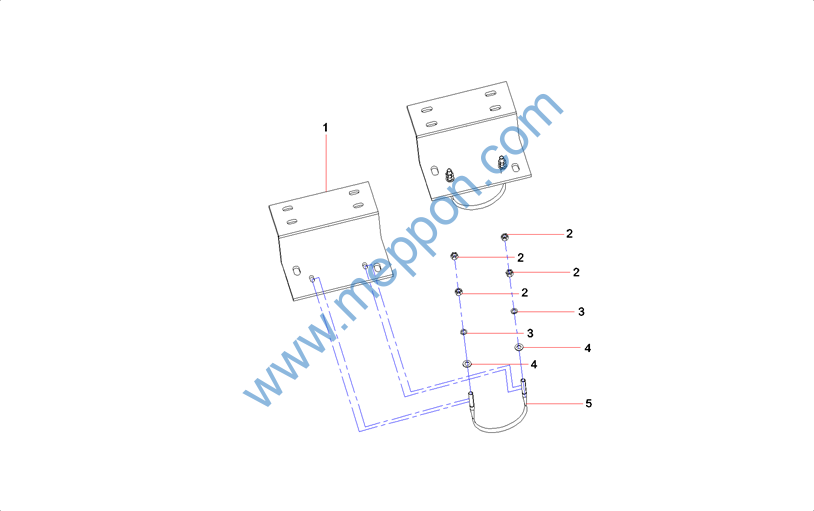

Fixed clamp assembly
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
12946201 |
Support |
1 |
|
|
2 |
A210307000031 |
Nut |
6 |
|
|
3 |
24000513 |
Washer 12GB93 DACROMET |
2 |
|
|
4 |
24000639 |
Washer 12GB97.1 |
6 |
|
|
5 |
12946196 |
U-bolt |
1 |

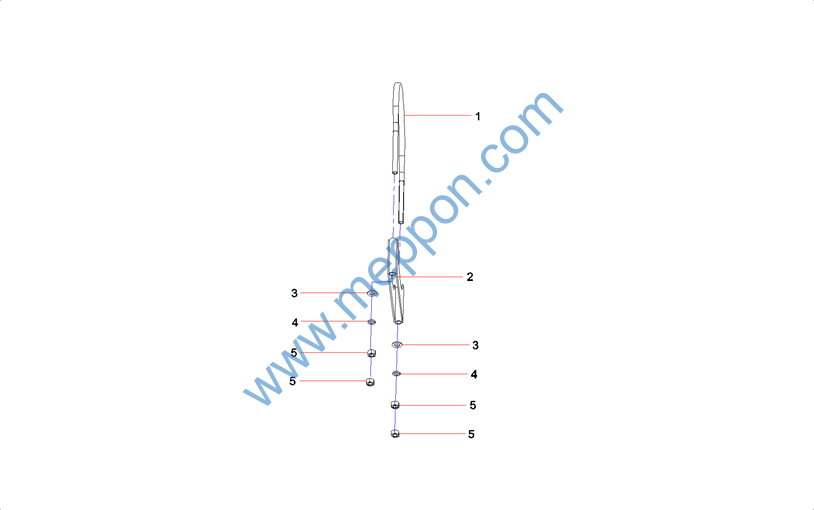

Fixed clamp
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
12946191 |
U-bolt |
1 |
|
|
2 |
12946195 |
Support assembly |
1 |
|
|
3 |
24000639 |
Washer 12GB97.1 |
2 |
|
|
4 |
24000513 |
Washer 12GB93 DACROMET |
2 |
|
|
5 |
A210307000031 |
Nut |
4 |
PARTS BOOK
PARTS BOOK
Group 15

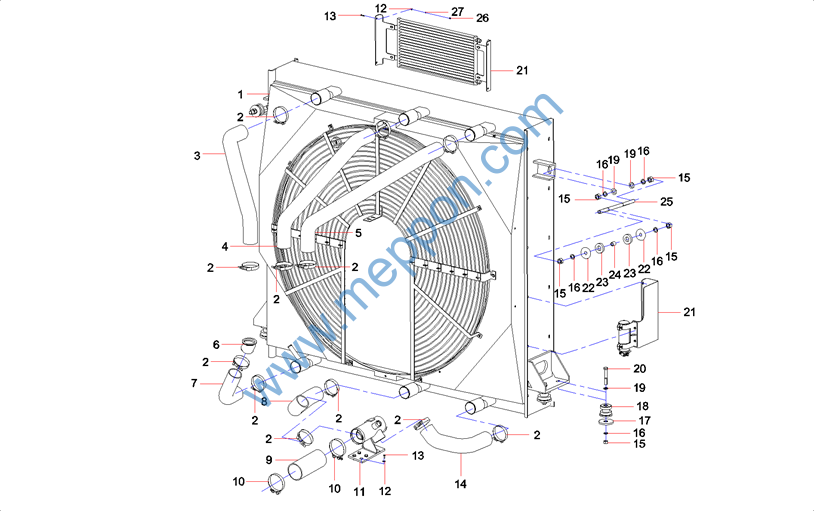

Radiator and pipeline installation
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60221141 |
Radiator assembly |
1 |
|
|
2 |
60250995 |
T Model Anchor Ear |
12 |
|
|
3 |
12951906 |
Inlet pipe |
1 |
|
|
4 |
12951885 |
Inlet pipe |
1 |
|
|
5 |
12951884 |
Inlet pipe |
1 |
|
|
6 |
11076012 |
Elbow |
1 |
|
|
7 |
12951877 |
Outlet pipe |
1 |
|
|
8 |
12951878 |
Outlet pipe |
1 |
|
|
9 |
10499920 |
Hose |
1 |
|
|
10 |
60250993 |
T Model Anchor Ear |
2 |
|
|
11 |
10499927 |
Cross pipe assembly |
1 |
|
|
12 |
24000637 |
Washer |
8 |
|
|
13 |
A210111000024 |
Bolt |
8 |
|
|
14 |
12951880 |
Outlet pipe |
1 |
|
|
15 |
A210307000029 |
Nut |
12 |
|
|
16 |
24000515 |
Washer 20GB93 DACROMET |
12 |
|
|
17 |
10239993 |
Plate |
4 |
|
|
18 |
21003719 |
Pad, damper |
4 |
|
|
19 |
24000646 |
Washer |
8 |
|
|
20 |
A210111000446 |
Bolt |
8 |
|
|
21 |
12952514 |
Cooler |
1 |
|
|
22 |
10700960 |
washer |
4 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
A229900003147 |
Pad |
4 |
|
|
24 |
10700947 |
Sleeve |
2 |
|
|
25 |
12951882 |
Support Rod |
2 |
|
|
26 |
A210307000036 |
Nut |
4 |
|
|
27 |
24000512 |
Washer 10GB93 |
4 |
