Item No.

Part No.

Description

Qty.

Remark

1

A210111000092

Bolt

4

2

A210401000016

Washer

4

3

24000632

Washer

4

4

A210307000055

Nut M8GB6170 Grade 10

4

5

A220700000032

Condenser

1

6

12952496

Bracket

2

7

A210111000082

Bolt

2

8

A210401000017

Washer

4

9

24000633

Washer

4

10

21024881

Assembly, cistern

1

11

11576518

Reciver bracket

1

12

A210307000016

Nut

4

13

A210111000079

Bolt

2

14

12952500

Pinboard

1

Item No.

Part No.

Description

Qty.

Remark

1

A210855000011

Hoop

2

2

10506330

Make-up line

1

3

10506335

Make-up line

1

4

A210111000026

Bolt

4

5

24000637

Washer

8

6

A210307000036

Nut

4

7

60004632

Water tank

1

8

10970312

Overflow tubing

1

9

21053360

Hose ring hoop

11

10

10506334

Deaeration line

3

11

10506331

Deaeration line

2

12

A210111000101

Bolt

1

13

A210307000031

Nut

1

14

A210405000001

Washer

2

15

A230200000178

Clamp

1

16

A210855000005

Hoop

4

17

A210855000020

Hoop

2

18

11858460

Deaeration line

2

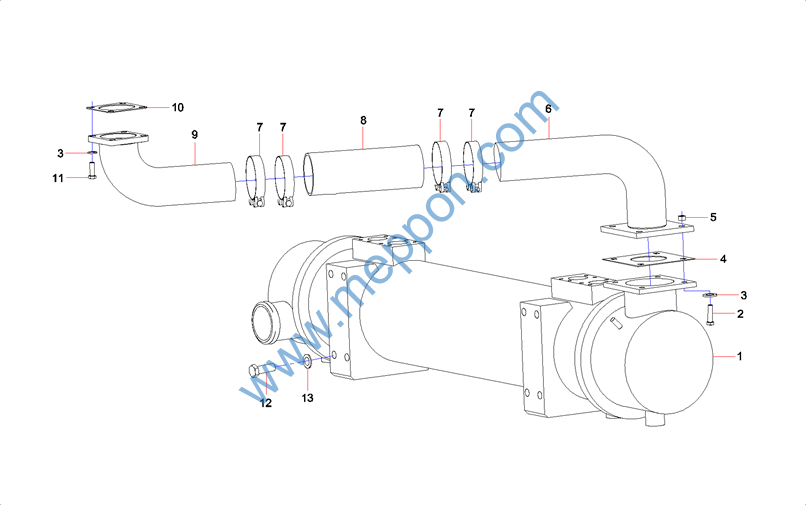

Item No.

Part No.

Description

Qty.

Remark

1

60001270

Disc brake oil cooler

1

2

A210111000119

Bolt

4

3

24000639

Washer 12GB97.1

16

4

10494836

Combined seal pad

1

5

A210307000031

Nut

4

6

10495193

Elbow

1

7

60250992

T Model Anchor Ear

4

8

10494841

Sleeve

1

9

10495197

Elbow

1

10

10494839

Gasket

1

11

A210111000203

Bolt

4

12

A210111000062

Bolt M20×60GB5783 Grade 10.9

8

13

A210491000132

Washer

8

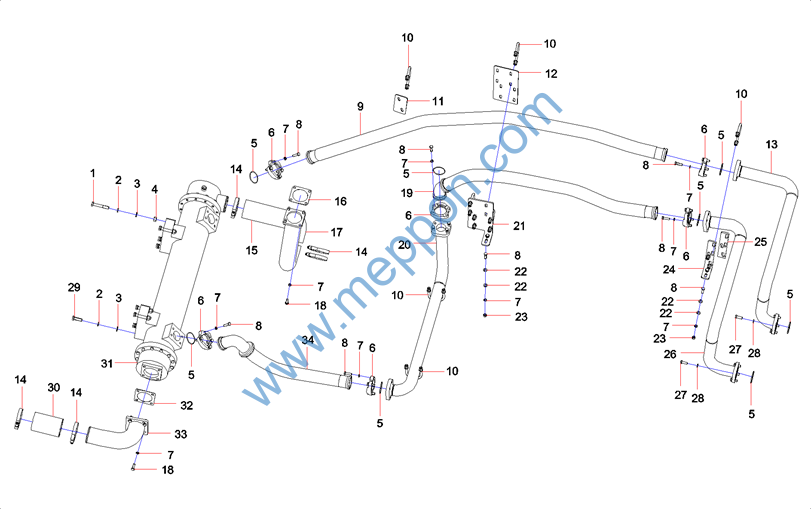

Item No.

Part No.

Description

Qty.

Remark

1

A210110000033

Bolt

4

2

24000514

Washer 16GB93

12

3

A210491000118

Washer

12

4

A210307000028

Nut

4

5

B230101002072

O-ring

8

6

21018528

Split flange

6

7

24000513

Washer 12GB93 DACROMET

36

8

A210111000204

Bolt

28

9

11992626

Oil inlet pipe assembly

1

10

60008277

U-CLAMP

9

11

12256518

Rubber pad

1

12

12256517

Rubber pad

1

13

11992167

Steel tube assembly

1

14

A229900002263

T-type anchor ear

6

15

12950170

Rubber hose

1

16

10507405

Gasket

1

17

12950175

Tube assembly

1

18

A210111000203

Bolt

8

19

11992628

Oil outlet pipe assembly

1

20

11992378

Steel tube assembly

1

21

11990357

Fixed plate

1

22

A210405000001

Washer

8

Item No.

Part No.

Description

Qty.

Remark

23

A210307000031

Nut

4

24

12950171

Fixed Plate

1

25

12950172

Rupper pad

1

26

11992328

Steel tube assembly

1

27

A229900009970

Bolt

8

28

A229900009582

Washer

8

29

A210111000243

Bolt

4

30

10507398

Hose silicone

1

31

60000231

Oil cooler

1

32

10507392

Gasket

1

33

10508277

Water inlet tube assembly

1

34

11992630

Oil outlet pipe assembly

1

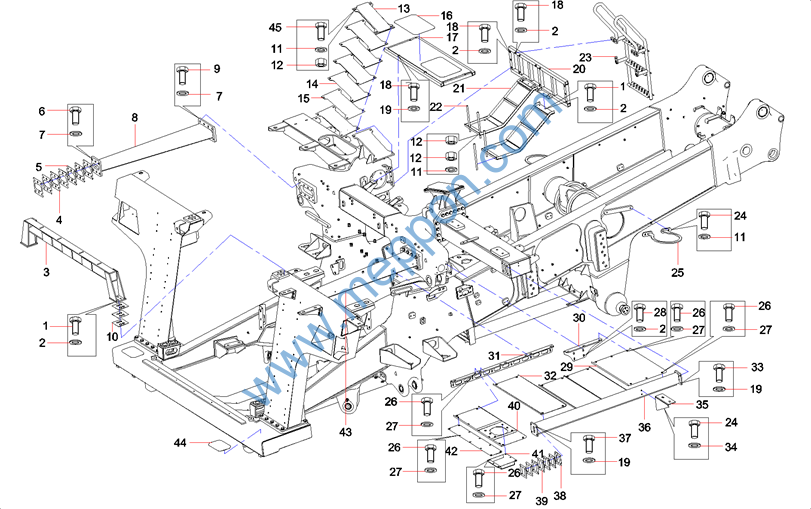

Item No.

Part No.

Description

Qty.

Remark

1

A210111000204

Bolt

72

2

60060548

Washer 12GB96.1

96

3

13090229

Tie rod units

1

4

12951986

Board

6

5

12951987

Board

22

6

A210110000201

Bolt

12

7

A210491000132

Washer

85

8

12949087

Right-hand longitudinal pull rod

1

9

A210111000061

Bolt

16

10

13090162

Adjusting plate

6

11

A210491000118

Washer

24

12

A210307000028

Nut

24

13

12953090

Damping pad

2

16

11953373

Antiskid paste

2

17

13090257

Rear platform

1

18

A210111000104

Bolt

16

19

24000639

Washer 12GB97.1

34

20

12949778

Rear transverse tie beam

1

21

13090264

Lower guard

2

22

13069632

Screw rod

4

23

12949895

Ladder of platform

1

24

A210111000053

Bolt M16×40GB5783 Grade 10.9

12

Item No.

Part No.

Description

Qty.

Remark

25

12949934

Anchor ear of lifting cylinder

2

26

A210111000197

Bolt

54

27

60060546

Washer 10GB96.1

54

28

A210111000202

Bolt

4

29

13090252

Rear lower cab guard boardSRT95C.270.39

1

30

12951977

Fix board

1

31

12951979

Board

1

32

13090247

Cab rear lower guard board SRT95C.270.37

3

33

A210111000203

Bolt

12

34

60060553

Washer 16GB96.1

8

35

13090266

Mounting seatSRT95C.270.42

1

36

13090239

Outer longitudinal pull rod SRT95C.270.3

1

37

A210111000118

Bolt M12×55GB5783 Grade 10.9

6

38

12951989

Shim

9

39

12951988

Board

2

40

13090250

Front lower cab guard boardSRT95C.270.38

1

41

13090269

Foot pedal valve coverSRT95C.270.43

1

42

13090164

Fixed plate SRT95C.270-28

1

43

12948610

Left-hand longitudinal pull rod

1

44

11696489

Antiskid paste

2

45

A210111000347

Bolt M16×90GB5783 10.9 grade

8

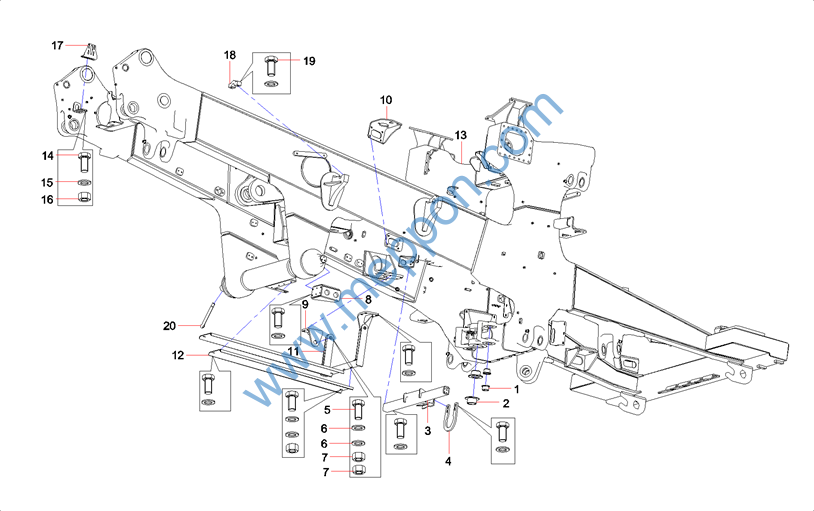

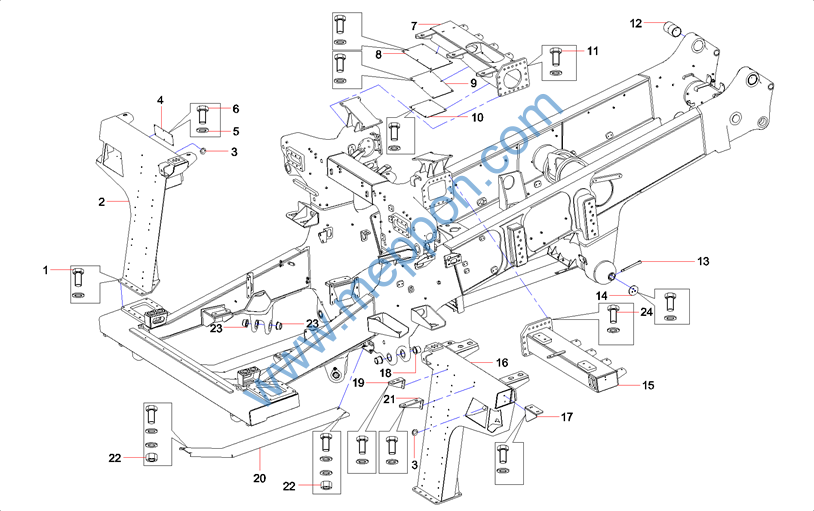

Item No.

Part No.

Description

Qty.

Remark

1

A210111000289

Bolt M20×45GB5783 Grade 10.9

20

2

13090189

Right front support SRT95C.270.30

1

3

11778087

Rubber bar

2

4

13090161

Cover plateSRT95C.270-25

2

5

24000633

Washer

12

6

A210111000343

Bolt

12

7

13090225

Right lengthening beam SRT95C.270.32

1

8

13090169

Cover plateSRT95C.270-33

1

9

13090168

Cover plateSRT95C.270-32

1

10

13090167

Cover plateSRT95C.270-31

1

11

A210111000062

Bolt M20×60GB5783 Grade 10.9

19

12

12951969

Bush

2

13

A210491000016

Pin

4

14

13090166

Hoisting cylinder pressure plateSRT95C.2

2

15

13090197

Left lengthening beam SRT95C.270.31

1

16

13090179

Left front support SRT95C.270.29

1

17

12949266

Mounting seat of left platform

1

18

12951972

Bush

4

19

12949471

Fixed seat of platform

1

20

13090242

Engine lower guard SRT95C.270.35

4

21

12949762

Fixed seat of platform

1

22

A210307000031

Nut

20

Item No.

Part No.

Description

Qty.

Remark

23

12951970

Bush

4

24

A210111000063

Bolt M20×70GB5783 Grade 10.9

19
