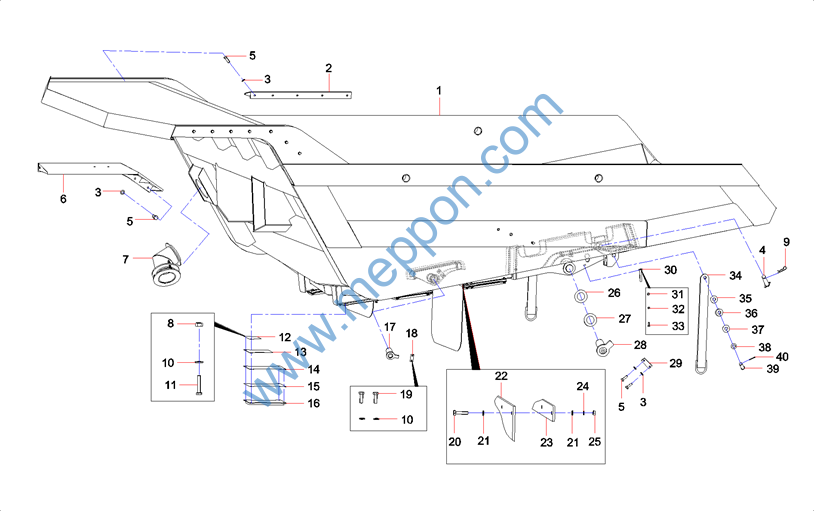

Item No.

Part No.

Description

Qty.

Remark

1

12951973

Bush

4

2

12951974

Bush

2

3

12949770

Protecting rack

1

4

13090165

Transmission shaft upper protective plat

1

5

23002389

Bolt M30×110GB5782 Grade 10.9

2

6

A210444000003

Washer 30GB1230

2

7

A210307000009

Nut M30GB6170 Grade 10

4

8

12949931

Lower fixed seat of fuel tank

1

9

12949082

Fixed seat

2

10

13090245

Mounting plate

1

11

12948660

Back bracket of lower guard of gearbox

1

12

13090163

Bottom board

2

13

12955632

Frame assembly

1

14

A210111000024

Bolt

4

15

A210491000120

Washer

4

16

A210307000036

Nut

4

17

12951985

Board

1

18

12955304

Press board

2

19

23002022

Bolt

4

20

13279619

Fixed pin

2

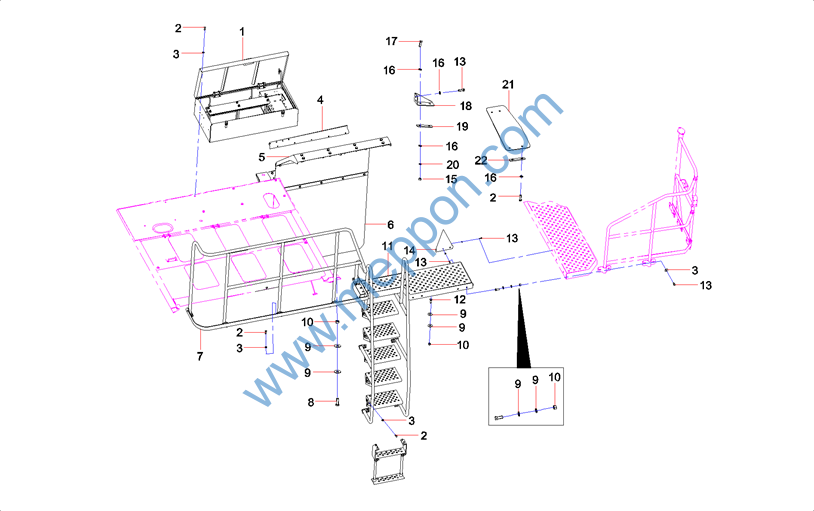

Item No.

Part No.

Description

Qty.

Remark

1

12361876

Battery box assembly

1

2

A210111000203

Bolt

52

3

60060548

Washer 12GB96.1

75

4

12950118

Fixed seat

1

5

12949157

Mudguard assembly

2

6

12950125

Mudguard

1

7

12949383

Front guardrail assembly

1

8

A210111000055

Bolt M16×60GB5783 Grade 10.9

8

9

60060553

Washer 16GB96.1

72

10

A210307000028

Nut

34

11

12948938

Front walking board assembly

1

12

A210111000106

Bolt

24

13

A210111000202

Bolt

89

14

12520118

Left-hand buffer Assembly

1

15

A210307000031

Nut

46

16

24000639

Washer 12GB97.1

143

17

A210111000204

Bolt

33

18

13083158

Installation seat

4

19

13083152

Pressure plate

4

20

24000513

Washer 12GB93 DACROMET

9

21

13083150

Left mudguard

1

22

12950117

Plate

1

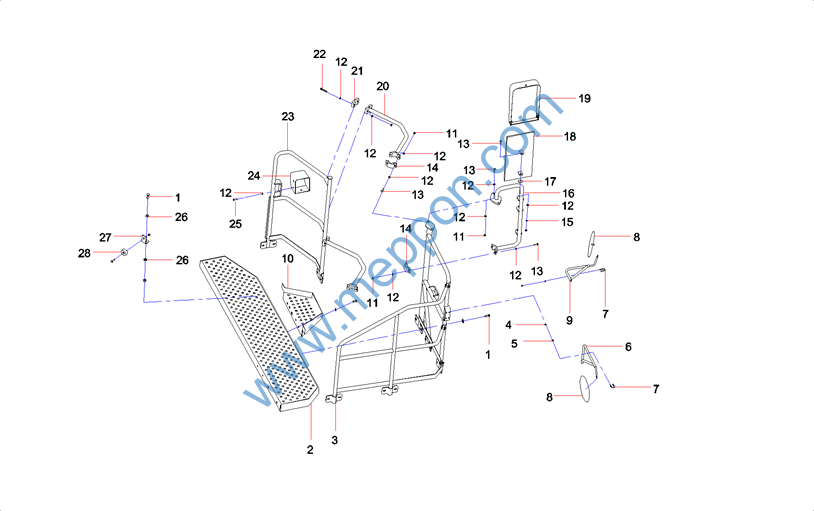

Item No.

Part No.

Description

Qty.

Remark

1

A210111000053

Bolt M16×40GB5783 Grade 10.9

6

2

12948811

Left walking board assembly

1

3

13082028

Left guardrail assembly

1

4

A210307000055

Nut M8GB6170 Grade 10

18

5

24000633

Washer

16

6

12969722

Support assembly

1

7

11805420

U-clip

6

8

60216402

Dowm tail Mirror

3

9

12969728

Support assembly

2

10

12969701

Left additive walkway assembly

1

11

A210307000036

Nut

30

12

24000637

Washer

48

13

A210111000026

Bolt

14

14

11403681

Installation seat

3

15

24000512

Washer 10GB93

8

16

12949476

Left rear view mirror rack

1

17

11630953

Shock pad

6

18

60050650

Rearview mirror

2

19

12712414

Rearview mirror cover

1

20

12949251

Pull rod

2

21

11402703

Installation seat

3

22

A210111000294

Bolt

6

Item No.

Part No.

Description

Qty.

Remark

23

12948996

Left-hand rear guard rail assembly

1

24

12712020

Left lamp cover

1

25

A210111000024

Bolt

4

26

24000642

washer

2

27

12950124

Limit plate

1

28

11180307

Rubber pad

1

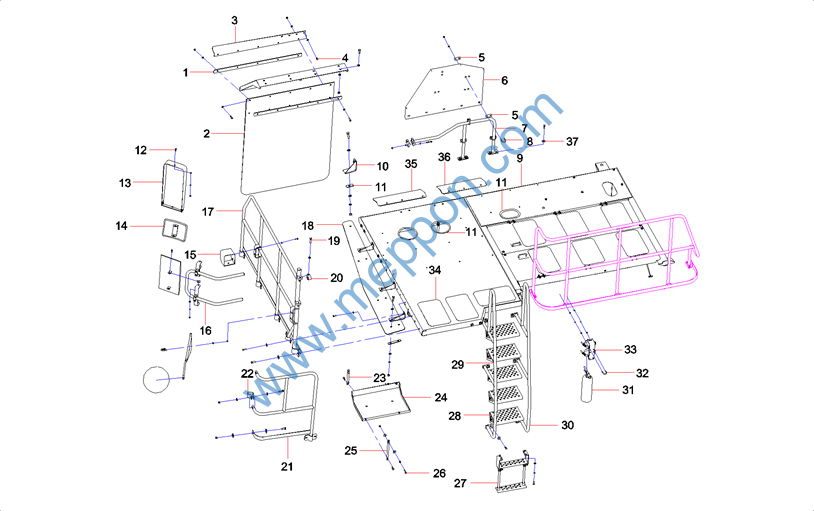

Item No.

Part No.

Description

Qty.

Remark

1

12950126

Plate

4

2

12950111

Mudguard

1

3

12950119

Fixed seat

1

4

A210111000199

Bolt M12×20GB5783 Grade 10.9

8

5

12950121

Cushion

8

6

12950120

Plate

1

7

12948374

Back guardrail assembly

1

8

12950123

U-bolt

4

9

12950098

Platform assembly

1

10

13083161

Installation seat

1

11

13083155

Pressure plate

1

12

A210111000197

Bolt

2

13

12948310

Mirror cover

1

14

60141948

Rearview mirror

1

15

12712022

RH lamp cover

1

16

12948465

Right rear view mirror rack

1

17

13082721

Right handrail assembly

1

18

13083151

Dashboard

1

19

A210110000281

Bolt

2

20

12950122

Mounting band

2

21

13082726

Right handrail assemblySRT95C.290.27

1

22

12969762

Connection sleeve

2

Item No.

Part No.

Description

Qty.

Remark

23

12950112

Tie rod

2

24

12948170

Air intake tube guard

1

25

12950113

Tie rods

2

26

A210111000118

Bolt M12×55GB5783 Grade 10.9

2

27

11628499

Step

2

28

12949187

Ladder assembly

10

29

12262166

Handrail assembly

2

30

12262168

Handrail assembly

2

31

A559900000099

Fire extinguisher,powder,BC

1

32

11529937

U-bolt

2

33

11891847

Fire extinguisher bracket

1

34

11953373

Antiskid paste

9

35

13083153

Baffle

1

36

13083154

Baffle

1

37

12951346

Washer

4

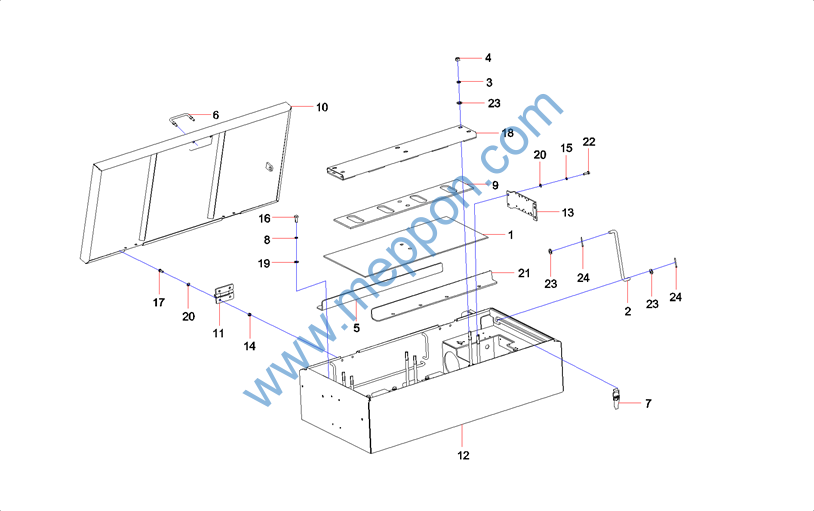

Item No.

Part No.

Description

Qty.

Remark

1

12361875

Rubber backup plate of battery

1

2

12925038

Bar, supporting

1

3

A210401000002

Washer

6

4

A210307000001

Nut

6

5

12684045

Baffle

1

6

60016013

Handle

1

7

60111951

Buckle,heavy duty

2

8

A210401000001

Washer

8

9

12361874

Rubber backup plate of battery

1

10

12361886

Tank cover

1

11

11696499

Hinge

2

12

12361884

Battery body assy.

1

13

12925039

Mounting seat

1

14

A210307000012

Nut

8

15

A210401000017

Washer

4

16

A210111000197

Bolt

8

17

A210111000343

Bolt

8

18

12361890

Plate assemble

1

19

A210405000011

Washer

8

20

24000633

Washer

12

21

12684048

Baffle

1

22

A210111000323

Bolt

4

Item No.

Part No.

Description

Qty.

Remark

23

A210405000001

Washer

8

24

A210491000016

Pin

2

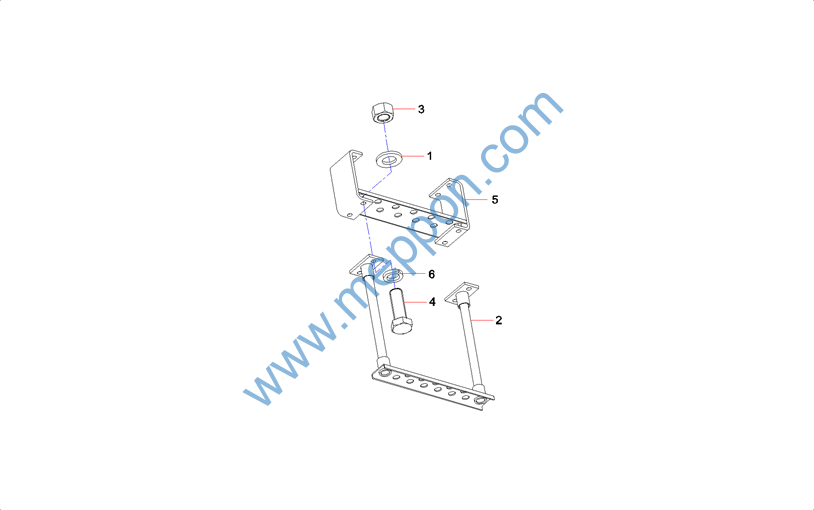

Item No.

Part No.

Description

Qty.

Remark

1

A210405000001

Washer

4

2

11628506

Underlayer step

1

3

A210307000001

Nut

4

4

24000300

Bolt

4

5

11628502

Upper step

1

6

A210401000002

Washer

4

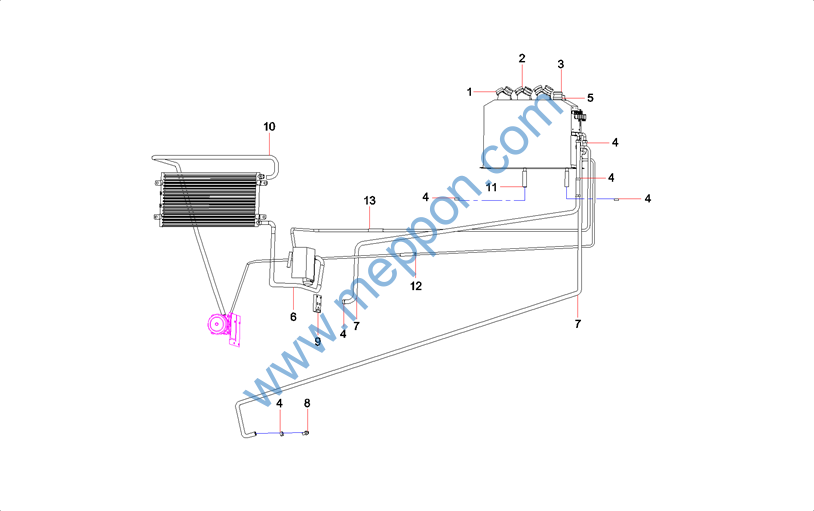

Item No.

Part No.

Description

Qty.

Remark

1

A229900009098

Air pipe

2

2

A229900007800

Air pipe

4

3

21022629

Air pipe

1

4

12119862

Thimble

6

5

12119859

Thimble

14

6

60084134

Cold-reserving rubber hose component

1

7

A230103001216

Hot water pipe

2

8

11613578

Connector

1

9

11613579

Connector

1

10

60084136

Pressure-cooling rubber hose component

1

11

A229900009099

Water diversion hose

2

12

60084138

Steam-pressure host component

1

13

60084140

Reserving-steaming hose component

1
