SANY SRT95C Off-highway truck 14RT95100040 PARTS BOOK 14
Group 27

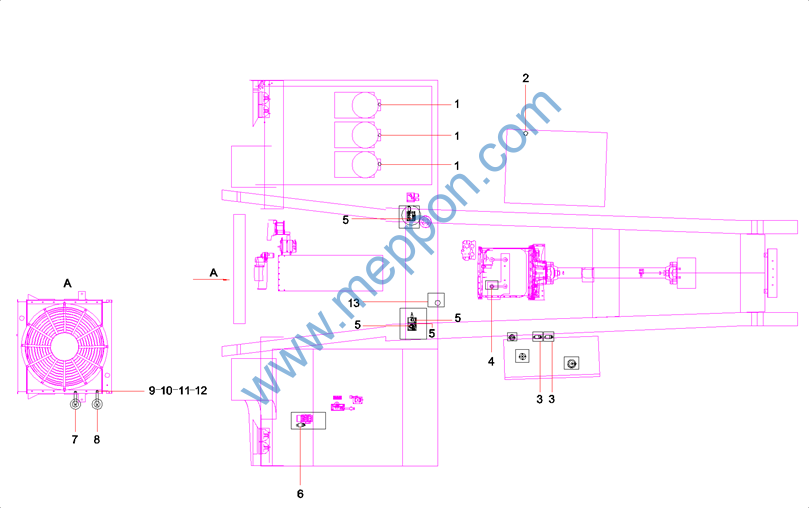

Vehicle detecting assembly
Vehicle detecting assembly
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B250299000033 |
Air cleaner indicator |
3 |
|
|
2 |
60224268 |
Liquid level sensor |
1 |
|
|
3 |
60148917 |
Temperature sensor |
2 |
|
|
4 |
60227740 |
Oil temperature sensor |
1 |
|
|
5 |
60190385 |
Pressure Sensor |
4 |
|
|
6 |
60123367 |
Pressure senor |
1 |
|
|
7 |
B249900000090 |
Horn |
1 |
|
|
8 |
21004763 |
Horn |
1 |
|
|
9 |
A210401000017 |
Washer |
4 |
|
|
10 |
24000633 |
Washer |
4 |
|
|
11 |
A210307000055 |
Nut M8GB6170 Grade 10 |
2 |
|
|
12 |
A210111000090 |
Bolt |
2 |
|
|
13 |
12926879 |
Body approach switch installation |
1 |

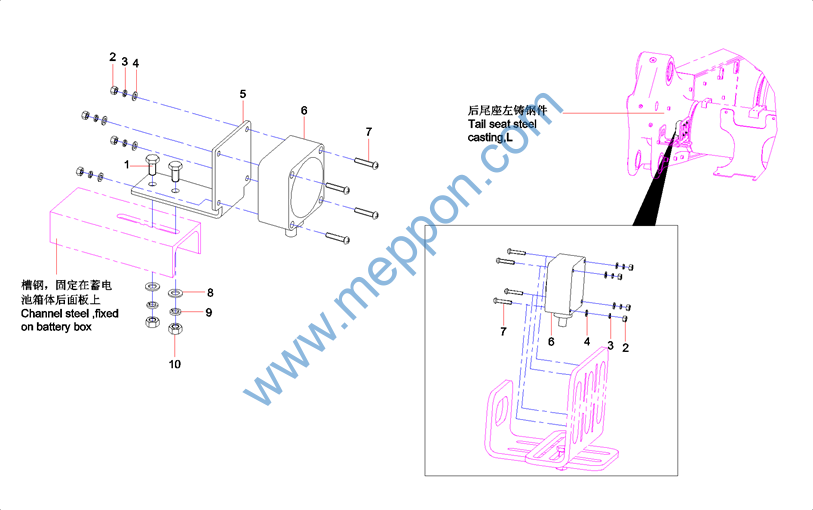

Body approach switch installation
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A210111000342 |
Bolt M8×16GB5783 10.9 grade |
6 |
|
|
2 |
A210307000015 |
Nut |
8 |
|
|
3 |
24000509 |
Washer |
8 |
|
|
4 |
24000630 |
Washer |
8 |
|
|
5 |
12924807 |
Installation plate |
1 |
|
|
6 |
60035978 |
Proximity switch |
2 |
|
|
7 |
A210210000011 |
Screw M5×25GB818 |
8 |
|
|
8 |
24000633 |
Washer |
6 |
|
|
9 |
A210401000017 |
Washer |
6 |
|
|
10 |
A210307000055 |
Nut M8GB6170 Grade 10 |
6 |
PARTS BOOK
PARTS BOOK

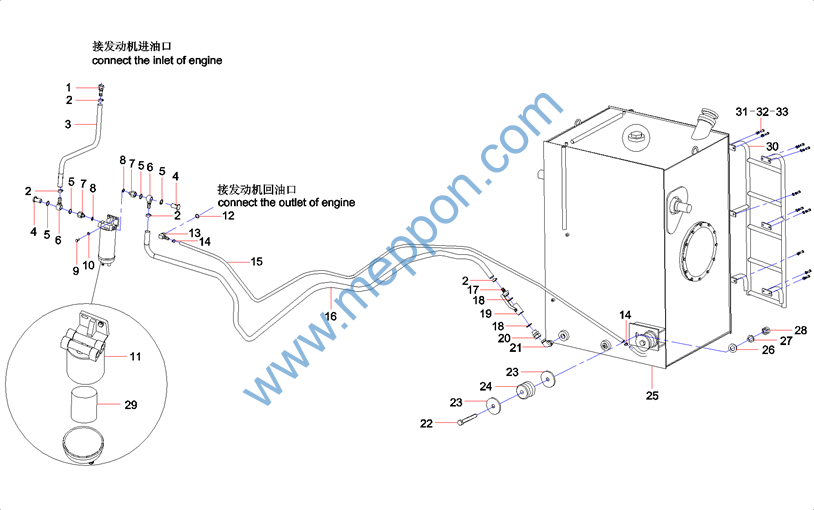

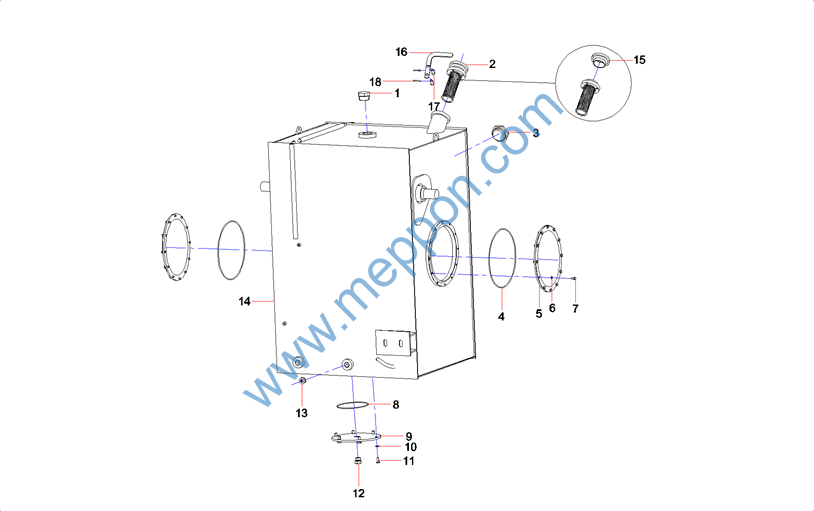

Group 28
Fuel tank assembly and pipeline installation
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A229900009509 |
Connector |
1 |
|
|
2 |
A210855000008 |
Hoop |
4 |
|
|
3 |
11614287 |
Fuel supply line |
1 |
|
|
4 |
A229900009505 |
Bolt |
2 |
|
|
5 |
A210434000013 |
Washer |
4 |
|
|
6 |
A229900009506 |
Articulating body |
2 |
|
|
7 |
10704734 |
Connector |
2 |
|
|
8 |
A210434000009 |
Washer |
2 |
|
|
9 |
A210111000197 |
Bolt |
2 |
|
|
10 |
24000637 |
Washer |
2 |
|
|
11 |
B229900005676 |
Primary filter |
1 |
|
|
12 |
A210434000011 |
Washer 22JB982 |
1 |
|
|
13 |
60008337 |
Connector |
1 |
|
|
14 |
A210855000005 |
Hoop |
2 |
|
|
15 |
11614288 |
Fuel return line |
1 |
|
|
16 |
11614258 |
Fuel supply line |
1 |
|
|
17 |
10841304 |
Connector |
1 |
|
|
18 |
A210434000015 |
Washer |
2 |
|
|
19 |
A220400000004 |
Ball valve |
1 |
|
|
20 |
21002965 |
Connector |
1 |
|
|
21 |
21002837 |
Connector |
1 |
|
|
22 |
A210110000234 |
Bolt M20×140GB5782 10.9 |
2 |
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
12171757 |
Washer |
4 |
|
|
24 |
60001062 |
Shock mount |
2 |
|
|
25 |
12952398 |
Fuel tank |
1 |
|
|
26 |
A210491000132 |
Washer |
2 |
|
|
27 |
24000515 |
Washer 20GB93 DACROMET |
2 |
|
|
28 |
A210307000029 |
Nut |
2 |
|
|
29 |
B222100000622 |
Core,filter,separator,oil-water |
1 |
|
|
30 |
13087370 |
LadderSRT95C.470.2 |
1 |
|
|
31 |
24000513 |
Washer 12GB93 DACROMET |
12 |
|
|
32 |
24000639 |
Washer 12GB97.1 |
12 |
|
|
33 |
A210111000202 |
Bolt |
12 |

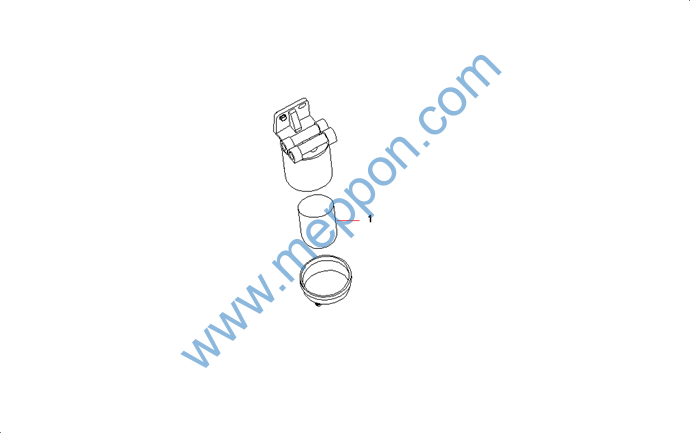

Primary filter
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B222100000622 |
Core,filter,separator,oil-water |
1 |
