SANY SRT95C Off-highway truck 14RT95100040 PARTS BOOK 15
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60223847 |
Plug |
1 |
|
|
2 |
A222100000355 |
Air cleaner |
1 |
|
|
3 |
60240021 |
Oil sign |
1 |
|
|
4 |
A210609000384 |
O-ring 365×5.3GB3452.1 |
2 |
|
|
5 |
11643404 |
Cover Plate |
2 |
|
|
6 |
24000512 |
Washer 10GB93 |
24 |
|
|
7 |
A210111000012 |
Bolt |
24 |
|
|
8 |
A210609000016 |
O-ring 180×3.55GB3452.1 |
1 |
|
|
9 |
10704464 |
Cover plate |
1 |
|
|
10 |
24000637 |
Washer |
6 |
|
|
11 |
A210111000197 |
Bolt |
6 |
|
|
12 |
21012175 |
Screw plug |
1 |
|
|
13 |
21010723 |
Plug |
1 |
|
|
14 |
12951835 |
Fueling tank welding assembly |
1 |
|
|
15 |
60203630 |
cover |
1 |
|
|
16 |
12964126 |
Ear plate Ⅱ |
1 |
|
|
17 |
A210508000040 |
Shaft, pin |
2 |
|
|
18 |
A210501000001 |
Pin |
2 |

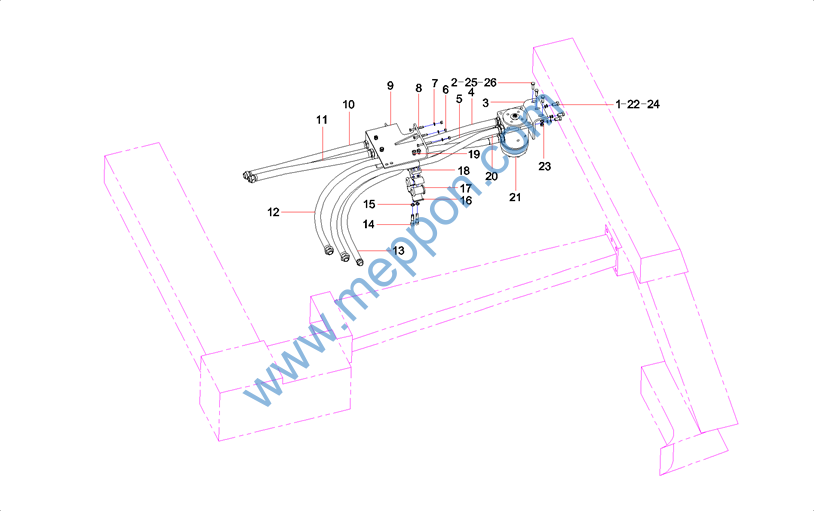

Group 29

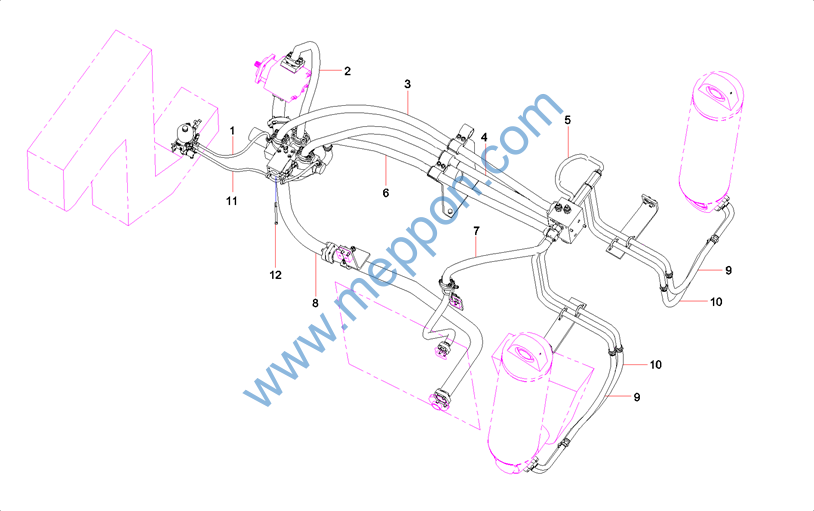

Steering pipeline

|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A229900009500 |
Bolt |
3 |
|
|
2 |
24002305 |
Bolt M10×35GB5783 Dacroment |
3 |
|
|
3 |
13069681 |
Retainer plate |
1 |
|
|
4 |
B230103006392 |
Rubber hose |
1 |
|
|
5 |
B230103004115 |
Rubber hose |
1 |
|
|
6 |
24000911 |
Nut |
3 |
|
|
7 |
A210405000045 |
Washer |
3 |
|
|
8 |
A210111000096 |
Bolt |
3 |
|
|
9 |
12952974 |
Steering valve group and adaptor |
1 |
|
|
10 |
B230103002506 |
Rubber hose |
1 |
|
|
11 |
60207502 |
rubber hose |
1 |
|
|
12 |
B230103006939 |
Hose |
1 |
|
|
13 |
B230103008339 |
Hose, rubber |
1 |
|
|
14 |
A210204000359 |
Screw |
2 |
|
|
15 |
A210401000002 |
Washer |
2 |
|
|
16 |
12951068 |
Clamp, pipe |
2 |
|
|
17 |
12953021 |
Tube clamp pad |
2 |
|
|
18 |
12951070 |
Seat |
1 |
|
|
19 |
A210307000001 |
Nut |
2 |
|
|
20 |
B230103003808 |
Hose,rubber |
1 |
|
|
21 |
12952854 |
Steering gear and adaptor |
1 |
|
|
22 |
A229900009503 |
Washer |
3 |

|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
23 |
24000868 |
Nut M10GB6170 Dacroment |
3 |
|
|
24 |
A210401000003 |
Washer |
3 |
|
|
25 |
24000637 |
Washer |
3 |
|
|
26 |
24000512 |
Washer 10GB93 |
3 |

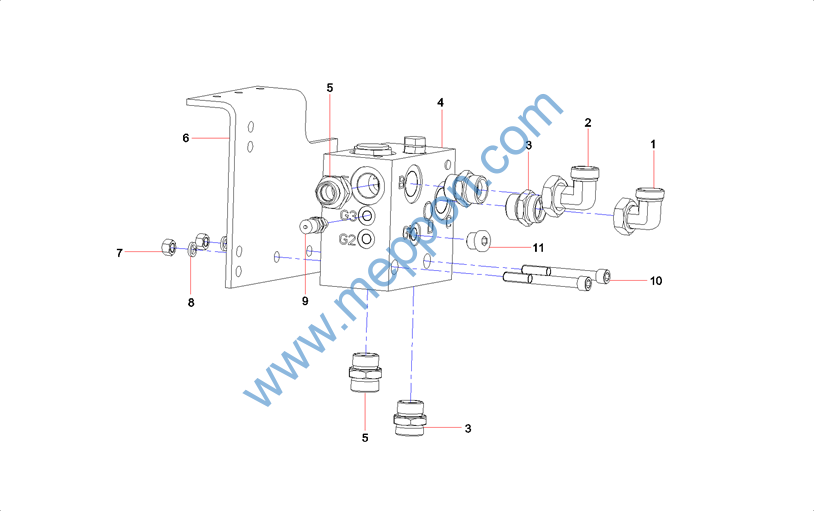

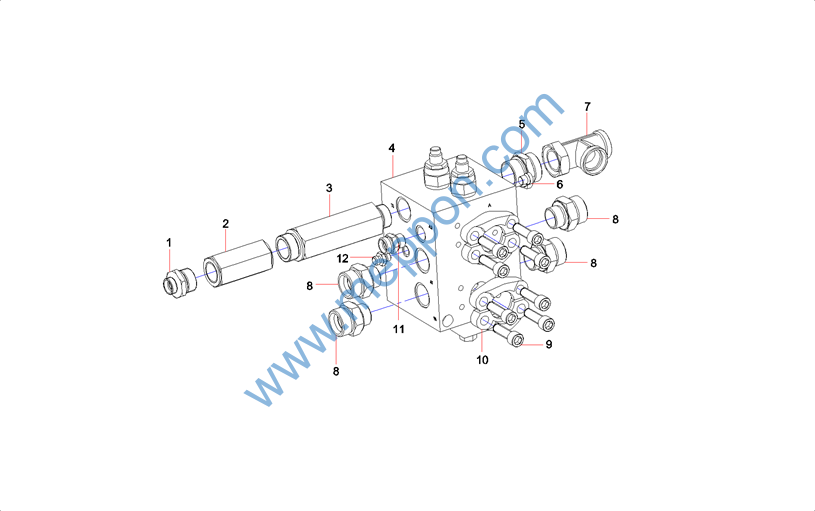

Steering valve group and adaptor
SRT95C Off-highway truck PARTS BOOK
|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B210780000838 |
Pipe connector |
1 |
|
|
2 |
B210780000029 |
Pipe connector |
1 |
|
|
3 |
B210780001005 |
Pipe connector |
2 |
|
|
4 |
60000783 |
Steering valve group |
1 |
|
|
5 |
B210780001389 |
Pipe connector |
3 |
|
|
6 |
12952950 |
Installation seat |
1 |
|
|
7 |
A210307000001 |
Nut |
2 |
|
|
8 |
A210401000002 |
Washer |
2 |
|
|
9 |
B210770000003 |
Connector, pressure measuring |
1 |
|
|
10 |
A210204000455 |
Screw |
2 |
|
|
11 |
21008717 |
Plug |
1 |

|

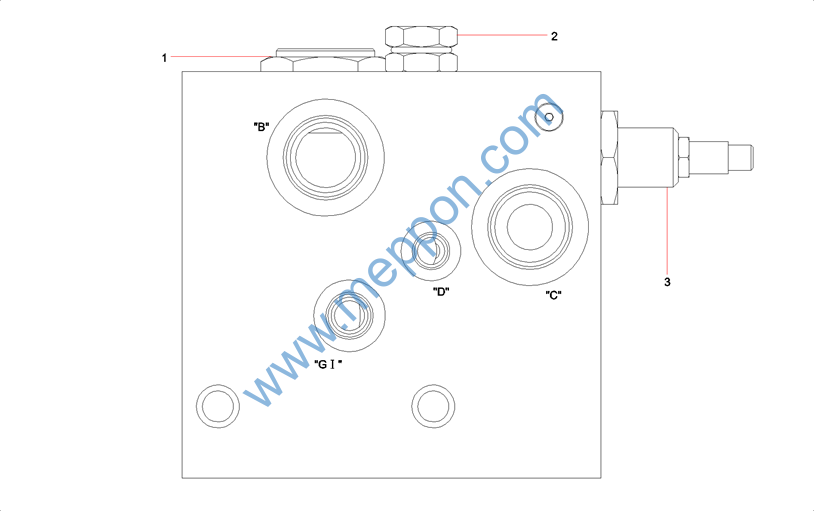

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60072692 |
Valve,check |
1 |
|
|
2 |
60096907 |
Directional valve with hydraulic actuation |
1 |
|
|
3 |
60072700 |
Valve,overflow |
1 |

|

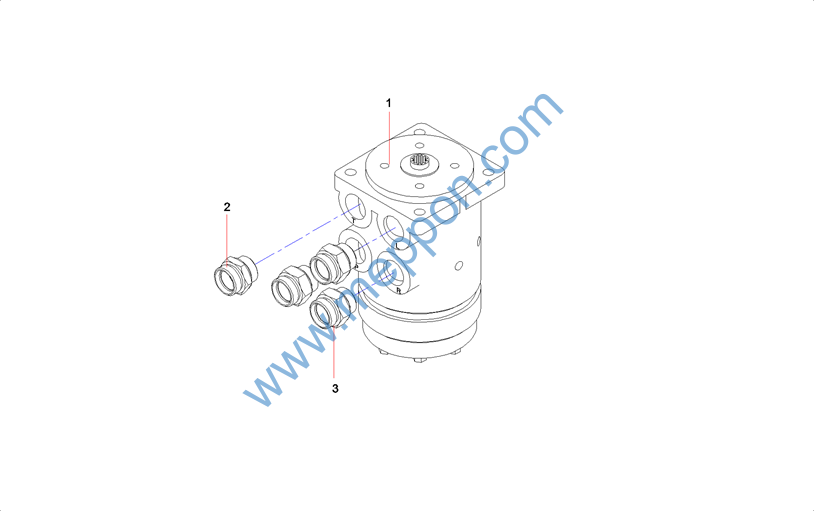

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
60001078 |
Steering control unit |
1 |
|
|
2 |
21006470 |
Connector, pipe |
1 |
|
|
3 |
A210770000590 |
Connector, pipe |
3 |
PARTS BOOK
PARTS BOOK

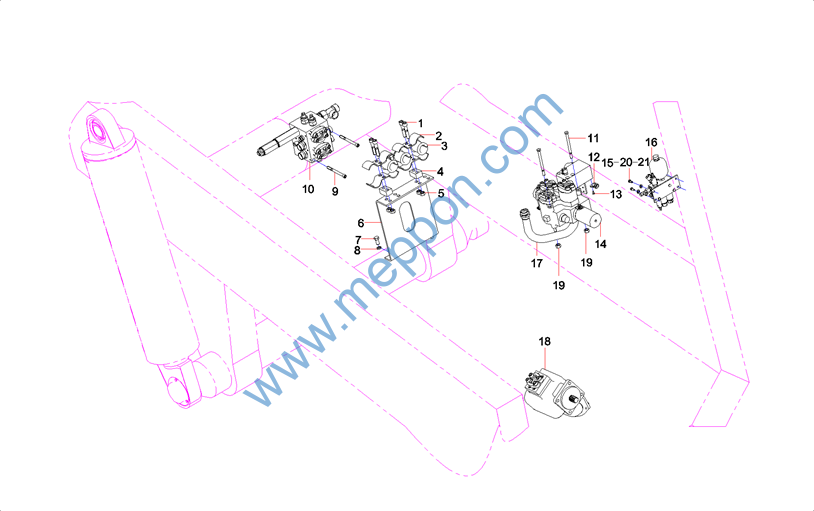

Group 30
Lifting pipeline

|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
24000779 |
Screw |
4 |
|
|
2 |
12961726 |
Clamp |
4 |
|
|
3 |
12961727 |
Tube clamp pad |
3 |
|
|
4 |
12961728 |
Clamp bearer |
2 |
|
|
5 |
A210307000028 |
Nut |
4 |
|
|
6 |
12954484 |
Fixed plate |
1 |
|
|
7 |
A229900009501 |
Screw |
2 |
|
|
8 |
A210401000004 |
Washer |
2 |
|
|
9 |
A210204000272 |
Screw |
2 |
|
|
10 |
12954500 |
Balanced valve group group |
1 |
|
|
11 |
A210110000179 |
Bolt M12×160GB5782 |
3 |
|
|
12 |
A229900006640 |
Clamp |
2 |
|
|
13 |
A210204000129 |
Screw |
2 |
|
|
14 |
12954498 |
Lifting valve group |
1 |
|
|
15 |
A210111000343 |
Bolt |
10 |
|
|
16 |
12954497 |
Leading oil sources valve group assem |
1 |
|
|
17 |
12954502 |
Steel pipe assy. |
1 |
|
|
18 |
12954514 |
Lifting pump assembly |
1 |
|
|
19 |
A210307000031 |
Nut |
3 |
|
|
20 |
A210404000005 |
Washer |
4 |
|
|
21 |
A210307000012 |
Nut |
4 |

|

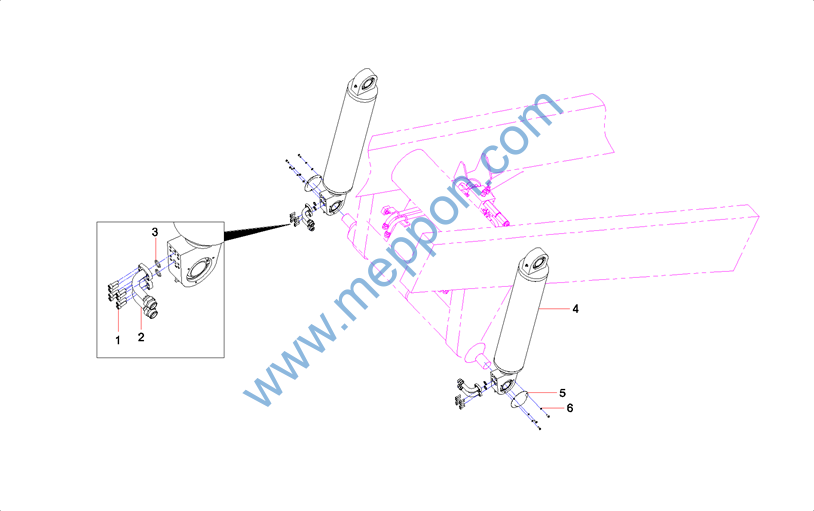

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A210204000215 |
Screw |
20 |
|
|
2 |
12954493 |
Steel pipe assy. |
4 |
|
|
3 |
A210609000195 |
O-ring |
4 |
|
|
4 |
60212670 |
Hoisting cylinder |
2 |
|
|
5 |
12986488 |
Cover plate |
2 |
|
|
6 |
A210401000017 |
Washer |
10 |

|

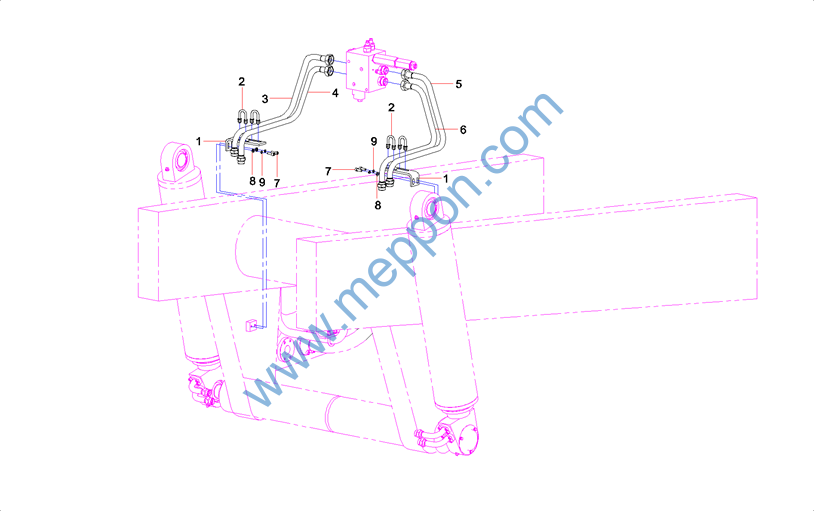

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
12954485 |
Fixed seat |
2 |
|
|
2 |
60008273 |
U-clamp |
4 |
|
|
3 |
12954504 |
Steel pipe assy. |
1 |
|
|
4 |
12954506 |
Steel pipe assy. |
1 |
|
|
5 |
12954508 |
Steel pipe assy. |
1 |
|
|
6 |
12954510 |
Steel pipe assy. |
1 |
|
|
7 |
A210204000225 |
Screw |
6 |
|
|
8 |
A210404000004 |
Washer |
6 |
|
|
9 |
A210401000002 |
Washer |
12 |

|

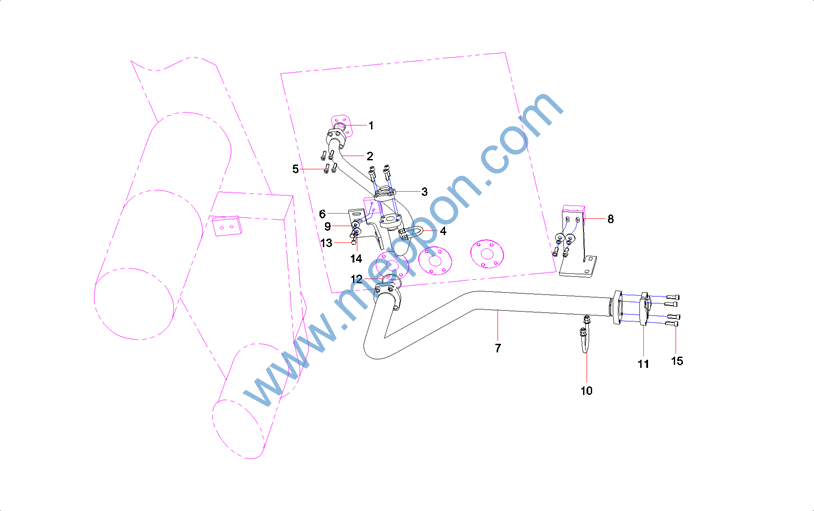

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B230101002071 |
O-ring |
1 |
|
|
3 |
A229900002488 |
Split flange clamp |
2 |
|
|
4 |
60008274 |
U-clamp |
1 |
|
|
5 |
A210204000355 |
Screw |
4 |
|
|
6 |
12954486 |
Pipe clamp seat |
1 |
|
|
7 |
12954516 |
Steel pipe assy. |
1 |
|
|
8 |
12954015 |
Pipe clamp seat |
1 |
|
|
9 |
A210404000003 |
Washer |
2 |
|
|
10 |
60008277 |
U-CLAMP |
1 |
|
|
11 |
21018528 |
Split flange |
4 |
|
|
12 |
B230101002072 |
O-ring |
1 |
|
|
13 |
24000527 |
Bolt M10×30GB5783 Dacroment |
2 |
|
|
14 |
A210401000001 |
Washer |
2 |
|
|
15 |
A210204000206 |
Screw |
12 |

|
Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
B230103005499 |
Hose |
1 |
|
|
2 |
60206714 |
Rubber Hose |
1 |
|
|
3 |
B230103007653 |
Hose,rubber |
1 |
|
|
4 |
23001434 |
Hose, rubber |
1 |
|
|
5 |
60234814 |
rubber hose |
1 |
|
|
6 |
B230103005872 |
Hose, rubber |
1 |
|
|
7 |
60035669 |
Hose |
1 |
|
|
8 |
60234813 |
rubber hose |
1 |
|
|
9 |
60212562 |
Hose, rubber |
2 |
|
|
10 |
60024615 |
Hose |
2 |
|
|
11 |
B230103001518 |
Hose,rubber |
1 |
|
|
12 |
A210204000354 |
Screw |
4 |
