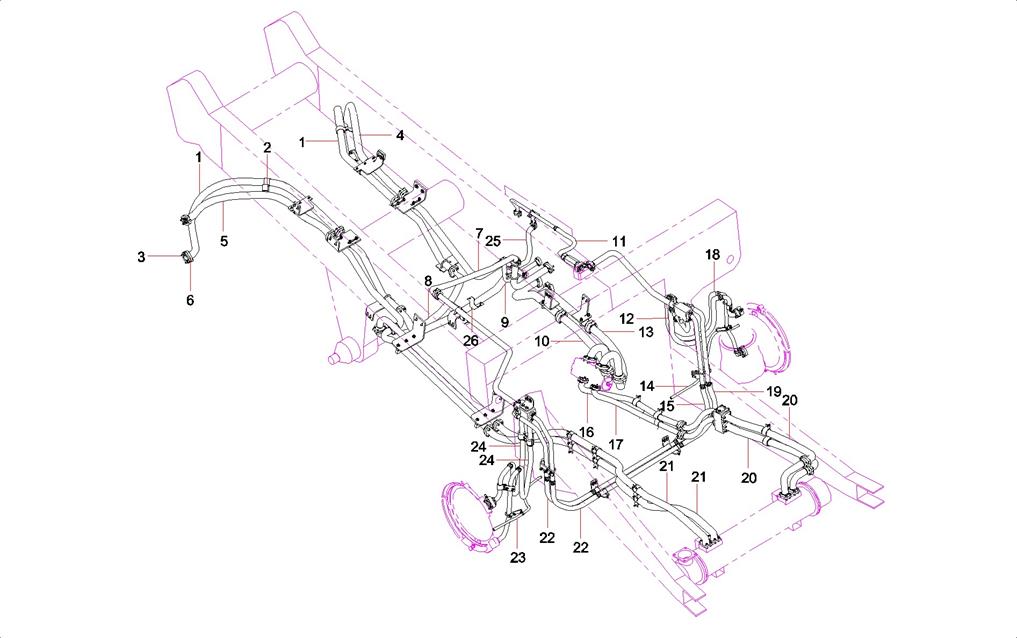

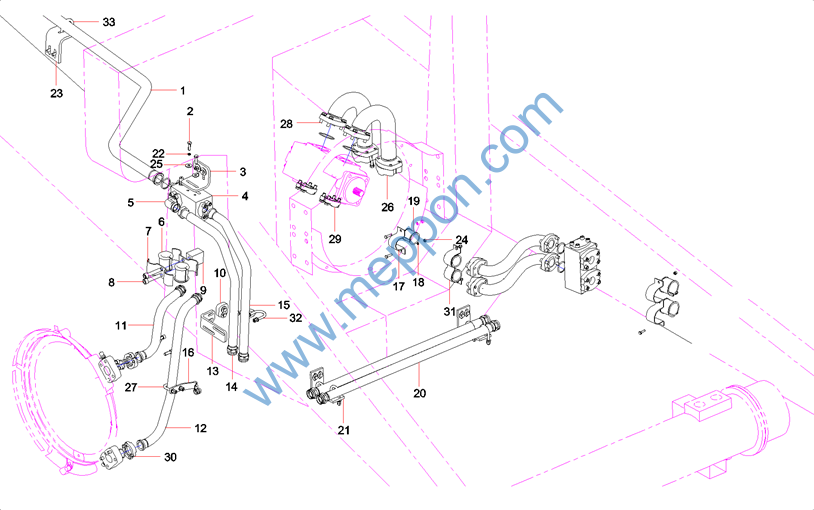

Item No.

Part No.

Description

Qty.

Remark

1

13427622

Steel pipe assembly SRT95C.613A.14

1

2

21005185

Bolt

16

3

13427399

Fixed seat SRT95C.613A-4

1

4

13427398

Block SRT95C.613A-3

1

5

A210770000614

Joint, flange, right-angle

2

6

12961727

Tube clamp pad

2

7

12961726

Clamp

2

8

24000779

Screw

2

9

13427404

Clamp bearer SRT95C.613A-9

1

10

13427402

Fixed seat SRT95C.613A-7

1

11

13427816

Steel pipe assembly SRT95C.613A.4

1

12

13427683

Steel pipe assembly SRT95C.613A.5

1

13

13427391

Fixed seat SRT95C.613A-10

1

14

13427689

Steel pipe assembly SRT95C.613A.7

1

15

13427691

Steel pipe assembly SRT95C.613A.8

1

16

13427395

plate SRT95C.613A-14

1

17

13075548

Pipe clamp

1

18

A210401000017

Washer

24

19

11082221

Rubber ring

3

20

13427779

Steel pipe assembly SRT95C.613A.10

2

21

13431894

Plate SRT95C.613A-16

2

22

A210401000001

Washer

22

Item No.

Part No.

Description

Qty.

Remark

23

13299431

plate SRT95C.613-1

1

24

A210307000055

Nut M8GB6170 Grade 10

24

25

A210404000003

Washer

22

26

60024155

Flange, SAE

12

27

60008272

U-Clamp

2

28

A210111000332

Bolt M12×40GB5783 12.9 grade

16

29

B210780000249

Flange, SAE

15

30

B210780000644

Flange, split

20

31

11266123

Pipe clamp

1

32

60008274

U-clamp

9

33

60008275

U-clamp

2

Item No.

Part No.

Description

Qty.

Remark

1

60086946

Hose,rubber

1

2

11082245

Clamp

6

3

A210204000351

Screw

8

4

60035743

Hose,rubber

1

5

B230103005092

Rubber Hose

1

6

12026181

Flange

2

7

60265081

Rubber hose

1

8

60234818

rubber hose

1

9

60234820

rubber hose

1

10

60234822

rubber hose

1

11

B230103002218

Hose

1

12

B230103001140

Hose, rubber

1

13

60234821

Rubber hose

1

14

B230103000336

Hose, rubber

1

15

60029255

Hose

1

16

B230103003630

Hose, rubber

1

17

B230103001820

Hose, rubber

1

18

B230103001070

Hose, rubber

1

19

B230103003458

Hose

1

20

60234815

rubber hose

2

21

60105326

Hose assembly

2

22

B230103000070

Hose, rubber

1

Item No.

Part No.

Description

Qty.

Remark

23

B230103000337

Rubber hose

1

24

60040346

Hose

2

25

60265082

Rubber hose

1

26

12954164

Pipe clamp

1

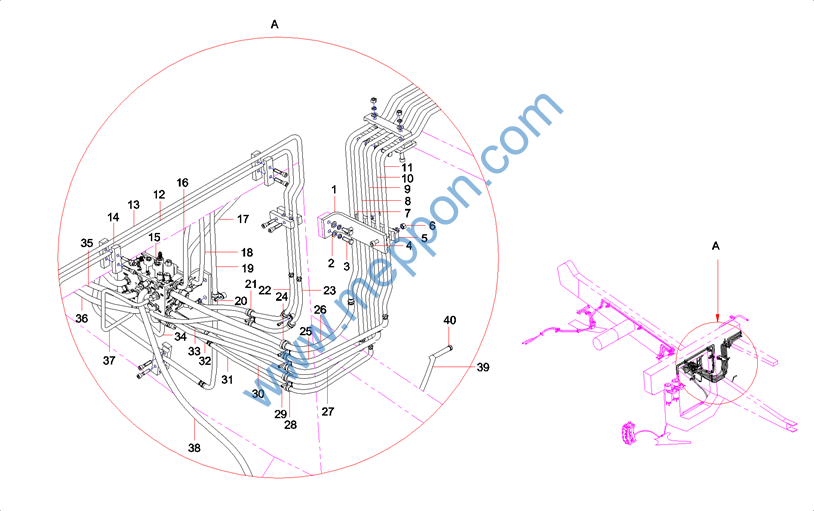

Item No.

Part No.

Description

Qty.

Remark

1

12954325

Pipe clamp seat

2

2

24000639

Washer 12GB97.1

8

3

21005215

Bolt

8

4

A210204000228

Screw

4

5

12954326

Pipe nip

4

6

A210307000001

Nut

4

7

12954403

Steel tube assy.

1

8

12954405

Steel tube assy.

1

9

12954411

Steel tube assy.

1

10

12954413

Steel tube assy.

1

11

12954415

Steel tube assy.

1

12

12954349

Steel tube assy.

1

13

12954347

Steel tube assy.

1

14

13078381

Pipe nip

6

15

12954468

Brake valve group & adaptor installation

1

16

60245345

Rubber hose

1

17

60234831

rubber hose

1

18

60245344

Rubber hose

1

19

60234828

rubber hose

1

20

A210204000130

Screw

4

21

A229900006640

Clamp

11

22

B230103000453

Hose, rubber

1

Item No.

Part No.

Description

Qty.

Remark

23

B230103003858

Hose, rubber

1

24

60000421

Pipe clamp

10

25

B230103005317

Rubber Hose

1

26

B230103008029

Hose,rubber

1

27

60234829

rubber hose

1

28

60016761

Pipe clamp

1

29

A210204000131

Screw

9

30

60234832

rubber hose

1

31

60088695

Hose

1

32

12954351

Steel tube assy.

1

33

12954452

Steel tube assy.

1

34

12954375

Steel tube assy.

1

35

B230103002444

Hydraulic Hose Assembly

1

36

B230103001183

Hose

1

37

12954364

Steel tube assy.

1

38

B230103008185

Hose,rubber

1

40

B210780001048

Connector, pipe

2

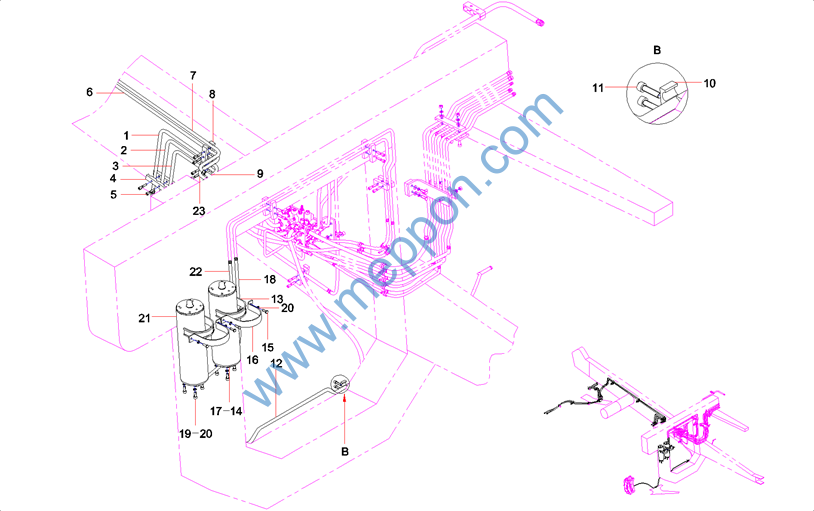

Item No.

Part No.

Description

Qty.

Remark

1

12954343

Steel tube assy.

1

2

12954345

Steel tube assy.

1

3

12954401

Steel tube assy.

1

4

12954328

Pipe nip

2

5

A210204000356

Screw

18

6

12954419

Steel tube assy.

1

7

12954417

Steel tube assy.

1

8

12025449

Clamp

10

9

B230103004028

Hose, rubber

1

10

12954327

Pipe nip

6

11

A210204000355

Screw

6

12

12954377

Steel tube assy.

1

13

12877280

Rubber Pad

2

14

B210780001246

Connector, pipe

2

15

A210111000024

Bolt

4

16

12877468

Energy Storage Thimble

2

17

21002823

Pipe connector

2

18

B230103003877

Hose, rubber

1

19

A210204000337

Screw

6

20

24000513

Washer 12GB93 DACROMET

22

21

60211733

Piston type accumulator

2

22

B230103000461

Hose, rubber

1

Item No.

Part No.

Description

Qty.

Remark

23

60035748

Rubber Hose

1

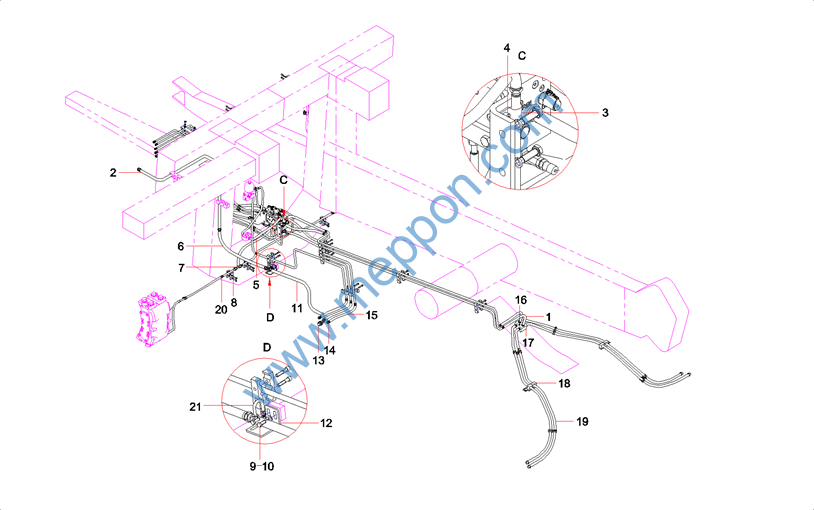

Item No.

Part No.

Description

Qty.

Remark

1

B230103007874

Hose,rubber

2

2

13304560

Steel tube assembly SRT95C.613.25

1

3

12954466

Bent plate

1

4

A210204000220

Screw

2

5

60097870

Hose

1

6

21030908

Hose, rubber

1

7

B210780000017

Pipe connector

1

8

12954379

Steel tube assy.

1

9

A210111000197

Bolt

2

10

24000637

Washer

2

11

12954445

Steel tube assy.

1

12

12953836

Pipe clamp seat

1

13

21002827

Pipe connector

1

14

21002822

Pipe connector

3

15

23000800

Hose,rubber

3

16

A210204000151

Screw

2

17

12954450

Assembly of brake distributor block

1

18

B210851000004

Clamp, single pipe

4

19

B230103003970

Hose, rubber

4

20

B210780000684

Connector, pipe

2

21

60008272

U-Clamp

1

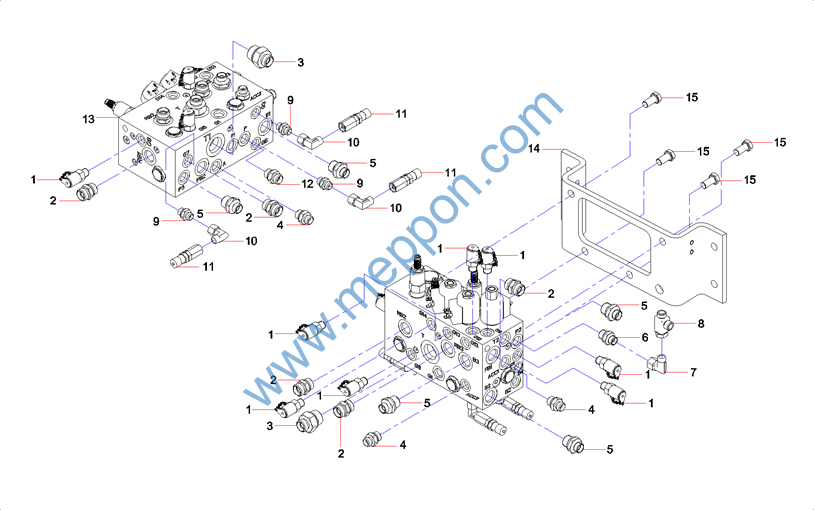

Item No.

Part No.

Description

Qty.

Remark

1

B210770000003

Connector, pressure measuring

8

2

21002822

Pipe connector

5

3

21002823

Pipe connector

2

4

21002819

Pipe connector

3

5

21008338

Fitting, pipe

5

6

B210780000177

Connector, pipe

1

7

B210780000636

Pipe connector

1

8

B210780000015

Connector, pipe

1

9

21002815

Pipe connector

3

10

B210780000418

Connector, pipe

3

11

B210770000002

Pressure-measuring Connector

3

12

B210780000180

Connector, pipe

1

13

60189516

Brake valve group

1

14

12954467

Bent plate

1

15

A210111000101

Bolt

4

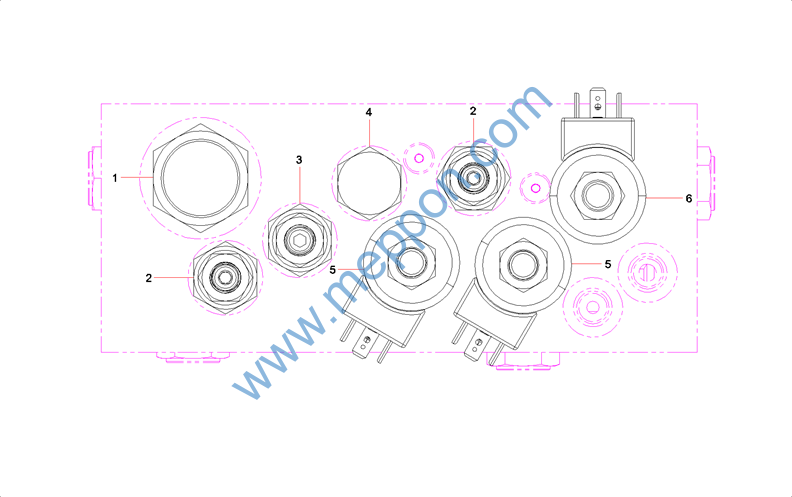

Item No.

Part No.

Description

Qty.

Remark

1

60046289

High pressure filter

1

2

B220401000920

Reduce valve

2

3

60072697

Relief valve

1

4

24004232

Valve,cartridge

1

5

B220401000301

Directional valve with solenoid

1

6

60208509

Porprotional reduce valve

1
