序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

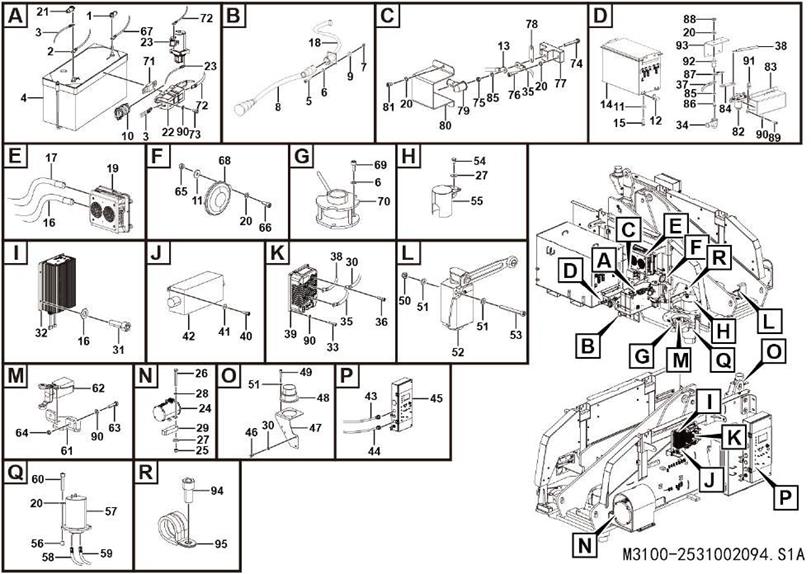

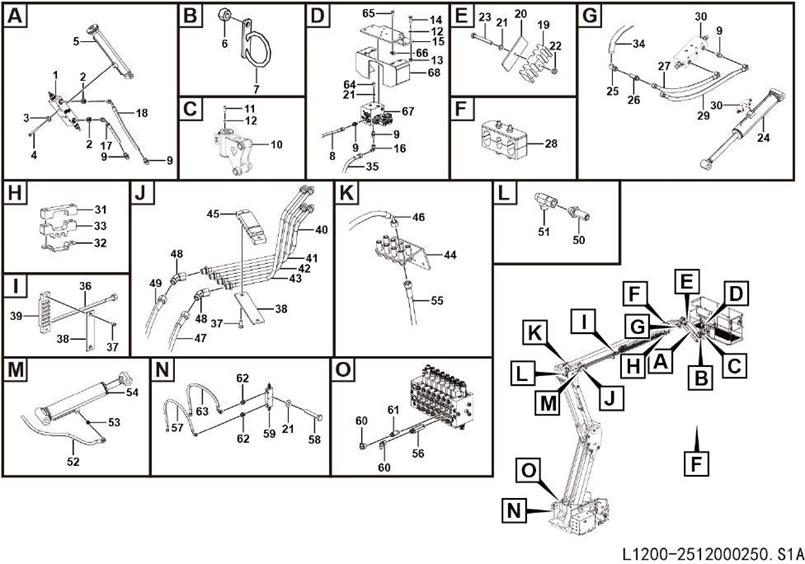

1

4120707614

飞臂平衡阀ST8234-A000

Fly boom balance valve

Y

1

2

4120001391

接头GE08LR3/8EDOMDCF

Jiont

Y

2

3

4015010284

垫圈GB97.1-6flZnyc-480

Washer gb97.1-6flznyc-480

Y

7

4

4011010950

螺栓GB5783-M6*45flZnyc-10.9-480

Bolt gb5783-m6*45flznyc-10.9-480

Y

7

5

4120705607

飞臂油缸

Jib cylinder

Y

1

6

25080001001

隔环

Spacer ring, 25*15

Y

2

7

25120001961

焊接圆环

Welding round ring

Y

2

8

4120704980

软管F471TCCACF080804-940

Hose f471tccacf080804-940

Y

2

9

4120001170

接头GE08LREDOMDCF

Fitting ge08lredomdcf

Y

10

10

4120707982

马鞍式摆动缸HBM95/180

Rotator

Y

1

11

4014010275

螺钉GB70.1-M10*25flZnyc-10.9-480

Screw

Y

8

12

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

16

13

4013010296

螺母GB889.1-M10flZnyc-8

Nut gb889.1-m10flznyc-8

Y

4

14

4011010707

螺栓GB5783-M10*30flZnyc-8.8-480

Bolt gb5783-m10*30flznyc-8.8-480

Y

4

15

25120001752

平台阀安装板

Platform valve mounting plate

Y

1

16

4190000698

接头EW08LOMDA3C

Fitting ew08lomda3c

Y

2

17

4120705925

软管FC402CACF080804-1450

Hose

Y

1

18

4120704937

软管FC402CACF080804-1500

Hosefc402cacf080804-1500 ， travel motor

Y

1

19

25120001311

飞臂管夹

Fly boom clamp

Y

2

20    25120000061    飞臂管夹压板    Fly jib pipe clamp pressure plate, for fixing flying jib pipe    Y    2

clamp

21

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

13

22

4013010314

螺母GB6185-M8flZnyc-8

Nut gb6185-m8flznyc-8

Y

4

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

23

4011011175

螺栓GB5782-M8*65flZnyc-8.8-480

Bolt gb5782-m8*65flznyc-8.8-480

Y

2

24

4120709550

上调平油缸90*45*345-697

Adjust and level the oil cylinder

Y

1

25

4120706262

接头EV08LOMDCF

Joint

Y

2

26

4120704926

直通隔板接头SV08LOMDCF

Nipple sv08lomdcf

Y

2

27

4120705424

软管F471TCCACF080804-410

Hose assembly

Y

1

28

25120002551

拖链管夹总成

Clamp assembly

N

3

29

4120705139

软管F471TCCACF080804-440

Hose f471tccacf080804-440

Y

1

30

4120001549

调平平衡阀

Leveling balance valve

Y

1

31

25120002521

拖链管夹

Clip

Y

1

32

25120003002

拖链管夹压板

Plate

Y

1

33

25120002992

拖链管夹2

Clamp

Y

1

34

4120709867

软管F471TCCAD0081206-9500

Hose f471tccad0081206-9500

Y

2

35

4120708782

软管F471TCCAD0081206-11900

Hose assembly

Y

2

36

25120002591

钢管1-1890

Steel pipe 1-2054

Y

4

37

4014010592

螺钉GB70.3-M8*25flZnyc-8.8-480

Screw gb70.3-m8*25flznyc-8.8-480

Y

6

38

25120002301

臂架钢管管夹压板

Plate

Y

3

39

25120002533

臂架钢管管夹

Boom tube clip

Y

2

40

25120002631

钢管5

Steel pipe 5

Y

1

41

25120002621

钢管4

Steel pipe 4

Y

1

42

25120002611

钢管3

Steel pipe 3

Y

1

43

25120002601

钢管2

Steel pipe 2-4854

Y

1

44

25120002561

过板接头组

Overboard joint group

N

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

45

25120002583

钢管管夹

Tube clip

Y

1

46

4120002358

软管F471TCCACE101206-750

Pipe f471tccace101206-750

Y

2

47

4120709967

软管F471TCCACE121206-1500

Hose f471tccace121206-1500

Y

1

48

4120705901

接头EV12LOMD

Joint ev12lomd

Y

4

49

4120709632

软管F471TCCACF121006-650

Flexible pipe f471tccacf121006-650

Y

1

50

4120705697

直通过板接头SV10LOMDCF

Bulkhead fitting sv10lomdcf

Y

2

51

4120001168

三通接头EL10LOMDCF

Three-way jiont

Y

2

52

4120709626

软管F471TCCACF101006-800

Flexible pipef471tccacf101006-800

Y

2

53

4120001188

接头GE10LREDOMDCF

Fitting ge10lredomdcf

Y

2

54

4120709551

下调平油缸90*45*343-667

Lwr leveling cylinder

Y

1

55

4120709627

软管F471TCCACA121206-9350-AS9200

Flexible pipef471tccaca121206-9350-as9200

Y

1

56

4120710019

溢流阀KLF06-10-210-20

Overflow valve klf06-10-210-20

Y

1

57

4120707883

软管F471TCCACF121206-570

Pipe f471tccacf121206-570

Y

1

58

4011010973

螺栓GB5783-M8*50flZnyc-8.8-480

Bolt gb5783-m8*50flznyc-8.8-480

Y

2

59

4120709604

调平管式平衡阀STA0620R2G38C25

Valve sta0620r2g38c25

Y

1

60

4129900314

接头EW12LOMDA3C

Fitting ew12lomda3c

Y

6

61

4120706890

加高接头GE12LREDOMDCF-H60

Joint

Y

1

62

4120001224

接头GE12LREDOMDCF

Fitting ge12lredomdcf

Y

6

63

4120708369

软管F471TCCACF121206-650

Pipe

Y

1

64

4011010711

螺栓GB5783-M8*20flZnyc-8.8-480

Bolt gb5783-m8*20flznyc-8.8-480

Y

5

65

4011010748

螺栓GB5783-M10*20flZnyc-8.8-480

Bolt gb5783-m10*20flznyc-8.8-480

Y

4

66

4013010370

簧片螺母QC339-M10flZnyc-8-480

Reed nut qc339-m10flznyc-8-480

Y

4

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

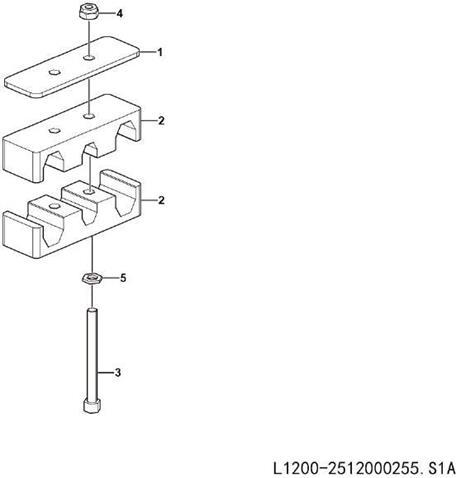

1

25120002541

压板

Plate

Y

1

2

25120002512

拖链管夹

Clamp

Y

2

3

4014010665

螺钉GB70.1-M6*60flZnyc-8.8-480

Bolt gb70.1-m6*60flznyc-8.8-480

Y

2
