LONKING CDM1165 CDM1185 CDM1220 MOTOR GRADER PARTS CATALOG 01
1. 前机身装配（一） Front Frame Assembly (Ⅰ) (CDM1165)

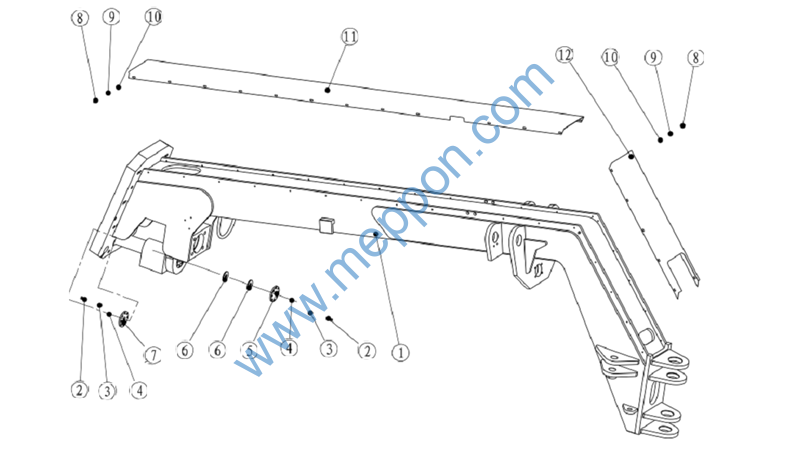

Figure 01 Front Frame Assembly (Ⅰ) (CDM1165)
|
Fig.01 |
前机身装配（一） Front Frame Assembly(Ⅰ) (CDM1165) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1165.05.01 |
前机身焊接 |
Front frame welding |
1 |
||
|
2 |
GB/T5783-86 |
螺栓 |
Bolt |
M12X25 |
16 |
|
|
3 |
GB/T93-87 |
垫圈 |
Washer |
12 |
16 |
|
|
4 |
GB/T1152-89 |
油杯 |
Oil cup |
M10X1 |
2 |
|
|
5 |
LG1165.05-015 |
板 |
Plate |
1 |
||
|
6 |
LG1185.05-029 |
垫片 |
Gasket |
2 |
90050029 |
|
|
7 |
LG1185.05-014 |
板 |
Plate |
1 |
90050014 |
|
|
8 |
GB/T5783-86 |
螺栓 |
Bolt |
M8X20 |
34 |
|
|
9 |
GB/T93-87 |
垫圈 |
Washer |
8 |
34 |
|
|
10 |
GB/T97.1-85 |
垫圈 |
Washer |
8 |
34 |
|
|
11 |
LG1165.05-011 |
罩板1 |
Cover PlateⅠ |
1 |
||
|
12 |
LG1165.05-030 |
下罩板 |
Lower cover Plate |
1 |
||
2. 前机身装配（一）Front Frame Assembly (Ⅰ) (CDM1185, CDM1220)

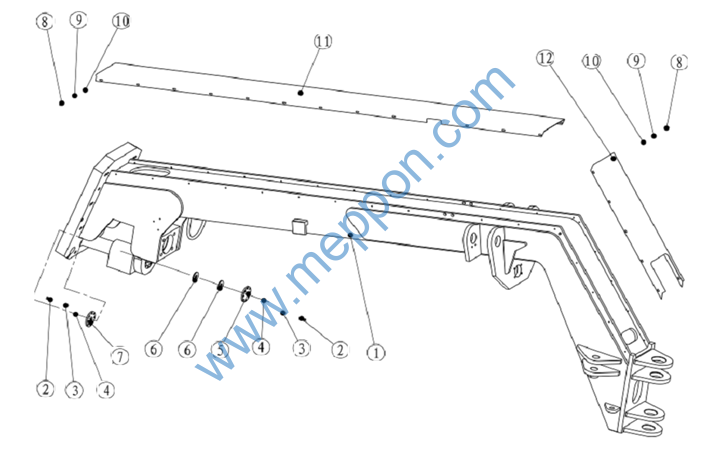

Figure 02 Front Frame Assembly(Ⅰ) (CDM1185, CDM1220)
|
Fig.02 |
前机身装配（一）Front Frame Assembly(Ⅰ) (CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.05.01 |
前机身焊接 |
Front frame welding |
1 |
90051000 |
|
|
2 |
GB/T5783-86 |
螺栓 |
Bolt |
M12X25 |
16 |
|
|
3 |
GB/T93-87 |
垫圈 |
Washer |
12 |
16 |
|
|
4 |
GB/T1152-89 |
油杯 |
Oil cup |
M10X1 |
2 |
|
|
5 |
LG1185.05-015 |
板 |
Plate |
1 |
90050015 |
|
|
6 |
LG1185.05-029 |
垫片 |
Gasket |
2 |
90050029 |
|
|
7 |
LG1185.05-014 |
板 |
Plate |
1 |
90050014 |
|
|
8 |
GB/T5783-86 |
螺栓 |
Bolt |
M8X18 |
34 |
|
|
9 |
GB/T93-87 |
垫圈 |
Washer |
8 |
34 |
|
|
10 |
GB/T97.1-85 |
垫圈 |
Washer |
8 |
34 |
|
|
11 |
LG1185.05-011 |
罩板1 |
Cover Plate Ⅰ |
1 |
90050011 |
|
|
12 |
LG1185.05-030 |
罩板3 |
Cover Plate Ⅲ |
1 |
90050030 |
|
