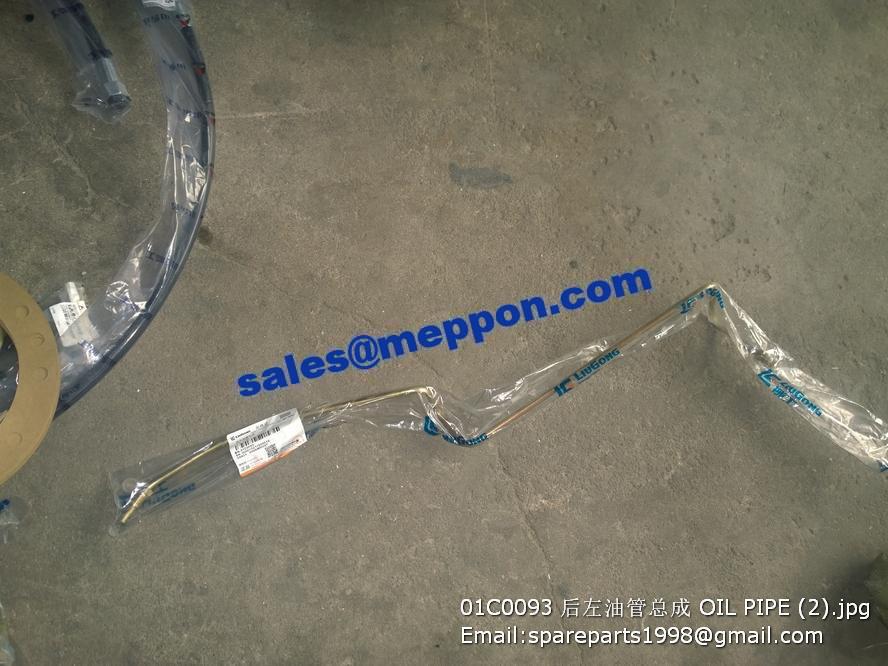

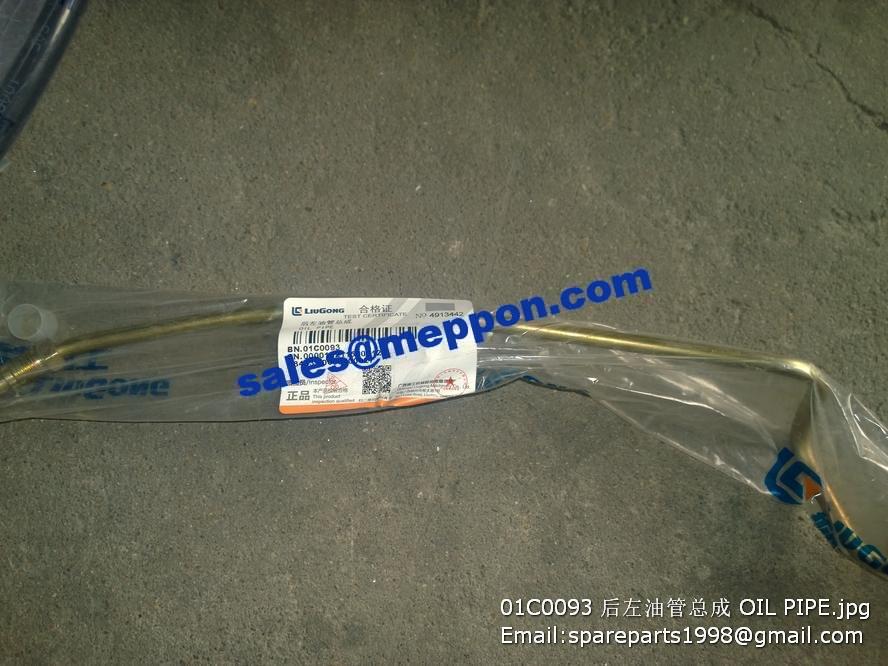

01C0093 LIUGONG OIL PIPE

1 41A0122 001 外环齿轮 GEAR 1
2 75A0011 000 弹簧 SPRING 3
3 53A0393 001 压盖 COVER 1
4 61A0034 000 螺栓 BOLT 20
5 03B0035 000 螺母 NUT 20
6 06B0002 000 垫圈 WASHER 20
7 21B0011 000 球轴承 BALL BEARING 1
8 21B0013 000 球轴承 6010 BALL BEARING 1
9 47A0047 001 内环凸轮 CAM 1
10 56A0310 000 隔离环 SPACER RING 1
11 60A0712 000 滚柱 ROLLER 18
12 07B0023 000 挡圈 SNAP RING 1
13 55A0058 000 隔离套 SPACER SLEEVE 1
14 21B0001 000 球轴承 6210 BALL BEARING 2
15 55A0059 000 间隔套 SPACER SLEEVE 1
16 44A0014 000 中间输入轴 INPUT SHAFT 1

1 62A0007 002 倒档行星架
REVERSE
PLANET
CARRIER
1
2 41A0104 003 行星轮
PLANETARY
GEAR
4
3 57A0021 000 垫片 SHIM 8
4 60A0415 002 倒档行星轴
REVERSE
PLANET SHAFT
4
5 57A0022 000 止动垫圈 PLAIN WASHER 4
6 55A0064 000 隔套 SPACER SLEEVE 8
7 21B0013 000 球轴承 6010 BALL BEARING 1
8 20B0015 000 滚针
ROLLING
NEEDLE
88
9 00B0026 000 螺栓 BOLT 4

1 62A0008 003 直接档连接盘 PLATE 1
2 21B0023 002 日本 NSK6210NR BALL BEARING 1
3 56A0029 001 止动盘 THRUST PLATE 1
4 60A0416 002 一档行星轴 PLANET SHAFT 4
5 57A0021 000 垫片 SHIM 8
6 55A0064 000 隔套 SPACER SLEEVE 8
7 41A0104 003 行星轮
PLANETARY
GEAR
4
8 20B0015 000 滚针
ROLLING
NEEDLE
88
9 76A0009 000 挡圈 SNAP RING 1
10 41A0010 004 倒档内齿圈 GEAR RING 1
11 41A0012 002 一档行星架
PLANETRAY
CARRIER
1
12 00B0017 000 螺栓 BOLT 4

1 41A0011 002 中间输出轴齿轮 SHAFT GEAR 1
2 02B0002 000 螺栓 BOLT 12
2 02B0022 000 螺栓 BOLT 12
3 06B0008 000 垫圈 WASHER 12
4 77A0014 000 铁丝 WIRE 6
6 21B0006 000 球轴承 6311 BALL BEARING 1
7 80A0020 000 油封环 SEAL RING 1
8 39A0005 003 直接挡油缸
DIRECT DRIVE
CLUTCH PISTON
1
9 21B0009 000 球轴承 BALL BEARING 1
10 80A0019 000 油封环 SEAL RING 1
11 07B0010 000 挡圈 SNAP RING 1
12 75A0008 001 碟形弹簧 DISK SPRING 1
13 08B0018 000 销 PIN 3
14 52A0017 001 直接挡受压盘 CARRIER PLATE 1
15 60A0046 000 圆柱销 PIN 6
16 56A0028 000 直接挡从动片 DRIVEN PLATE 1
17 37C0001 001 直接挡主动片总成 FRICTION PLATE 2
18 21B0010 000 球轴承 6022 BALL BEARING 1
19 62A0010 000 直接挡轴 SHAFT 1
20 00B0075 000 螺栓 BOLT 12
21 06B0005 000 垫圈 WASHER 12
22 03B0021 000 螺母 NUT 12
23 10A0063 001 扣紧片 FASTENER 6
